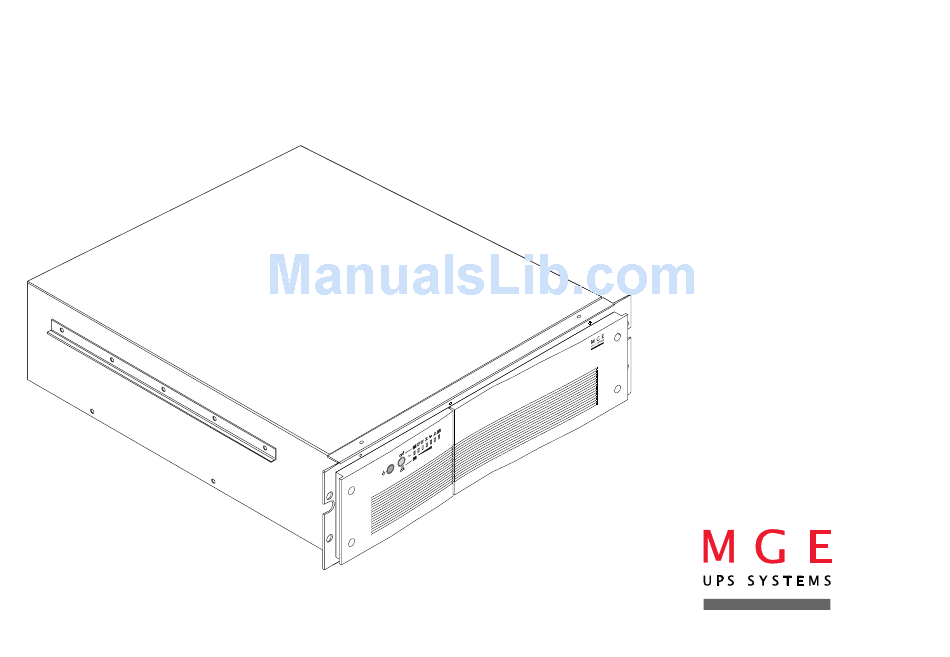

- Page 1 Pulsar™ ESV 8+ Rack / 11+ Rack 14+ Rack / 22+ Rack user manual www.mgeups.com...
- Page 2 Please feel free to call us at our toll-free number on the last page should you require assistance. Yours truly, MGE UPS SYSTEMS Federal Communications Commission (FCC) Statement Note: this equipment has been tested and found to comply with Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when equip- ment is operated in a residential environment.
-
Page 3: Safety Rules
Pulsar; do not plug household appliances such as hair dryers into Pulsar receptacles; MGE UPS SYSTEMS MGE UPS SYSTEMS Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00 do not place Pulsar in direct sunlight or close to heat- emitting sources;... - Page 4 MGE UPS SYSTEMS Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00...
-
Page 5: General Contents
Pulsar illustrations and features key diagram introduction / getting started/ operation MGE UPS SYSTEMS Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00... - Page 6 ESV 8+ Rack /11+ Rack /14+ Rack /22+ Rack Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00 rear view of ESV11+ Rack /14+ Rack MGE UPS SYSTEMS...
- Page 7 ESV8+ Rack MGE UPS SYSTEMS Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00 The indispensable companion sofware for your UPS L'indispensable complément logiciel de votre onduleur n /E in U e /I...
- Page 8 1e yellow indicator light flashing quickly only: plug 2 not powered, 1f yellow indicator light flashing quickly only: plug 1 not powered, 1g green indicator light on continuously: operating on utility, green indicator light flashing: battery back-up time, MGE UPS SYSTEMS...
- Page 9 30A, circuit protector for Pulsar ESV 22+ Rack 6a 10A, delayed fuse for Pulsar ESV 8+ Rack , 6b fuse holder, MGE UPS SYSTEMS Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00 output receptacles for connection of comput- er equipments to Pulsar ESV+ Rack...
- Page 10 UPSs. MGE UPS SYSTEMS created Solution-PacTM for this purpose. Solution-PacTM combines all these func- tions in a single CD-ROM, usable in local or remote mode (TCP/IP and SNMP), and covering the main net- work environments.
-
Page 11: Table Of Contents
MGE UPS SYSTEMS Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00 introduction ...12 benefits ...12 options...12 getting started ...13 installation ...13 preliminary checks ...13 connections ...13 power connections ...13 serial connections ...13 computer network protection...13 communication ...14 operation ...15 starting up with utility power ...15 starting up without utility power...16... -
Page 12: Introduction
Ethernet network connection for your UPS. It can then be temporarily managed using SNMP or the various software modules of Solution-Pac. The MGE UPS SYSTEMS offering complies with RFC 1628 specifications (IETF) and was certified by the InterWorking Labs during the Test Summit in June 1994;... -
Page 13: Getting Started
UPS input cord to supply input power to Pulsar as shown. mains outlet MGE UPS SYSTEMS Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00 Connect the UPS input cord 5 to a near- by power outlet. For the ESV8+ Rack , the input cord is not attached to the UPS. -
Page 14: Communication
The communication port 9 , at the rear of Pulsar, delivers information in the form of an RS232 serial link supported by the com- munication protocol exclusive to MGE UPS SYSTEMS. The Solution-Pac programs use the data made available by this protocol. RD TD... -
Page 15: Operation
1 s beep several beeps Your protected devices your protected devices are not powered are not powered MGE UPS SYSTEMS Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00 battery test battery test 1 beep 1 beep every second every second... -
Page 16: Starting Up Without Utility Power
Output receptacle 2 is not powered normal operation with battery autonomy indicating the remaining autonomy percentage (<100, 75, 50, 25%): here < 50% 1 beep every 10 s all your devices are powered by the battery MGE UPS SYSTEMS... -
Page 17: Normal Operation
"ESV Driver" software (included in your CD-ROM); on operation in the "fader" or "booster" range, the indicator light begins flashing. MGE UPS SYSTEMS Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00 input voltage variation range 138 Volts rated 92 Volts (*) outside the min.-max. -
Page 18: Operation With Battery Backup Time
(*) 5 min silence your load is no longer powered configuration via ESV Driver load charge percentage If utility power present, press button 2 : silence indicating the load charge percentage: shown, between 25 and 50% MGE UPS SYSTEMS... -
Page 19: Overload
Pulsar. To acknowledge the fault, push button temporarily disconnected Pulsar from the wall socket , disconnect non-priority loads and re-start Pulsar. MGE UPS SYSTEMS Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00 operating anomalies device fault 1 beep every... -
Page 20: Battery Replacement
(sparks may occur during connection); push battery block back in, screw metal front panel on, then click plastic front panel into place and secure the plastic plate with screws. Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00 MGE UPS SYSTEMS... -
Page 21: Technical Data
25/29/31 (kg) (*): adjustable high and low thresholds using ESV Driver (CD-ROM: EMB/ESVPLUS/CONFIG) (**): can be adjusted from 100 to 127V using ESV Driver (CD-ROM: EMB/ESVPLUS/CONFIG) MGE UPS SYSTEMS Pulsar ESV 8+Rack/11+Rack/14+Rack/22+Rack : 86-153523-00 780VA/490W Pulsar ESV 14+ Rack : 1400VA/980W... - Page 22 (mn) Pulsar ESV 22+ Rack battery back-up time 2 tower servers + external mass storage tower server + external mass storage system tower server + Hub high end modular Hub t (mn) MGE UPS SYSTEMS...
-
Page 23: North American Warranty
(2) years from date of purchase. Upon notice of any such defect, MGE UPS Systems shall, at its option, repair or replace the defective product at no cost to the buyer. - Page 24 Spain : 900 99 3384 Product names mentioned herein Sweden : 020 795 475 may be trademarks and registered Switzerland : 155 1107 trademarks of their respective Other countries : companies. (33) (0)4 76 33 91 36 Published by MGE UPS SYSTEMS 02/99...
