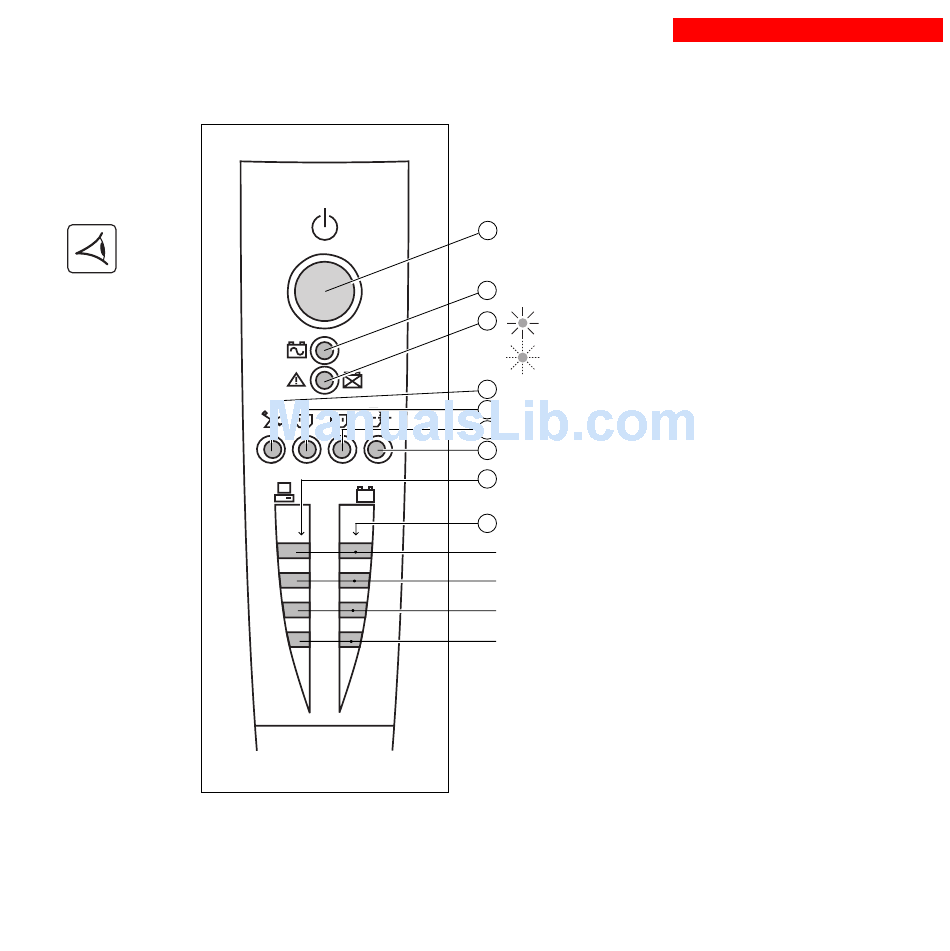

1.3 Control panel
1
2
%
%
10
Iluminated ON/OFF button for the outlets.
Operation on battery power.
11
12
UPS fault.
Battery fault.
Overload.
13
Group 1 programmable outlets supplied with power.
14
Group 2 programmable outlets supplied with power.
15
Booster or fader mode.
16
Bargraph indicating percent load at output.
17
18
Bargraph indicating the battery charge level.
76 to 100%.
51 to 75%.
26 to 50%.
0 to 25%.
1. Presentation
- Page 9
34007117EN/AB
