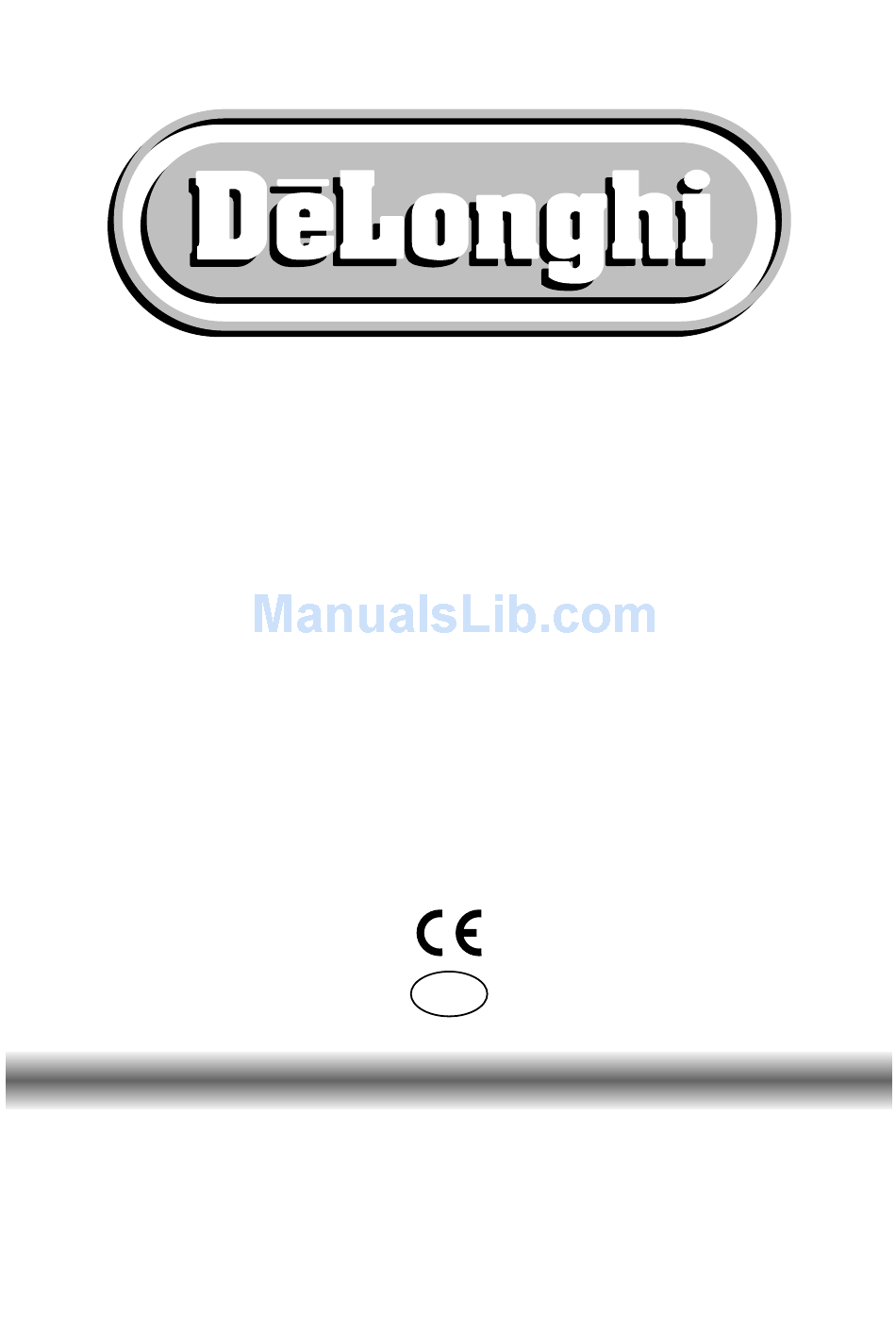

- Page 1 GSS603 gas cooker Users Operating Instructions Before operating this cooker, please read these instructions carefully...
- Page 2 Dear Customer Thank you for choosing one of our appliances which has been carefully designed and built by our specialist staff and thoroughly tested to satisfy your cooking requirement. We suggest that you read this Instruction Booklet so that you will understand fully how to operate the appliances.
-
Page 3: Table Of Contents
Contents Model GSS603 Page Number Introduction ........... . . 4 Features and technical data . -
Page 4: Introduction
Introduction Congratulations on your purchase of this Delonghi gas cooker which has been carefully designed and produced to give you many years of satisfactory use. Before using this appliance it is essential that the following instructions are carefully read and fully understood. -
Page 5: Features And Technical Data
Features and technical data Gas burners (Fig. 2) 1. Auxiliary burner (A) 1.00 kW 2. Semi-rapid burner (SR) 1.75 kW 3. Semi-rapid burner (SR) 1.75 kW 4. Rapid burner (R) 3.00 kW Gas oven – Oven burner - 3.70 kW –... -
Page 6: Electronic Clock/Alarm
Electronic Clock/Alarm The electronic alarm is a device which Electronic alarm groups the functions of 24 hours clock The alarm program consists only of a with illuminated display and 99 minutes buzzer which may be set for a maximum alarm. period of 99 minutes. -
Page 7: How To Use The Hob Burners
How to use the hob burners Hob burners Each hob burner is controlled by a separate gas tap operated by a control knob (fig. 4) which has 3 positions marked on the control panel, these are: – Symbol : tap closed (burner off) –... -
Page 8: Choice Of The Burner
Choice of burner The burner must be choosen according to the diameter of the pans and energy required. Burners Pan diameter Auxiliary 12 ÷ 14 cm Semi-rapid 16 ÷ 24 cm Rapid 24 ÷ 26 cm do not use pans with concave or convexe bases Fig. -
Page 9: How To Use The Gas Oven
How to use the gas oven Lighting the oven burner The thermostat allows the automatic control of the temperature. The gas delivered to the oven burner is controlled by a two way thermostatic tap (oven and grill burners) with flame-failure device. To light the oven burner follow the instructions carefully: 1) Open the oven door 2) Lightly press and turn the thermostat knob anti-clockwise to max position ( fig. -
Page 10: Oven Cooking Temperatures Table
Oven cooking temperatures APPROX. HEAT OF TYPE OF DISH TO COOK MARK TEMP. OVEN 130°C Very cool Meringue cakes, oven slow cooking items • 140°C Cool or Milk puddings, very rich fruit slow oven cakes, i.e., Christmas 155°C Cool or Stews, casseroles, braising, slow oven rich fruit cakes, i.e., Dundee... -
Page 11: How To Use The Gas Grill
How to use the gas grill Lighting the grill burner Do not grill with oven door closed. Always fit the heat shield supplied with the cooker under the front panel before commencing operations (Fig. 10). WARNING. The heat shield and the oven door reaches a very high temperature whilst in use. -
Page 12: Oven Light
Notes: – The grill burner has only one setting, that is full-on – It is important that the heat shield is fitted the correct way up, as shown in the figure 10. Fig. 10 IMPORTANT WARNING For best results when using the grill, place the shelf on the second level and when using the grill pan handle avoid contact with the heat shield which will be HOT during use Oven light... -
Page 13: Important Notes
Important notes Installation, and any demonstration, information or adjustments are not included in the warranty. The cooker must be installed by a qualified person in accordance with the Gas Safety (Installation and Use) (Amendment) Regulations 1990 and the relevant building/l.E.E Regulations. -
Page 14: Do's And Do Not's
Do’s and do not’s Do’s and do not’s • Do always grill with the oven door half-close and always fit the heat shield supplied with the cooker before commencing operations (see figure 10). • Do always remove the detachable handle when using the grill pan. •... -
Page 15: Care And Maintenance
Care and maintenance Important: As a safety measure, before you start cleaning the cooker be sure to disconnect it from the mains supply. Do not use a steam cleaner because the moisture can get into the appliance thus make it unsafe. Cleaning the hob Spillage on the hob can usually be removed by a damp soapy cloth. - Page 16 Gas taps If a tap becomes stiff, do not force; contact your local COMET Service Centre. (See enclosed Service Information). Flexible tube From time to time, check the flexible tube connecting the gas supply to the cooker. It must be always in perfect condition; in case of damage arrange for it to be replaced by a C.O.R.G.I.
- Page 17 Assembling and removing the side racks Hang up the wires racks on the oven walls (fig. 13) Slide the required grid or tray into the guides (fig. 14) Removal of the inner glass door panel The inner glass door panel can easily be removed for cleaning by unscrewing the two screws.
-
Page 18: Removing The Oven Door
TYPE A Removing the oven door To facilitate oven cleaning, it is possible to remove the door. Please follow the instructions carefully: Open the door completely. Push down the lever “L” and, keeping it in this position, slowly close the door in order to block the hinge (fig. - Page 19 TYPE B Removing the oven door Fig. 20A The oven door can easily be removed as follows: – Open the door to the full extent (fig. 20A). – Attach the retaining rings to the hooks on the left and right hinges (fig. 20B). –...
-
Page 20: For The Installer
FOR THE INSTALLER Location This cookers has class 2/1 overheating protection so that it can be installed next to the cabinet where the height is greater than the cooker (minimum distance 50 mm - fig. 21). The furniture walls adjacent to the cooker must be made of material resistant to heat. The veneered syntetical material and the glue used must be resistant to a temperature of 120°C in order to avoid ungluing or deformations. -
Page 21: Stability Bracket
Stability bracket We recommend a stability bracket is fitted to the cooker. The type shown in fig. 22 can be purchased from most plumbers merchants and do it yourself (D.I.Y.) shops. Wall fixing Floor fixing Existing slot in rear Outline of cooker of cooker backplate at the engagement slot... -
Page 22: Provision For Ventilation
Provison for ventilation The room containing the cooker should have an air supply in accordance with BS.5540: Part 2: 1989. All rooms require an openable window or equivalent while some rooms require a permanent vent in addition to the openable window. The cooker should not be installed in a bed-sitting room, of volume less than 21 m Where a DOMESTIC COOKER is installed in a room or internal space, that room or internal space shall be provided with a permanent opening which communicates directly with... -
Page 23: Gas Installation
Gas installation IMPORTANT NOTE This appliance is supplied for use on NATURAL GAS only and cannot be used on any other gas without modification. This appliance is manufactured for conversion to LPG and is supplied with a conversion kit. The cooker must be installed by a qualified person in accordance with the Gas Safety (Installation and Use) (Amendment) Regulation 1990 and the relevant building/l.E.E. -
Page 24: Gas Connection
Gas connection The installation of the cooker to Natural Gas or LP Gas must be carried out by a qualified gas engineer. Installer shall take due account of the provisions of the relevant British Standards Code of Practice, the Gas Safety Regulations and the Building Standards (Scotland) (Consolidation) Regulations issued by the Scottish Development Department. -
Page 25: Conversion To Lpg
Conversion to LPG 1 - Injectors replacement of top burners To replace the injectors proceed as follows: – Remove pan-supports and burners from the hobtop. – By a spanner, remove the injector “J” (fig. 26) from its housing and replace it by the prop- er one according to the kind of gas (see following “Table for the choice of the injectors”). -
Page 26: Table For The Choice Of The Injectors
3 - Table for the choice of the injectors Cat: 2H3+ G 30 - 28-30 mbar G 20 Nominal Reduced BURNERS G 31 - 37 mbar 20 mbar Power Power Ø injector By-pass By-pass Ø injector Ring opening Ring opening [kW] [kW] [mm]... -
Page 27: Replacement Of The Oven Burner Injector
4 - Replacement of the oven burner injector According to the type of gas, the oven injector must be similarly replaced, as stated on the “Injector table”, operating as follows: – remove the oven bottom – unscrew the burner fixing screw (Fig. 28) –... -
Page 28: Primary Air Of The Oven Burner
6 - Primary air of the oven burner With a screwdriver untighten the screw (fig. 32) and move the air ring forward or backward to close or open the air flow, according to the “Injector table”. Light the burner and check the flames. 7 - Primary air of the grill burner With a screwdriver untighten the screw (fig. -
Page 29: Regulating Of The Oven Minimum
Flame Flame Flame Flame correct faulty in correct with excess primary air primary air long, yellow clear short and sharp interior blue too blue interior trembling cone cone tending to detach Flame faulty in primary air CAUSE air regulating correct air regulating tube, too distance of... -
Page 30: Lubrication Of The Gas Taps
Lubrication of the gas taps If the gas tap becomes stiff, it is necessary to dismount it accurately clean it with gasoline and spread a bit of special grease resistant to high temperatures on it. The operations must be executed by a qualified technician. -
Page 31: Electrical Installation
Electrical installation For your safety please read the following information: This appliance must be installed by a qualified technician according with the current local regulations and in compliance with the manufacturer instructions. This appliance is supplied with a 13 amp three pin mains plug with a 3 amp fuse fitted. Should the fuse require replacement, it must be replaced with a fuse rated at 3 amp and approved by ASTA or BSI to BS 1362. - Page 32 GSS603 gas cooker Cod. 1101830 ß2...
