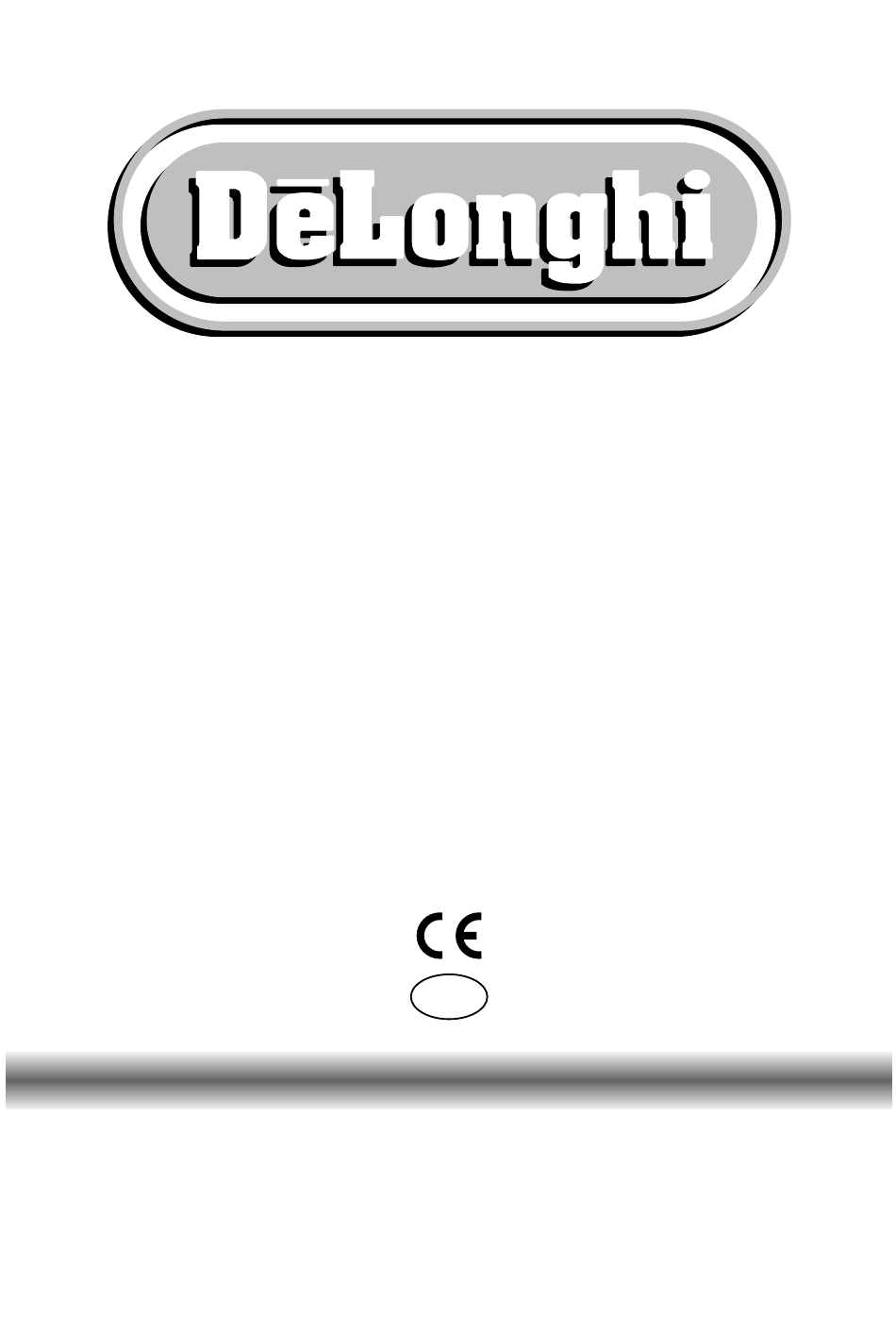

- Page 1 GDF 601 SS gas cooker with fan oven Users Operating Instructions Before operating this cooker, please read these instructions carefully...
- Page 2 Dear Customer Thank you for choosing one of our appliances which has been carefully designed and built by our specialist staff and thoroughly tested to satisfy your cooking requirement. We suggest that you read this Instruction Booklet so that you will understand fully how to operate the appliances.
-
Page 3: Table Of Contents
Contents Model GDF 601 SS Page Number Introduction ........... . . 4 Features and technical data . -
Page 4: Introduction
Introduction Congratulations on your purchase of this Delonghi cooker which has been carefully designed and produced to give you many years of satisfactory use. Before using this appliance it is essential that the following instructions are carefully read and fully understood. -
Page 5: Features And Technical Data
Features and technical data Gas burners (Fig. 2) 1. Auxiliary burner (A) 1.00 kW 2. Semi-rapid burner (SR) 1.90 kW 3. Semi-rapid burner (SR) 1.90 kW 4. Rapid burner (R) 3.15 kW Fan oven – Grill element 2000 W – Circular element 2500 W –... -
Page 6: Electronic Clock
How to use the electronic clock The electronic programmer is a device Cooking with automatic with the following functions: switch-off – 24 hours clock with illuminated display – Timing of oven cooking with automatic The aim of this function is to automatically switch-off (max. -
Page 7: How To Use The Hob Burners
How to use the hob burners Hob burners Each hob burner is controlled by a separate gas tap operated by a control knob (fig. 4) which has 3 positions marked on the control panel, these are: – Symbol : tap closed (burner off) –... -
Page 8: Choice Of The Burner
Choice of burner The burner must be choosen according to the diameter of the pans and energy required. Burners Pan diameter Auxiliary 16 cm Semi-rapid 16 ÷ 22 cm Rapid up to 30 cm Fig. 5 Saucepans with handles which are excessively heavy, in relationship to the weight of the pan, are safer as they are less likely to tip. -
Page 9: How To Use The Fan Oven
How to use the fan oven General features The heating and cooking in electrical hot air ovens take place by forced convection. The two elements which make this process take place are: - Circular element 2500 W - Grill element 2000 W NOTE: Upon first use, it is advisable to operate the oven at the maximum temperature (ther-... -
Page 10: Function Selector Knob
Fig. 7 Fig. 6 FUNCTION SELECTOR KNOB (fig. 6) Rotate the knob clockwise to set the oven for one of the following functions. THERMOSTAT KNOB (fig. 7) This only sets the cooking temperature and does not switch the oven on. Rotate clock- wise until the required temperature is reached (from 50 to 250°C). -
Page 11: Hot Air Cooking
HOT AIR COOKING The circular element and fan come on. The heat is dispersed by forced convection and the temperature can be regulated to between 50° and 250°C via the thermostat knob. The oven does not require preheating. Recommended for: Food which has to be well-cooked outside and soft or rosy inside, for example lasagne, lamb, roast beef, whole fish etc. - Page 12 ROASTING To obtain classical roasting, it is necessary to remember: – that it is advisable to maintain a temperature between 180° and 200 °C. – that the cooking time depends on the quantity and the type of foods. SIMULTANEOUS COOKING OF DIFFERENT FOODS The FAN consents a simultaneous heterogeneous cooking of different foods.
-
Page 13: Important Notes
Important notes Installation, and any demonstration, information or adjustments are not included in the warranty. The cooker must be installed by a qualified person in accordance with the Gas Safety (Installation and Use) (Amendment) Regulations 1990 and the relevant building/l.E.E Regulations. -
Page 14: Do's And Do Not's
Do’s and do not’s Do’s and do not’s • Do always grill with the oven door closed. • Do always remove the detachable handle when using the grill pan. • Do read the user instructions carefully before using the cooker for first time. •... -
Page 15: Care And Maintenance
Care and maintenance Important: As a safety measure, before you start cleaning the cooker be sure to disconnect it from the mains supply. Cleaning the hob Spillage on the hob can usually be removed by a damp soapy cloth. More obstinate stains can be removed by rubbing gently with a soapy scouring pad or mild household cleaner. - Page 16 Assembling and removing the side racks Hang up the wires racks on the oven walls (fig. 12) Slide the required grid or tray into the guides Removal of the inner glass door panel The inner glass door panel can easily be removed for cleaning by unscrewing the two screws.
- Page 17 Removing the oven door To facilitate oven cleaning, it is possible to remove the door. Please follow the instructions carefully: Open the door completely. Push down the lever “L” and, keeping it in this position, slowly close the door in order to block the hinge (fig.
-
Page 18: For The Installer
FOR THE INSTALLER Location This cookers has type “X” overheating protection so that it can be installed next to the cabinet where the height is greater than the cooker (minimum distance 50 mm - fig. 18). The furniture walls adjacent to the cooker must be made of material resistant to heat. The veneered syntetical material and the glue used must be resistant to a temperature of 120°C in order to avoid ungluing or deformations. -
Page 19: Levelling
Stability bracket We recommend a stability bracket is fitted to the cooker. The type shown in fig. 19 can be purchased from most plumbers merchants and do it yourself (D.I.Y.) shops. Wall fixing Floor fixing Existing slot in rear Outline of cooker of cooker backplate at the engagement slot... -
Page 20: Provision For Ventilation
Provison for ventilation The room containing the cooker should have an air supply in accordance with BS.5540: Part 2: 1989. All rooms require an openable window or equivalent while some rooms require a permanent vent in addition to the openable window. The cooker should not be installed in a bed-sitting room, of volume less than 21 m Where a DOMESTIC COOKER is installed in a room or internal space, that room or internal space shall be provided with a permanent opening which communicates directly with... -
Page 21: Gas Installation
Gas installation IMPORTANT NOTE This appliance is supplied for use on NATURAL GAS only and cannot be used on any other gas without modification. This appliance is manufactured for conversion to LPG and is supplied with a conversion kit. The cooker must be installed by a qualified person in accordance with the Gas Safety (Installation and Use) (Amendment) Regulation 1990 and the relevant building/l.E.E. -
Page 22: Gas Connection
Gas connection The installation of the cooker to Natural Gas or LP Gas must be carried out by a qualified gas engineer. Installer shall take due account of the provisions of the relevant British Standards Code of Practice, the Gas Safety Regulations and the Building Standards (Scotland) (Consolidation) Regulations issued by the Scottish Development Department. -
Page 23: Conversion To Lpg
Conversion to LPG 1 - Injectors replacement of top burners To replace the injectors it is necessary to lift the hobtop and proceed as follows: – Remove pan-supports and burners from the hobtop. – Remove the backguard “E”. – Unscrew the two screws “B” and remove the sockets (Fig. 23). –... -
Page 24: Adjusting Of The Minimum Of The Top Burners
Flame faulty in Flame correct Flame with excess primary air primary air long, yellow and trembling clear interior blue cone short and sharp too blue interior cone tending to detach CAUSE air regulating tube, correct distance air regulating tube, too closed of the tube too open 3 - Adjusting of the minimum of the top burners... - Page 25 Table for the choice of the injectors Cat: 2H3+ G 30 - 28-30 mbar G 20 Nominal Reduced BURNERS G 31 - 37 mbar 20 mbar Power Power Ø injector By-pass By-pass Ø injector Ring opening Ring opening [kW] [kW] [mm] [1/100 mm] [1/100 mm]...
-
Page 26: Lubrication Of The Gas Taps
Lubrication of the gas taps Should it be found that the gas taps are difficult to turn, most probably they require lubrication. This should be done immediately this problem has been noticed as follows. – Turn off the gas supply to cooker. –... -
Page 27: Electrical Installation
Electrical installation For your safety please read the following information: This appliance must be installed by a qualified technician according with the current local regulations and in compliance with the manufacturer instructions. This appliance is supplied with a 13 amp three pin mains plug with a 13 amp fuse fitted. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved by ASTA or BSI to BS 1362. - Page 28 GDF601 electric cooker Cod. 1101414 Ed. 3...
