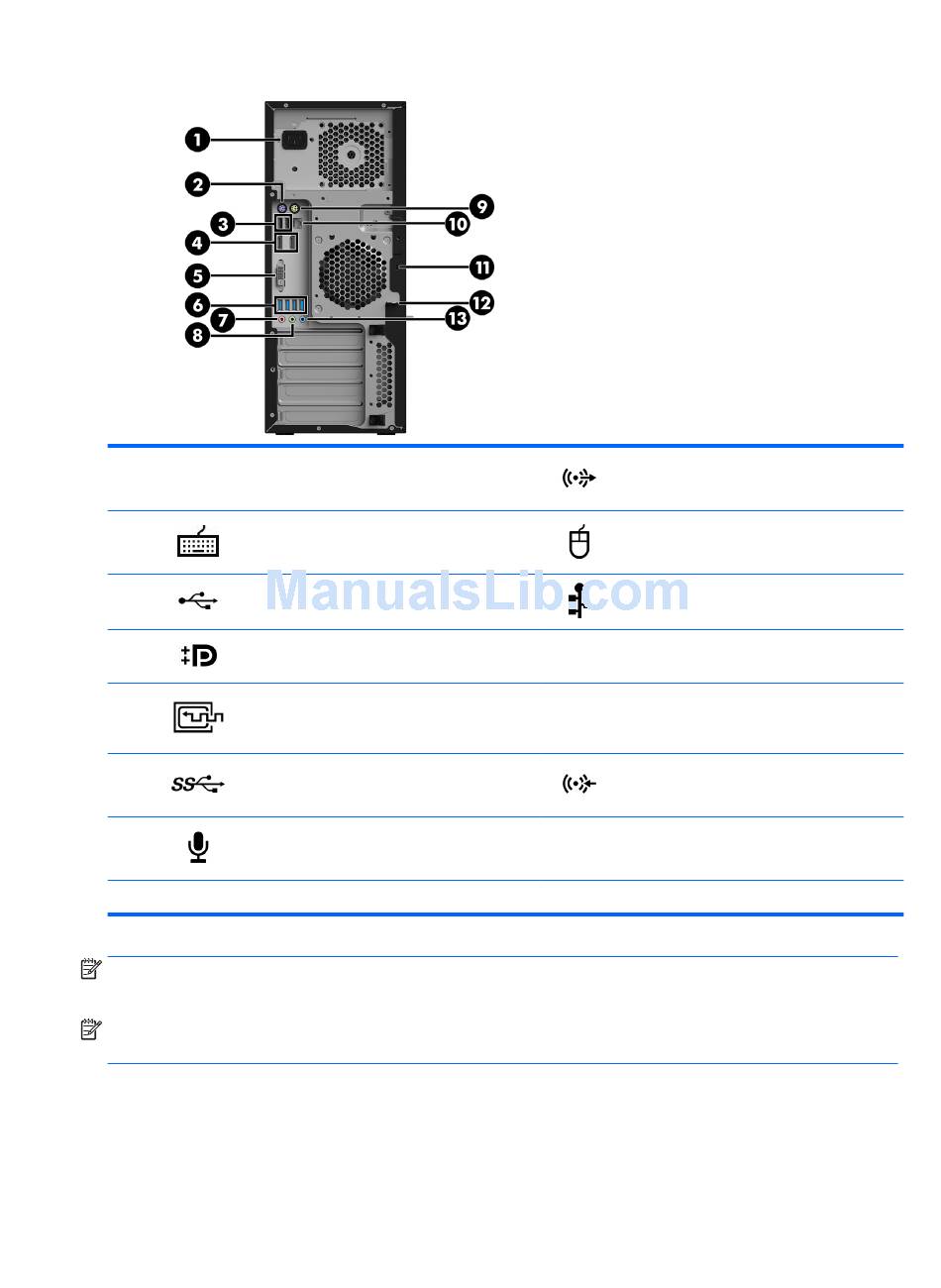

HP Z240 Tower Workstation rear panel

1
2
3
4
5
6
7
NOTE: The DP and DVI-D ports are not supported when the system is configured with Intel Xeon E3-12x0 v5 processors. Also, if a discrete graphics card is
installed these ports are disabled by default.
NOTE: Simultaneous usage of integrated Intel HD graphics and discrete graphics cards (in order to drive more than two displays) can be enabled using the
Computer (F10) Setup Utility. However, HP recommends using only discrete graphics cards when attaching three or more displays.
8 Chapter 2 Workstation features
Power cord connector
PS/2 keyboard connector (purple)
USB 2.0 ports (2) (black)
Display Port (DP) connectors (2)
DVI-D connector
USB 3.0 ports (4) (blue)
Microphone connector (pink)
NOTE: The labels for the rear panel connectors use industry-standard icons and colors.
8
Audio line-out connector (green)
9 PS/2 mouse connector (green)
10 RJ-45 network connector
11 Cable lock slot
12 Padlock loop
13 Audio line-in connector (blue)
