In the Link Status section on the Status → Overview
web page, the value in the top left box denotes the
current received signal strength e.g. ‐40 dBm. The box
directly below it shows the current TX‐CCQ
(transmission client connection quality) e.g. 100 %.
The bottom left box shows a realtime graph of the
received signal strength over the last 60 seconds. The
box directly to its right shows a realtime graph of the
TX‐CCQ over the past 60 seconds.
On the right of this section, there are 2 vertical bars.
Each bar shows the current received signal strength of
each antenna e.g. ‐44 dBm, and ‐41 dBm.  These
represent the H and V antenna polarizations for
streams 1 and 2.
2.2  Routes
When you click on the Status → Routes tab, you will
see the page that shows the routing rules that are
currently active on the device.

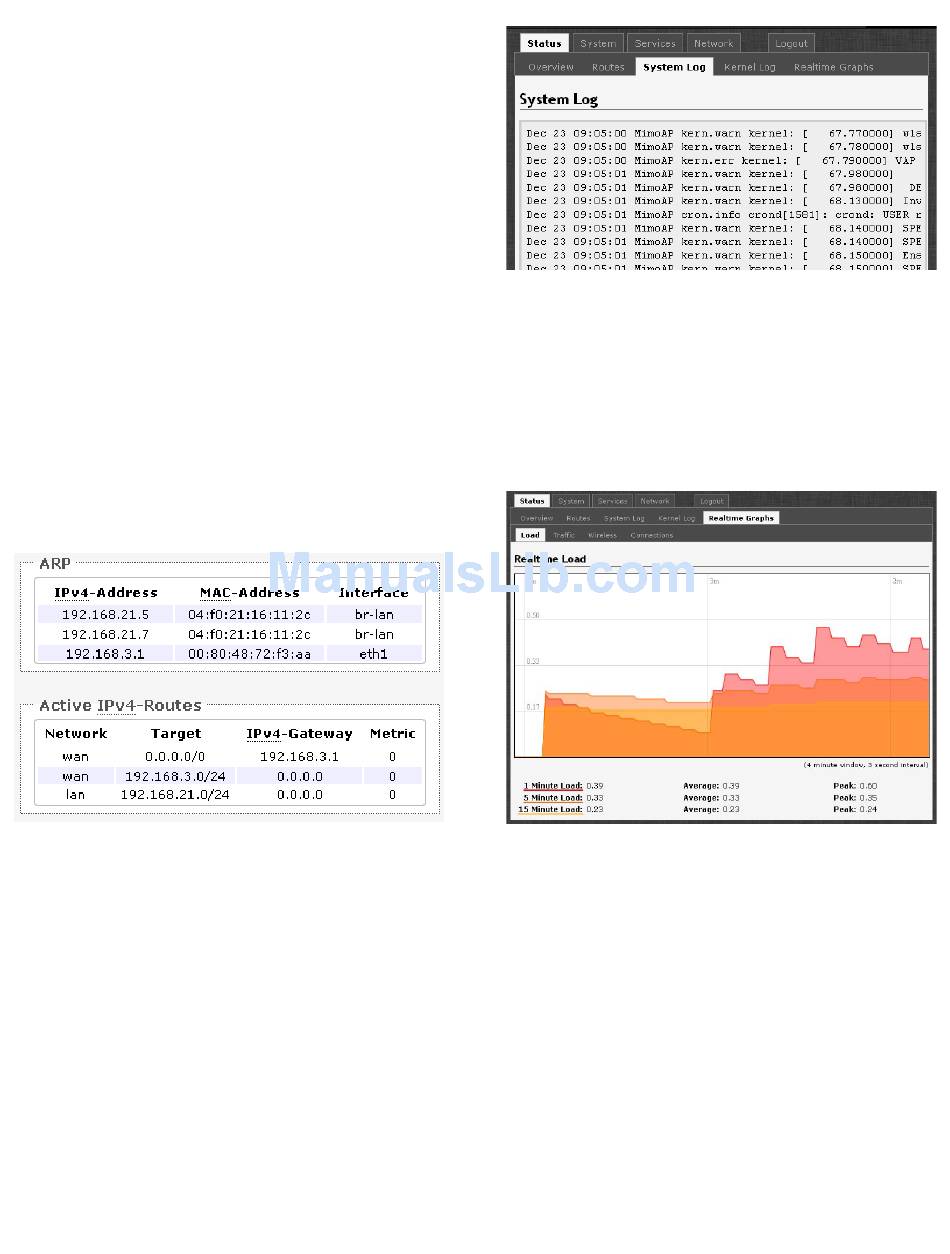

Figure 13: The Status → Routes page.
ARP: This address resolution protocol (ARP) table
shows the IP address and corresponding MAC address
of each device on the network.
Active IPv4‐Routes: This table shows the IPv4
gateway and network ID (Target) for each subnet.
2.3  System Log
When you click on this tab, you can see the log of
system messages.
Altum AC 600 User Manual
Figure 14: The Status → System Log page.
2.4  Realtime Graphs
Under the tab for Realtime Graphs, there are four
tabs titled Load, Traffic, Wireless, and Connection.
2.4.1  Load
Figure 15: The graph for Realtime Load.

LT‐9064 Rev A


11
