dBm. The value of 33 dBm is taken to mean "no
antenna" if the radio has only 2 antennas.
Noise: Displays the received noise power at the AP.
TX Rate: Shows the transmit bit rate from the AP
towards this station.
RX Rate: Shows the receive bit rate at the AP from
this station.
TX‐CCQ: Indicates the wireless connection quality.

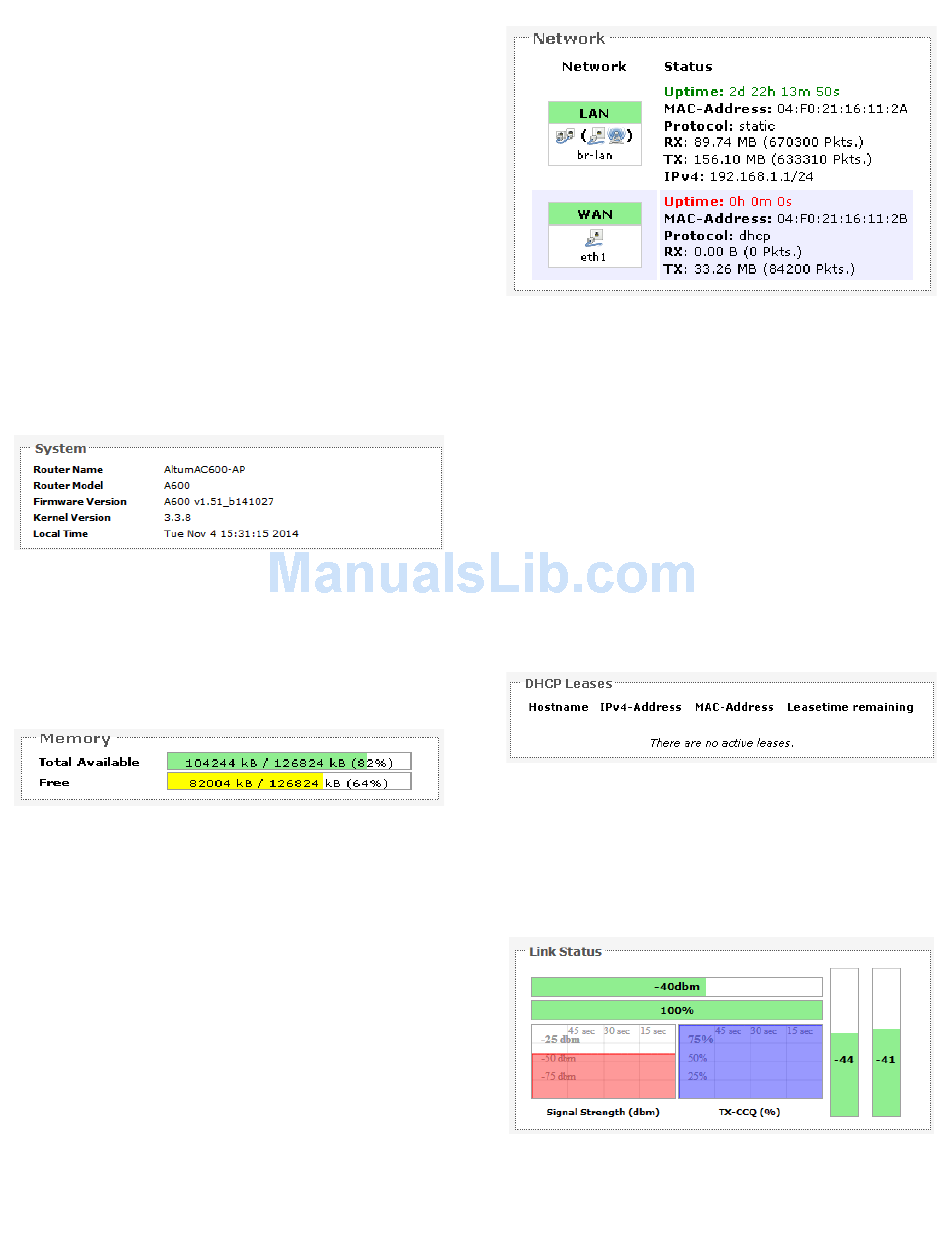

2.1.5 System
This section shows the (Radio Unit) Name, Model,
Firmware Version, Kernel Version, and Local Time.
Figure 8: System parameters.
2.1.6 Memory
Here, the Total Available and Free memory are
shown.
Figure 9: Total Available and Free Memory.
2.1.7 Network
This section displays the status of the LAN and WAN
networks.
10
Status: Shows summaries of the interfaces for the
LAN and WAN zones. This may include uptime, MAC
address, protocol, bytes and packets received by the
device, bytes and packets transmitted by the device,
and its IPv4 address.
2.1.8 DHCP Leases
This section shows a table of MAC and IP addresses of
connected computers with static DHCP leases. They
are specified in the Network → Interfaces → LAN →
Static Leases section of the device's configuration
web page. More explanation is given in the Network
section of this user manual on page 26.
Figure 11: Currently active static DHCP leases.
2.1.9 Link Status (for Station Mode)
This section only applies if the device operates as an
802.11 station.
LT‐9064 Rev A
Figure 10: Network summary.
Figure 12: The Link Status section.
