Chapter 5:
The Network → Interfaces tab shows an overview of
the network interfaces. You can view and configure
the interfaces of the local area network (LAN) zone as
well as the wide area network (WAN) zone. Network
address translation (NAT) occurs between these two
network zones. The radio that performs the NAT is
called a gateway. A gateway is a network point that
acts as an entrance to another network.

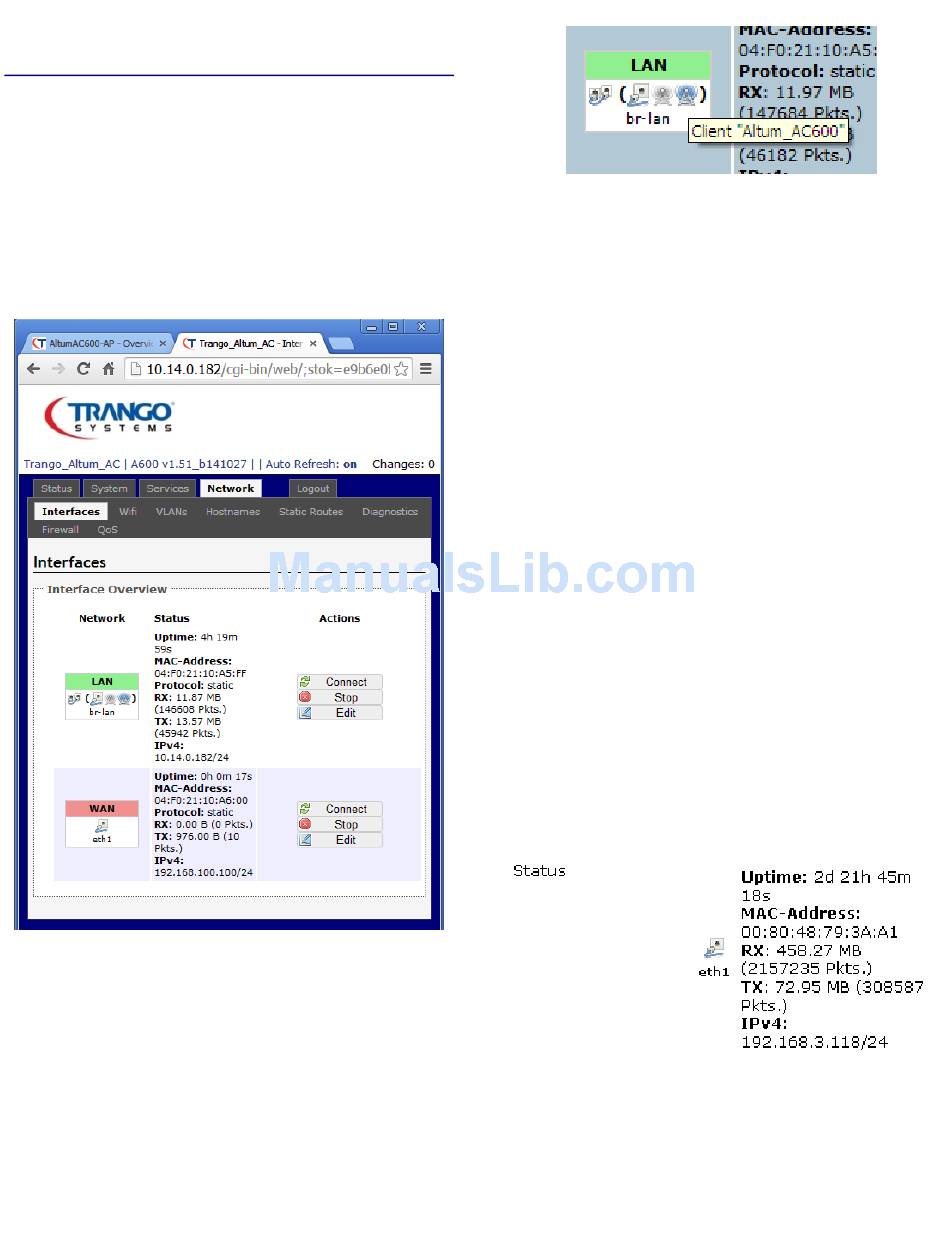

Figure 37: The Interface Overview on the Network
→ Interfaces page.
The Network column shows that the WAN zone has
the physical port "eth1" as its interface.
22
Network Tab
Figure 38: An infotip appears when
In Figure 38, the LAN zone (icon with two Ethernet
ports) has the bridged interface "br‐lan" which
consists of one physical port (icon with one Ethernet
port) and two wireless networks (tower icons) on the
device. Hovering the mouse over each icon would
give the name of the interface it represents. In this
example, the infotip shows that there is a (virtual)
client on the device with "Altum_AC600" as its
network name.
5.1 Interfaces – WAN
The Network → Interfaces → WAN page configures
the interface for the WAN zone.
5.1.1 Common Configuration
General Setup
Status: Shows a summary of the interface for the
WAN zone. This includes uptime, MAC address, bytes
and packets received by the device, bytes and packets
transmitted by the device, and its IPv4 address.
Figure 39: Status of the "eth1" interface of the WAN
Protocol: Chooses between DHCP client (default),
where the device obtains it IP address automatically,
LT‐9064 Rev A
hovering the mouse over an icon.
zone.
