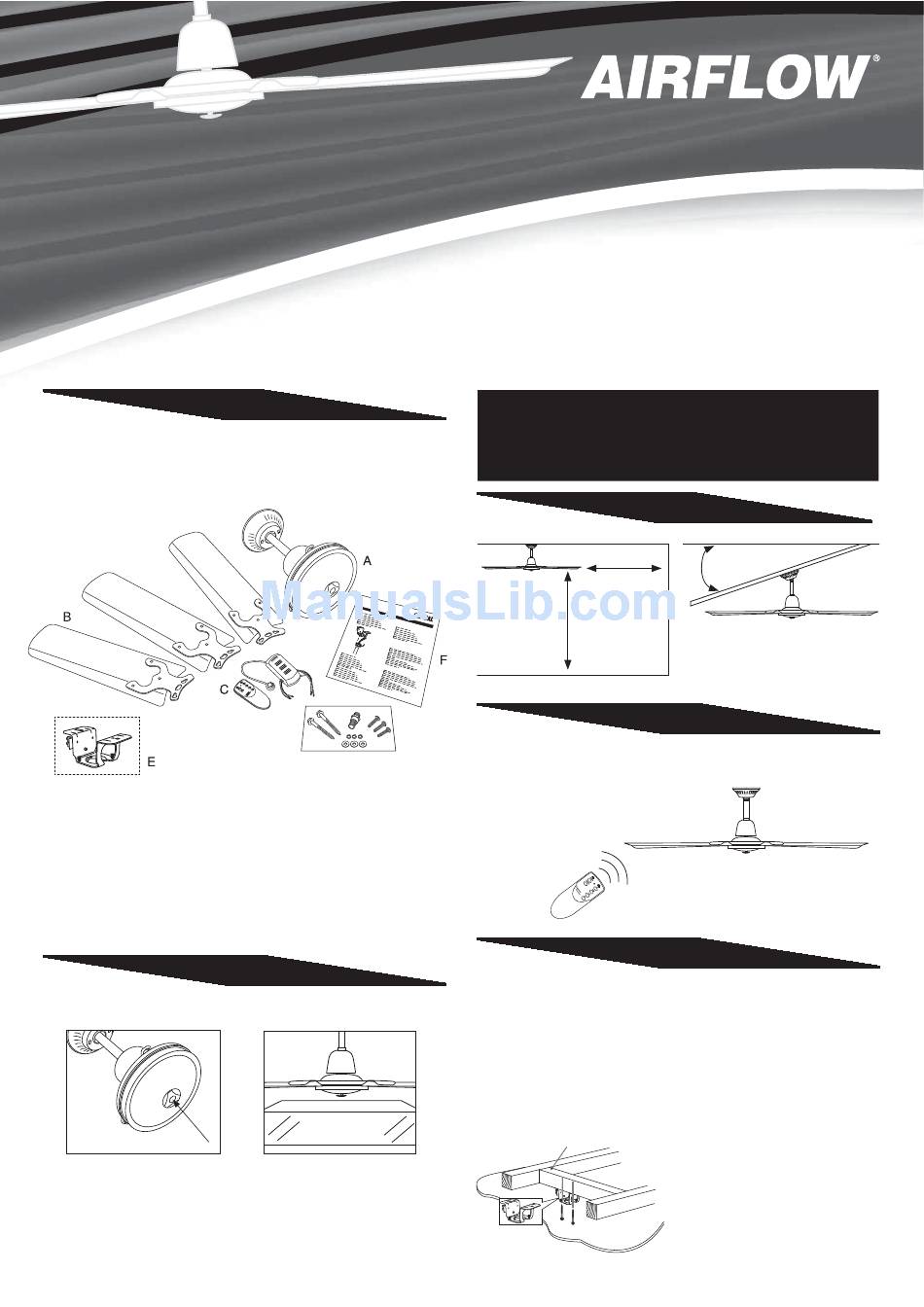

Airflow ACES48ALR Installation Instructions

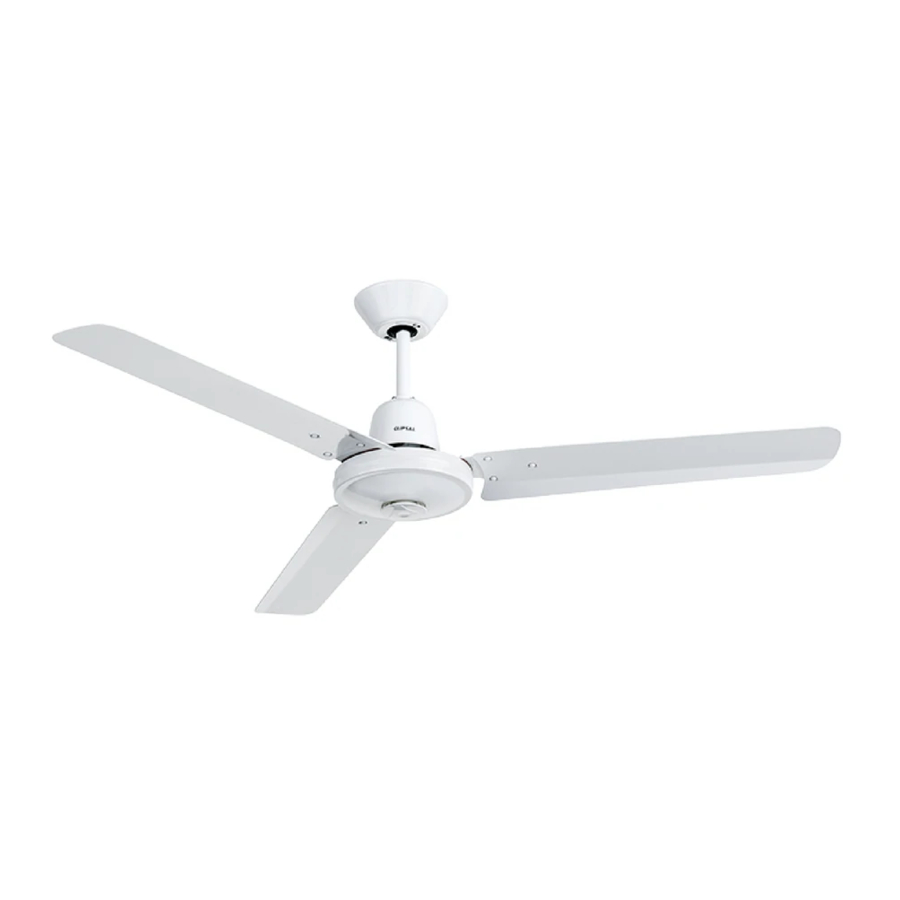

Ceiling Sweep Fan
ACES48ALR, ACES48R,SS
Included with your Fan
A. Motor Assembly
B. Three Blades
C. I.R. Remote Controller
Hangsure Bracket
IMPORTANT NOTES
1. To ensure proper balance, the blades are a matched set. Do
not mix-up the blades with those from another fan
2. Transport and transit handling may loosen factory fi tted
cables. Please check and secure terminal screws before
installation.
Protecting the Fan
Do not place the motor directly onto a fl at surface.
Plastic Nipple
The plastic nipple underneath the motor cannot support the
weight of the motor and may be easily damaged. When working
on the fan, place the motor on the foam packaging with the
nipple located in one of the recesses. This protects the nipple
and the fi nish.
Thank you for purchasing this Airfl ow Ceiling Sweep Fan. You can be assured of years
of trouble free operation by installing your ceiling fan carefully in accordance to these instructions.
Please read all the instructions before commencing, then complete each step in order.
D. Screw Pack
E. Mounting Bracket
F. Instruction Sheet.
D
Foam
Packaging
Installation Instructions
REGISTERED DESIGN • REGISTERED PATENT
All electrical work must be carried
out by a qualifi ed electrician.
Clearances and Angled Ceilings
Minimum
300mm from
other obstacles.
Blades:
Minimum 2.1m
above fl oor.
Controlling a Single Fan
This fan has been supplied with a quality remote controller that is
designed to operate a single fan and includes on/off control and
dimming for light fi ttings.
1.0 Mounting the Fan Support Bracket
Select a suitable location to mount the fan support bracket.
The mounting bracket must be fi xed to a solid structural member
such as a ceiling joist or a securely fi xed noggin and be capable
of supporting 15kg.
Additionally it must be located so as to provide the blade with a
minimum clearance from the fl oor of 2100mm, and from other
obstructions of at least 300mm.
Hangsure Mounting
Secure fi xing to support 15kg
o
18.5
Hangsure Mounting
Suitable for pitched ceilings
with a maximum angle of 18.5 o .
