Summary of Contents for Airflow AV 100

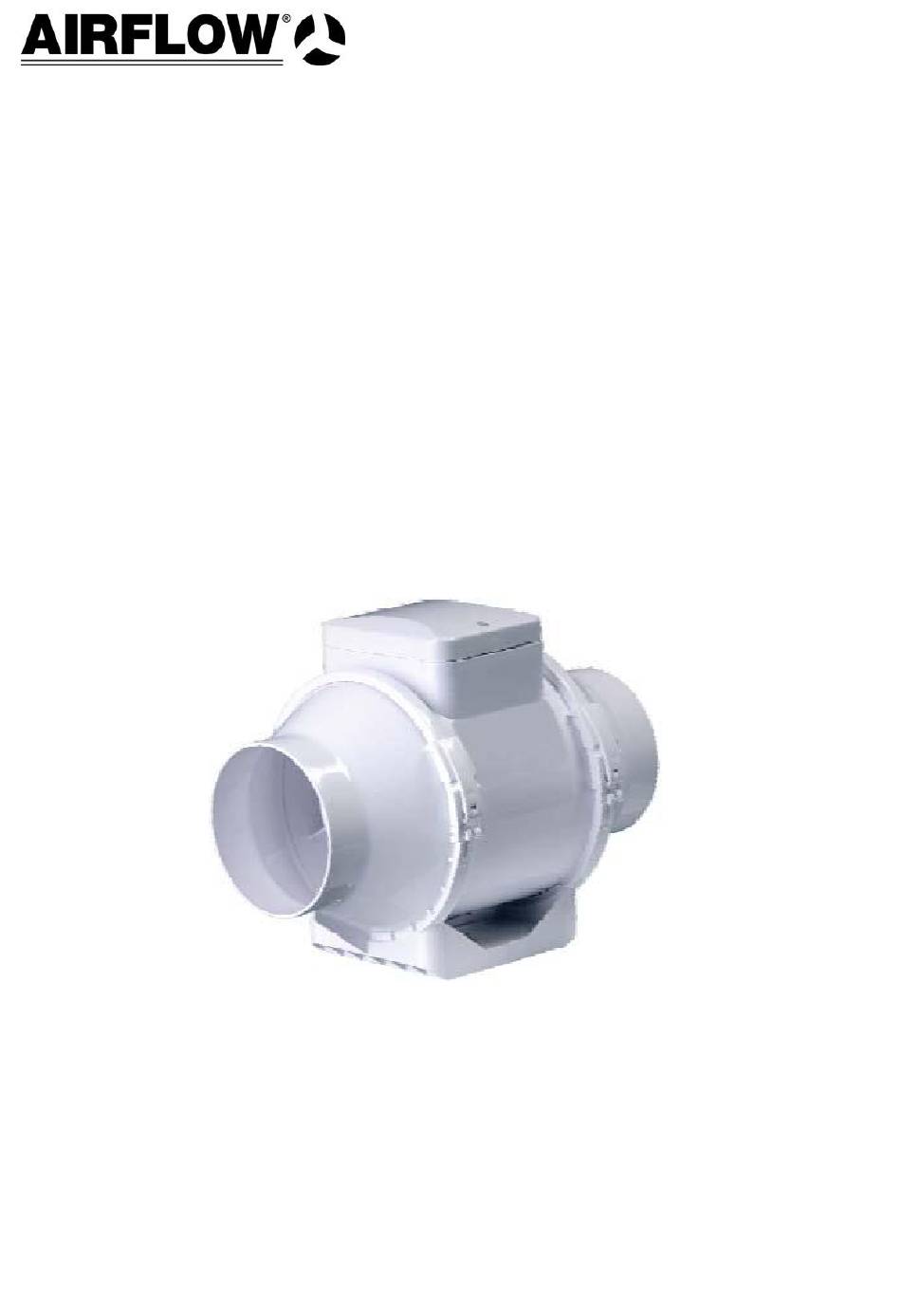

- Page 1 90411215-Issue5 07/13 USERS MANUAL IN-LINE MIXED FLOW...
- Page 2 DESTINATION The in-line mixed flow fans with channels' diameters ranging from 100 to 150 mm are designed for installation in the ventilating systems that require high pressure, powerful air flow. The pumped air should not contain dust and other solid admixtures, as well as sticky substances and fibrous materials, the temperature of the transferred air must not exceed +45°C.
- Page 3 Launching Noise Air flow, Consumption Power, Voltage, Connection Type R.P.M. capacity, level, m/h3 current, A V/50Hz layout мF dBA,3 m AV 100* 145\187 2180\2385 0,11\0,21 21\33 27\36 1-230 Fig.2/3 AV 125* 220\280 1950\2455 0,18\0,27 23\37 28\37 1-230 Fig.2/3 AV 150*...
- Page 4 DELIVERY SET - 1 piece Dowels and screws - 4 pieces User’s manual Packing box MAINTENANCE Maintenance of the fan is carried out only after switching it off the mains. Maintenance consists of periodical cleaning of the surfaces from dust and dirt, when the fan is switched off the mains.

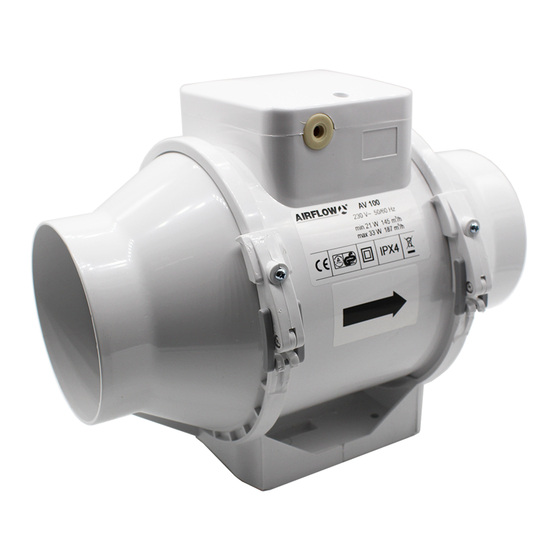

- Page 5 INSTALLATION AND CONNECTION OF THE FAN TO THE MAINS The fan (fig.1) consists of the body 1 with fixed electric motor and impeller 4. Terminal box cover 3, pipes 5 (pipe diameter corresponds to the diameter of the air duct); quick- detachable clamps 6.
- Page 6 Fig. 2 Wiring Diagram AV100, AV125 and AV150...
- Page 8 In case any fan’s malfunction occurs during the warranty period through the fault of manufacturer, the respective customer shall be entitled to replacement of the fan at the manufacturer’s location. Airflow Developments Limited Aidelle House, Lancaster Road, Cressex Business Park, High Wycombe, Bucks H12 3QP E-mail: info@airflow.com Telephone: +44 (0) 1494 525252.
