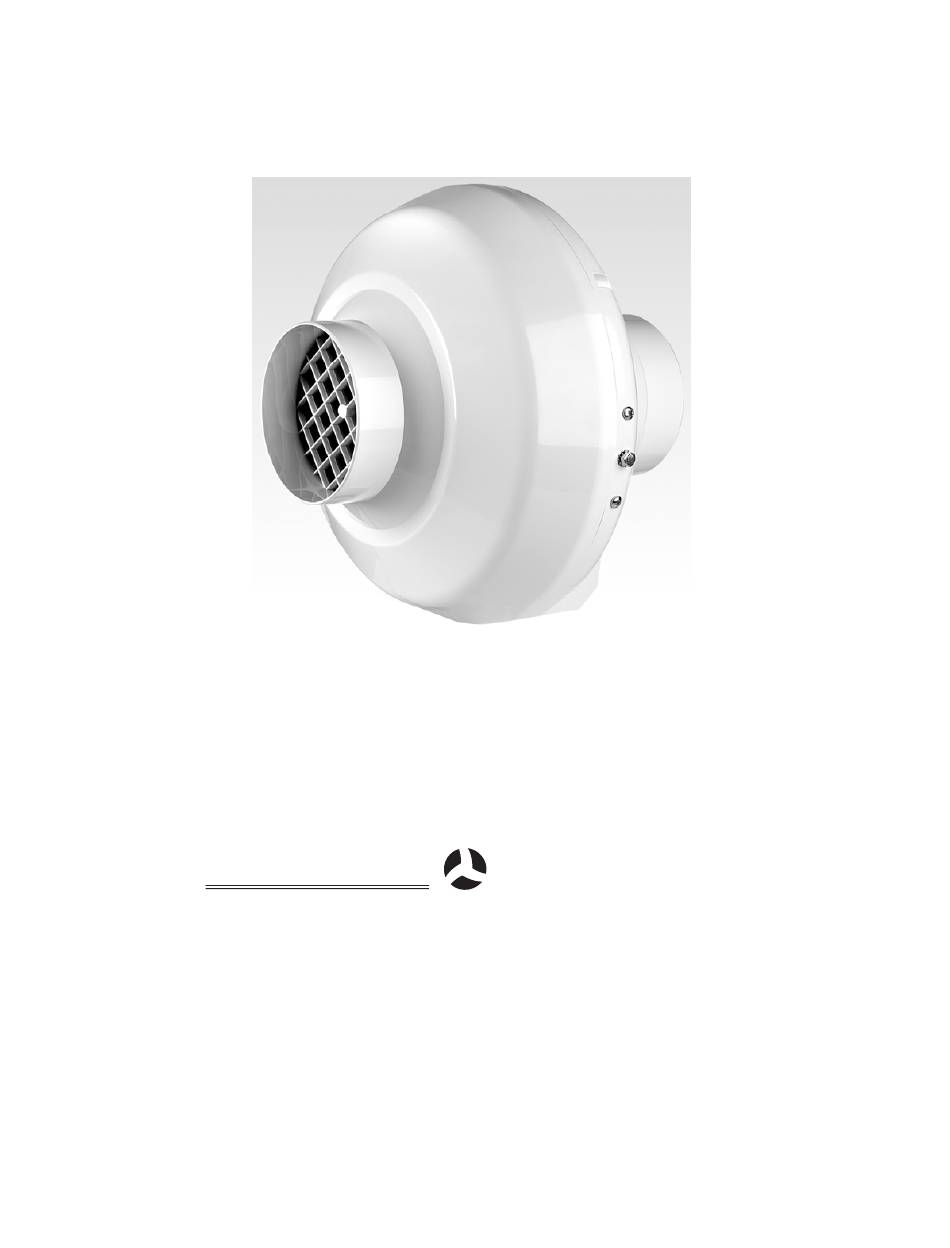

- Page 1 9041425 INSTALLATION & OPERATING INSTRUCTIONS AVENTA TURBO In-Line Centrifugal Fans AIRFLOW...
- Page 2 Please read these instructions before commencing installation and retain for future reference. DESIGNATION Aventa Turbo centrifugal in-line fans with a rotor diameter from 190 to 280mm, hereinafter referred to as the fans, are designed to ventilate domestic and commercial premises (residential rooms, offices, shops, garages, kitchens, lavatories and other premises heated during winter time).
- Page 3 DIMENSIONS Fan Type Dimensions, mm Weight (kg) Ø D Ø D AV100B 2.15 AV125B AV150B 150/160 AV200B AV250B AV315B...
- Page 4 PERFORMANCE Supply Noise Ambient Power Consumption Capacity Fan Type voltage (V) R.P.M. level Temperature Protection current (A) at 50 HZ (dBa) AV100B 0.34 2820 -25 +55 IPX4 AV125B 0.34 2800 -25 +55 IPX4 AV150B 0.35 2725 -25 +55 IPX4 AV200B 0.47 2660 -25 +55...
-
Page 5: Safety Requirements
SAFETY REQUIREMENTS The fan complies with the requirements according to the EU norms and directives. In case if a fan with the level of protection that corresponds to the second distinctive number IPX4 is used in humid conditions, it is necessary to provide additional protection in order to prevent moisture access. - Page 6 PREPARATION OF DEVICE OPERATION The fan consists of: - Case 1 with installed electric motor with impeller; capacitor 4, installed inside of the case 1; grille 2, which is attached to the case using screw 3 (diameter of pipes of case and grille corresponds to diameter of installing duct);...
- Page 7 Connecting the fan having single-phase electric motor to an alternating current power line. It is good practise to provide a 3 amp fused spur/isolator to isolate fan for maintenance or repair. Figure 3 THE FAN IS COMPLETED WITH The complete set includes: - Fan ……………………………………….
-
Page 8: Maintenance
MAINTENANCE Maintenance work may be done only after the fan has been disconnected from the power supply. Service includes regular cleaning of the fan surface from dust and dirt after the fan has been disconnected from power supply. A soft dry brush or pressed air should be used to remove dust. The blades of rotor should be thoroughly cleaned every 6 months. -
Page 9: Warranty
WARRANTY: Applicable to units installed and used in the United Kingdom Airflow guarantees the Aventa Turbo for 2 years from date of purchase against faulty material or workmanship. The warranty can be upgraded to 3 years upon registering on our website, airflow.com...
