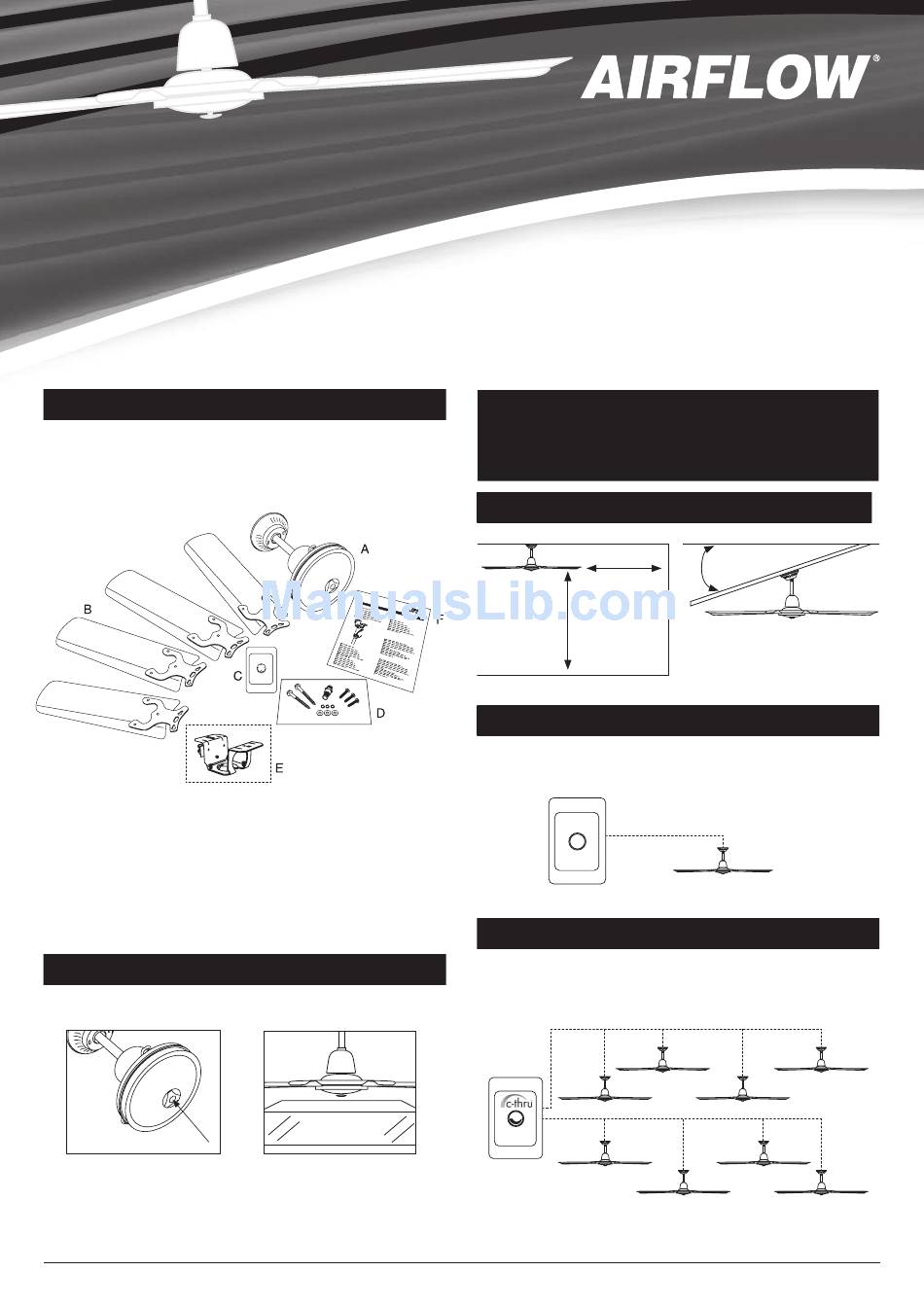

Airflow AFLR48 Installation Instructions

Ceiling Sweep Fan
AFLR48
Included with your Fan
A. Motor Assembly
B. Four Blades
C. Three Speed Fan Controller
Hangsure Bracket
IMPORTANT NOTES
1. To ensure proper balance, the blades are a matched set. Do
not mix-up the blades with those from another fan.
2. Transport and transit handling may loosen factory fitted
cables. Please check and secure terminal screws before
installation.
Protecting the Fan
Do not place the motor directly onto a flat surface.
Plastic Nipple
The plastic nipple underneath the motor cannot support the
weight of the motor and may be easily damaged. When working
on the fan, place the motor on the foam packaging with the
nipple located in one of the recesses. This protects the nipple
and the finish.
Thank you for purchasing this Airflow Ceiling Sweep Fan. You can be assured of
trouble free operation for years by installing your ceiling fan carefully and according to these instructions.
Please read all the instructions before commencing, then complete each step in order.
D. Screw Pack
E. Mounting Bracket
F. Instruction Sheet.
Foam
Packaging

Installation Instructions

REGISTERED DESIGN • REGISTERED PATENT
All electrical work must be carried
out by a qualified electrician.
Clearances and Angled Ceilings
Minimum
300mm from
other obstacles.
Blades:
Minimum 2.1m
above floor.
Controlling a Single Fan
This fan has been supplied with a quality Clipsal Three Speed
Controller that is designed to operate a single fan.
OFF
3 1
2
Multiple Fans on a Single Controller
You can control up to eight Airflow Fans using a Clipsal
C-Thru Electronic Fan Controller (purchased separately).
TM
NOTE: The three speed capacitor controller supplied with each
fan is not suitable for controlling multiple fans.
o
18.5
Hangsure Mounting
Suitable for pitched ceilings
with a maximum angle of 18.5 o .
