- Page 1 80000178 Issue 1-01/14 INSTALLATION AND OPERATING INSTRUCTIONS Aura Smart Innovative Low Energy Axial Fan...

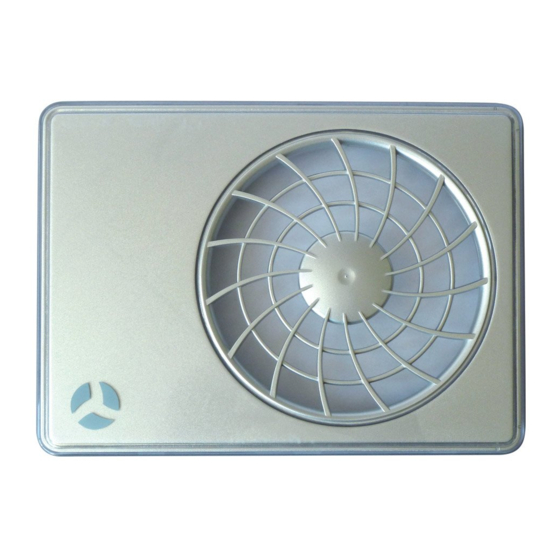

- Page 2 Thank you for purchasing this fan from Air ow Developments. Aura Smart is an innovative extract bathroom fan enclosed into a compact casing. The unique technologies combined with smart electronics support the ideal comfort and microclimate in your house. The stylish fan design matches well with any modern interior.
-
Page 3: Delivery Set
WARNING Recycle at the end of the service life. Do not dispose the product with unsorted municipal trash. Read the present user's manual carefully before proceeding with installation works. Compliance with the manual requirements ensures reliable operation and long service life of the product. Keep the user's manual available as long as you use the product. - Page 4 Speed dia. [m /h] [dBA] factory settings [m /h] regulation range [m /h] 24 Hours Silent 33 ... 72 72 ... 106 Aura Smart HT/ 24 Hours MSHT Silent 40 ... 83 83 ... 133 Functions Table 3 Humidity Turn-on...
- Page 5 PRODUCT MOUNTING The fan is designed for mounting into round Ø 100 or 125 mm air duct or installation into the ventilation shaft. The replaceable adapter of required size may be used to facilitate mounting. The fan is equipped with a removable grille. Press the latches slightly to release the grille from the front cover.
- Page 6 The fan casing has three round lowered tabs for cable entry. Cut out a hole at the most suitable place with a knife. FAN MOUNTING SEQUENCE...
- Page 7 The fan is compatible with 100-240 V / 50-60 Hz power mains. The Aura Smart MSHT has Li terminal for connection to the lamp up to 200W/230 V or 100 W/120 V. At this connection the fan will be switched on signal from the motion sensor.
- Page 8 Wiring diagram 1 L and N terminals are connected to live and neutral respectively. The fan is always in standby mode and does not run. As 24 HOURS Mode is activated the fan runs permanently at low speed to ensure minimum round the clock ventilation. As motion sensor is activated (for iFAN Move only) the fan switches to SILENT mode.
- Page 9 Wiring diagram 2 L and N terminals are connected to live and neutral respectively and L and LT terminals are joined by the jumper. The fan is always in SILENT mode. 24 Hours mode may not be activated. No matter of the signal from the motion sensor the fan operated in SILENT mode.
- Page 10 As the external switch is closed the fan switches to SILENT mode. After the external switch is o the fan reverts to standby mode. As motion sensor is activated (for Aura Smart MSHT only) the fan switches to SILENT mode.
- Page 11 SILENT mode for the period adjusted in the o -delay timer. After that the fan reverts to standby mode. As motion sensor is activated (for Aura Smart MSHT only) the fan switches to SILENT mode. After no motion is detected the fan reverts to standby mode.
- Page 12 FAN ADJUSTMENTS The fan is adjusted at the factory and is ready for operation. It is a fully operable product without extra adjustments. However if you want to adjust the fan according to your needs, please follow the instruction below. You can always reset to the factory settings.
- Page 13 You can adjust the fan both with the control panel located on the fan or with the remote controller. The remote controller has 3 m e ective range. To attain the maximum e ective range response direct the remote controller straight to the fan. ATTENTION! The fan covers of Marble, Red, Champagne, Silver colours provide high signal conductivity from the remote controller and do not in uence the signal transferability.
- Page 14 SILENT MODE SPEED ADJUSTMENT Number of active Air capacity, light indicators [m /h] 40/33 By default the speed is 83/72 m /h. 44/37 To set the speed: 48/41 52/45 Press the buttons "3CP" and "4CP" on the control panel. 57/49 Press the buttons "4RC"...
- Page 15 HUMIDITY EXTRACTION MODE ADJUSTMENT The default time is 30 minutes. After crossing the humidity set point the fan switches to higher speed to extract excessive humidity. After the humidity level stabilization the timer is activated and the fan runs for the set time period to enable total extraction of the excessive humidity 30 minutes 45 minutes...
- Page 16 TURN ON DELAY TIMER ADJUSTMENT The default time is 0 minutes. If you have to visit the bathroom often, you can adjust the turn on delay timer to avoid the fan unnecessary switching. After humidity increases or after signal from the external switch/motion sensor, the fan switches to higher speed not 0 minutes 2 minutes...
- Page 17 ACTIVATION 24 HOURS MODE In this mode the fan has minimum air capacity before the humidity sensor, motion sensor or external switch is activated. To activate 24 HOURS mode: Press the button "6CP" on the control panel. Press the button "10RC" on the remote controller. This function is not available for the wiring diagram 2.
-
Page 18: Reset To Factory Settings
RESET TO FACTORY SETTINGS Push The fan side panel incorporates a built in manual power slide switch. Turn the fan off with this power switch, press the button "MODE" on the control panel, hold this button and switch the fan on with this slide power switch. -
Page 19: Storage And Transportation Rules
STORAGE AND TRANSPORTATION RULES Transport the product by any transportation vehicle in the manufacturer's original package. Store the delivered product in the manufacturer's original packing box in a dry ventilated premise with the temperature range from +5 C up to + 40 C and relative humidity less than 80%. The storage environment must not contain dust, acid or alkali vapours that may cause corrosion of the product parts. -
Page 20: Manufacturer's Warranty
OPERATION RULES The fan is designed for connection to single/phase ac 100/240 V / 50/60 Hz power mains. The fan is designed for continuous operation always connected to power mains. The fan is rated for operation at the ambient temperature ranging from +1°C to +45°C. The fan is double/insulated and requires no grounding. - Page 21 - in case of non-timely technical maintenance of the product by the customer (dust, mud, oil condensate, foreign particles); - in case of causing external damage to the product by the customer ('damage' shall not apply to external changes of the product required for the product mounting);...
- Page 22 Air ow Developments Ltd Aidelle House Lancaster Road Cressex Business Park High Wycombe Bucks. HP12 3QP United Kingdom Tel: +44 (0) 1494 525252 Fax: +44 (0) 1494 461073 E-mail: info@air ow.com Web: air ow.com...
