INSTALLATION INSTRUCTIONS FOR PART ASWCSTALK
The ASWCSTALK is the newest addition to the Axxess steering wheel control
solution, allowing you to add steering wheel control options to your vehicle. Using
an aftermarket radio that is equipped with a steering wheel control output, the
column mounted ASWCSTALK will allow the customer to adjust their radio without
taking their eyes off the road. The ASWCSTALK will come pre-programmed with
your most popular features like , volume up, volume down, seek up, seek down,
and source. The ASWCSTALK also offers the option of remapping the buttons to
fi t every customer needs, this makes this a must have interfaces that the Axxess

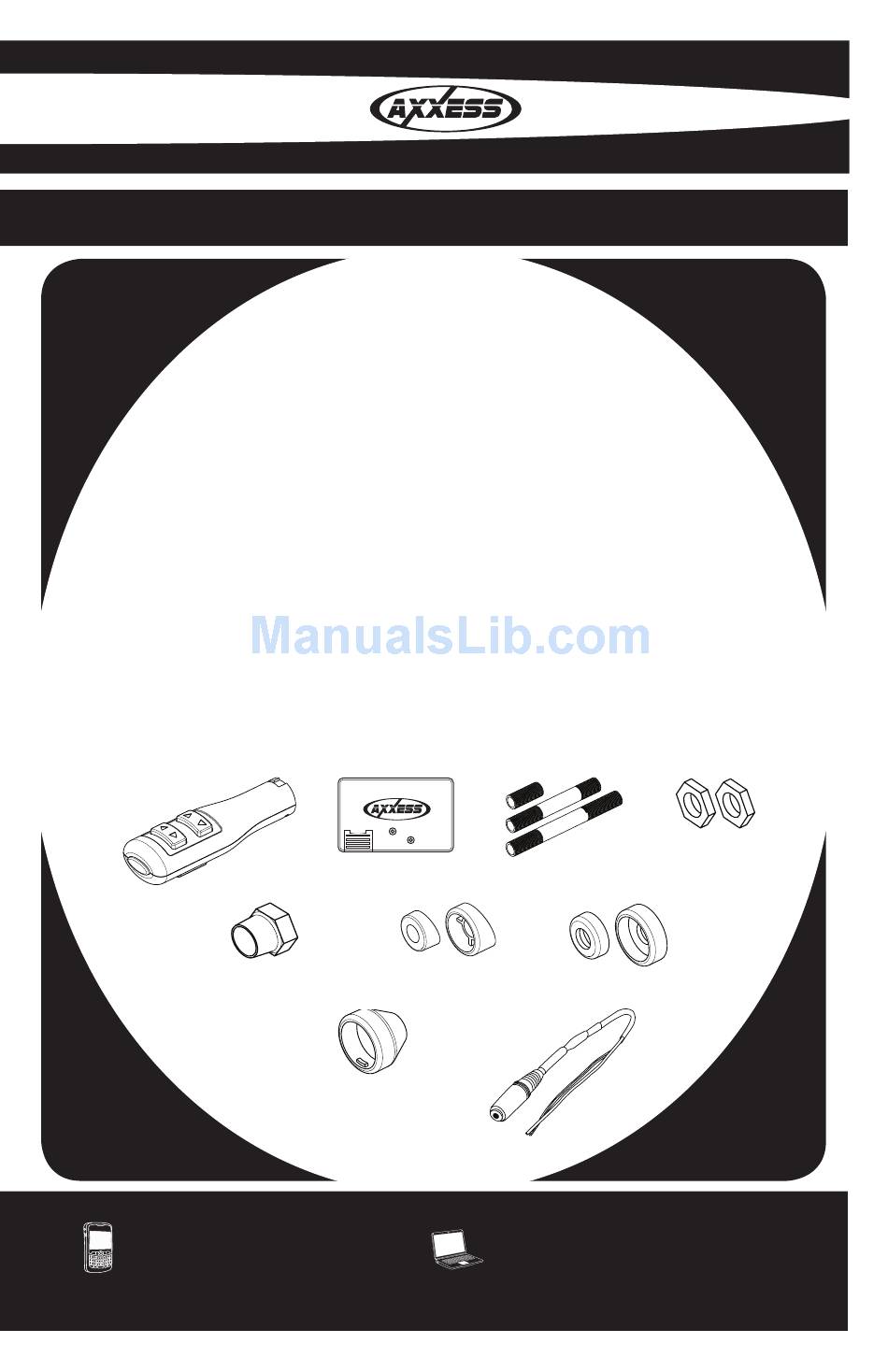

INTERFACE COMPONENTS
• A) ASWCSTALK • B) ASWCSTALK INTERFACE • C) (3) ROD ASSORTMENTS
• D) (2) 3/8 HEX NUTS • E) DECORATIVE NUT • F) (2)ANGLE MOUNT
• G) (2)FLAT MOUNT • H) TWIST ON COVER • I) FEMALE 3.5MM CONNECTOR W/WIRES
A
E
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
ASWCSTALK
line offers.
B
F
H
C
G
I
axxessinterface.com
D

Advertisement

loading
Need help?

Need help?

Do you have a question about the Automobile Parts and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axxess Automobile Parts

  • Page 1 • A) ASWCSTALK • B) ASWCSTALK INTERFACE • C) (3) ROD ASSORTMENTS • D) (2) 3/8 HEX NUTS • E) DECORATIVE NUT • F) (2)ANGLE MOUNT • G) (2)FLAT MOUNT • H) TWIST ON COVER • I) FEMALE 3.5MM CONNECTOR W/WIRES 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION line offers. axxessinterface.com...
  • Page 2: Tools Required For Installation

    TOOLS REQUIRED FOR INSTALLATION •Cutting Tool •Tape •Crimping Tool •Connectors (I.E. butt-connectors, bell caps, ECT…) • Female Spade Connectors *Important: Please check steering shroud before drilling to make sure you have enough depth. *Aftermarket radio must be equipped with SWC output...
  • Page 3 ASWCSTALK ASSEMBLY 1. Remove and drill a 3/8 hole in the steering wheel shroud. 2. Select desired length rod and thread a 3/8 hex nut on to the shorter threaded section. 3. Run the four wires from the ASWCSTALK through the rod of choice and screw it into the ASWCSTALK 4.
  • Page 4 Wiring Of ASWCSTALK And Interface 1. Connect the BLACK wires of the ASWCSTALK and the BLACK wire of the interface to ground. You may use the same ground point that is used for the radio. 2. Connect the GREEN/ORANGE and BLACK/GREEN wires of the ASWCSTALK to the corresponding wires on the interface.
  • Page 5 Programming the ASWCSTALK * If this is the first time the ASWCSTALK is being installed: 1. Turn the ignition on; the led will start flashing rapidly which means the interface is looking for the ASWCSTALK and the radio. Go to step 3. * If the ASWCSTALK was installed before: 1.
  • Page 6 The ASWCSTALK is now configured for the right side. Troubleshooting the Auto Detect Mode So you tried the auto detect feature and at the end the led did not stay on solid red, it started flashing, or the steering wheel controls did not function properly.
  • Page 7 • Long flashes represent the wire(s) that are connected to the interface • 3rd led flash is the Green/Orange wire on the interface • 5th led flash is the Black/Green wire on the interface If during the auto detect sequence there was no long led flash, just short ones, the interface was not connected to the correct wire on the ASWCSTALK or the incorrect wire was used on the interface.
  • Page 8 Volume up Volume down Seek up Seek down Mode (source) Volume up Volume down Seek up Seek down Mode (source) Remapping the ASWCSTALK Let’s say you have the ASWCSTALK programmed to your radio and you want to change the button assignment for the steering wheel controls. For instance you would like Seek Up to be Mute.
  • Page 9 NOTES: • The interface must have detected the ASWCSTALK and radio it is attached to before you can remap any buttons. • You can only start the remapping of the steering wheel controls process within the first 20 seconds of turning the ignition key on. If you wait longer then the 20 seconds you will have to turn the ignition off then back on again.
  • Page 10 5. Source/Mode 6. Mute 7. Preset Up 8. Preset Down 9. Power 10. Band 11. Play/Enter 12. PTT (Push To Talk) 13. On Hook 14. Off Hook 15. Fan Up 16. Fan Down 17. Temp Up 18. Temp Down * Note: Remember not all radios will have all these commands. Please refer to the radios’...
  • Page 11 After the 18th button is programmed or skipped the led will go out and the remapping is completed. If for any reason after remapping the steering wheel controls you want to go back to the original steering wheel control settings, follow the step in “IF the ASWCSTALK was installed before”.
  • Page 12 programmed Kenwood. 5) Here is the chart to show how many presses of the Volume Up button is needed for which radio you are trying to program: 1st led flash is for Eclipse 2nd led flash is for Kenwood 3rd led flash is for Clarion 4th led flash is for Sony and Dual 5th led flash is for JVC 6th led flash is for Pioneer and Jensen...
  • Page 13 NOTES...
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 INSTALLATION INSTRUCTIONS FOR PART ASWCSTALK 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
