Model: E2425
E2465
E2425W
LCD Multi-Media Projector
P/N: 4100535500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E2465 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ask Proxima E2465

Summary of Contents for Ask Proxima E2465

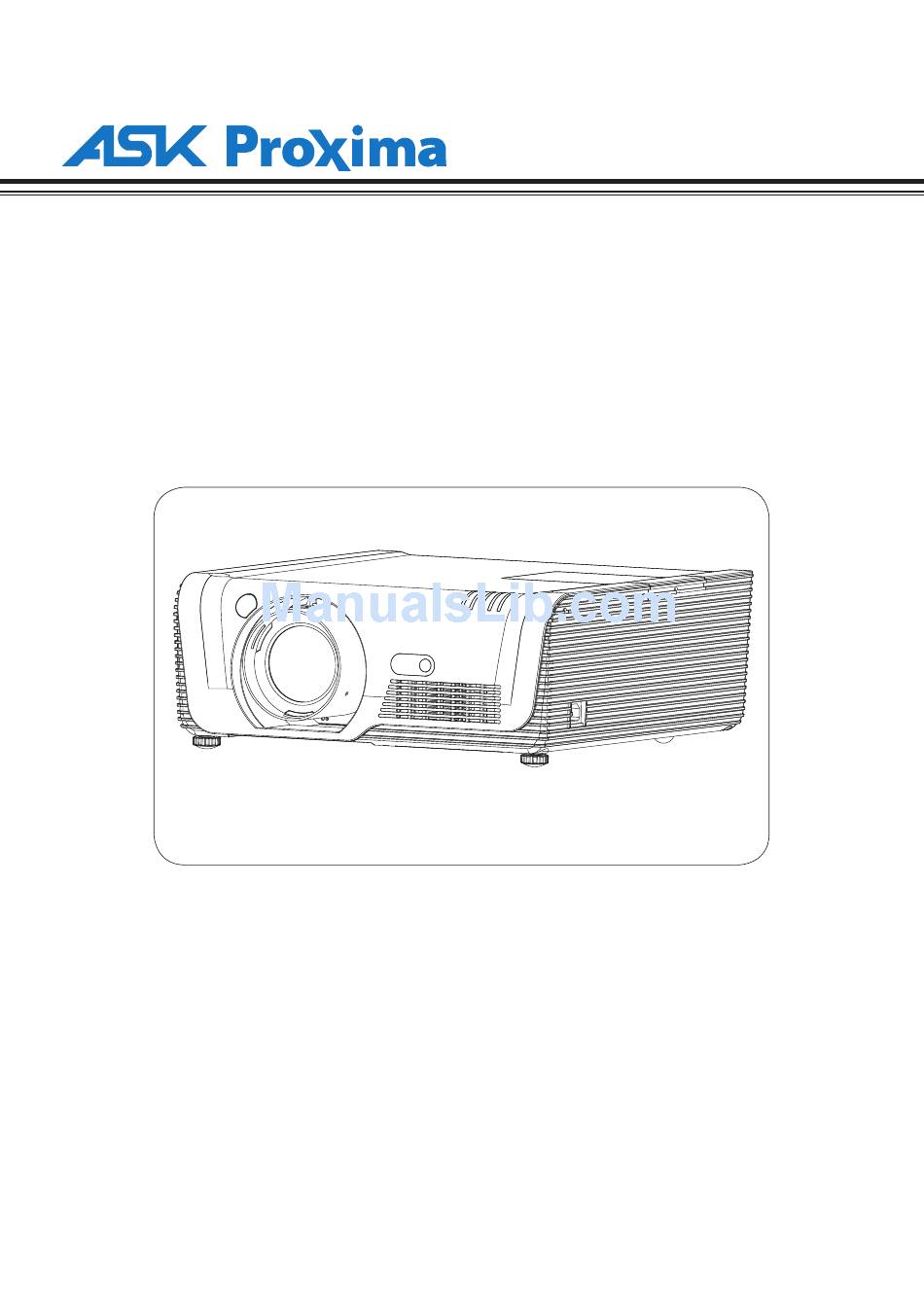

  • Page 1 Model: E2425 E2465 E2425W LCD Multi-Media Projector P/N: 4100535500...

  • Page 2: Statement

    ASK Proxima Co., Ltd. reserves the right to modify or improve the product without prior notice. ASK Proxima Co., Ltd. reserves the right to modify the manual. Please consult the company or the dealer for any unclear part.

  • Page 3: Table Of Contents

    Contents Statement Video input Contents Video system select Safety Instructions Image Select Safety Guide Image adjust Air circuitlation Screen size adjust Moving the projector Setting Installing the projector properly Setting Part names and functions Advanced setting Front Advanced setting Back Information Bottom Maintenance and cleaning...

  • Page 4: Safety Instructions

    Safety Instructions Please read this manual completely before Safety precautions installing and operating the projector. The projector provides many convenient features Caution: • The projector must be grounded. and functions. Proper operation may enable you • Do not expose the projector to to fully utilize the features and keep it in good raindrops or high humidity to avoid condition.

  • Page 5: Safety Guide

    Safety Guide All the safety and operating instructions should be Never push objects of any kind into this projector read before the product is operated. through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.

  • Page 6: Air Circuitlation

    Safety Guide Air circuitlation Installing the projector properly Vents in the cabinet are provided for ventilation. Be sure to install the projector properly. To ensure reliable operation of the product and Improper installation may reduce the lamp to protect it from overheating, these openings lifetime and even cause a fire hazard.

  • Page 7: Part Names And Functions

    Part names and functions Front ① Lens replace release button ②③ ④ ⑤ ① ② Remote control receiver(front) ③ Focus window* ④ Indicators ⑤ Lamp cover ⑥ Project lens ⑦ Air intake vent ⑧ AC power cord connector ⑨ Exhaust vent ⑥...

  • Page 8: Terminals

    Part names and functions Terminals ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑱ ⑰ ⑯ ⑮ ⑭ ⑬ ⑲ ⑪ AUDIO OUT ① USB-A port Connect the A type USB device (USB flash Output audio from INPUT 1/3/4. The internal speaker of the projector doesn't work while disk) to this port.

  • Page 9: Side Control

    Part names and functions Side control Indicators ⑨ ⑧ ⑩ ⑦ ① ⑥ ⑪ ② ⑤ ⑫ ⑬ ③ ④ ⑭ ① FOCUS button - Lights red when the projector is in stand- by mode. To adjust the focus. - Lights green during operations. ②...

  • Page 10: Remote Control

    Part names and functions Remote Control ① POWER ③ ② ① Turn on or turn off the projector. ② SHIFT To enter the lens shift mode. ③ INPUT Select input source. ⑤ ④ ⑥ ④ FOCUS ⑧ ⑦ Adjust the focus. ⑨...
  • Page 11 Part names and functions Remote Control ⑯ MENU button ③ ② ① Open or close screen menu. ⑰ SELECT button Sselect an item in the menu. ⑱ Pointer  button - Select item or adjust data in screen menu. ⑤ ④...

  • Page 12: Install Remote Control Batteries

    Part names and functions Install remote control batteries ② Install new batteries ① Open the battery ③ Replace the into the compartment. compartment lid. compartment lid. Two AAA batteries For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment.

  • Page 13: Installation

    ● The brightness in a room has a great influence on picture quality. It is recommended to limit the ambient lighting in order to get the best image. ● All measurements are approximate and may vary from the actual sizes. E2425/E2465: (Diagonal:Inch) 12.989 m 8.083 m...

  • Page 14: Lens Installation

    Installation Lens installation Follow the instructions below to install the lens upon replacing or using the provided lens. For the specification of projector lens, contact your dealer. Lens release button Removing the lens 1 Shift the lens to the center with the lens shift function.

  • Page 15: Lens Shift Adjustment

    Installation Lens shift adjustment Projection lens can be moved from side to side and up to down. This function makes the positioning of images easy on the screen. The display position can be shifted upward up The display position can be shifted downward to 50% elevation of the display.

  • Page 16: Connecting To Computer(Digital And Analog Rgb)

    Installation Connecting to computer(Digital and analog RGB) Cables used for connection: ● VGA cable ● Serial crossover cable* ● DVI cable* ● USB-B cable* ● HDMI cable* ● BNC cable* (*=Cables not supplied with the projector) Monitor output Monitor input PC input Serial output Monitor output USB-B input...

  • Page 17: Connecting To Video Equipment (Video, S-Video)

    Installation Connecting to video equipment (Video, S-Video) Cables used for connection: ● Video cable* ● S-Video cable* ● RCA cable* ● BNC cable* (*=Cables not supplied with the projector) Composite video output S-VIDEO output Component output Video output VIDEO S-VIDEO cable cable cable...

  • Page 18: Connecting To Audio Equipment

    Installation Connecting to audio equipment Cables used for connection: ● Audio cable* (*=Cables not supplied with the projector) External audio equipment (R) (L) Audio input Audio output Audio output Audio cable Audio cable Audio cable Audio cable (stereo) Note: The left and right channels are Note: The internal combined when there...

  • Page 19: Connecting The Ac Power Cord

    Installation Connecting the AC power cord This projector uses nominal input voltages of 100–240V AC and it automatically applies to different input voltages. It is designed to work with a single-phase power system having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.

  • Page 20: Basic Operation

    Basic operation Turn on the projector 1.Complete peripheral connections (with a computer, VCR,etc.) before turning on the projector. 2. Connect the projector’s AC power cord into AC outlet.The POWER indicator turns red. 3. Press the POWER button on side control or on the remote control.

  • Page 21: Turn Off The Projector

    Basic operation Turn off the projector 1. Press the POWER button on side control or on the remote control, and “Power off?” appears on the screen. Power off ? 2. Then, press the POWER button again in 4 seconds. The POWER indicator starts to flash red, and the cooling fans keep running (You can select the level of fans’...

  • Page 22: How To Operate The On-Screen Menu

    Basic operation How to operate the on-screen menu The projector can be adjusted or set via the on- Side control screen menu,Each main menu can be divided into several levels of submenus, and subme MENU button SELECT button nus are also divided into several levels of sub- submenus.

  • Page 23: Menu Bar

    Basic operation Menu bar ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ Main menu PC adj. Auto PC adj. Fine sync Total dots 1344 Horizontal Vertical Sub menu Clamp Display area H 1024 Display area V Reset Mode free Stored - - - - Exit...

  • Page 24: Auto Setup

    Basic operation Auto setup This function is available just by pressing the Side control AUTO SETUP button on the side control or AUTOSET button on the remote control. The AUTO SETUP system then automatically performs various button settings in the setup menu, including input source search , auto pc adjust and auto focus .

  • Page 25: Sound Adjust

    Basic operation Sound adjust Side control Direct operation Volume VOL +/- button Press the VOL +/- button on the side control or on the remote control to adjust the volume. Mute Remote control Press the MUTE button on the remote control and select On to turn off the audio temporarily.

  • Page 26: Remote Control Operation

    Basic operation Remote control operation Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the on-screen menu. INPUT button INPUT button Press INPUT button on the remote control to select an input source.
  • Page 27 Basic operation BLANK button Blank Image Blank Press BLANK button to black out the image. To restore to normal, press the BLANK button again or press any other button. The screen changes each time you press the “Blank” disappears after 4 seconds if there is button as follows: no other button operation.

  • Page 28: Computer Input

    Computer input Input select(Analog) Direct operation Side control INPUT Press INPUT button on side control panel button or remote control to select VGA1, VGA2 or RGBHV. Remote control VGA 1 INPUT button VGA 2 RGBHV Note: VGA2 can not be selected when using the COMPUTER IN 2/ MONITOR OUT terminal as MONITOR OUT output.

  • Page 29: Input Select(Digital)

    Computer input Input select(Digital) Direct operation Side control INPUT Press INPUT button on side control panel button or remote control to select HDMI1, HDMI2, HDMI3, Display Port or DVI. Remote control HDMI 1 INPUT button HDMI 2 HDMI 3 Display Port Network Input menu Card Reader...

  • Page 30: Computer System Select

    Computer input Computer system select The projector automatically tunes to various types of computers with its function of Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, the projector automatically detects the signal format and tunes to project proper images without any additional setting. One of the following messages may appear when: When the projector cannot recognize VGA system menu...

  • Page 31: Auto Pc Adjustment

    Computer input Auto PC adjustment Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical to conform to your computer. Menu operation Auto PC adjustment 1 Press MENU button on side control or remote PC adjust menu control to display the on screen menu.Press ...

  • Page 32: Manual Adjustment Via Pc

    Computer input Manual adjustment via PC Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment is provided for you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas to store those parameters manually adjusted, which allows you to recall the setting for a specific computer.

  • Page 33: Image Select

    Computer input Image Select Direct operation Remote control Press the image mode buttons on the remote control to select your required image quality. Menu operation 1. Press the MENU button to display the screen menu. Press  to select the Image Image mode select icon and press ...

  • Page 34: Image Adjust

    Computer input Image adjust 1 Press MENU button to display the screen Image adjust menu menu, press  to select image adjust icon and press  or SELECT button. Image adjust Contrast 2 Press to adjust the setting value, or press Brightness SELECT button;...

  • Page 35: Screen Size Adjust

    Exit Move Next Next the original image size is larger than the Remote control screen size (1024x768(E2425/E2465)) or 1280x800(E2425W)), the projector enters SCREEN display area selection mode automatically. button Press  to select a display area. The arrow turns red upon adjustment and disappears upon the maximum limit.
  • Page 36 Computer input Advanced This function is used to set the horizontal/ vertical position and quantities of the projector in image segment and mosaics. Press OK button at Advanced, Advanced menu appears on the screen. Press ▲▼ button toselect and adjust your required item. H total: set the total quantities of the projector a t h o r i z o n t a l d i r e c t i o n .

  • Page 37: Video Input

    Video input Input select Side control Direct operation Press INPUT button on side control or remote INPUT control to select Component, S-video, Video 1, button Video 2 or SCART. Remote control Component INPUT S-video button Video 1 Video 2 SCART Menu operation 1 Press MENU button on remote control to display the screen menu.

  • Page 38: Video System Select

    Video input Video system select 1 Press MENU button on remote control to display the screen menu. Press  button to select Input icon, then press  button or OK button. 2 Press  button to select Component, Video or S-video, and then press OK button.

  • Page 39: Image Select

    Video input Image Select Direct operation Remote control Press the image mode button on the remote control to select your required image quality. Menu operation 1. Press the MENU button to display the Image mode screen menu. Press  to select the Image button select icon and press ...

  • Page 40: Image Adjust

    Video input Image adjust 1 Press MENU button to display the screen Image adjust menu menu, press  to select image adjust icon and press  or OK button. Image adjust Contrast 2 Press to adjust the setting value, or press Brightness OK button;...

  • Page 41: Screen Size Adjust

    Video input Screen size adjust The screen size can be reset to the value as Screen menu you desire. 1 Press MENU button to display thescreen Screen menu. Press  button to select screen icon Normal and then press  or OK button. Full 2 Press ...

  • Page 42: Setting

    Setting Setting The projector has Setup menu that allows you to set the other various function described as follows. 1 Press MENU button to display the screen Setting menu menu. Press  button to select Setting icon and then press  or OK button. 2 Press ...
  • Page 43 Setting On start Enable the projector to be turned on automatically just by connecting the AC power cord to an outlet when this function is set to On. Standby mode This function is available when operating the projector via network. Normal ..

  • Page 44: Advanced Setting

    Advanced setting Advanced setting You can setting the advanced functions below by the "Advanced setting" menu of the projector. 1 Press MENU button to display the screen Advanced setting menu menu. Press  button to select Advanced setting icon and then press  or OK button.
  • Page 45 Advanced setting Keystone This function is used to store or reset the keystone correction when the AC power cord is unplugged. Press  to select the itmes below: Keystone: Store....Store the keystone correction even when the AC power cord is unplugged. Reset ....Reset the keystone correction when the AC powercord is unplugged.
  • Page 46 Advanced setting Logo PIN code change Logo PIN code can be changed to your desired three- digit number. Press the SELECT button to select Logo PIN code change. Logo Pin code dialog box appears, use the Point ▲▼ buttons to enter the correct code.
  • Page 47 Advanced setting Closed Caption Allows the subtitle to be displayed for the audio contents or other information. If the input source contains closed caption, you can enable this function and change the channel. Press  to select Closed Caption(OFF/ CC1/CC2/ CC3 / CC4) or Color (Color/Whtie). If Closed Caption is not clear, you can change the text color to white from the original.
  • Page 48 Advanced setting Enter a PIN code Press  buttons to enter a number. Press  button to fix the number and move the red frame pointer to the next box. The number changes to “*”. If you fixed an incorrect number, press  button to move the pointer to the number you want to correct, and then enter the correct number.

  • Page 49: Information

    Information Displaying input source The information menu is used to detect signal of projected image and running state. Menu operation Press MENU button to display the screen Information menu. Press  to select information icon, Input S-video the information menu will appear and the Auto information is displayed.Shown as the right H-sync freq.

  • Page 50: Maintenance And Cleaning

    Maintenance and cleaning Warning indicator The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the WARNING Indicator indicator is blinking red.

  • Page 51: Cleaning The Air Filter

    Maintenance and cleaning Cleaning the air filter The air filter prevents dust from accumulating on the surface of the optical elements inside the projector. Should the air filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in a buildup of internal heat and adversely affects the life of the projector.

  • Page 52: Cleaning The Lens

    Maintenance and cleaning Cleaning the lens Unplug the AC power cord before cleaning. Apply some non-abrasive cleaning agent exclusively designed for cameras onto a piece of clean cloth, and then use it to wipe the lens gently. Or you can use cleaning paper or commercial blower to clean the lens.

  • Page 53: Replace The Lamp

    Maintenance and cleaning Replace the lamp When the projection lamp of the projector Indicator When the projection reaches its end of life,the Lamp replacement lamp of the projector icon appears on the screen and LAMP reaches its end of REPLACE indicator lights yellow. Replace the life, LAMP REPLACE i n d i c a t o r l i g h t s lamp with a new one of the same type promptly.
  • Page 54 Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer. Replacement Lamp Type No.:APU-L4-L (E2425) APU-L4-H (E2465/E2425W) LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly.

  • Page 55: Appendix

    Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. - Make sure you have properly connected the projector to peripheral equipment. - Make sure all equipment is connected to the AC outlet and the power is turned on. - If the projector does not project an image when it is connected to a PC, restart the PC.
  • Page 56 Appendix Problems – Solutions No image - Check the connection between PC or video equipment - Check with the signal from PC is correct. If connected to certain laptops, the settings of their video adapters need to be changed.You can refer to the operating instructions of the PC for such modification.

  • Page 57: Indicator And Projector State

    Appendix Indicator and projector state Check the indicator to know about the state of projector. Indicator WARNING LAMP State of projector POWER LENS W-LAN TEMP REPLACEMENT green/red Blue Green Orange In power-off state (AC power cord not connected). In standby state. Press POWER to power on the projector.

  • Page 58: Compatible Computer Specifications

    Appendix Compatible computer specifications This projector can receiver all analog computer formats that DCLK less than 160MHz and digital computer formats that DCLK less than 140MHz. Field Field Signal format Resolution Signal format Resolution Frequceny(Hz) Frequceny(Hz) 640x400 1152x900 640x400 1152x900 640x400 1280x1024 640x480...

  • Page 59: Configurations Of Terminals

    Appendix Configurations of terminals VGA 1/VGA 2/VGA OUT (Analog) Terminal: Analog RGB (D-sub 15 pin) Red (Input/output) ----- Grounding (field synchronizing) Green (Input/output) Blue (Input/output) Grounding ----- DDC data Horizontal synchronizing Grounding (line synchronizing) (compound sync.) input/output Grounding (red) Vertical synchronizing input/output Grounding (green) DDC Clock Grounding (blue)

  • Page 60: Content Of Hazardous Substances And Elements

    Appendix Content of hazardous substances and elements Hazardous substances and elements Name of parts Cr6+ PBDE ○ ○ ○ ○ ○ ○ Plastic parts ○ ○ ○ ○ ○ ○ Metal parts ○ ○ ○ ○ Body Optical parts × ×...

  • Page 61: Pin Code Memorandum

    Appendix PIN code memorandum Write down the PIN code in the blank below and keep it, please contact the repair center. Factory default PIN code 111* PIN code lock Factory default PIN code 111* Locking startup-animation PIN code *If this 3-digit number is changed, the factory default number will be ineffective.

  • Page 62: Rs232 Control Method

    Appendix RS232 Control Method 1. Connection 1.1 Port Setting Item Value Method Asynchronous communication Bits per seconds 19200 Data bits Parity none Stop bits Flow control none 1.2 Wiring Connect the computer and projector with RS232 cross cable. Projector Control Port （D-Sub 9 Pin）...
  • Page 63 Appendix 2.1 POWER ON Command “A00”[CR] (Hex: 41 30 30 0d) Details Power ON the projector in standby mode. [ACK] [CR] Return “?” [CR] 2.2 POWER OFF (Power Off immediately) Command “A01”[CR] (Hex: 41 30 31 0d) Details Power off the projector immediately. [ACK] [CR] Return “?”...
  • Page 64 Appendix 2.6 HDMI 3 Command “A04”[CR] (Hex: 41 30 34 0d) Details Select HDMI 3 as input source. [ACK] [CR] Return “?” [CR] 2.7 Display port Command “A08”[CR] (Hex: 41 30 38 0d) Details Select Display port as input source. [ACK] [CR] Return “?”...
  • Page 65 Appendix 2.11 Component Command “A07”[CR] (Hex: 41 30 37 0d) Details Select Component as input source. [ACK] [CR] Return “?” [CR] 2.12 S-Video Command “A34”[CR] (Hex: 41 33 34 0d) Details Select S-Video as input source. [ACK] [CR] Return “?” [CR] 2.13 Video 1 Command “A33”[CR] (Hex: 41 33 33 0d) Details...
  • Page 66 Appendix 2.16 SCART Command “A38”[CR] (Hex: 41 33 38 0d) Details Select SCART as input source. [ACK] [CR] Return “?” [CR] 2.17 Network Command “A15”[CR] (Hex: 41 31 35 0d) Details Select Network as input source. [ACK] [CR] Return “?” [CR] 2.18 Card Reader Command “A16”[CR] (Hex: 41 31 36 0d) Details...

  • Page 67: Lan Control

    Appendix LAN control Function : PC controls projector via LAN. Preparation: 1. Equipments: PC, projector, cables 2. Connection procedures: Connect the projector to routers or switches of the LAN by direct or cross cable. If it fails to connect PC and projector by parallel cable, please switch to cross cable as suggested. 3.
  • Page 68 Appendix 4 Check IP address Enter network menu and select network settings. Press SELECT to check IP address. 5 Input the IP address into the address bar. Format: http:// IP address/. (If wireless network is used, please open the wireless connecting in computer, find the SSID displayed in "Network information", then input the IP address abtained from "Network information"...
  • Page 69 Appendix Network Setup: "IP Setup": setting wired LAN IP address, Subnet Mask, Default Gateway. "DHCP Server Setup":setting DHCP Server. "Wireless Setup": setting the parameters for wireless LAN. Presenter Setup: Setting the projector name in LAN, password for administrator of ProjectorMe and User. 8 ProjectorMe software: when "Network"...
  • Page 70 Appendix 9 Click , install theProjectorMe software. While installing, you should input the user's name and password.(One projector can be operated by at most four persons.) When installing completed, click the quick icon to access the ProjectorMe software. ① ② ③...
  • Page 71 Appendix ④ Parameters Setting ⑤ Network Display Management Basic Setting:setting language,region of Setting device and password management. capture image etc,. ⑥ Disconnect the projector. Advanced Setting:setting image quality, network port etc,.
