User's Manual
P/N: 410533500
Multimedia projector
Model E1655 series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E1655 series and is the answer not in the manual?

Questions and answers

Related Manuals for Ask Proxima E1655 series

Summary of Contents for Ask Proxima E1655 series

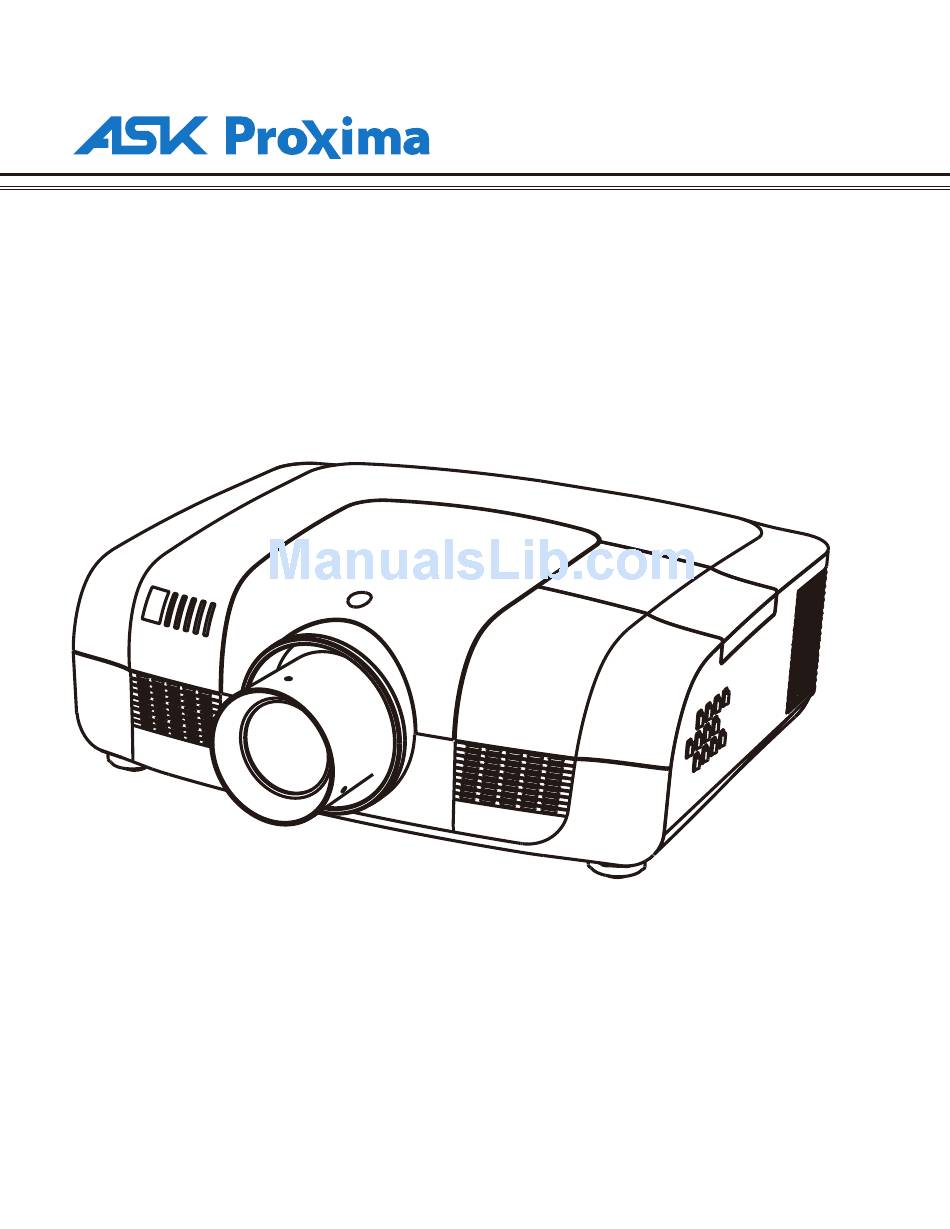

  • Page 1 Multimedia projector Model E1655 series User’s Manual P/N: 410533500...
  • Page 2 ASK Proxima Co., Ltd. reserves the right to modify or improve the product without prior notice. ASK Proxima Co., Ltd. reserves the right to modify the manual. Please consult the company or the dealer for any unclear part.

  • Page 3: Table Of Contents

    Table of contents Safety guide..........4 AV Input............35 Air circulation........5 Selecting input source......35 directions...........5 Selecting AV system......36 Installing the projector in proper Selecting image mode......37 Moving the projector......5 Adjusting image........38 Caution in handling the projector..6 Adjusting screen size......39 Part names and functions......7 Setting............40 Rear terminal........8 Advanced Setting........40...

  • Page 4: To The Owner

    To the owner Please read this manual completely before installing and Safety precautions operating the projector. The projector provides many convenient features and Caution： The projector must be grounded. ● functions. Proper operation may enable you to fully utilize the features and keep it in good condition. Otherwise, it Do not expose the projector to raindrops or high ●...

  • Page 5: Safety Guide

    Safety guide All the safety and operating instructions should be read Never push objects of any kind into this projector before the product is operated. through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a Read all of the instructions given here and retain them fire or electric shock.

  • Page 6: Air Circulation

    Safety guide Air circulation Installing the projector in proper directions Openings in the cabinet are provided for ventilation. To Install the projector properly for normal operation. ensure reliable operation of the product and to protect it Improper installation may reduce the lamp lifetime and from overheating, these openings must not be blocked or cause a fire hazard.

  • Page 7: Moving The Projector

    Safety guide Moving the projector Caution on lens protector Before use, remove the lens protector. To move the projector, press and hold the Shift or lens key more than 5 seconds to center the lens back. Then, install the protector to protect the lens. Lens protector When moving the projector, retract the adjustable feet to prevent damage to the lens and cabinet.

  • Page 8: Part Names And Functions

    Part names and functions ⑧ ② ① ③ Front (1) Lens release button (2) Indicator (3) Lamp cover (4) Speaker (5) Lens cap (6) Projector lens ⑥ (7) Decorative cover (8) Remote receiver (Front & top) ⑩ (9) Side control panel ⑨...

  • Page 9: Rear Terminal

    Part names and functions Rear terminal Rear terminal HDMI MONITOR OUT SCART IN COMPUTER IN2 COMPUTER VIDEO 2 HS/CS (6) BNC input jacks (1) Network port Connect the component or composite video Used to connect the network cable. output from video equipment to VIDEO 2 terminal, or connect the RGBHV format (5 line system) signal to G, B, R, Hs, and Vs (2) CONTROL...

  • Page 10: Side Control And Indicators

    Part names and functions Side control and indicators Side control Indicators (Top panel) ① ⑨ ⑩ ⑥ ② ⑪ ③ ⑦ ⑫ ⑬ ⑧ ④ ⑤ (1) SELECT button (9) POWER indicator To select the lens shift function. – Lights red when the projector is in stand-by mode.

  • Page 11: Remote Control

    Part names and functions Remote control ① ON-STANDBY button ① Turn the projector on or off. button ② HDMI ② Select HDMI input source. ③ ⑤ ③ COMPUTER button ④ Select VGA1 or VGA2 input source. ⑥ ⑨ ④ RGBHV button ⑧...
  • Page 12 Part names and functions Remote control LENS button ⑯ Select the lens shift mode. ① ZOOM button ⑰ Zoom in/out images. FOCUS button ② ⑱ ③ Adjust the focus. ⑤ ④ LAMP button ⑲ ⑥ ⑨ Select the lamp mode. ⑧...

  • Page 13: Remote Control Battery Installation

    Part names and functions Remote control battery installation Open battery Install new batteries into the Replace the compartment lid. compartment lid. compartment. For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment. To ensure safe operation, please observe the following precautions: Use two (2) AAA or LR03 type alkaline batteries.

  • Page 14: Installation

    The brightness in the room has a great influence on picture quality. It is recommended to limit the ambient lighting in order to get the best image. All measurements are approximate and may vary from the actual sizes. E1655 series Diagonal 17.481 m 10.647 m...

  • Page 15: Connecting To Computer

    Installation Connecting to computer (Digital and analog RGB) Cables used for connection ( =Cables are not supplied with the projector.)  • Serial crossover cable (F-F) * • VGA cable (1) HDMI cable * BNC cable * • • Monitor output Serial output Monitor input * Monitor output...

  • Page 16: Connecting To Video Equipment

    Installation Connecting to video equipment Cables used for connection (*=Cables are not supplied with the projector.) Video cable (RCA* 1 or RCA*3) * • • BNC cable (BNC*1 or BNC*3) * • S-Video cable * • Scart-VGA cable * Component Composite S-Video video...

  • Page 17: Connecting To Audio Equipment

    Installation Connecting to audio equipment Cables used for connection (* =Cables are not supplied with the projector.) Audio cable * External audio equipment Audio output Audio output Audio input (R) (L) Audio cable Audio cable (Stereo) Audio cable (Stereo) Audio cable (Stereo) Audio IN Audio cable...
  • Page 18 Installation Connecting to the AC power cord This projector uses nominal input voltages of 100–240 V AC and it automatically selects the correct input voltage. It is designed to work with a single-phase power system having a duce the risk of electrical grounded neutral conductor.

  • Page 19: Lens Installation

    Installation Lens installation Follow the instructions below to install the lens upon replacing or using the provided lens. For the specification of projector lens, contact your dealer. Removing the lens Lens release button Shift the lens to the center with the lens shift function.

  • Page 20: Basic Operation

    Basic operation Turning on the projector Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet. The POWER indicator turns red. Open the lens cap. Press the ON/STAND-BY button on the top control or on the remote control.

  • Page 21: Turning Off The Projector

    Basic operation Turning off the projector Press the ON/STAND-BY button on the side control or on the remote control, and “Power off?” appears on the screen. Power off ? Press the ON/STAND-BY button again to turn off the projector. The POWER indicator starts to flash red, and the cooling fans keep running.

  • Page 22: How To Operate The On-Sereen Menu.21

    Basic operation How to operate the on-screen menu Remote control The projector can be adjusted or set via the on-screen menu, including Shortcut menu and Full menu. General operations are available via the shortcut menu. Indicators A full menu features multiple structures. Each main menu can be divided into several levels of submenus, Select button and submenus are also divided into several levels of...

  • Page 23: Full Menu Bar

    Basic operation Full menu bar ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Main menu Sub menu (1) PC adjust menu Used to adjust parameters, like Auto PC adj. Fine sync Total dots Horizontal、 Vertical、 Clamp、 D i s p l a y a r e a H 、...

  • Page 24: Auto Setup Function

    Basic operation Remote control Auto setup function Arrow keys ▲▼ This function is available just by pressing the Auto Setup button on the top control. The system then automatically performs various settings in the setup menu, including input Keystone search, and auto PC adj. button Auto setup Lens shift Control panel (on the right side of the projector body)

  • Page 25: Sound Adjustment

    Basic operation Keystone If a projected picture has keystone distortion, correct the image ● The arrows are white when there is with the Keystone function. no correction. Press the KEYSTONE button on the top control or on the ● The direction of the arrows which remote control.

  • Page 26: Remote Control Operation

    Basic operation Remote control operation Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the on-screen menu. Remote control HDMI COMPUTER/VIDEO/S-VIDEO/COMPONENT button Press the Computer/video/HDMI/S-Video/RGBHV/SCART Computer /component button to select an input source.
  • Page 27 Basic operation BLANK button Blank Press the BLANK button to black out the image. To restore to normal, press the BLANK button again or press any other button. The screen changes each time you press the button as follows. Black out →Normal →Black out →Normal... “Blank”...

  • Page 28: Computer Input

    Computer input Input source selection (VGA1/VGA2) Direct operation Press the INPUT button on the side control or the COMPUTER button on the remote control to select either VGA1/VGA2. HDMI Remote control VGA 1 COMPUTER button VGA 2 VGA 1 Component VGA 2 S-Video Video1...
  • Page 29 Computer input Input source selection (RGBHV) Direct operation Press the INPUT button on the side control or the COMPUTER button on the remote control to select RGBHV. HDMI Remote control VGA 1 RGBHV button VGA 2 RGBHV Component S-Video Video1 F.MENU button Video2 RGBHV...

  • Page 30: Computer System Selection

    Computer input Computer system selection The projector automatically tunes to various types of computers with its function of Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, the projector automatically detects the signal format and tunes to project proper images without any additional setting.

  • Page 31: Auto Pc Adjustment

    Computer input Auto PC adjustment Auto PC Adjustment function is provided to automatically adjust total dots, horizontal position, vertical position, horizontal image, and vertical image to conform to your computer. PC adjust menu Full menu operation Auto PC adjustment 1. Press the F.MENU button to display the full screen menu.

  • Page 32: Manual Adjustment Via Pc

    Computer input Manual adjustment via PC As some PCs adopt special signal formats, the multi-purpose scanner of E1655 may not detect them. To match the special-format signals, E1655 offers function of manual adjustment, with which users can adjust the parameters. E1655 provides 5 independent memory sections, where the manually adjusted parameters can be saved.

  • Page 33: Selecting Image Mode

    Computer input mode Image select Direct selection: Remote control Use the key Image on the remote control to select the image mode. Operation through F. Menu 1. Press F. Menu to display the F. Menu. Press select the Image select icon .

  • Page 34: Adjusting Image

    Computer input Image adjust 1. Press F. Menu on the remote control to display the on-screen menu. Press to select the Image adjust icon Then press ▼ Menu for adjusting image or press Select. 2. Press ▲▼ to select the item t o be adjusted, and then press ◄►...

  • Page 35: Adjusting Screen Size

    Computer input Screen Menu Adjusting screen size With E1655, the size of the screen can be re-set to the value the user desires. 1. Press F. Menu on the remote control to display the on-screen menu. Press to select the screen. Then press or press Select.

  • Page 36: Av Input

    AV Input Selecting input source (video, S-video, Component, SCART, HDMI) Direct selection Press the input key on the control panel at the side of E1655 , or press Video, S-video, Component, SCART, HDMI on the remote control, to select video, S-video and Component. Video Component S-VIDEO...

  • Page 37: Selecting Av System

    AV Input Selecting AV system 1. Press F. Menu on the remote control to display the on-screen menu. Press to select the AV System Menu (Video or S-video) icon for input source. Then press or press ▼ Select. 2. Press ▲▼ to select “...

  • Page 38: Selecting Image Mode

    AV Input Selecting image mode Direct selection: Remote control Use the key Image on the remote control to select the image mode. Menu selection 1. Press F. Menu to display the F. Menu. Press to select the icon for image select . Then press or press Select.

  • Page 39: Adjusting Image

    AV Input Image adjust 1. Press F. Menu on the remote control to display the on-screen menu. Press to select the icon for Menu for adjusting image image adjustment. Then press or press Select. ▼ 2. Press ▲▼ to select the item to be adjusted, and then press ◄►...

  • Page 40: Adjusting Screen Size

    AV Input Adjusting screen size With E1655, the size of the screen can be re-set to the value the user desires. 1.Press F. Menu on the remote control to display the on-screen menu. Press to select the screen. Then press or press Select.

  • Page 41: Setting

    Setting Setting You can use E1655’s Setting menu to configure the following functions. menu 1. Press F. Menu on the remote control to display the on-screen menu. Press to select Setting. Then press or press Select to enter the ▼ submenu.

  • Page 42: Standby Mode

    Setting Standby mode If you want to operate E1655 via the network, you can enable this function. Normal: Even if E1655 is turned off, the network functions are still in active state. You can, through the network, turn on or off the projector, change the network environment, and receive emails relating to the projector at the time it is turned off.

  • Page 43: Advanced Setting

    Advanced setting Advanced setting Advanced setting You can use E1655’s Advanced setting menu to configure the following functions. 1. Press F. Menu on the remote control to display the -screen menu. Press to select Advanced setting. Then press or press Select to enter ▼...
  • Page 44 Advanced setting Logo(“logo select” and “PIN code lock”) You can use this item to set startup animation, logo and PIN code and to change the PIN code. √ Note: When logo select is on you can ’t select the startup animation and log. Logo select You can select from the following options as the startup animation: User: To display the image you captured.

  • Page 45: Power Management

    Advanced Setting Power management To preserve energy and retain the service life of the lamp, you can use this function to turn off the lamp for the time when E1655 is not used. Options are: Ready: When the lamp is cooled, the power indicator turns green and flashes. When the system is in this state, you can either to re-connect to signa ls or press any key on-top control panel of E1655 or on the remote control to make the lamp illuminated again.
  • Page 46 Advanced Setting Closed caption This item allows the subtitle to be displayed for the audio contents or other information. If the input source contains closed caption, you can enable this function and change the channel. Press select OFF, CC1, CC2, CC3 or CC4. √...
  • Page 47 Advanced setting PIN code lock This function can prevent unauthorized operation of the projector. Optional items are: OFF: Unlocked. ON: You should enter the correct PIN code each time E1655 is powered on. If you want to change the settings for PIN code locking or the PIN code (3-digit number), you should enter the PIN code.
  • Page 48 Advanced setting Filter counter This function is used to set a frequency for the filter cleaning. When E1655 reaches specific time between cleanings, a Filter warning icon appears on the screen, suggesting it is time for cleaning. After cleaning the filter, make sure you have selected Reset and set the timer.

  • Page 49: Information

    Information Displaying input source The information menu is used to detect signal of projected image and running state of E1655. Operation through menu Press to select the information. And the information menu will appear. You can then see the information displayed as follows: Input It displays the selected input source and the current signal format.

  • Page 50: Maintenance

    Maintenance “Warning Temper” indicator 。 The “Warning Temper” indicator tells in what protection state E1655 is engaged. The user should check the “Warning Temper” indicator and power indicator to make sure they work. On-top control panel Projector is in OFF state, and “Warning Temper” indicator flashes red. When its internal temperature exceeds the normal value, E1655 will be automatically powered off to protect the parts.

  • Page 51: Cleaning The Filter

    Maintenance Cleaning the filter The filter prevents dust from accumulating on the surface of lens assembly in E1655, Should the filter become clogged with dust particles, it will reduce the cooling fan’s effectiveness and may result in internal heat buildup and adversely affect the life of the projector. If a Filer warning icon appears on the screen, you should clean the filter immediately.

  • Page 52: Covering The Lens Properly

    Maintenance Covering the lens properly If E1655 needs to be moved or won’t be used for extended period of time, you should cover the lens properly. Cleaning the lens Unplug the AC power cord before cleaning. Apply some non-abrasive cleaning agent exclusively designed for cameras onto a piece of clean cloth, and then use it to wipe the lens gently.

  • Page 53: Replacing The Lamp

    Maintenance Replacing the lamp When the service life of the projection lamp is over, the icon suggests that the lamp needed to be replaced will appear on the screen, and the indicator for the replacement will flash yellow. If so, you should immediately replace it with a new one of the same model.

  • Page 54: Changing The Lamp Model

    Maintenance Changing the lamp model Purchasing new lamps Users can buy new lamps through the local distributor. Your purchase order should include the information below: Projector model ：E1655 ● ：APU-L8 Lamp model ● LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

  • Page 55: Appendix

    Appendix Troubleshooting Before you contact the local distributor or repair center, you may check the items below once again. -Make sure you have properly connected E1655 to the peripheral equipment. -Make sure all equipment has been connected to AC power source and the power source is in ON state. -If E1655 can’t project image output from a PC, please re-start the PC.
  • Page 56 Appendix No image -Check the connection between PC or video equipment and E1655 . -Check with the signal from PC is correct. If E1655 is connected to certain laptops, the settings of their video adapters need to be changed. You can refer to the operating instructions of the PC for such modification.
  • Page 57 Appendix Distorted image or no image -Check and adjust the PC menu or on-screen menu. The PIN code dialog box popes up in the -A PIN code is set for locking. startup process -Check the battery. Remote control doesn’t work -Make sure there is no obstacle remote control.

  • Page 58: Indicator And Projector State

    Appendix Indicator and projector state Check the indicator to know about the state of projector. Indicator State of projector POWER WARNING LAMP FOCUS SHIFT (Green) (Green/red) (Red) (Yellow) (Blue) E1655 is in power-off state (AC power cord not inserted). E1655 is in standby state. Press ON/STNADBY to power on the projector.

  • Page 59: Compatible Pcs

    Appendix Compatible PCs E1655 is compatible with all analog and digital signal formats under 160MHz of DCLK, whose resolution and correspondent field frequencies are listed below: Signal format Resolution Field frequency(HZ) Signal format Resolution Field frequency(HZ) 640x400 1152x900 640x400 1152x900 1280x1024 640x400 640x480...

  • Page 60: Configuration Of Terminals

    Appendix Configuration of terminals OMPUTER IN 1/COMPUTER IN 2/MONITOR OUT (analog) Terminal: Analog RGB (D-sub 15-pin) (Input/output) ----- Green (Input/output) Grounding (field synchronizing) Grounding Blue (Input/output) DDC data ----- Horizontal synchronizing (compound sync.) input/output Grounding (line synchronizing) Vertical synchronizing Grounding (red) input/output Grounding (green) DDC clock...

  • Page 61: Outer Dimensions

    Appendix Outer dimensions Unit: mm Screw hole used when E1655 is installed on the ceiling LCD PROJECTOR Screw:MB Depth:10.0 193.4 176.9 534.5 3 0 0 1 5 0 Content of hazardous substances and elements in E1655 Name of parts Hazardous substances and elements Cr6+ PBDE Plastic parts...

  • Page 62: Optional Parts

    Appendix Optional parts Listed below are optional parts. Users should provide distributors with such information as part name and model when they place the order. Ultra-long Wide-range Short-focus Telephoto tandard lens Type lens lens -focus lens lens Appearance Electric Zoom/Focus X1.6/Power Flred/Power X1.6/Power...
