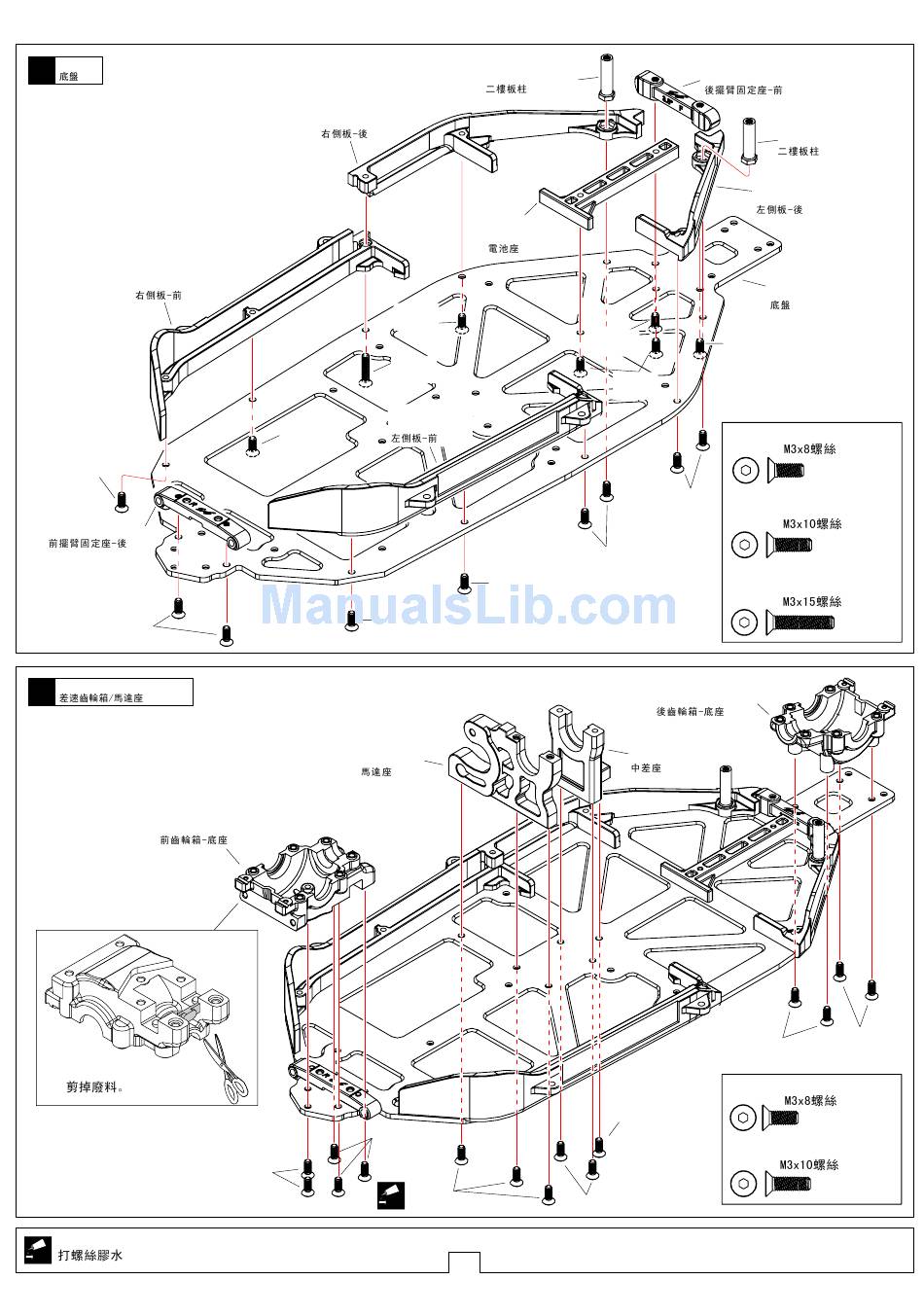

Team C TS4-TE User Manual page 4

A
-
Chassis
Bag
1
TS4015
Right Side plate-F
TR4058
M3x10
TU0416
Front Arm Mount-Rear
TR4058 M3x8
Diff-gear Box / Motor Mount
2
Bag
TR4002
Front Gear-box-lower
Cut the waste material.
TR4058 M3x8
Apply threadlocker(screw cement)
Screw
Cement
TS4015
Right Side plate-R
TR4058
M3x10
T08807
M3x15
TS4015
Left Side plate-F
TR4058
M3x10
TR4058 M3x10
A
-
TS2029
Motor Mount
TR4058 M3x8
TR4058
Screw
M3x8
Cement
TS4044
Upper deck column
TS4022
Battery mount
TR4058
M3x10
TR4058
M3x8
TR4058 M3x10
TR4058 M3x10
TS4020
Center diff mount
TR4058 M3x10
TR4058 M3x10
1
TU0418
Rear Arm Mount-Rear
TS4044
Upper deck column
TS4015
Left Side plate-R
TS415
Chassis
TR4058 M3x10
TR4058 M3x8 Screw
..................4
TR4058
TR4058 M3x10 Screw
M3x10
...............11
T08807 M3x15 Screw
TR4003
Rear Gear-box-lower
TR4058 M3x8
TR4058 M3x8 Screw
..................12
TR4058 M3x10 Screw
...............3
............1
TR4058
M3x8
