Team C TS4-TE User Manual page 20

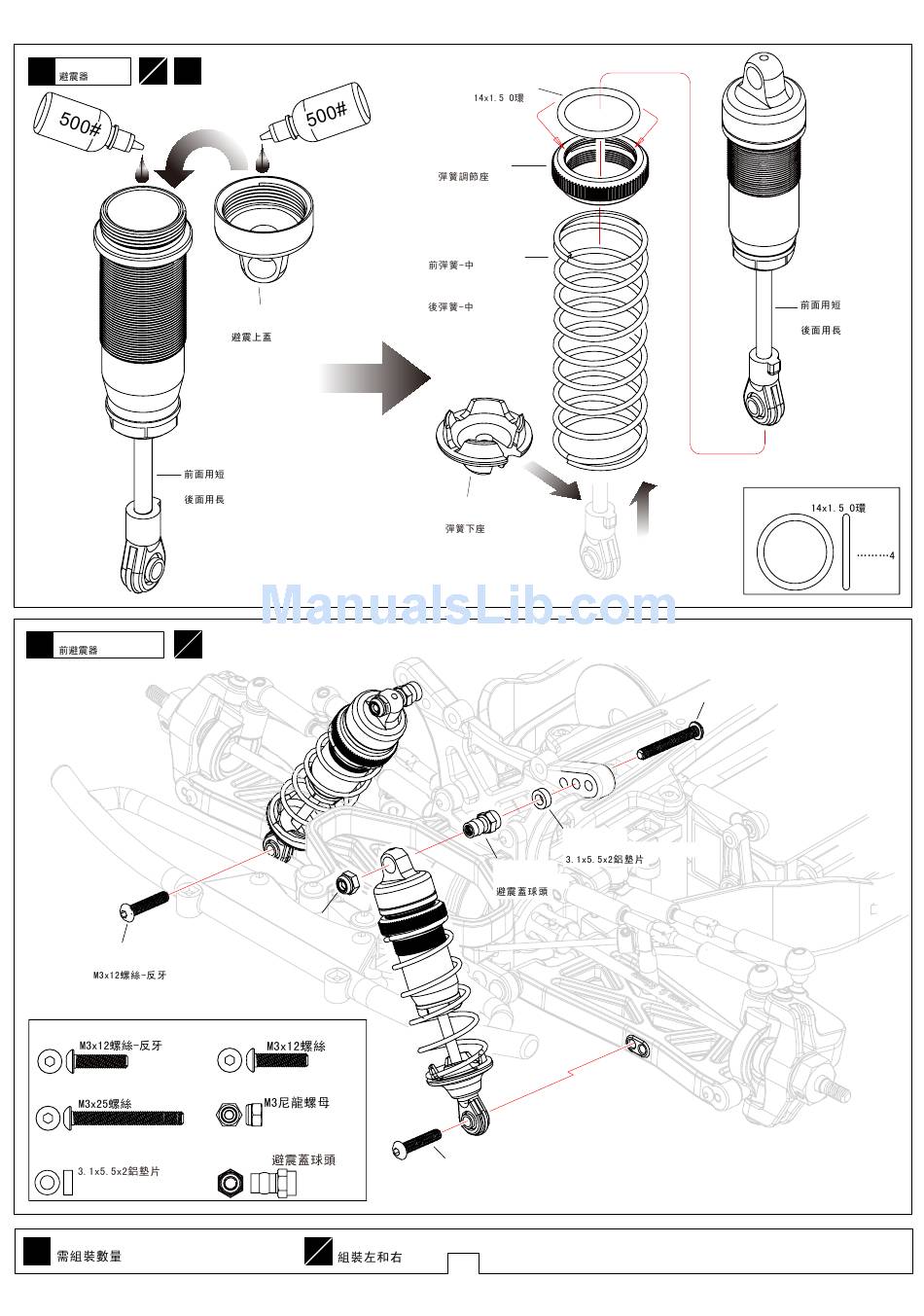

Shock Absorber
F
34
x2
R
Front For Short
Rear For Long
Front Shock Absorber
L
35
R
-E
Bag
TS4045
M3x12 Screw Versa tooth
TS4045 M3x12 Screw-Versa tooth
............1
TS4046 M3x25 Screw
.........2
TU0250-6 3.1x5.5x2 Aluminium Washer
........................2
Assemble as many times as specified
x2
-E
Bag
TU0266-3/TU0266-4
Shock Top Cover
T02084 M3
TR4059 M3x12 Screw
.........1
T02084 M3 Nylon Nut
..................2
TU0250-6 Shock Cap Ball
............2
Assemble both Left and Right
L
R
TU0250-8
14x1.5 O-ring
TU0266-3/TU0266-4
Spring Adjuster
TS406-2F
Front Spring-Medium
TS406-2R
Rear Spring-Medium
TU0250-5
Below Spring mount end
TU0250-6
3.1x5.5x2 Aluminium Washer
TU0250-6
Shock cap ball
TR4059 M3x12
17
Front For Short
Rear For Long
TU0250-8 14x1.5 O-ring
TS4046 M3x25
