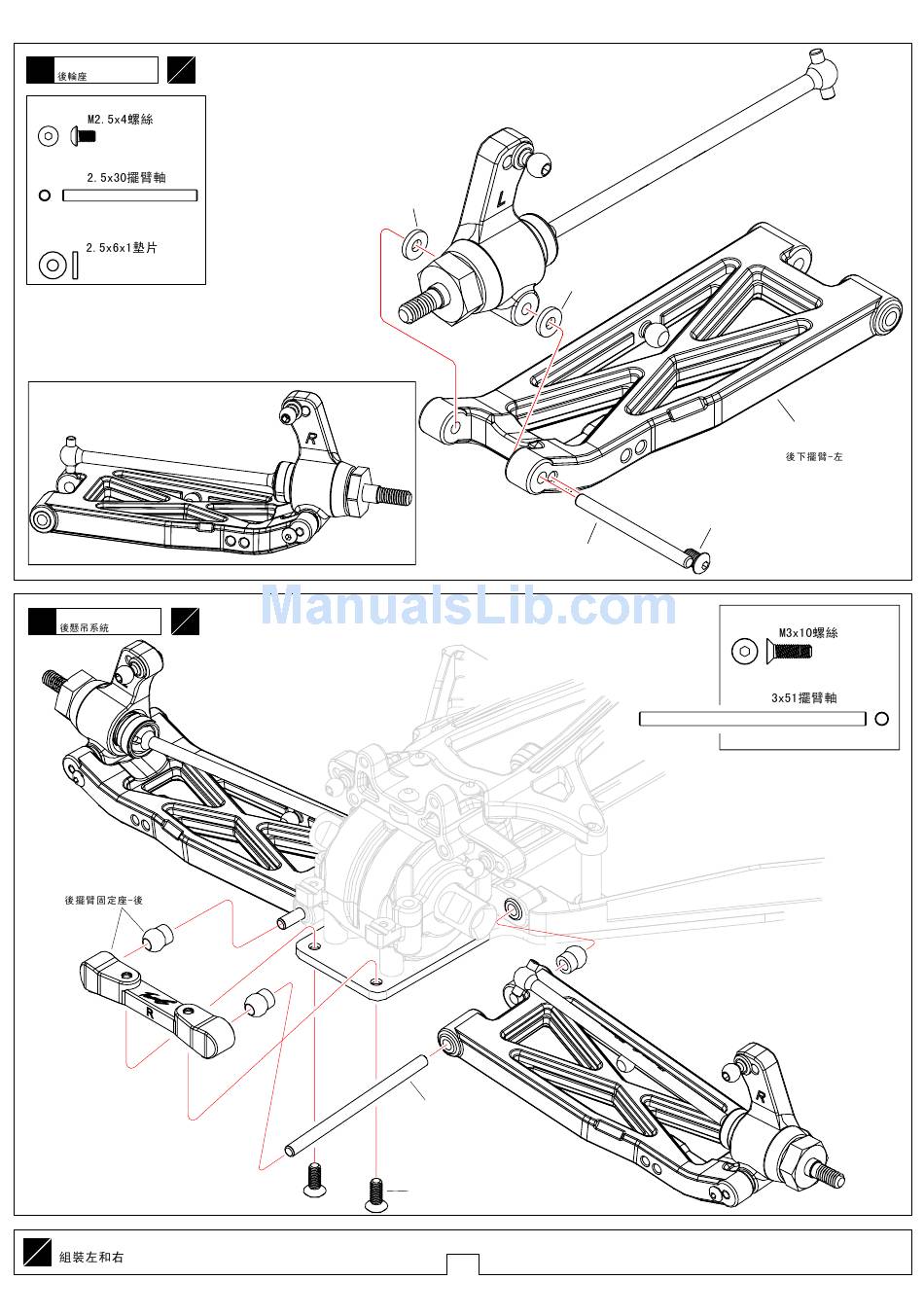

Rear hub carriers
L
26
R
TR4059 M2.5x4 Screw
.....................2
TR4046 2.5x30 Arm pin
..................2
TR4011 2.5x6x1 Washer
........................4
< R >
Rear suspension
L
27
R
TU0418
Rear Arm Mount-R
Assemble both Left and Right
L
R
-D
Bag
-D
Bag
< L >
TR4011
2.5x6x1
TR4046 2.5x30
T04035 3x51
TR4058 M3x10
13
TR4011
2.5x6x1
TR4059 M2.5x4
TR4058 M3x10 Screw
T04035 3x51 Arm pin
TS4013
Rear lower arm-L
...............2
..................2
