Team C TS4-TE User Manual page 19

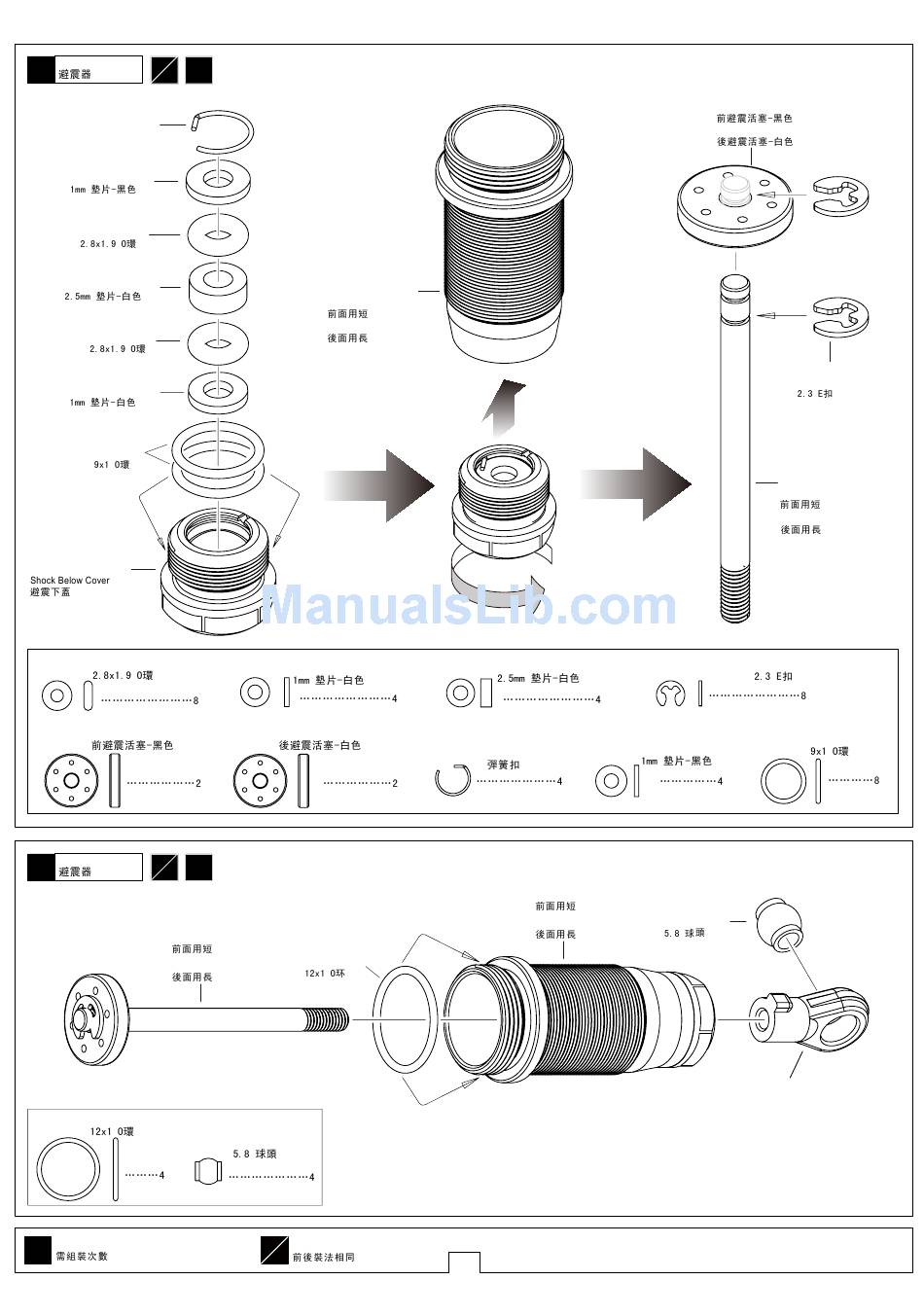

Shock Absorber
32 F
x2
R
TU0250-8
TU0250-8
1mm Washer-Black
TU0250-8
2.8x1.9 O-ring
TU0250-8
2.5mm Washer-White
TU0250-8
2.8x1.9 O-ring
TU0250-8
1mm Washer-White
TU0250-8
9x1 O-ring
TU0266-3/TU0266-4
TU0250-8 2.8x1.9 O-ring
TU0250-7 Front Shock Piston-Black
Shock Absorber
F
33
x2
R
Front For Short
Rear For Long
TU0250-8 12x1 O-ring
T02062 5.8 Ball Stud
Assemble as many times as specified
x2
-E
Bag
TU0266-3/TU0266-4
Front For Short
Rear For Long
TU0250-8 1mm Washer-White
TU0250-7 Rear Shock Piston-White
-E
Bag
TU0250-8
12x1 O-ring
Assemble front and rear sides the same way
F
R
TU0250-8 2.5mm Washer-White
TU0250-8 1mm Washer-Black
TU0250-8 Spring
Front For Short
Rear For Long
16
TU0250-7
Front Shock Piston-Black
Rear Shock Piston-White
TU0266-1/TU0266-2
2.3 E-ring
TU0266-1/TU0266-2
Front For Short
Rear For Long
TU0266-1/TU0266-2 2.3 E-ring
TU0250-8 9x1 O-ring
T02062
5.8 Ball Stud
T02031
