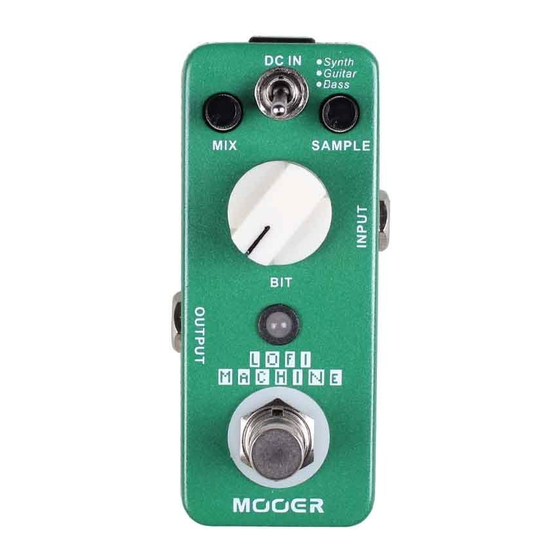

Mooer Lofi Machine Owner's Manual

Sample Reducing Pedal
Main Features
Ÿ Wide range sampling rate/depth reducing effects
Ÿ 3 modes for using guitar, bass, synth or sound player
Ÿ Full metal shell
Ÿ Very small and exquisite
Ÿ True bypass
Ÿ DC 9V Adapter power supply
3
6
7
8
9
4
2
5
6. Mode Switch:
Switch between Synth mode, Guitar mode, and Bass mode
(For connecting: synthesizer or all kinds of sound player,
guitar, and bass).
7. MIX Knob:
Adjust the ratio between dry signal and wet signal
8. SAMPLE Knob:
Adjust the range of sampling rate reducing.
9. BIT Knob:
Adjust the range of sampling depth reducing.
Sampling Rate Range: 31250Hz~60Hz
Sampling Depth Range: 16Bit~5Bit
Input: 1/4" monaural jack (impedance: 470k
Output: 1/4" monaural jack (impedance: 100 Ohms)
Power Requirements: AC adapter 9V DC (center minus plug)
Current Draw: 128 mA
Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
Weight:160g
Accessories: Owner's Manual
*
Disclaimer: Any specification's update won't be amended in this manual.
1. TRUE BYPASS Footswitch:
Push down the footswitch
to switch between effects
and bypass status.
2. ON/OFF LED:
Instructs effects or bypass
status of LOFI MACHINE, when
the LED is lit up, the effects is on.
3. DC IN Power Jack:
For power supply, use a 9-volt
DC regulated AC adapter(plug
polarity is positive on the barrel
and negative in the center).
4. INPUT Jack:
1/4" mono audio jack, for
connecting input device.
5. OUTPUT Jack:
1/4" mono audio jack, outputs
the signal.
.
Ohms )
