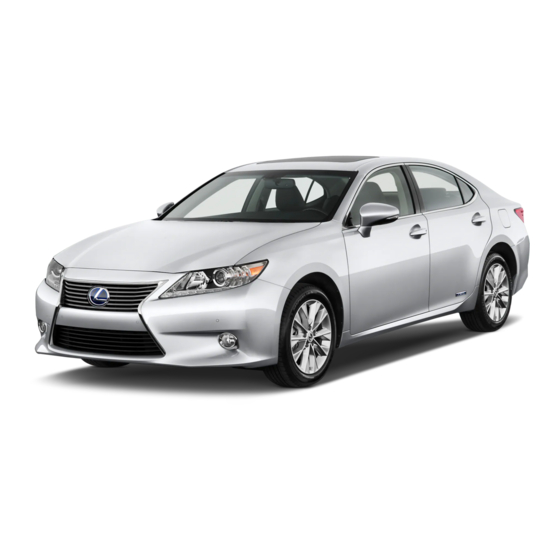

Lexus 2013 ES350 Owner's Manual

Lexus 2013 ES350 Owner's Manual

Hide thumbs Also See for 2013 ES350:

Setting instructions (5 pages)

Table of Contents

Advertisement

Quick Links

Download this manual

8

For your information

Main Owner's Manual

Please note that this manual applies to all models and explains all equipment, includ-

ing options. Therefore, you may find some explanations for equipment not installed

on your vehicle.

All specifications provided in this manual are current at the time of printing. How-

ever, because of the Lexus policy of continual product improvement, we reserve the

right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustrations may differ from

your vehicle in terms of color and equipment.

Noise from under vehicle after turning off the engine <hybrid sys-

tem>

Approximately five hours after the engine <hybrid system> is turned off, you may hear

sound coming from under the vehicle for several minutes. This is the sound of a fuel

evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Lexus

A wide variety of non-genuine spare parts and accessories for Lexus vehicles are

currently available in the market. You should know that Toyota does not warrant

these products and is not responsible for their performance, repair, or replacement,

or for any damage they may cause to, or adverse effect they may have on, your

Lexus vehicle.

This vehicle should not be modified with non-genuine Lexus products. Modification

with non-genuine Lexus products could affect its performance, safety or durability,

and may even violate governmental regulations. In addition, damage or perfor-

mance problems resulting from the modification may not be covered under war-

ranty.

ES350 300h_OM_OM33A01U_(U)

I n f o r ma t i o n P r o v i d e d b y :

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the 2013 ES350 and is the answer not in the manual?

Questions and answers

Edward Weiland

February 23, 2025

Does the 2013 Lexus ES 350 have a multi disc CD player?

0

1 comments:

Mr. Anderson

May 14, 2025

No, the 2013 Lexus ES 350 with navigation comes with only a single CD player, not a multi-disc CD changer. Models without navigation may have a 6-disc changer.

This answer is automatically generated

0

Summary of Contents for Lexus 2013 ES350

Page 1 All specifications provided in this manual are current at the time of printing. How- ever, because of the Lexus policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of color and equipment.
Page 2: Installation Of A Mobile Two-Way Radio System
Seat belt pretensioner system ● Be sure to check with your Lexus dealer for precautionary measures or special instructions regarding installation of a mobile two-way radio system. Hybrid vehicles: High voltage parts and cables on the hybrid vehicles emit approxi-...
Page 3: Vehicle Data Recordings
● only) If your Lexus has Safety Connect or Lexus Enform and if you have subscribed to those services, please refer to the Safety Connect / Lexus Enform Telematics Sub- scription Service Agreement for information on data collected and its usage.
Page 4: Event Data Recorder
EDR. Disclosure of the EDR data ● Lexus will not disclose the data recorded in an EDR to a third party except when: • An agreement from the vehicle’ s owner (or the lessee for a leased vehicle) is obtained •...
Page 5: Perchlorate Material
Scrapping of your Lexus The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Lexus dealer before you scrap your vehicle.
Page 6 In the event that your vehicle must be disposed of, the hybrid battery must be disposed of by your Lexus dealer or a qualified service shop. If the hybrid battery is not disposed of properly, it may cause electric shock that can result in death or serious injury.
Page 7: Before Driving
1-1. For safe use Before driving Floor mat Use only floor mats designed specifically for vehicles of the same model and model year as your vehicle. Fix them securely in place onto the car- pet. Insert the retaining hooks (clips) into the floor mat eyelets.
Page 8 ■ Do not use floor mats designed for other models or different model year vehicles, ● even if they are Lexus Genuine floor mats. Only use floor mats designed for the driver’ s seat. ● Always install the floor mat securely using the retaining hooks (clips) provided.
Page 9: For Safety Drive
1-1. For safe use For safety drive For safe driving, adjust the seat and mirror to an appropriate position before driving. Correct driving posture Adjust the angle of the seatback so that you are sitting straight up and so that you do not have to lean forward to steer.
Page 10: Adjusting The Mirrors
1-1. For safe use Adjusting the mirrors Make sure that you can see backward clearly by adjusting the inside and outside rear view mirrors properly. ( P. 164, 167) CAUTION Observe the following precautions. Failure to do so may result in death or serious injury. Do not adjust the position of the driver’...
Page 11: Seat Belts
1-1. For safe use Seat belts Make sure that all occupants are wearing their seat belts before driving the vehicle. Correct use of the seat belts Extend the shoulder belt so that it ● comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.
Page 12 1-1. For safe use Adjusting the seat belt shoulder anchor height (front seats) Push the seat belt shoulder anchor down while pressing the release button. Push the seat belt shoulder anchor up. Move the height adjuster up and down as needed until you hear a click. Seat belt pretensioners (front and outboard rear seats) The pretensioner helps the seat belt to quickly restrain the occupant by...
Page 13 Lexus dealer free of charge. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 14 Each seat belt should be used by one person only. Do not use a seat belt for more ● than one person at once, including children. Lexus recommends that children be seated in the rear seat and always use a seat ● belt and/or an appropriate child restraint system.
Page 15 Seat belt pretensioners ■ If the pretensioner has activated, the SRS warning light will come on. In that case, the seat belt cannot be used again and must be replaced at your Lexus dealer. Adjustable shoulder anchor ■ Always make sure the shoulder belt is positioned across the center of your shoul- der.
Page 16 1-1. For safe use CAUTION Using a seat belt extender ■ Do not wear the seat belt extender if you can fasten the seat belt without the ● extender. Do not use the seat belt extender when installing a child restraint system because ●...
Page 17: Srs Airbags
1-1. For safe use SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury.
Page 18 1-1. For safe use ◆ SRS side and curtain shield airbags SRS front side airbags Can help protect the torso of the front seat occupants SRS rear side airbags Can help protect the torso of occupants in the rear outer seats SRS curtain shield airbags Can help protect primarily the head of occupants in the outer seats ES350 300h_OM_OM33A01U_(U)
Page 19 1-1. For safe use SRS airbag system components Front passenger occupant clas- Front side airbags sification system (ECU and sen- SRS warning light sors) Driver airbag Side impact sensors (front Rear side airbags doors) Side impact sensors (rear) Knee airbags Driver’...
Page 20 1-1. For safe use Your vehicle is equipped with ADVANCED AIRBAGS designed based on the US motor vehicle safety standards (FMVSS208). The airbag sen- sor assembly (ECU) controls airbag deployment based on information obtained from the sensors etc. shown in the system components diagram above.
Page 21 An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Lexus strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained.
Page 22 1-1. For safe use CAUTION SRS airbag precautions ■ Do not allow a child to stand in front of the ● SRS front passenger airbag unit or sit on the knees of a front passenger. Do not allow the front seat occupants to ●...
Page 23 ● front and rear pillar garnishes are damaged or cracked, have them replaced by your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 24 ■ Do not dispose of your vehicle or perform any of the following modifications with- out consulting your Lexus dealer. The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or serious injury. Installation, removal, disassembly and repair of the SRS airbags ●...
Page 25 1-1. For safe use SRS airbag deployment conditions (SRS front airbags) ■ The SRS front airbags will deploy in the event of an impact that exceeds the set ● threshold level (the level of force corresponding to an approximately 12 - 18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or deform).
Page 26 1-1. For safe use Types of collisions that may not deploy the SRS airbags (SRS front airbags) ■ The SRS front airbags do not generally inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal collision. But, whenever a collision of any type causes sufficient forward deceleration of the vehi- cle, deployment of the SRS front airbags may occur.
Page 27 1-1. For safe use When to contact your Lexus dealer ■ In the following cases, the vehicle will require inspection and/or repair. Contact your Lexus dealer as soon as possible. Any of the SRS airbags have been inflated. ● The front of the vehicle is damaged or ●...
Page 28: Front Passenger Occupant Classification System
1-1. For safe use Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classification system. This system detects the conditions of the front passenger seat and activates or deactivates the devices for the front passenger. Seat belt reminder light SRS warning light “AIR BAG OFF”...
Page 29 1-1. For safe use Condition and operation in the front passenger occupant classifi- cation system Adult ■ “AIR BAG ON” and “AIR BAG OFF” “AIR BAG ON” indicator lights Indicator/ SRS warning light warning light Seat belt reminder light Flashing Front passenger airbag Side airbag on the front passenger seat...
Page 30 1-1. For safe use Unoccupied ■ “AIR BAG ON” and “AIR BAG OFF” “AIR BAG OFF” indicator lights Indicator/ SRS warning light warning light Seat belt reminder light Front passenger airbag Deactivated Side airbag on the front passenger seat Activated Curtain shield airbag Devices in the front passenger side...
Page 31 1-1. For safe use : The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may recognize him/her as a child depending on his/her physique and posture. : In the event the front passenger does not wear a seat belt : When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her as an adult depending on...
Page 32 ● the SRS warning light may come on to indicate a malfunction of the detection sys- tem. In this case, contact your Lexus dealer immediately. Child restraint systems installed on the rear seat should not contact the front seat- ●...
Page 33: Safety Information For Children
1-1. For safe use Safety information for children Observe the following precautions when children are in the vehicle. Use a child restraint system appropriate for the child, until the child becomes large enough to properly wear the vehicle’s seat belt. It is recommended that children sit in the rear seats to avoid accidental ●...
Page 34: Child Restraint Systems
1-1. For safe use Child restraint systems A child restraint system for a small child or baby must itself be properly restrained on the seat with the lap portion of the lap/shoulder belt. The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint systems.
Page 35 1-1. For safe use Types of child restraints Child restraint systems are classified into the following 3 types according to the age and size of the child: Rear facing Infant seat/con- Forward facing Convertible vertible seat seat Booster seat Selecting an appropriate child restraint system ■...
Page 36 In an accident, the child can be crushed against the wind- shield, or between you and the vehicle’ s interior. Lexus strongly urges the use of a proper child restraint system that conforms to ● the size of the child, installed on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat.
Page 37 1-1. For safe use CAUTION When children are in the vehicle ■ Do not allow children to play with the seat belt. If the seat belt becomes twisted around a child’ s neck, it may lead to choking or other serious injuries that could result in death.
Page 38: Installing Child Restraints
1-1. For safe use Installing child restraints Follow the child restraint system manufacturer’s instructions. Firmly secure child restraints to the seats using the LATCH anchors or a seat belt. Attach the top tether strap when installing a child restraint. The lap/shoulder belt can be used if your child restraint system is not compatible with the LATCH (Lower Anchors and Tethers for Children) system.
Page 39 1-1. For safe use Installation with LATCH system Lower the head restraint in place at the lowest position. Widen the gap between the seat cushion and seatback slightly. Type A Latch the hooks of the lower straps onto the LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto the top...
Page 40 1-1. For safe use Type B Latch the buckles onto the LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor. For owners in Canada: The symbol on a child restraint system indicates the presence of a lower connector system.
Page 41 1-1. For safe use Installing child restraints using a seat belt (child restraint lock function belt) Rear-facing Infant seat/convertible seat ■ Place the child restraint system on the rear seat facing the rear of the vehicle. Run the seat belt through the child restraint system and insert the plate into the buckle.
Page 42 1-1. For safe use While pushing child restraint system down into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place. After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.
Page 43 1-1. For safe use Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted. Fully extend the shoulder belt and allow it to retract to put it in lock mode.
Page 44 1-1. For safe use Booster seat ■ Place the child restraint system on the seat facing the front of the vehicle. Sit the child in the child restraint system. Fit the seat belt to the child restraint sys- tem according to the manufac- turer’...
Page 45 1-1. For safe use Child restraint systems with a top tether strap Lower the head restraint in place at the lowest position. Secure the child restraint system using the seat belt or LATCH anchors. Open the anchor bracket cover, latch the hook onto the anchor bracket and tighten the top tether strap.
Page 46 1-1. For safe use CAUTION When installing a booster seat ■ To prevent the belt from going into ALR lock mode, do not fully extend the shoul- der belt. ALR mode causes the belt to tighten only. This could cause injury or dis- comfort to the child.
Page 47 1-1. For safe use CAUTION When installing a child restraint system ■ When a booster seat is installed, always ensure that the shoulder belt is posi- ● tioned across the center of the child’ s shoulder. The belt should be kept away from the child’...
Page 48: Exhaust Gas Precautions
Keep the trunk lid closed. ● If you smell exhaust gases in the vehicle even when the trunk lid is closed, open ● the windows and have the vehicle inspected at your Lexus dealer as soon as pos- sible. When parking ■...
Page 49: Hybrid System Features (Hybrid Vehicles)
1-2. Hybrid system Hybrid system features (hybrid vehicles) Your vehicle is a hybrid vehicle. It has characteristics different from conventional vehicles. Be sure you are closely familiar with the charac- teristics of your vehicle, and operate with care. The hybrid system combines the use of a gasoline engine and an elec- tric motor (traction motor) according to driving conditions, improving fuel efficiency and reducing exhaust emissions.
Page 50 1-2. Hybrid system ◆ When stopped/during start off The gasoline engine stops when the vehicle is stopped. During start off, the electric motor (traction motor) drives the vehicle. At slow speeds or when traveling down a gentle slope, the engine is stopped and the elec- tric motor (traction motor) is used.
Page 51 10 miles (16 km). If the hybrid battery becomes fully discharged and you are unable to jump-start the vehicle with the 12-volt battery, contact your Lexus dealer. If the shift lever is in N, the hybrid battery (traction battery) will not be charged.
Page 52 After the 12-volt battery has discharged or has been changed or removed ■ The gasoline engine may not stop even if the vehicle is running on the hybrid battery (traction battery). If this continues for a few days, contact your Lexus dealer. Sounds and vibrations specific to a hybrid vehicles ■...
Page 53: Hybrid System Precautions (Hybrid Vehicles)
1-2. Hybrid system Hybrid system precautions (hybrid vehicles) Take care when handling the hybrid system, as it contains a high voltage system (about 650 V at maximum) as well as parts that become extremely hot when the hybrid system is operating. Obey the caution labels attached to the vehicle.
Page 54 If the emer- gency shut off system activates, your vehicle will not restart. To restart the hybrid system, contact your Lexus dealer. Hybrid warning message A message is automatically displayed when a malfunction occurs in the hybrid system or an improper operation is attempted.
Page 55 ■ disconnected The hybrid system may not start. In that case, try to start the system again. If the “READY” indicator does not come on, contact your Lexus dealer. Running out of fuel ■ When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the vehicle with at least enough gasoline to make the low fuel level warning light ( P.
Page 56 1-2. Hybrid system CAUTION High voltage precautions ■ The vehicle has high voltage DC and AC systems as well as a 12-volt system. DC and AC high voltage is very dangerous and can cause severe burns and electric shock that may result in death or serious injury. Never touch, disassemble, remove or replace the high voltage parts, cables or ●...
Page 57 1-2. Hybrid system CAUTION Road accident cautions ■ Observe the following precautions to reduce the risk of death or serious injury: Pull your vehicle off the road, apply the parking brake, shift the shift lever to P, and ● turn the hybrid system off. Do not touch the high voltage parts, cables and connectors.
Page 58 ● water spills onto the hybrid battery (traction battery), the battery may be dam- aged. Have the vehicle inspected by your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 59: Engine Immobilizer System (Gasoline Vehicles)
1-3. Theft deterrent system Engine immobilizer system (gasoline vehicles) The vehicle’s keys have built-in transponder chips that prevent the engine from starting if a key has not been previously registered in the vehicle’s on-board computer. Never leave the keys inside the vehicle when you leave the vehicle. The indicator light flashes after the “START STOP ENGINE”...
Page 60 1-3. Theft deterrent system Certifications for the engine immobilizer system ■ For vehicles sold in the U.S.A. FCC ID: NI4TMIMB-3 This device complies with part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 61: Immobilizer System (Hybrid Vehicles)
1-3. Theft deterrent system Immobilizer system (hybrid vehicles) The vehicle’s keys have built-in transponder chips that prevent the hybrid system from starting if a key has not been previously registered in the vehicle’s on-board computer. Never leave the keys inside the vehicle when you leave the vehicle. The indicator light flashes after the “POWER”...
Page 62 1-3. Theft deterrent system Certifications for the immobilizer system ■ For vehicles sold in the U.S.A. FCC ID: NI4TMIMB-3 This device complies with part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 63: Deactivating Or Stopping The Alarm
1-3. Theft deterrent system Alarm The alarm The alarm uses light and sound to give an alert when an intrusion is detected. The alarm is triggered in the following situations when the alarm is set: A locked door or trunk is unlocked or opened in any way other than ●...
Page 64 1-3. Theft deterrent system System maintenance ■ The vehicle has a maintenance-free type alarm system. Items to check before locking the vehicle ■ To prevent unexpected triggering of the alarm and vehicle theft, make sure of the fol- lowing: Nobody is in the vehicle. ●...
Page 65 1-3. Theft deterrent system Alarm-operated door lock ■ When the alarm is operating, the doors are locked automatically to prevent intrud- ● ers. Do not leave the key inside the vehicle when the alarm is operating, and make sure ● the key is not inside the vehicle when recharging or replacing the battery.
Page 66: Warning Lights And Indicators
2. Instrument cluster Warning lights and indicators The warning lights and indicators on the instrument cluster and center panel inform the driver of the status of the vehicle’s various systems. For the purpose of explanation, the following illustration displays all warning lights and indicators illuminated.
Page 67: Warning Lights
2. Instrument cluster ◆ Outside rear view mirrors (vehicles with BSM) Warning lights Warning lights inform the driver of malfunctions in the indicated vehicle’ s systems. Electric power steering Brake system warning light system warning light ( P. 751) ( P. 753) (U.S.A.) Brake system warning light Slip indicator ( P.
Page 68 They will turn off after the engine <hybrid system> is on, or after a few seconds. There may be a malfunction in a system if the lights do not turn on, or turn off. Have the vehicle inspected by your Lexus dealer. : The light flashes to indicate a malfunction.
Page 69 2. Instrument cluster Indicators The indicators inform the driver of the operating state of the vehicle’ s vari- ous systems. Turn signal indicator Cruise control “SET” indi- ( P. 221) cator ( P. 244, 248) Headlight indicator “LDA” (Lane Departure ( P.
Page 70 <hybrid system>, this could mean that these systems are not available to help protect you in an accident, which could result in death or seri- ous injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.
Page 71: Gauges And Meters
2. Instrument cluster Gauges and meters The units used on the speedometer may differ depending on the target region. Engine coolant temperature gauge Displays the engine coolant temperature Tachometer/Hybrid System Indicator Tachometer Gasoline vehicles, or hybrid vehicles with sport mode selected ( P. 296) Displays the engine speed in revolutions per minute Hybrid System Indicator Hybrid vehicles with other than sport mode selected ( P.
Page 72: Changing The Display
2. Instrument cluster Fuel gauge Displays the quantity of fuel remaining in the tank Shift position and shift range Displays the selected shift position or selected shift range ( P. 214, 217) Odometer and trip meter display Odometer Displays the total distance the vehicle has been driven Trip meter Displays the distance the vehicle has been driven since the meter was last reset.
Page 73 2. Instrument cluster The meters and display illuminate when ■ The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON <ON> mode. Instrument panel brightness adjustment ■ The instrument panel brightness levels when the tail lights are on and off can be adjusted individually.
Page 74 2. Instrument cluster Hybrid System Indicator (hybrid vehicles) ■ Power area Shows that an Eco-friendly driving range is being exceeded (during full power driving etc.) Eco area Shows that the vehicle is being driven in an Eco-friendly manner. Hybrid Eco area Shows that gasoline engine power is not being used very often.
Page 75 2. Instrument cluster ECO lamp and SPORT lamp ■ When sport mode is selected, SPORT lamp (red) will illuminate. ● When all of the following conditions are satisfied and Eco-friendly driving, ECO ● lamp (blue) will illuminate. (ECO lamp will become brighter the more Eco-friendly driving you perform.
Page 76: Display Contents
2. Instrument cluster Multi-information display Display contents The multi-information display presents the driver with a variety of driving- related data including the current outside air temperature. Eco Driving Indicator Zone Dis- ● play (gasoline vehicles) ( P. 105) Energy monitor (hybrid vehicles) ●...
Page 77: Trip Information
2. Instrument cluster Trip information Switching the display ■ Items displayed can be switched by pressing the “DISP” button. Eco Driving Indicator Zone Display (gasoline vehicles) ■ P. 105 Energy monitor (hybrid vehicles) ■ P. 108 Outside temperature ■ Displays the outside air temperature The temperature range that can be displayed is from -40 F (-40 C) to 122 F (50 C) Current fuel consumption...
Page 78 2. Instrument cluster Average fuel consumption after refueling ■ Displays the average fuel consumption since the vehicle was last refueled Use the displayed average fuel consumption as a ref- erence. Average fuel consumption ■ Displays the average fuel consumption since the function was reset •...
Page 79 2. Instrument cluster Driving range ■ Displays the estimated maximum distance that can be driven with the quantity of fuel remaining • This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed. •...
Page 80 2. Instrument cluster Drive monitor Outside temperature, average fuel consumption after refueling or driv- ing range can be selected and dis- played. If displayed on the drive monitor, other trip information or warning messages can be displayed simulta- neously. For display and selection proce- dures, follow the “Setting up the dis- plays”.
Page 81 “DISP” button until the “Settings” screen appears. Press and hold the “DISP” button until the screen changes. Vehicles without Lexus Display Audio system or a navigation sys- tem: Press and hold the “DISP” button after selecting the desired setting item (“Meter”, “Vehicle”...
Page 82 2. Instrument cluster Press and hold the “DISP” button after selecting the desired set- ting by pressing the “DISP” but- ton. The display goes back to step Press and hold the “DISP” button after selecting the “EXIT” by pressing the “DISP” button. The display goes back to step (The display goes back to step automatically in few seconds without...
Page 83 2. Instrument cluster System check display ■ After turning the “START STOP ENGINE” <“POWER”> switch to IGNITION ON <ON> mode, “SYSTEM CHECK” is displayed while system operation is checked. Eco Driving Indicator (gasoline vehicles) ■ Suggests Zone of Eco driving and Eco driving ratio based on acceleration.
Page 84 2. Instrument cluster Setting display automatic cancelation ■ In the following situations, setting display in which the settings can be changed through the “DISP” button will automatically be turned off. When a warning message appears while the setting display is displayed ●...
Page 85 2. Instrument cluster CAUTION The information display at low temperatures ■ Allow the interior of the vehicle to warm up before using the liquid crystal informa- tion display. At extremely low temperatures, the information display monitor may respond slowly, and display changes may be delayed. For example, there is a lag between the driver’...
Page 86: Energy Monitor/Consumption Screen
2. Instrument cluster Energy monitor/consumption screen You can view the status of your vehicle on the multi-information display and the navigation system screen or Lexus Display Audio system screen. Navigation system screen or Lexus Display Audio system screen (if equipped)
Page 87 2. Instrument cluster Remote Touch/Lexus Display Audio controller (if equipped) Navigation system Remote Touch “MENU” button Remote Touch knob : For use of the Remote Touch, refer to the “Navigation System Owner’ s Manual”. Lexus Display Audio system Lexus Display Audio controller ( P.
Page 88 2. Instrument cluster Energy monitor (hybrid vehicles) Navigation system screen or Lexus Display Audio system screen (if ■ equipped) Vehicles with a navigation system Press the “MENU” button on the Remote Touch. Select “Info/Apps” on the “Menu” screen. Select “Fuel Consumption” on the “Information”...
Page 89 2. Instrument cluster Multi-information display ■ Press the “DISP” button on the steering wheel several times to select the energy monitor display. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 90 Display Multi-information display Audio system screen Navigation system When the vehicle is pow- ered by the electric motor Lexus Display Audio (traction motor) system Navigation system When the vehicle is pow- ered by both the gasoline Lexus Display Audio...
Page 91 2. Instrument cluster Navigation system screen/Lexus Display Multi-information display Audio system screen Navigation system Lexus Display Audio system When the vehicle is charg- ing the hybrid battery Navigation system (traction battery) Lexus Display Audio system Navigation system When there is no energy...
Page 92 Full Full Hybrid battery (traction battery) status Lexus Display Audio system These images are examples only, and may vary slightly from actual conditions. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 93 Hybrid vehicles: If the “Energy Monitor” screen is displayed, select “Fuel Consumption”. Vehicles with Lexus Display Audio system Press the “MENU” button on the Lexus Display Audio controller, then select “Car” on the “Menu” screen. Hybrid vehicles: If the “Energy Monitor” screen is displayed, select “Fuel Consumption”.
Page 94 Displays the elapsed time since the engine <hybrid system> was started. Cruising range ( P. 118) Reset the consumption data “Past Record” (Navigation system) or “History” (Lexus Display Audio system) screen appears Hybrid vehicles: “Energy Monitor” screen appears Average fuel consumption for the past 15 minutes is divided by color into past averages and averages attained since the “START STOP ENGINE”...
Page 95 Past record ■ If the “History” or “Past Record” screen is not displayed, select “History” or “Past Record”. Navigation system Lexus Display Audio system Average fuel consumption Previous fuel consumption record Best recorded fuel consumption Update the average fuel consumption data Reset the past record data “Trip Information”...
Page 96 2. Instrument cluster Updating the past record data ■ Update the average fuel consumption by selecting “Update” to measure the current fuel consumption again. Resetting the data ■ The fuel consumption data can be deleted by selecting “Clear”. Cruising range ■...
Page 97 3-1. Key information Keys The keys The following keys are provided with the vehicle. Electronic keys • Operating the smart access system with push-button start ( P. 123) • Operating the wireless remote control function ( P. 136) Mechanical keys Key number plate Using the mechanical key To take out the mechanical key, push...
Page 98 If you lose your mechanical keys ■ New genuine mechanical keys can be made by your Lexus dealer using the other mechanical key and the key number stamped on your key number plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
Page 99 When an electronic key is lost ■ If the electronic key remains lost, the risk of vehicle theft increases significantly. Visit your Lexus dealer immediately with all remaining electronic keys that was provided with your vehicle. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 100: Smart Access System With Push-Button Start
3-2. Opening, closing and locking the doors and trunk Smart access system with push-button start Function summary The following operations can be performed simply by carrying the elec- tronic key on your person, for example in your pocket. (The driver should always carry the electronic key.) Hybrid vehicles Gasoline vehicles Locks and unlocks the doors ( P.
Page 101: Opening The Trunk
3-2. Opening, closing and locking the doors and trunk Unlocking and locking the doors Grip the driver’ s door handle to unlock the door. Grip the passen- ger’ s door handle to unlock all the doors.* Make sure to touch the sensor on the back of the handle.
Page 102 3-2. Opening, closing and locking the doors and trunk Antenna location and effective range Antenna location ■ Antennas outside the cabin Antennas inside the cabin Antenna outside the trunk Antenna inside the trunk ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 103 3-2. Opening, closing and locking the doors and trunk Effective range (areas within which the electronic key is detected) ■ When locking or unlocking the doors The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of an outside door handle.
Page 104 3-2. Opening, closing and locking the doors and trunk Alarms and warning indicators ■ An alarm sounds and warning message displays shown on the multi-information dis- play are used to protect against unexpected accidents or theft of the vehicle result- ing from erroneous operation.
Page 105 3-2. Opening, closing and locking the doors and trunk Switching the door unlock function ■ It is possible to set which doors the entry function unlocks using the wireless remote control. Turn the “START STOP ENGINE” <“POWER”> switch off. When the indicator light on the key surface is not on, press and hold for approximately 5 seconds while pressing and holding The setting changes each time an operation is performed, as shown below.
Page 106 3-2. Opening, closing and locking the doors and trunk Battery-saving function ■ The battery-saving function will be activated in order to prevent the electronic key battery and the vehicle battery from being discharged while the vehicle is not in operation for a long time. In the following situations, the smart access system with push-button start may take ●...
Page 107 3-2. Opening, closing and locking the doors and trunk Conditions affecting operation ■ The smart access system with push-button start uses weak radio waves. In the follow- ing situations, the communication between the electronic key and the vehicle may be affected, preventing the smart access system with push-button start, wireless remote control and engine immobilizer system <immobilizer system>...
Page 108 3-2. Opening, closing and locking the doors and trunk Note for the entry function ■ Even when the electronic key is within the effective range (detection areas), the ● system may not operate properly in the following cases: • The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.
Page 109 3-2. Opening, closing and locking the doors and trunk Note for locking the doors ■ Touching the door lock sensor while wearing gloves may delay or prevent lock ● operation. Remove the gloves and touch the lock sensor again. If the door handle becomes wet while the electronic key is within the effective ●...
Page 110 3-2. Opening, closing and locking the doors and trunk When the vehicle is not driven for extended periods ■ To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of ● the vehicle. The smart access system with push-button start can be deactivated in advance.
Page 111 3-2. Opening, closing and locking the doors and trunk Electronic key battery depletion ■ The standard battery life is 1 to 2 years. ● If the battery becomes low, an alarm will sound in the cabin when the engine ● <hybrid system>...
Page 112 The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Lexus dealer for details, such as the frequency of radio waves and timing of emitting the radio waves. Then, consult your doctor to see if you should disable the entry function.
Page 113: Wireless Remote Control
Sounds the alarm (press and hold) ( P. 137) : This setting must be customized at your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 114 3-2. Opening, closing and locking the doors and trunk Operation signals ■ Doors: A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: once; Unlocked: twice) Trunk: A buzzer sounds to indicate that the trunk has been opened. Windows and moon roof: A buzzer sounds to indicate that the windows and moon roof are operating.
Page 115 P. 710 Confirmation of the registered key number ■ The number of keys already registered to the vehicle can be confirmed. Ask your Lexus dealer for details. Customization ■ Settings (e.g. wireless remote control system) can be changed. (Customizable features: P.
Page 116: Unlocking And Locking The Doors
3-2. Opening, closing and locking the doors and trunk Doors Unlocking and locking the doors The vehicle can be locked and unlocked using the entry function, wireless remote control or door lock switches. ◆ Entry function P. 123 ◆ Wireless remote control P.
Page 117: Rear Door Child-Protector Lock
3-2. Opening, closing and locking the doors and trunk Locking the front doors from the outside without a key Move the inside lock button to the lock position. Close the door. The door cannot be locked if the “START STOP ENGINE” <“POWER”> switch is in ACCESSORY or IGNITION ON <ON>...
Page 118 3-2. Opening, closing and locking the doors and trunk Automatic door locking and unlocking systems The following functions can be set or canceled: Function Operation Shift position linked Shifting the shift lever out of P locks all doors. door locking function Shift position linked Shifting the shift lever to P unlocks all doors.
Page 119 3-2. Opening, closing and locking the doors and trunk Driver’ s door lock Function Shift lever position switch position Shift position linked door locking function Shift position linked door unlocking function Speed linked door locking function Driver’ s door linked door unlocking function When the setting or canceling operation is complete, all doors are locked and then unlocked.
Page 120 3-2. Opening, closing and locking the doors and trunk CAUTION To prevent an accident ■ Observe the following precautions while driving the vehicle. Failure to do so may result in a door opening and an occupant throwing out of the vehicle, resulting in death or serious injury.
Page 121: Opening The Trunk From Inside The Vehicle
3-2. Opening, closing and locking the doors and trunk Trunk The trunk can be opened using the trunk opener, entry function or wireless remote control. If the vehicle is equipped with a power trunk opener and closer, the trunk can be closed using the trunk closer. Opening the trunk from inside the vehicle Press the opener switch.
Page 122 3-2. Opening, closing and locking the doors and trunk Trunk closer switch (vehicles with power trunk opener and closer) Pressing the switch closes the trunk lid automatically. (A buzzer sounds.) Pressing the switch while the trunk lid is closing opens the trunk lid again. When closing the trunk Using the trunk grip, lower the trunk without applying force to the side...
Page 123 3-2. Opening, closing and locking the doors and trunk Trunk light ■ The trunk light turns on when the trunk is opened. Trunk easy closer (vehicles with power trunk opener and closer) ■ In the event that the trunk lid is left slightly open, the trunk easy closer will automati- cally close it to the fully closed position.
Page 124 3-2. Opening, closing and locking the doors and trunk Internal trunk release lever ■ The trunk lid can be opened by pulling the glow-in-the-dark lever located on the inside of the trunk lid to the side. The lever will continue to glow for some time after the trunk lid is closed.
Page 125 Do not attach any accessories other than genuine Lexus parts to the trunk lid. ● Such additional weight on the trunk lid may cause the lid to fall closed again after it is opened.
Page 126 STOP ENGINE” <“POWER”> switch is turned to IGNITION ON <ON> mode or the engine <hybrid system> is started during automatic operation Do not attach any accessories other than genuine Lexus parts to the trunk lid. The ● power trunk opener and closer may not operate, causing itself to malfunction, or the trunk lid may fall closed again after it is opened.
Page 127 3-2. Opening, closing and locking the doors and trunk CAUTION Jam protection function (vehicles with power trunk opener and closer) ■ Observe the following precautions. Failure to do so may cause serious injury. Never use any part of your body to intentionally activate the jam protection func- ●...
Page 128: Front Seats
3-3. Adjusting the seats Front seats Adjustment procedure Seat position adjustment switch Vertical height adjustment switch Seatback angle adjustment switch Lumbar support adjustment switch Seat cushion (front) angle adjust- ment switch Seat cushion length adjustment switch (if equipped) ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 129 3-3. Adjusting the seats Power easy access system ■ The driver’ s seat and steering wheel move in accordance with “START STOP ENGINE” <“POWER”> switch mode and the driver’ s seat belt condition. ( P. 156) CAUTION When adjusting the seat position ■...
Page 130: Driving Position Memory
3-3. Adjusting the seats Driving position memory Your preferred driving position (the position of the driver’s seat, steer- ing wheel and outside rear view mirrors) can be memorized and recalled by pressing a button. It is also possible to set this function to activate automatically when the doors are unlocked.
Page 131 3-3. Adjusting the seats Recalling the memorized position Check that the shift lever is in P. Turn the “START STOP ENGINE” <“POWER”> switch to IGNITION ON <ON> mode. Press button “1”, “2” or “3” to recall the desired position. When you want to stop the position recall operation part-way through ■...
Page 132: Setting Procedure
3-3. Adjusting the seats Linking driving position memory with door unlock operation (driver’s side only) A desired driving position can be recalled linked with the unlocking of the door. Setting procedure ■ Record your driving position to button “1”, “2” or “3” before performing the following: Carrying only the key to which you want to link the driving position, shift the shift lever to P and then close the driver’...
Page 133 3-3. Adjusting the seats Cancelation procedure ■ Carry only the key for which you want to cancel the linked door unlock operation. If 2 or more keys are in the vehicle, the driving position cannot be can- celed properly. Turn the “START STOP ENGINE” <“POWER”> switch to IGNI- TION ON <ON>...
Page 134 3-3. Adjusting the seats Auto return function when entering the vehicle ■ When either of the following actions has been performed, the steering wheel will move toward the driver and seat will move forward: • The “START STOP ENGINE” <“POWER”> switch has been turned to ACCESSORY mode.
Page 135 3-3. Adjusting the seats CAUTION Seat adjustment caution ■ Take care during seat adjustment so that the seat does not strike the rear passen- ger or squeeze your body against the steering wheel. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 136: Head Restraints
3-3. Adjusting the seats Head restraints Head restraints are provided for all seats. Front seats Vertical adjustment Pull the head restraints up. Down Push the head restraint down while Lock release button pressing the lock release button. Angle adjustment The position of the head restraint can be adjusted forward in 4 stages.
Page 137: Rear Seats
3-3. Adjusting the seats Rear seats Pull the head restraints up. Down Push the head restraint down while pressing the lock release button. Lock release button Removing the head restraints ■ Pull the head restraint up while pressing the lock release button. Lock release button Installing the head restraints ■...
Page 138 3-3. Adjusting the seats Adjusting the height of the head restraints ■ Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears. Adjusting the rear seat head restraint ■...
Page 139: Steering Wheel
3-4. Adjusting the steering wheel and mirrors Steering wheel Adjustment procedure Manual adjustment Hold the steering wheel and pull the lever down. Adjust to the ideal position by moving the steering wheel hori- zontally and vertically. After adjustment, pull the lever up to secure the steering wheel.
Page 140 3-4. Adjusting the steering wheel and mirrors The power adjustment type steering wheel can be adjusted when ■ The “START STOP ENGINE” <“POWER”> switch is in ACCESSORY or IGNI- TION ON <ON> mode : If the driver’ s seat belt is fastened, the steering wheel can be adjusted regardless of “START STOP ENGINE”...
Page 141: Inside Rear View Mirror
3-4. Adjusting the steering wheel and mirrors Inside rear view mirror The rear view mirror’s position can be adjusted to enable sufficient confirmation of the rear view. Adjusting the height of rear view mirror The height of the rear view mirror can be adjusted to suit your driving pos- ture.
Page 142 3-4. Adjusting the steering wheel and mirrors Anti-glare function Responding to the level of brightness of the headlights of vehicles behind, the reflected light is automatically reduced. Without compass Changing automatic anti-glare function mode When the automatic anti-glare func- tion is in ON mode, the indicator illu- Indicator minates.
Page 143 3-4. Adjusting the steering wheel and mirrors To prevent sensor error ■ To ensure that the sensors operate properly, do not touch or cover them. CAUTION Do not adjust the position of the mirror while driving. Doing so may lead to mishandling of the vehicle and cause an accident, resulting in death or serious injury.
Page 144: Outside Rear View Mirrors
3-4. Adjusting the steering wheel and mirrors Outside rear view mirrors Adjustment procedure To select a mirror to adjust, press the switch. Left Right To adjust the mirror, press the switch. Right Down Left Folding the mirrors Push the mirror back in the direc- tion of the vehicle’...
Page 145 3-4. Adjusting the steering wheel and mirrors Mirror angle can be adjusted when ■ The “START STOP ENGINE” <“POWER”> switch is in ACCESSORY or IGNI- TION ON <ON> mode. Linked mirror function when reversing ■ When either “L” or “R” of the mirror select switch is selected, the outside rear view ●...
Page 146 3-4. Adjusting the steering wheel and mirrors CAUTION Important points while driving ■ Observe the following precautions while driving. Failure to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious injury. Do not adjust the mirrors while driving.
Page 147: Power Windows
3-5. Opening, closing the windows and moon roof Power windows Opening and closing procedures The power windows can be opened and closed using the switches. Operating the switch moves the windows as follows: Closing One-touch closing Opening One-touch opening : Pushing the switch in the opposite direction will stop window travel part- way.
Page 148 If you release the switch while the window is moving, start again from the beginning. If the window continues to close but then re-open slightly even after performing the above procedure correctly, have the vehicle inspected by your Lexus dealer. ES350 300h_OM_OM33A01U_(U)
Page 149 The power windows can be opened using the wireless remote control. ( P. 136) ● : These settings must be customized at your Lexus dealer. When the 12-volt battery is disconnected ■ The window lock switch is disabled. If necessary, press the window lock switch after reconnecting the battery.
Page 150: Opening And Closing
3-5. Opening, closing the windows and moon roof Moon roof Use the overhead switches to open and close the moon roof and tilt it up and down. Opening and closing Standard type Opens the moon roof The moon roof stops slightly before the fully open position to reduce wind noise.
Page 151: Tilting Up And Down
3-5. Opening, closing the windows and moon roof Tilting up and down Standard type Tilts the moon roof up Tilts the moon roof down : Lightly press either way of the moon roof switch to stop the moon roof partway. Glass type Tilts the moon roof up Tilts the moon roof down (push...
Page 152 The moon roof can be opened using the wireless remote control. ( P. 136) ● : These settings must be customized at your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 153 If the moon roof does not fully close even after performing the above procedure cor- rectly, have the vehicle inspected by your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 154 3-5. Opening, closing the windows and moon roof Moon roof open warning buzzer ■ The buzzer sounds and a message is shown on the multi-information display in the instrument cluster when the “START STOP ENGINE” <“POWER”> switch is turned off and the driver’ s door is opened with the moon roof open. Customization ■...
Page 155 3-5. Opening, closing the windows and moon roof ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 156: Driving The Vehicle
4-1. Before driving Driving the vehicle The following procedures should be observed to ensure safe driving: Starting the engine <hybrid system> P. 197, 204 Driving With the brake pedal depressed, shift the shift lever to D. ( P. 214, 217) Release the parking brake.
Page 157: Parking The Vehicle
4-1. Before driving Parking the vehicle With the shift lever in D, depress the brake pedal. Shift the shift lever to P. ( P. 214, 217) Set the parking brake. ( P. 222) Press the “START STOP ENGINE” <“POWER”> switch to stop the engine <hybrid system>.
Page 158 Your vehicle has a drum-in-disc type parking brake system. This type of brake system needs bedding-down of the brake shoes periodically or whenever the parking brake shoes and/or drum are replaced. Have your Lexus dealer perform the bedding down operation.
Page 159 4-1. Before driving Eco-friendly driving ■ Gasoline vehicles: P. 105 Hybrid vehicles: P. 96 Customization (gasoline vehicles) ■ Setting of Eco Driving Indicator Light can be changed. (Customizable features P. 852) CAUTION Observe the following precautions. Failure to do so may result in death or serious injury. When starting the vehicle ■...
Page 160 4-1. Before driving CAUTION Observe the following precautions. Failure to do so may result in death or serious injury. When driving the vehicle ■ During normal driving, do not turn off the engine <hybrid system>. Turning the ● engine <hybrid system> off while driving will not cause loss of steering or braking control, but the power assist to these systems will be lost.
Page 161 4-1. Before driving CAUTION Observe the following precautions. Failure to do so may result in death or serious injury. When driving on slippery road surfaces ■ Sudden braking, acceleration and steering may cause tire slippage and reduce ● your ability to control the vehicle. Sudden acceleration, engine braking due to shift changing, or changes in engine ●...
Page 162 If you hear a squealing or scraping noise (brake pad wear limit indicators) ■ Have the brake pads checked and replaced by your Lexus dealer as soon as possi- ble. Rotor damage may result if the pads are not replaced when needed.
Page 163 4-1. Before driving CAUTION When the vehicle is parked ■ Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehi- ● cle when it is in the sun. Doing so may result in the following: •...
Page 164 If this happens, do not continue to drive the vehicle. If the brake system warning light (red indicator) comes on together with the buzzer sound while driv- ing, immediately stop the vehicle in a safe place and contact your Lexus dealer. ES350 300h_OM_OM33A01U_(U)
Page 165 4-1. Before driving NOTICE When driving the vehicle ■ Do not depress the accelerator and brake pedals at the same time during driving, ● as this may restrain driving torque. Do not use the accelerator pedal or depress the accelerator and brake pedals at ●...
Page 166 Engine damage caused by water immersion ● In the event that you drive on a flooded road and the vehicle is flooded, be sure to have your Lexus dealer check the following: Brake function ● Changes in quantity and quality of engine oil, fluid used for automatic transaxle ●...
Page 167: Cargo And Luggage
Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle. ( P. 194) Lexus does not recommend towing a trailer with your vehicle. Your vehicle is not designed for trailer towing. ES350 300h_OM_OM33A01U_(U)
Page 168 4-1. Before driving Calculation formula for your vehicle Cargo capacity Total load capacity (vehicle capacity weight) ( P. 824) When 2 people with the combined weight of A lb. (kg) are riding in your vehicle, which has a total load capacity (vehicle capacity weight) of B lb. (kg), the available amount of cargo and luggage load capacity will be C lb.
Page 169 • On the package tray • On the instrument panel • On the dashboard • In front of the navigation system screen, Lexus Display Audio system screen or the audio/air conditioning system display Secure all items in the occupant compartment.
Page 170: Vehicle Load Limits
Seating capacity means the maximum number of occupants whose estimated average weight is 150 lb. (68 kg) per person. ◆ Towing capacity Lexus does not recommend towing a trailer with your vehicle. ◆ Cargo capacity Cargo capacity may increase or decrease depending on the weight and the number of occupants.
Page 171: Trailer Towing
4-1. Before driving Trailer towing Lexus does not recommend towing a trailer with your vehicle. Lexus also does not recommend the installation of a tow hitch or the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc. Your vehicle is not designed for trailer towing or for the use of tow hitch mounted car- riers.
Page 172: Dinghy Towing
4-1. Before driving Dinghy towing Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home. NOTICE To avoid serious damage to your vehicle ■ Do not tow your vehicle with the four wheels on the ground. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 173: Engine (Ignition) Switch (Gasoline Vehicles)
4-2. Driving procedures Engine (ignition) switch (gasoline vehicles) Performing the following operations when carrying the electronic key on your person starts the engine or changes “START STOP ENGINE” switch modes. Starting the engine Check that the parking brake is set. Check that the shift lever is set in P.
Page 174: Accessory Mode
4-2. Driving procedures Stopping the engine Stop the vehicle. Shift the shift lever to P. Set the parking brake. ( P. 222) Press the “START STOP ENGINE” switch. Release the brake pedal and check that “POWER ON” on the multi- information display is off.
Page 175 4-2. Driving procedures When stopping the engine with the shift lever in a position other than P If the engine is stopped with the shift lever in a position other than P, the “START STOP ENGINE” switch will not be turned off but instead be turned to ACCESSORY mode.
Page 176 ■ The engine immobilizer system may not have been deactivated. ( P. 80) ● Contact your Lexus dealer. Check that the shift lever is securely set in P. The engine may not start if the shift ● lever is displaced out of P. “Shift to P position to Start” will be displayed on the multi- information display.
Page 177 When “Check Access System with Elec. Key” is displayed on the multi-information ■ display The system may be malfunctioning. Have the vehicle inspected by your Lexus dealer immediately. If the electronic key battery is depleted ■ P. 710 Operation of the “START STOP ENGINE”...
Page 178 4-2. Driving procedures CAUTION When starting the engine ■ Always start the engine while sitting in the driver’ s seat. Do not depress the accel- erator pedal while starting the engine under any circumstances. Doing so may cause an accident resulting in death or serious injury. Caution while driving ■...
Page 179 ● If the engine becomes difficult to start or stalls frequently, have your vehicle ● checked by your Lexus dealer immediately. Symptoms indicating a malfunction with the “START STOP ENGINE” switch ■ If the “START STOP ENGINE” switch seems to be operating somewhat differently than usual, such as the switch sticking slightly, there may be a malfunction.
Page 180: Power (Ignition) Switch (Hybrid Vehicles)
4-2. Driving procedures Power (ignition) switch (hybrid vehicles) Performing the following operations when carrying the electronic key on your person starts the hybrid system or changes “POWER” switch modes. Starting the hybrid system Check that the parking brake is set. Check that the shift lever is set in P.
Page 181 4-2. Driving procedures Stopping the hybrid system Stop the vehicle. Shift the shift lever to P. Set the parking brake. ( P. 222) Press the “POWER” switch. Release the brake pedal and check that “POWER ON” on the multi- information display is off. Changing “POWER”...
Page 182 4-2. Driving procedures When stopping the hybrid system with the shift lever in a position other than P If the hybrid system is stopped with the shift lever in a position other than P, the “POWER” switch will not be turned off but instead be turned to ACCESSORY mode.
Page 183 ■ The immobilizer system may not have been deactivated. ( P. 82) ● Contact your Lexus dealer. Check that the shift lever is securely set in P. The hybrid system may not start if the ● shift lever is displaced out of P. “Shift to P position when starting” will be displayed on the multi-information display.
Page 184 If the “READY” indicator does not come on ■ If the “READY” indicator does not come on when you press the “POWER” switch with the shift lever in P and the brake pedal depressed, contact your Lexus dealer immediately. If the hybrid system is malfunctioning ■...
Page 185 4-2. Driving procedures Odometer and trip meter display ■ When the “POWER” switch is turned off, the odometer or trip meter display will extinguish after approximately 30 seconds. CAUTION When starting the hybrid system ■ Always start the hybrid system while sitting in the driver’ s seat. Do not depress the accelerator pedal while starting the hybrid system under any circumstances.
Page 186 Symptoms indicating a malfunction with the “POWER” switch ■ If the “POWER” switch seems to be operating somewhat differently than usual, such as the switch sticking slightly, there may be a malfunction. Contact your Lexus dealer immediately. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 187: Ev Drive Mode (Hybrid Vehicles)
4-2. Driving procedures EV drive mode (hybrid vehicles) In EV drive mode the electric motor (traction motor), powered by the hybrid battery (traction battery), is used to drive the vehicle. This mode allows you to drive in residential areas early in the morning and late at night, or in indoor parking lots etc.
Page 188 Fuel economy ■ Your Lexus is designed to achieve the best possible fuel economy during normal driving (using the gasoline engine and electric motor [traction motor]). Driving in EV drive mode more than necessary may lower fuel economy.
Page 189 4-2. Driving procedures CAUTION Caution while driving ■ When driving in EV drive mode no engine noise is made. As such, pedestrians, people riding bicycles or other people and vehicles in the surrounding area may not be aware of the vehicle starting off or approaching them. Therefore, take extra care while driving even if the vehicle proximity notification system is active.
Page 190: Automatic Transmission (Gasoline Vehicles)
4-2. Driving procedures Automatic transmission (gasoline vehicles) Shifting the shift lever While the “START STOP ENGINE” switch is in IGNITION ON mode, move the shift lever with the brake pedal depressed. When shifting the shift lever between P and D, make sure that the vehicle is completely stopped.
Page 191 4-2. Driving procedures Selecting gears in the S position When the shift lever is in S, the shift lever can be operated as follows: Upshifting Downshifting The selected shift range, from S1 to S6, will be displayed in the meter. The initial shift range in S mode is set automatically to S5 or S4 according to vehicle speed.
Page 192 S This may indicate a malfunction in the automatic transmission system. Have the vehi- cle inspected by your Lexus dealer immediately. (In this situation, the transmission will operate in the same manner as when the shift lever is in D.)
Page 193: Hybrid Transmission (Hybrid Vehicles)
4-2. Driving procedures Hybrid transmission (hybrid vehicles) Shifting the shift lever While the “POWER” switch is in ON mode, move the shift lever with the brake pedal depressed. When shifting the shift lever between P and D, make sure that the vehicle is completely stopped.
Page 194 4-2. Driving procedures Selecting shift ranges in the S position To enter S mode, shift the shift lever to S. Shift ranges can then be selected by operating the shift lever, allowing you to drive in the shift range of your choosing.
Page 195 S This may indicate a malfunction in the automatic transmission system. Have the vehi- cle inspected by your Lexus dealer immediately. (In this situation, the transmission will operate in the same manner as when the shift lever is in D.)
Page 196 4-2. Driving procedures CAUTION When driving on slippery road surfaces ■ Do not accelerate or shift gears suddenly. Sudden changes in engine braking may cause the vehicle to spin or skid, resulting in an accident. NOTICE Hybrid battery (traction battery) charge ■...
Page 197: Turn Signal Lever
4-2. Driving procedures Turn signal lever Operating instructions Right turn Lane change to the right (move the lever partway and then release it) The right hand signals will flash 3 times. Lane change to the left (move the lever partway and then release it) The left hand signals will flash 3 times.
Page 198: Parking Brake
4-2. Driving procedures Parking brake To set the parking brake, fully depress the parking brake pedal with your left foot while depressing U.S.A. Canada the brake pedal with your right foot. (Depressing pedal again releases the parking brake.) Usage in winter time ■...
Page 199 4-2. Driving procedures Horn To sound the horn, press on or close to the mark. After adjusting the steering wheel (manual adjustment type only) ■ Make sure that the steering wheel is securely locked. The horn may not sound if the steering wheel is not securely locked. ( P. 162) ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 200: Headlight Switch
4-3. Operating the lights and wipers Headlight switch The headlights can be operated manually or automatically. Operating instructions Turning the end of the lever turns on the lights as follows: The side marker, daytime running, tail, license plate and instrument panel lights U.S.A.
Page 201: Turning On The High Beam Headlights
4-3. Operating the lights and wipers Turning on the high beam headlights With the headlights on, push the lever away from you to turn on the high beams. Pull the lever toward you to the center position to turn the high beams off. Pull the lever toward you and release it to flash the high beams once.
Page 202 4-3. Operating the lights and wipers Daytime running light system ■ To make your vehicle more visible to other drivers, the parking lights turn on auto- ● matically (at an increased intensity) whenever the engine <hybrid system> is started and the parking brake is released. Daytime running lights are not designed for use at night.
Page 203 4-3. Operating the lights and wipers Customization ■ Settings (e.g. light sensor sensitivity) can be changed. (Customizable features: P. 852) NOTICE To prevent 12-volt battery discharge ■ Do not leave the lights on longer than necessary when the engine is not running <hybrid system is not operating>.
Page 204: Automatic High Beam
4-3. Operating the lights and wipers Automatic High Beam The Automatic High Beam uses an in-vehicle camera sensor to assess the brightness of streetlights, the lights of oncoming and preceding vehicles, etc., and automatically turns high beam on or off as necessary. Activating the Automatic High Beam system Push the lever away from you with the headlight switch in...
Page 205 4-3. Operating the lights and wipers High beam automatic turning on or off conditions When all of the following conditions are fulfilled, high beam will be auto- matically turned on (after approximately 1 second): Vehicle speed is above approximately 21 mph (34 km/h). ●...
Page 206 4-3. Operating the lights and wipers Turning the high beam on/off manually Switching to low beam ■ Pull the lever to original position. The Automatic High Beam indica- tor will turn off. Push the lever away from you to activate the Automatic High Beam system again.
Page 207 4-3. Operating the lights and wipers The Automatic High Beam can be operated when ■ The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON <ON> mode. Camera sensor detection information ■ High beam may not be automatically turned off in the following situations: ●...
Page 208 4-3. Operating the lights and wipers In the situations below, the system may not be able to correctly detect the sur- ● rounding brightness levels, and may flash or expose nearby pedestrians to the high beam. Therefore, you should consider turning the high beams on or off manually rather than relying on the Automatic High Beam system.
Page 209 ● Do not modify the vehicle. ● Do not replace windshield with non-genuine windshield. ● Contact your Lexus dealer. Do not replace headlights with non-genuine headlights. ● Contact your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 210: Fog Light Switch
4-3. Operating the lights and wipers Fog light switch The fog lights secure excellent visibility in difficult driving conditions, such as in rain and fog. (U.S.A.) (Canada) Turns the fog lights off Turns the fog lights on Fog lights can be used when ■...
Page 211: Windshield Wipers And Washer
4-3. Operating the lights and wipers Windshield wipers and washer Operating the wiper lever The wiper operation is selected by moving the lever as follows. Intermittent windshield wipers with interval adjuster Temporary operation Intermittent operation Low speed operation High speed operation Wiper intervals can be adjusted when intermittent operation is selected.
Page 212 4-3. Operating the lights and wipers Rain-sensing windshield wipers Temporary operation Rain-sensing wiper operation (AUTO) Low speed operation High speed operation When AUTO is selected, the wipers will operate automatically when the sensor detects falling rain. The system automatically adjusts wiper timing in accordance with rain volume and vehicle speed.
Page 213 4-3. Operating the lights and wipers Raindrop sensor (vehicles with rain-sensing windshield wipers) ■ The raindrop sensor judges the amount of ● raindrops. An optical sensor is adopted. It may not operate properly when sunlight from the rising or setting of the sun intermittently strikes the windshield, or if bugs etc.
Page 214 When a nozzle becomes blocked ■ In this case, contact your Lexus dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged. When standing the windshield wipers up ■...
Page 215: Opening The Fuel Tank Cap
4-4. Refueling Opening the fuel tank cap Perform the following steps to open the fuel tank cap: Before refueling the vehicle Close all the doors and windows, and turn the “START STOP ● ENGINE” <“POWER”> switch off. Confirm the type of fuel. ●...
Page 216 4-4. Refueling CAUTION When refueling the vehicle ■ Observe the following precautions while refueling the vehicle. Failure to do so may result in death or serious injury. After exiting the vehicle and before opening the fuel door, touch an unpainted ●...
Page 217 4-4. Refueling Opening the fuel tank cap Press the opener switch to open the fuel filler door. Turn the fuel tank cap slowly to open. Hang the fuel tank cap on the back of the fuel filler door. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 218 4-4. Refueling If the fuel filler door cannot be opened ■ Remove the cover inside the trunk and pull the lever to open the fuel filler door if the fuel filler door cannot be opened using the inside switch. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 219: Closing The Fuel Tank Cap
CAUTION When replacing the fuel tank cap ■ Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident which may result in death or serious injury.
Page 220: Cruise Control
4-5. Using the driving support systems Cruise control Summary of functions Use the cruise control to maintain a set speed without depressing the accelerator pedal. Indicators Cruise control switch Setting the vehicle speed Press the “ON/OFF” button to activate the cruise control. Cruise control indicator will come on.
Page 221: Adjusting The Set Speed
4-5. Using the driving support systems Adjusting the set speed To change the set speed, operate the lever until the desired set speed is obtained. Increases the speed Decreases the speed Fine adjustment: Momentarily move the lever in the desired direction. Large adjustment: Hold the lever in the desired direction.
Page 222 If the cruise control speed cannot be set or if the cruise control cancels immediately after being activated, there may be a malfunction in the cruise control system. Have the vehicle inspected by your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 223 4-5. Using the driving support systems CAUTION To avoid operating the cruise control by mistake ■ Switch the cruise control off using the “ON/OFF” button when not in use. Situations unsuitable for cruise control ■ Do not use cruise control in any of the following situations. Doing so may result in loss of control and could cause an accident resulting in death or serious injury.
Page 224: Dynamic Radar Cruise Control
4-5. Using the driving support systems Dynamic radar cruise control Summary of functions Dynamic radar cruise control supplements conventional cruise control with a vehicle-to-vehicle distance control. In vehicle-to-vehicle distance control mode, the vehicle automatically accelerates or decelerates in order to maintain a set following distance from vehicles ahead. Vehicle-to-vehicle distance but- Display Set speed...
Page 225 4-5. Using the driving support systems Setting the vehicle speed (vehicle-to-vehicle distance control mode) Press the “ON/OFF” button to activate the cruise control. Radar cruise control indicator will come on. Press the button again to deactivate the cruise control. Accelerate or decelerate the vehicle to the desired speed, and push the lever down to set the speed.
Page 226 4-5. Using the driving support systems Adjusting the set speed To change the set speed, operate the lever until the desired set speed is displayed. Increases the speed Decreases the speed Fine adjustment: Momentarily move the lever in the desired direction. Large adjustment: Hold the lever in the desired direction.
Page 227 4-5. Using the driving support systems Changing the vehicle-to-vehicle distance Pressing the button changes the Preceding vehicle mark vehicle-to-vehicle distance as fol- lows: Long Medium Short The vehicle-to-vehicle distance is set automatically to long mode when the “START STOP ENGINE” <“POWER”>...
Page 228 4-5. Using the driving support systems Canceling and resuming the speed control Pulling the lever toward you can- cels the cruise control. The speed setting is also canceled when the brakes are applied. Pushing the lever up resumes the cruise control and returns vehicle speed to the set speed.
Page 229 4-5. Using the driving support systems Driving in vehicle-to-vehicle distance control mode This mode employs a radar sensor to detect the presence of vehicles up to approximately 400 ft. (120 m) ahead, determines the current vehicle-to- vehicle following distance, and operates to maintain a suitable following distance from the vehicle ahead.
Page 230: Approach Warning
4-5. Using the driving support systems Example of follow-up cruising When following a vehicle driving slower than the set speed The system continues follow-up cruising while adjusting for changes in the speed of the vehicle ahead in order to maintain the vehicle-to-vehicle distance set by the driver.
Page 231 4-5. Using the driving support systems Selecting conventional constant speed control mode When constant speed control mode is selected, your vehicle will maintain a set speed without controlling the vehicle-to-vehicle distance. Select this mode only when vehicle-to-vehicle distance control mode does not func- tion correctly due to dirt etc.
Page 232 If vehicle-to-vehicle distance control driving is automatically canceled for any other reason, there may be a malfunction in the system. Contact your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 233 4-5. Using the driving support systems Automatic cancelation of constant speed control ■ The cruise control will stop maintaining the vehicle speed in the following situations: Actual vehicle speed is more than approximately 10 mph (16 km/h) below the set ●...
Page 234: Fcc Warning
4-5. Using the driving support systems Certification ■ For vehicles sold in the U.S.A. FCC ID: HYQDNMWR004 This device complies with Part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 235 4-5. Using the driving support systems CAUTION Before using dynamic radar cruise control ■ Do not overly rely on vehicle-to-vehicle distance control. Be aware of the set speed. If automatic deceleration/acceleration is not appropri- ate, adjust the vehicle speed, as well as the distance between your vehicle and vehi- cles ahead by applying the brakes etc.
Page 236 4-5. Using the driving support systems CAUTION To avoid inadvertent cruise control activation ■ Switch the cruise control off using the “ON/OFF” button when not in use. Situations unsuitable for dynamic radar cruise control ■ Do not use dynamic radar cruise control in any of the following situations. Doing so may result in inappropriate speed control and could cause an accident resulting in death or serious injury.
Page 237 4-5. Using the driving support systems CAUTION When the sensor may not be correctly detecting the vehicle ahead ■ Apply the brakes as necessary when any of the following types of vehicles are in front of you. As the sensor may not be able to correctly detect these types of vehicles, the approach warning ( P.
Page 238 If the sensor moves even slightly off position, the system may malfunction. If the sensor or surrounding area is subject to a strong impact, always have the area inspected and adjusted by your Lexus dealer. Do not disassemble the sensor.
Page 239: Summary Of Function
4-5. Using the driving support systems LDA (Lane Departure Alert) Summary of function While driving on a road that has lane markers, this system recognizes the white lane markers using a camera as a sensor to alert the driver when the vehicle deviates from its lane.
Page 240: Operating Conditions
4-5. Using the driving support systems Turning the LDA system on Press the “LDA” switch to activate the system. “LDA” indicator and the lane lines will come on. Press the switch again to turn the LDA system off. The LDA system will remain on or off even if the “START STOP ENGINE”...
Page 241 4-5. Using the driving support systems Indication on the multi-information display When the LDA system is on, the lane lines are shown. The inside of the lane lines turn white when the right and left lane markers are recognized. If the vehicle deviates from the lane, the lane line on the side the vehicle deviates from will flash.
Page 242 4-5. Using the driving support systems Temporary cancelation of the LDA system ■ When the lane departure warning function is activated. The lane departure warning function will not operate again for a several seconds after it has been activated, even if the vehicle leaves the lane again.
Page 243 4-5. Using the driving support systems When sunlight or the headlights of oncoming vehicles are shining directly into the ● camera lens When driving on roads that are branching or merging ● When driving on a road surface that is wet due to rain, previous rainfall, standing ●...
Page 244 4-5. Using the driving support systems CAUTION Before using the LDA system ■ Do not rely solely on the LDA system. The LDA system does not drive the vehicle automatically, nor does it reduce the amount of care you need to take. As such, the driver must always assume full responsibility for understanding his/her surround- ings, for operating the steering wheel to correct the driving line, and for driving safely.
Page 245 Do not install or place anything on the hood or the grille. Also, do not install a ● grille guard (bull bars, kangaroo bar etc.). If your windshield needs repairs, contact your Lexus dealer. ● Camera sensor ( P. 263) ■...
Page 246 When cleaning the inside of the windshield, be careful not to get any glass cleaner etc. on the lens. Also, do not touch the lens. For lens repair, contact your Lexus dealer. Do not change the installation position or direction of the camera sensor or ●...
Page 247: Intuitive Parking Assist
Lexus Display Audio system screen and a buzzer. Always check the surrounding area when using this system. Types of sensors ■...
Page 248 4-5. Using the driving support systems Intuitive parking assist switch ■ Turns the intuitive parking assist on/off When on, the indicator light comes on to inform the driver that the sys- tem is operational. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 249: Multi-Information Display
4-5. Using the driving support systems Display When the sensors detect an obstacle, a graphic is shown on the multi- information display and navigation system screen or Lexus Display Audio system screen depending on the position and distance to the obstacle. Multi-information display ■...
Page 250 4-5. Using the driving support systems Navigation system screen/Lexus Display Audio system screen (if ■ equipped) When the rear view monitor sys- tem is not displayed A graphic is automatically displayed when an obstacle is detected. The screen can be set so that the graphic is not displayed.
Page 251 4-5. Using the driving support systems Sensor detection display, obstacle distance Front center sensor ■ Lexus Navigation Lexus Display Approximate Multi- Navigation system Display Audio distance to information system (insert Audio system obstacle display display) system (insert display) 3.3 ft. (100 cm) to 2.0 ft.
Page 252 4-5. Using the driving support systems Corner sensors ■ Lexus Navigation Lexus Display Approximate Multi- Navigation system Display Audio distance to information system (insert Audio system obstacle display display) system (insert display) 2.0 ft. (60 cm) to 1.5 ft. (45 cm)
Page 253 4-5. Using the driving support systems Rear center sensor ■ Navigation Lexus Display Approximate distance Multi-information system Audio system to obstacle display (insert display) (insert display) 4. 9 ft. (150 cm) to 2.0 ft. (60 cm) (continuous) (blinking slowly) (blinking slowly) 2.0 ft.
Page 254 4-5. Using the driving support systems Buzzer operation and distance to an obstacle ■ A buzzer sounds when the sensors are operating. The buzzer beeps faster as the vehicle approaches an obstacle. ● When the vehicle comes within the following distance of the obsta- cle, the buzzer sounds continuously: •...
Page 255 Lexus Display Audio controller (Lexus Display Audio system). ( P. 109) Select “SETUP” on the “Menu” screen. Select “Vehicle” on the “Setup” screen. Select “LEXUS Park Assist” on the “Vehicle Settings” screen. Navigation system Lexus Display Audio system Alert volume setting...
Page 256 4-5. Using the driving support systems Alert volume setting ■ The alert volume can be adjusted. Select “1” to “5” on the “LEXUS Park Assist settings”. Select “Save”. Display on/off setting ■ On or off can be selected for intuitive parking assist display.
Page 257 • The area directly under the bumpers is not detected. • If obstacles draw too close to the sensor. • A non-genuine Lexus suspension (lowered suspension etc.) is installed. • People may not be detected if they are wearing certain types of clothing.
Page 258 4-5. Using the driving support systems The shape of the obstacle may prevent the sensor from detecting it. Pay particular ● attention to the following obstacles: • Wires, fences, ropes, etc. • Cotton, snow and other materials that absorb sound waves •...
Page 259 When using intuitive parking assist-sensor ■ In the following situations, the system may not function correctly due to a sensor malfunction etc. Have the vehicle checked by your Lexus dealer. The intuitive parking assist operation display flashes, and a beep sounds when no ●...
Page 260: Rear View Monitor System
Vehicles with a navigation system Owners of models equipped with a navigation system should refer to the “Navigation System Owner’ s Manual”. Vehicles with the Lexus Display Audio system Rear view monitor system will acti- vate when the shift lever is in R.
Page 261 4-5. Using the driving support systems Using the rear view monitor system Screen description ■ The rear view monitor system screen will be displayed if the shift lever is shifted to R while the power switch is in ON mode. Vehicle width extension guide line The line indicates a guide path when the vehicle is being backed straight up.
Page 262 4-5. Using the driving support systems Rear view monitor system precautions Area displayed on screen ■ The rear view monitor system dis- plays an image of the view from the bumper of the rear area of the vehicle. To adjust the image on the rear view monitor system screen.
Page 263 4-5. Using the driving support systems Rear view monitor system camera ■ The camera for the rear view monitor system is located above the license plate. Using the camera ● If the camera lens becomes dirty, it cannot transmit a clear image. If water droplets, snow or mud adhere to the lens, rinse with water and wipe with a soft cloth.
Page 264 4-5. Using the driving support systems When the ground behind the vehicle slopes up sharply ● The distance guide lines will appear to be closer to the vehicle than the actual distance. Because of this, objects will appear to be farther away than they actually are.
Page 265 4-5. Using the driving support systems When any part of the vehicle sags ● When any part of the vehicle sags due to the number of passengers or the distribution of the load, there is a margin of error between the fixation guide lines on the screen and the actual dis- A margin of error tance/course on the road.
Page 266 4-5. Using the driving support systems Vehicle width extension guide lines ■ Visually check the surroundings and the area behind the vehicle. In the case shown below, the truck appears to be outside of the vehicle width extension guide lines and the vehicle does not look as if it hits the truck.
Page 267 ■ If you notice any of the following symptoms, refer to the likely cause and the solution, and re-check. If the symptom is not resolved by the solution, have the vehicle inspected by your Lexus dealer. Symptom Likely cause Solution •...
Page 268 Symptom Likely cause Solution The camera or surround- Have vehicle The image is out of align- ing area has received a inspected by your Lexus ment strong impact. dealer. The fixation guide lines Have vehicle The camera position is are very far out of align- inspected by your Lexus out of alignment.
Page 269 4-5. Using the driving support systems CAUTION When using the rear view monitor system ■ When backing up, be sure to check visually behind and all around the vehicle before proceeding. Observe the following precautions to avoid an accident that could result in death or serious injuries.
Page 270 4-5. Using the driving support systems CAUTION When using the rear view monitor system screen ■ The position of the fixation guide lines displayed on the screen may change in ● accordance with the number of passengers, the amount of cargo etc. Be sure to check behind and all around the vehicle direct visually and with mirror before proceeding.
Page 271 Do not expose the camera to strong impact as this could cause a malfunction. If ● this happens, have the vehicle inspected by your Lexus dealer as soon as possi- ble. ES350 300h_OM_OM33A01U_(U)
Page 272: Driving Mode Select Switch
4-5. Using the driving support systems Driving mode select switch The driving modes can be selected to suit driving condition. Normal mode For normal driving. Press the switch to change the driving mode to normal mode when selected to Eco mode or sport mode. Eco drive mode Use Eco mode to help achieve low fuel consumption during trips that involve frequent accelerating.
Page 273 4-5. Using the driving support systems Operation of the air conditioning system in Eco drive mode ■ Eco drive mode controls the heating/cooling operations and fan speed of the air conditioning system to enhance fuel efficiency ( P. 347, 359). To improve air con- ditioning performance, adjust the fan speed or turn off Eco drive mode.
Page 274: Driving Assist Systems
4-5. Using the driving support systems Driving assist systems To help enhance driving safety and performance, the following systems operate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heavily when operating the vehicle. ◆...
Page 275 4-5. Using the driving support systems ◆ EPS (Electric Power Steering) Employs an electric motor to reduce the amount of effort needed to turn the steering wheel ◆ PCS (Pre-Collision System) (if equipped) P. 306 When the TRAC/VSC/ABS (hybrid vehicles) systems are operat- Gasoline vehicles The slip indicator light will flash while the TRAC/VSC systems are...
Page 276 4-5. Using the driving support systems Disabling the TRAC system If the vehicle gets stuck in mud, dirt or snow, the TRAC system may reduce power from the engine <hybrid system> to the wheels. Pressing to turn the system off may make it easier for you to rock the vehi- cle in order to free it.
Page 277 ■ TRAC has been disabled even if the VSC OFF switch has not been pressed TRAC and hill-start assist control (hybrid vehicles) cannot be operated. Contact your Lexus dealer. When the 12-volt battery is disconnected ■ The steering wheel may move from its straight forward position, but this will be cor- rected automatically when driving.
Page 278 4-5. Using the driving support systems Reduced effectiveness of the EPS system ■ The effectiveness of the EPS system is reduced to prevent the system from overheat- ing when there is frequent steering input over an extended period of time. The steer- ing wheel may feel heavy as a result.
Page 279 The ABS, TRAC and VSC systems will not function correctly if different tires are installed on the vehicle. Contact your Lexus dealer for further information when replacing tires or wheels. Handling of tires and the suspension ■...
Page 280: Hill-Start Assist Control (Hybrid Vehicles)
4-5. Using the driving support systems Hill-start assist control (hybrid vehicles) Assists with starting off and temporarily maintains braking power even if the foot is removed from the brake pedal when starting off on an incline or a slippery slope. To engage hill-start assist control, further depress the brake pedal when the vehicle is stopped com-...
Page 281 • The brake pedal is depressed again. • The brake pedal has been depressed for more than approximately 3 minutes. If the slip indicator comes on ■ It may indicate a malfunction in the system. Contact your Lexus dealer. CAUTION Hill-start assist control ■...
Page 282 4-5. Using the driving support systems PCS (Pre-Collision System) When the radar sensor detects possibility of a frontal collision, the pre- collision system such as the brakes and seat belts are automatically engaged to lessen impact as well as vehicle damage. The pre-collision system can be turned on and off as necessary by oper- ating the switch.
Page 283: Radar Sensor
4-5. Using the driving support systems Disabling pre-collision system Enabled Disabled The “PCS” warning light turns on when pre-collision system is disabled. Radar sensor The radar sensor detects vehicles or other obstacles on or near the road ahead and determines whether a collision is imminent based on the position, speed, and heading of the obstacles.
Page 284 4-5. Using the driving support systems The pre-collision system is operational when ■ The pre-collision system off switch is not pressed and the following conditions are met: Pre-collision seat belts (operating conditions A): ● • Vehicle speed is greater than about 19 mph (30 km/h). •...
Page 285 4-5. Using the driving support systems Conditions that may trigger the system even if there is no possibility of a collision ■ When there is an object by the roadside at the entrance to a curve ● When passing an oncoming vehicle on a curve ●...
Page 286: Fcc Warning
4-5. Using the driving support systems Automatic cancelation of the pre-collision system ■ When a malfunction occurs due to sensor contamination, etc. that results in the sen- sors being unable to detect obstacles, the pre-collision system will be automatically disabled. In this case, the system will not activate even if there is a collision possibility. When there is a malfunction in the system ■...
Page 287 If the sensor moves even slightly off position, the system may become inaccurate or malfunction. If the sensor or surrounding area is subject to a strong impact, always have the area inspected and adjusted by your Lexus dealer. Do not disassemble the sensor.
Page 288 4-5. Using the driving support systems CAUTION Cautions regarding the assist contents of the system ■ By means of alarms and brake control, the pre-collision system is intended to assist the driver in avoiding collisions through the process of LOOK-JUDGE-ACT. There are limits to the degree of assistance the system can provide, so please keep in mind the following important points.
Page 289 4-5. Using the driving support systems BSM (Blind Spot Monitor) Summary of the Blind Spot Monitor The Blind Spot Monitor is a system that has 2 functions; The Blind Spot Monitor function ● Assists the driver in making the decision when changing lanes The Rear Cross Traffic Alert function ●...
Page 290 4-5. Using the driving support systems Outside rear view mirror indicator Blind Spot Monitor function: When a vehicle is detected in the blind spot, the outside rear view mirror indica- tor comes on while the turn signal lever is not operated and the outside rear view mirror indicator flashes while the turn signal lever is operated.
Page 291 4-5. Using the driving support systems The outside rear view mirror indicators visibility ■ When under strong sunlight, the outside rear view mirror indicator may be difficult to see. Rear Cross Traffic Alert buzzer hearing ■ Rear Cross Traffic Alert function may be difficult to hear over loud noises such as high audio volume.
Page 292 If the sensor moves even slightly off position, the system may malfunction and vehicles that enter the detection area may not be detected. If the sensor or sur- rounding area is subject to a strong impact, always have the area inspected by your Lexus dealer. Do not disassemble the sensor. ●...
Page 293: The Blind Spot Monitor Function
4-5. Using the driving support systems The Blind Spot Monitor function The Blind Spot Monitor function uses radar sensors to detect vehicles that are traveling in an adjacent lane in the area that is not reflected in the out- side rear view mirror (the blind spot), and advises the driver of the vehicles existence via the outside rear view mirror indicator.
Page 294 4-5. Using the driving support systems The Blind Spot Monitor function is operational when ■ The BSM main switch is set to on ● Vehicle speed is greater than approximately 10 mph (16 km/h). ● The Blind Spot Monitor function will detect a vehicle when ■...
Page 295 4-5. Using the driving support systems Conditions under which the Blind Spot Monitor function may not function cor- ■ rectly The Blind Spot Monitor function may not detect vehicles correctly in the following ● conditions: • During bad weather such as heavy rain, fog, snow etc. •...
Page 296: The Rear Cross Traffic Alert Function
4-5. Using the driving support systems The Rear Cross Traffic Alert function The Rear Cross Traffic Alert functions when your vehicle is in reverse. It can detect other vehicles approaching from the right or left rear of the vehicle. It uses radar sensors to alert the driver of the other vehicle’ s exist- ence through flashing the outside rear view mirror indicators and sound- ing a buzzer.
Page 297: The Rear Cross Traffic Alert Function Detection Areas
4-5. Using the driving support systems The Rear Cross Traffic Alert function detection areas The areas that vehicles can be detected in are outlined below. To give the driver a more consistent time to react, the buzzer can alert for faster vehicles from farther away.
Page 298 4-5. Using the driving support systems Conditions under which the Rear Cross Traffic Alert function will not detect a vehi- ■ The Rear Cross Traffic Alert function is not designed to detect the following types of vehicles and/or objects. Small motorcycles, bicycles, pedestrians etc. ●...
Page 299: Hybrid Vehicle Driving Tips (Hybrid Vehicles)
4-6. Driving tips Hybrid vehicle driving tips (hybrid vehicles) For economical and ecological driving, pay attention to the following points: Using Eco drive mode When using Eco drive mode, the torque corresponding to the accelerator pedal depression amount can be generated more smoothly than it is in normal conditions.
Page 300: Highway Driving
4-6. Driving tips Highway driving Control your speed and keep at a constant speed. Also, before stopping at a toll booth or similar, allow plenty of time to release the accelerator and gently apply the brakes. A greater amount of electrical energy can be retained when slowing down.
Page 301 4-6. Driving tips Warming up before driving Since the gasoline engine starts up and cuts out automatically when cold, warming up the engine is unnecessary. Moreover, frequently driving short distances will cause the engine to repeatedly warm up, which can lead to poor fuel consumption.
Page 302: Winter Driving Tips
4-6. Driving tips Winter driving tips Carry out the necessary preparations and inspections before driving the vehicle in winter. Always drive the vehicle in a manner appropriate to the prevailing weather conditions. Preparation for winter Use fluids that are appropriate to the prevailing outside temperatures. ●...
Page 303: Before Driving The Vehicle
4-6. Driving tips Before driving the vehicle Perform the following according to the driving conditions: Do not try to forcibly open a window or move a wiper that is frozen. ● Pour warm water over the frozen area to melt the ice. Wipe away the water immediately to prevent it from freezing.
Page 304: Selecting Tire Chains
4-6. Driving tips Selecting tire chains Use the correct tire chain size when mounting the tire chains. Chain size is regulated for each tire size. Side chain 0.12 in. (3 mm) in diameter 0.39 in. (10 mm) in width 1.18 in. (30 mm) in length Cross chain 0.16 in.
Page 305: Shifting The Windshield Wiper Position
4-6. Driving tips Shifting the windshield wiper position If heavy snow or icy condition is expected, shift the rest position manually. Grip the hook section of the wiper arm firmly when shifting the wiper position. To rest position ■ Raise the wiper in line with the windshield until it locks.
Page 306 4-6. Driving tips CAUTION Driving with snow tires ■ Observe the following precautions to reduce the risk of accidents. Failure to do so may result in a loss of vehicle control and cause death or serious injury. Use tires of the specified size. ●...
Page 307 NOTICE Repairing or replacing snow tires ■ Request repairs or replacement of snow tires from Lexus dealers or legitimate tire retailers. This is because the removal and attachment of snow tires affects the operation of the tire pressure warning valves and transmitters.
Page 308: Lexus Display Audio System
5-1. Lexus Display Audio system Lexus Display Audio system By using the Lexus Display Audio controller, you can control the audio system and hands-free system, etc. Lexus Display Audio controller Displaying the audio control Turn or move the controller to screen ( P.
Page 309 5-1. Lexus Display Audio system “Menu” screen To display the “Menu” screen, press the “MENU” button on the Lexus Dis- play Audio controller. Button Function Automatic air conditioning system “Climate” ( P. 347) “Phone” Hands-free system ( P. 444) “Car”...
Page 310 5-1. Lexus Display Audio system Initial screen If the “START STOP ENGINE” <“POWER”> switch is turned to ACCESSORY or IGNITION ON <ON> mode, the initial screen will be displayed for a few seconds as the system starts up. Images shown on the initial screen can be changed to image1 or image2.
Page 311 5-1. Lexus Display Audio system Lexus Display Audio system operation Using the Lexus Display Audio controller ■ Select: Turn or move the con- troller. Enter: Push the controller. Basic screen operation ■ When a list is displayed, use the appropriate button to scroll through the list.
Page 312 Do not allow coins, contact lenses or other such items to become caught in the ● Lexus Display Audio controller as this may cause it to stop functioning. Items of clothing may rip if they become caught on the Lexus Display Audio con- ● troller.
Page 313: Display Settings
You can adjust the contrast and brightness of the screen and also turn the display off. To display the “Display Settings” screen, press the “MENU” button on the Lexus Display Audio controller and then select “Display” on the “Menu” screen. Turns off screen The screen is turned off.
Page 314 5-1. Lexus Display Audio system Adjusting the screen contrast/brightness Select “General” or “Camera” on the “Display Settings” screen. Adjust the display as desired using “+” or “-”. Select “Contrast” or “Brightness” using the “<<” or “>>”. “-” “+” “Contrast” Weaker Stronger “Brightness”...
Page 315: Setup Menu
5-1. Lexus Display Audio system Setup menu You can change the Lexus Display Audio system to your desired set- ting. To display the “Setup” screen, press the “MENU” button on the Lexus Display Audio controller and then select “Setup” on the “Menu”...
Page 316: Select Language
5-1. Lexus Display Audio system General settings This screen is used for various settings. Display the “Setup” screen. ( P. 341) Select “General” on the “Setup” screen. Page 1 Page 2 Select language ( P. 343) Beep on/off Select button color Customize Startup Image The initial screen displayed when the “START STOP ENGINE”...
Page 317 5-1. Lexus Display Audio system Selecting a language ■ Select “Language” on the “General Settings” screen. Select the desired language. The selectable languages may dif- fer depending on the model or region. Delete personal data ■ Select “Delete Personal Data” on the “General Settings” screen.
Page 318: Vehicle Customization Settings
5-1. Lexus Display Audio system Vehicle settings This screen is used for various vehicle settings. Display the “Setup” screen. ( P. 341) Select “Vehicle” on the “Setup” screen. Vehicle customization settings ( P. 344) LEXUS park assist settings ( P. 279) Vehicle customization settings ■...
Page 319: Ipod Setting
5-1. Lexus Display Audio system Audio settings This screen is used for various audio settings. Display the “Setup” screen. ( P. 341) Select “Audio” on the “Setup” screen. HD Radio™ technology set- tings ( P. 385) iPod setting ( P. 345) When you complete settings, select “Save”.
Page 320 5-1. Lexus Display Audio system Voice settings ® This screen is used for guidance for Bluetooth hands-free systems set- ting. Display the “Setup” screen. ( P. 341) Select “Voice” on the “Setup” screen. Voice guidance volume setting Voice recognition prompts on/ Restore default settings When you complete settings, select “OK”.
Page 321: Air Outlets And Fan Speed Are Automatically Adjusted According To The Temperature Setting
Air outlets and fan speed are automatically adjusted according to the temperature setting. To display the air conditioning operation screen, press the “MENU” button on the Lexus Display Audio controller and then select “Cli- mate”. Vehicles with a navigation system Owners of models equipped with a navigation system should refer to the “Navigation System Owner’...
Page 322: Control Panel
5-2. Using the air conditioning system and defogger Control panel conditioning operation Passenger’ s side temperature screen control buttons Outside temperature display Passenger’ s side temperature display Automatic mode button Outside/recirculated air mode “OFF” button button Fan speed control button Driver’...
Page 323 5-2. Using the air conditioning system and defogger Automatic air conditioning system control screen Adjusting driver’ s side tempera- ture setting Adjusting passenger’ s side tem- perature setting Adjusting the fan speed Selecting air outlet mode Cooling and dehumidification function on/off Dual mode on/off Micro dust and pollen filter on/off Windshield wiper de-icer on/off...
Page 324 5-2. Using the air conditioning system and defogger Adjusting the settings manually To turn on the air conditioning system and adjust the fan speed, press to increase the fan speed and to decrease the fan speed or select “ ” of to increase the fan speed and “...
Page 325: Upper Body
5-2. Using the air conditioning system and defogger Defogging the windshield Press The dehumidification function oper- ates and fan speed increases. Set the outside/recirculated air mode button to outside air mode if the recir- culated air mode is used. (It may switch automatically.) To defog the windshield and the side windows early, turn the air flow and...
Page 326 5-2. Using the air conditioning system and defogger Feet Feet and windshield Switching between outside air and recirculated air modes Press The mode switches among (recirculated air mode), automatic and (outside air mode) modes each time the button is pressed. When the system is switched to automatic mode, the air conditioning system operates automatically.
Page 327 5-2. Using the air conditioning system and defogger Micro dust and pollen filter button Operates micro dust and pollen fil- ter on/off. Outside air mode switches to (recirculated air) mode. Pollen is removed from the air and the air flows to the upper part of the body.
Page 328 5-2. Using the air conditioning system and defogger Adjusting the position of and opening and closing the air outlets Front center outlets and front side outlets ■ Direct air flow to the left or right, up or down. Turn the knob to open or close the vent.
Page 329 STOP ENGINE” <“POWER”> switch was turned off. Air conditioning system settings are memorized individually on each electronic ● key, so the settings reproduced will be specific to the key that is used. This feature is customizable at your Lexus dealer. ● Using automatic mode ■...
Page 330 5-2. Using the air conditioning system and defogger When the outside temperature exceeds 75°F (24°C) and the air conditioning sys- ■ tem is on In order to reduce the air conditioning power consumption, the air conditioning ● system may switch to recirculated air mode automatically. This may also reduce fuel consumption.
Page 331 5-2. Using the air conditioning system and defogger Air conditioning odors ■ During use, various odors from inside and outside the vehicle may enter into and ● accumulate in the air conditioning system. This may then cause odor to be emitted from the vents.
Page 332 5-2. Using the air conditioning system and defogger NOTICE Humidity sensor (if equipped) ■ In order to detect fog on the windshield, a sensor which monitors the temperature of the windshield, the surround humidity, etc. is installed. ( P. 355) Follow these points to avoid damaging the sensor: Do not disassemble the sensor...
Page 333 Vehicles with a navigation system Owners of models equipped with a navigation system should refer to the “Navigation System Owner’ s Manual”. Vehicles with the Lexus Display Audio system P. 347 ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 334 5-2. Using the air conditioning system and defogger Driver’ s side temperature dis- Passenger’ s side temperature play control button Airflow display Micro dust and pollen filter but- Fan speed display Outside air or recirculated Outside temperature mode button Passenger’ s side temperature Off button display Driver’...
Page 335 5-2. Using the air conditioning system and defogger Using the automatic air conditioning system Press The dehumidification function begins to operate. Air outlets and fan speed are automatically adjusted according to the temperature setting and humidity. Press to switch to automatic air intake mode. The air conditioning system automatically switches between outside air and recir- culated air modes.
Page 336 5-2. Using the air conditioning system and defogger Adjusting the settings manually To adjust the fan speed, select to increase the fan speed to decrease the fan speed. Press to turn the fan off. To adjust the temperature setting, press “ ” on to increase the temperature and “...
Page 337 5-2. Using the air conditioning system and defogger Defogging the windshield Press The dehumidification function oper- ates and fan speed increases. Set the outside/recirculated air mode button to outside air mode if the recir- culated air mode is used. (It may switch automatically.) To defog the windshield and the side windows early, turn the air flow and...
Page 338 5-2. Using the air conditioning system and defogger Feet Feet and windshield Switching between outside air and recirculated air modes Press The mode switches among (recirculated air mode), automatic and (outside air mode) modes each time the button is pressed. When the system is switched to automatic mode, the air conditioning system operates automatically.
Page 339 5-2. Using the air conditioning system and defogger Micro dust and pollen filter button Operates micro dust and pollen fil- ter on/off. Outside air mode switches to (recirculated air) mode. Pollen is removed from the air and the air flows to the upper part of the body.
Page 340 5-2. Using the air conditioning system and defogger Adjusting the sensitivity of the air intake control in automatic mode Press for 2 or more seconds. Press “ ” (increase) or “ ” (decrease) on From - 3 (low) to 3 (high) can be set. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 341 5-2. Using the air conditioning system and defogger Adjusting the position of and opening and closing the air outlets Front center outlets and front side outlets ■ Direct air flow to the left or right, up or down. Turn the knob to open or close the vent.
Page 342 STOP ENGINE” <“POWER”> switch was turned off. Air conditioning system settings are memorized individually on each electronic ● key, so the settings reproduced will be specific to the key that is used. This feature is customizable at your Lexus dealer. ● Using automatic mode ■...
Page 343 5-2. Using the air conditioning system and defogger When the outside temperature exceeds 75°F (24°C) and the air conditioning sys- ■ tem is on In order to reduce the air conditioning power consumption, the air conditioning ● system may switch to recirculated air mode automatically. This may also reduce fuel consumption.
Page 344 5-2. Using the air conditioning system and defogger Air conditioning odors ■ During use, various odors from inside and outside the vehicle may enter into and ● accumulate in the air conditioning system. This may then cause odor to be emitted from the vents.
Page 345 5-2. Using the air conditioning system and defogger NOTICE Humidity sensor (if equipped) ■ In order to detect fog on the windshield, a sensor which monitors the temperature of the windshield, the surround humidity, etc. is installed. ( P. 368) Follow these points to avoid damaging the sensor: Do not disassemble the sensor...
Page 346 15 to 60 minutes. The opera- tion time changes according to the ambient temperature and vehicle speed. Vehicles without a navigation system or the Lexus Display Audio sys- On/off The defoggers will automatically turn off after 15 to 60 minutes. The opera-...
Page 347 5-2. Using the air conditioning system and defogger Operating conditions ■ The “START STOP ENGINE” <“POWER”> switch must be in the IGNITION ON <ON> mode. CAUTION When the outside rear view mirror defoggers are on ■ Do not touch the rear view mirror surfaces, as they can become very hot and burn you.
Page 348: Windshield Wiper De-Icer
The windshield wiper de-icer will automatically turn off after approxi- mately 15 minutes. Vehicles without a navigation system and the Lexus Display Audio sys- On/off The windshield wiper de-icer will automatically turn off after approxi- mately 15 minutes.
Page 349 5-2. Using the air conditioning system and defogger Operating conditions ■ The “START STOP ENGINE” <“POWER”> switch must be in the IGNITION ON <ON> mode. CAUTION When the windshield wiper de-icer is on ■ Do not touch the glass at the lower part of the windshield or to the side of the front pillars as the surfaces can become very hot and burn you.
Page 350 5-3. Using the Lexus Display Audio system To display the audio control screen, press the “MEDIA” button, “RADIO” button or the “AUDIO” button on the Lexus Display Audio controller. Vehicles with a navigation system Owners of models equipped with a navigation system should refer to the “Navigation System Owner’...
Page 351: Switching The Audio Source
P. 444 Switching the audio source Press the “MEDIA” button, “RADIO” button or the “AUDIO” button on the Lexus Display Audio controller to display the audio control screen. Select “Source” or press the “AUDIO” button on the Lexus Display Audio controller to dis- play the audio source selection screen.
Page 352 5-3. Using the Lexus Display Audio system Using cellular phones ■ Interference may be heard through the audio system’ s speakers if a cellular phone is being used inside or close to the vehicle while the audio system is operating.
Page 353: Using The Radio
5-3. Using the Lexus Display Audio system Using the radio Press the “RADIO” button or “AUDIO” button on the Lexus Display Audio controller and then select “AM”, “FM” or “SAT”. Control panel Audio control screen AM/FM/SAT mode buttons Mute button...
Page 354: Audio Control Screen
5-3. Using the Lexus Display Audio system Audio control screen Pressing the “RADIO” button or “AUDIO” button on the Lexus Display Audio controller displays the audio control screen from any screens of the selected source. “Presets” screen “Options” screen “Options” screen appears...
Page 355: Setting Station Presets (Excluding Xm ® Satellite Radio)
5-3. Using the Lexus Display Audio system Selecting a station Seek tuning ■ Press and hold “ ” or “ ” on the “PRST•TRACK” button. Manual tuning ■ Turn the “TUNE•SCROLL” knob. Preset stations ■ Press “ ” or “ ” on the “PRST•TRACK” button or select desired preset stations.
Page 356: Rbds (Radio Broadcast Data System)
5-3. Using the Lexus Display Audio system RBDS (Radio Broadcast Data System) This feature allows your radio to receive station identification information and program information (classical, jazz, etc.) from radio stations which broadcast this information. RBDS features are available only when listen- ing to an FM station that broadcasts RBDS information and the “FM Info”...
Page 357 5-3. Using the Lexus Display Audio system Select “TYPE ” or “ TYPE” to select program types. The type of program changes each time the button is selected. • Classical • Country • EasyLis (Easy Listening) • Inform (Information) • Jazz •...
Page 358 5-3. Using the Lexus Display Audio system Traffic announcement ■ Select “Traffic” on the “Options” screen. “TRAF SEEK” appears on the screen, and the radio will start seeking any station broadcasting traffic program information. If no traffic program station is found, “No Traffic”...
Page 359 5-3. Using the Lexus Display Audio system HD Radio™ technology settings ■ Display the “Setup” screen. ( P. 341 Select “Audio” on the “Setup” screen. Select “HD Radio Settings”. Select “HD Radio/Analog Set- tings”. Receiving both analog and digital broadcasts...
Page 360: Displaying Text Information
5-3. Using the Lexus Display Audio system Selecting a desired type ■ Select “Options”. Select “TYPE ” or “ TYPE” to select program types. The type of program changes each time the button is selected. ( P. 382) When a program is set, “TYPE SEEK” appears.
Page 361 5-3. Using the Lexus Display Audio system Changing the multiple or supplemental programs ■ On the FM radio frequency most digital stations have multiple or sup- plemental programs on one FM station. Select “Multicast”. Each time “Multicast” is selected, supplemental program changes.
Page 362 5-3. Using the Lexus Display Audio system HD Radio™ technology troubleshooting guide ■ Experience Cause Action Mismatch time radio stations alignment- a user may analog and digital vol- None, radio broadcast issue. A hear a short period of ume is not properly...
Page 363 5-3. Using the Lexus Display Audio system ® Satellite Radio (if equipped) ® Receiving XM Satellite Radio ■ Press the “RADIO” button or select “SAT” on the audio source selection. Turn the “TUNE•SCROLL” knob to select the desired channel in the all categories or press and hold “...
Page 364 5-3. Using the Lexus Display Audio system Changing the channel category ■ Select “Options”. Select “TYPE ” or “ TYPE”. ® Scanning XM Satellite Radio channels ■ Scanning channels in the current category Select “SCAN” on the screen. “SCAN” appears on the screen.
Page 365 5-3. Using the Lexus Display Audio system When the 12-volt battery is disconnected ■ All preset stations are erased. Reception sensitivity ■ Cargo loaded on the roof luggage carrier, especially metal objects, may adversely ● ® affect the reception of XM Satellite Radio.
Page 366 XM antenna cable is attached securely. SAT Check Antenna A short circuit occurs in the antenna or the surrounding antenna cable. See a Lexus certified dealer for assis- tance. You have not subscribed to XM Satellite Radio. The radio is being updated with the latest encryption code. Con- tact XM Satellite Radio for subscription information.
Page 367 5-3. Using the Lexus Display Audio system Message Explanation There is no song/program title or artist name/feature ----- associated with the channel at that time. No action is required. The channel you selected is no longer available. Wait for about 2 seconds until the radio returns to the previous SAT Chan Unavailable channel or “CH 001”.
Page 368: Using The Cd Player
5-3. Using the Lexus Display Audio system Using the CD player Audio control screen Audio source selector button Playback/Pause button Power Track/file selector knob Volume Track/file selector button Eject button Loading a disc Insert a disc into the disc slot.
Page 369: Playing An Audio Cd And Mp3/Wma Discs
5-3. Using the Lexus Display Audio system Playing an audio CD and MP3/WMA discs Insert a disc or press the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller and then select “CD” with a disc inserted. Audio control screen Pressing the “MEDIA”...
Page 370 5-3. Using the Lexus Display Audio system Selecting, fast-forwarding and reversing tracks (Audio CD) Selecting a track ■ Press “ ” or “ ” on the “PRST•TRACK” button or turn the “TUNE•SCROLL” knob to select the desired track number. To fast-forward or reverse, press and hold “ ” or “ ” on the “PRST•TRACK”...
Page 371 5-3. Using the Lexus Display Audio system Selecting a file from the file list ■ Select “Files” on the screen. Select the desired file number. Selecting a folder (MP3/WMA disc) Select “Folders” on the screen. Select the desired folder number.
Page 372: Random Playback
5-3. Using the Lexus Display Audio system Random playback Each time is selected, the mode changes in the following order: Audio CD : Random play on the disc : Off MP3/WMA disc : Random play on the folder : Random play in all the folders...
Page 373 If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Error messages ■ Refer to the following table and take the appropriate measures. If the problem is not rectified, take the vehicle to your Lexus dealer. Message Cause Correction procedures •...
Page 374 5-3. Using the Lexus Display Audio system Lens cleaners ■ Do not use lens cleaners. Doing so may damage the CD player. MP3 and WMA files ■ MP3 (MPEG Audio LAYER 3) is a standard audio compression format. Files can be compressed to approximately 1/10 of their original size by using MP3 compression.
Page 375 5-3. Using the Lexus Display Audio system Compatible disc formats ● The following disc formats can be used. • Disc formats: CD-ROM Mode 1 and Mode 2 CD-ROM XA Mode 2, Form 1 and Form 2 • File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet) UDF (2.01 or lower)
Page 376 5-3. Using the Lexus Display Audio system MP3 and WMA playback ● When a disc containing MP3 or WMA files is inserted, all files on the disc are first checked. Once the file check is finished, the first MP3 or WMA file is played. To make the file check finish more quickly, we recommend you do not write in any files other than MP3 or WMA files or create any unnecessary folders.
Page 377 5-3. Using the Lexus Display Audio system NOTICE CDs and adapters that cannot be used ■ Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual Discs. Doing so may damage the CD player and/or the CD load/eject function.
Page 378 5-3. Using the Lexus Display Audio system NOTICE CD player precautions ■ Failure to follow the precautions below may result in serious damage to the CDs or the player itself. Do not insert anything other than CDs into the CD slot.
Page 379: Listening To An Ipod
Listening to an iPod Connecting an iPod enables you to enjoy music from the vehicle speak- ers. Press the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller and then select “iPod” with an iPod connected. Connecting an iPod Push the knob to release the lock, and lift the armrest to open fully.
Page 380 5-3. Using the Lexus Display Audio system Control panel Audio control screen Audio source selector button Playback/Pause button Power Song selector knob Volume Song selector button ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 381 5-3. Using the Lexus Display Audio system Audio control screen Pressing the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller displays the audio control screen from any screens of the selected source. iPod video mode Selecting the play mode...
Page 382 5-3. Using the Lexus Display Audio system Selecting a play mode Select “Browse” on the screen. Select the desired play mode by selecting the “Playlists”, “Artists”, “Albums”, “Songs”, “Podcasts”, “Audiobooks”, “Genres” “Composers” tabs. Selecting, fast-forwarding and reversing songs Selecting one song at a time ■...
Page 383: Shuffle Play
5-3. Using the Lexus Display Audio system Shuffle play Each time is selected, the mode changes in the following order: : Playing the songs in shuffle : Playing the albums in the iPod in shuffle : Off When a large number of songs is stored in an iPod, shuffle selection may take time.
Page 384 5-3. Using the Lexus Display Audio system About iPod ■ “Made for iPod” and “Made for iPhone” mean that an electronic accessory has ● been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.
Page 385 5-3. Using the Lexus Display Audio system iPod problems ■ To resolve most problems encountered when using your iPod, disconnect your iPod from the vehicle iPod connection and reset it. For instructions on how to reset your iPod, refer to your iPod Owner’ s Manual.
Page 386 5-3. Using the Lexus Display Audio system CAUTION Caution while driving ■ Do not connect iPod or operate the controls. NOTICE To prevent damage to iPod ■ Do not leave iPod in the vehicle. The temperature inside the vehicle may become ●...
Page 387: Listening To A Usb Memory
Listening to a USB memory Connecting a USB memory enables you to enjoy music from the vehi- cle speakers. Press the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller and then select “USB” with a USB memory con- nected.
Page 388 5-3. Using the Lexus Display Audio system Control panel Audio control screen Audio source selector button Playback/Pause button Power File selector knob Volume File selector button ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 389 5-3. Using the Lexus Display Audio system Audio control screen Pressing the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller displays the audio control screen from any screens of the selected source. Audio source selection screen...
Page 390 5-3. Using the Lexus Display Audio system Selecting, fast-forwarding and reversing files Selecting one file at time ■ Press “ ” or “ ” on the “PRST•TRACK” button or turn the “TUNE•SCROLL” knob to select the desired file. To fast-forward or reverse, press and hold “ ” or “ ” on the “PRST•TRACK” but- ton until you hear a beep.
Page 391: Selecting A Folder
5-3. Using the Lexus Display Audio system Selecting a folder Select “Folders” on the screen. Select the desired folder number. Select the desired file number. Random playback Each time is selected, the mode changes in the following order: : Random play on the folder...
Page 392 5-3. Using the Lexus Display Audio system Repeat play Each time is selected, the mode changes in the following order: : File repeat : Folder repeat : Off USB memory functions ■ Depending on the USB memory that is connected to the system, the device itself ●...
Page 393 5-3. Using the Lexus Display Audio system USB memory ■ Compatible devices ● USB memory that can be used for MP3 and WMA playback. Compatible device formats ● The following device formats can be used: • USB communication formats: USB2.0 HS (480Mbps) •...
Page 394 5-3. Using the Lexus Display Audio system MP3 file compatibility ● • Compatible standards MP3 (MPEG1 AUDIO LAYERII, III, MPEG2 AUDIO LAYERII, III, MPEG2.5) • Compatible sampling frequencies MPEG1 AUDIO LAYERII, III: 32, 44.1, 48 (kHz) MPEG2 AUDIO LAYERII, III: 16, 22.05, 24 (kHz) •...
Page 395 5-3. Using the Lexus Display Audio system MP3 and WMA playback ● • When a device containing MP3 or WMA files is connected, all files in the USB memory device are checked. Once the file check is finished, the first MP3 or WMA file is played.
Page 396: Using The Aux Port
Open the cover and connect the portable audio device. Press the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller and then select “AUX”. Operating portable audio devices connected to the audio system ■...
Page 397 5-3. Using the Lexus Display Audio system CAUTION Caution while driving ■ Do not connect portable audio device or operate the controls. NOTICE To prevent damage to portable audio device ■ Do not leave portable audio device in the vehicle. The temperature inside the ●...
Page 398: Listening To Bluetooth
Bluetooth , the Bluetooth audio system will not function. Press the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller and then select “Bluetooth ”. : Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Page 399 5-3. Using the Lexus Display Audio system Control panel Audio control screen Audio source selector button Playback/Pause button Power Track selector knob Volume Track selector button ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 400 5-3. Using the Lexus Display Audio system Audio control screen Pressing the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller displays the audio control screen from any screens of the selected source. Audio source selection screen...
Page 401: Status Display
5-3. Using the Lexus Display Audio system Status display You can check such indicators as signal strength and battery charge on the screen. Connection status Battery charge Indicators Conditions Connection status Good connection Full Empty Battery charge ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 402: Registering A Bluetooth ® Audio Player
5-3. Using the Lexus Display Audio system ® Registering a Bluetooth audio player ® To use the Bluetooth audio system, you need to register your portable audio player into the system. Once registered, you can enjoy your music on the vehicle’ s audio system.
Page 403 5-3. Using the Lexus Display Audio system Input the passcode displayed on the screen into your portable audio player. For the operation of the portable audio player, see the manual that comes with your portable audio player. Passcodes are not required for SSP (Secure Simple Pairing) compatible ®...
Page 404: Selecting The Bluetooth ® Audio Player
5-3. Using the Lexus Display Audio system ® Selecting the Bluetooth audio player ® If multiple Bluetooth devices are registered, follow the procedure below ® to select the Bluetooth device to be used. You may only use one device at a time.
Page 405 5-3. Using the Lexus Display Audio system ® Connecting the Bluetooth audio player There are two connection methods available. When the connection method is set to “From Vehicle” ■ When the portable audio player is on standby for the connection, it will be automatically connected whenever the “START STOP ENGINE”...
Page 406 5-3. Using the Lexus Display Audio system Select the device to connect. A message is shown if connection has been successful. If connection fails, a message will be displayed and connection will be re-attempted. Selecting, fast-forwarding and reversing tracks Selecting a track ■...
Page 407: Random Playback
5-3. Using the Lexus Display Audio system From “Browse” Select “Browse” on the screen. Select the desired item. Continue to select the applicable screen button until its track list is displayed. Select the desired track. Random playback Each time is selected, the mode changes in the following order:...
Page 408: Repeat Play
5-3. Using the Lexus Display Audio system Repeat play Each time is selected, the mode changes in the following order: : Track repeat : Album repeat : Off ® When using the Bluetooth audio system ■ In the following conditions, the system may not function.
Page 409 5-3. Using the Lexus Display Audio system ® About Bluetooth ■ ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIO- NEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.
Page 410 5-3. Using the Lexus Display Audio system ® Certification for the Bluetooth audio system ■ FCC ID: AJDK046 IC ID: 775E-K046 This device complies with Part 15 of FCC Rules and Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.
Page 411 5-3. Using the Lexus Display Audio system CAUTION FCC WARNING ■ This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.
Page 412 5-3. Using the Lexus Display Audio system CAUTION Caution while driving ■ Do not connect portable players or operate the controls. Caution regarding interference with electronic devices ■ ® Your audio unit is fitted with Bluetooth antennas. People with implanted pace- ●...
Page 413: Optimal Use Of The Audio System
5-3. Using the Lexus Display Audio system Optimal use of the audio system Press the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller. Select on the audio control screen to adjust the sound settings. “Sound” tab Select “-”...
Page 414 5-3. Using the Lexus Display Audio system The sound quality level is adjusted individually ■ The treble, mid and bass levels can be adjusted for the each audio mode separately. About Automatic Sound Leveliser (ASL) ■ ASL automatically adjusts the volume and tone quality according to the vehicle speed.
Page 415: Using The Steering Wheel Audio Switches
5-3. Using the Lexus Display Audio system Using the steering wheel audio switches Some audio features can be controlled using the switches on the steer- ing wheel. Radio mode: Selects radio stations CD mode: Selects tracks/files and folders (MP3/WMA) iPod mode: Selects songs...
Page 416: Adjusting The Volume
5-3. Using the Lexus Display Audio system Changing the audio source Press when the audio system is turned on. The audio source changes as follows each time is pressed. If no discs are inserted in the player, or if the external device is not connected, that mode will be skipped.
Page 417 5-3. Using the Lexus Display Audio system Selecting a track/file or song ® Press to select the CD, Bluetooth audio, iPod or USB memory mode. Press to select the desired track/file or song. Selecting a folder or album Press to select the CD (only when MP3/WMA disc is in use), ®...
Page 418: Hands-Free System (For Cellular Phone)
5-3. Using the Lexus Display Audio system Hands-free system (for cellular phone) The hands-free system is a function that allows you to use your cellular phone without touching it. ® ® This system supports Bluetooth . Bluetooth is a wireless data system that allows the cellular phone to wirelessly connect to the hands-free system and make/receive calls.
Page 419 5-3. Using the Lexus Display Audio system Microphone ■ You can use the microphone when talking on the phone. The person you are speaking to can be heard from the front speakers. ® To use the hands-free system, you must register your Bluetooth phone in the system.
Page 420 5-3. Using the Lexus Display Audio system Status display You can check indicators such as signal strength and battery charge on the “Phone” screen. Connection status Battery charge Call area Signal strength Indicators Conditions Good Not connected Connection status Full...
Page 421 5-3. Using the Lexus Display Audio system In the following circumstances, it may be difficult to hear the other party: ● • When driving on unpaved roads • When driving at high speeds • If a window is open • If the air conditioning is blowing directly on the microphone •...
Page 422 5-3. Using the Lexus Display Audio system About the phonebook in this system ■ The following data is stored for every registered phone. When another phone is con- necting, you cannot read the registered data. Phonebook data ● Call history date ●...
Page 423 5-3. Using the Lexus Display Audio system Certification for the hands-free system ■ FCC ID: AJDK046 IC ID: 775E-K046 This device complies with Part 15 of FCC Rules and Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.
Page 424 5-3. Using the Lexus Display Audio system CAUTION FCC WARNING ■ This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.
Page 425 5-3. Using the Lexus Display Audio system CAUTION Caution while driving ■ ® Do not use a cellular phone or connect the Bluetooth phone. Caution regarding interference with electronic devices ■ ® Your audio unit is fitted with Bluetooth antennas. People with implanted pace- ●...
Page 426: Using The Bluetooth
( P. 455) To display the screen shown above, press on the steering wheel or press the “MENU” button on the Lexus Display Audio controller and then select “Phone” on the “Menu” screen. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 427: Registering A Bluetooth
5-3. Using the Lexus Display Audio system ® Registering a Bluetooth phone ® To use the hands-free system, you must register a Bluetooth phone in the system. You can register up to 5 phones in the system. Display the “Phone” screen. ( P. 452) Select “Yes”.
Page 428 5-3. Using the Lexus Display Audio system Input the passcode displayed on the screen into your phone. For the operation of the phone, see the manual that comes with your cellu- lar phone. Depending on the type of phone, fur-...
Page 429 5-3. Using the Lexus Display Audio system ® Selecting the Bluetooth phone ® If multiple Bluetooth devices are registered, follow the procedure below ® to select the Bluetooth device to be used. You may only use one device at a time.
Page 430: Connecting A Bluetooth ® Phone
5-3. Using the Lexus Display Audio system ® Connecting a Bluetooth phone There are two connecting methods available-automatic and manual. Automatic ■ When you register your phone, auto connection will be activated. ® Always set it to this mode and leave the Bluetooth phone in a place where connection can be established.
Page 431 5-3. Using the Lexus Display Audio system Manual ■ When the auto connection has failed or “Bluetooth Power” is turned ® off ( P. 491), you must connect Bluetooth manually. : Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Page 432 5-3. Using the Lexus Display Audio system ® Reconnecting to the Bluetooth phone ■ If the system cannot connect due to poor signal strength with the “START STOP ENGINE” <“POWER”> switch in ACCESSORY or IGNITION ON <ON> mode, the system will automatically attempt to reconnect.
Page 433: Making A Call
5-3. Using the Lexus Display Audio system Making a call ® Once the Bluetooth phone is registered, you can make a call using the following procedure: Dialing ■ Display the “Phone” screen. ( P. 452) Select “Dial” on the “Phone” screen.
Page 434 5-3. Using the Lexus Display Audio system Dialing from the phonebook ■ You can dial a number from the phonebook data imported from your cellular phone. The system has one phonebook for each telephone. Up to 1000 entries may be stored in each phonebook. ( P. 474) Display the “Phone”...
Page 435 5-3. Using the Lexus Display Audio system When the phonebook is empty ● ® You can transfer the phone numbers in your Bluetooth phone to the system. Operation methods differ between PBAP compatible and PBAP ® incompatible Bluetooth phones. If your cellular phone does not sup- port either PBAP or OPP service, you cannot transfer contacts.
Page 436 5-3. Using the Lexus Display Audio system Calling using speed dial ■ You can make a call using numbers registered from the phonebook. Display the “Phone” screen. ( P. 452) Select “Speed Dials” on the “Phone” screen. Select the desired tab and choose the desired number to make a call.
Page 437 5-3. Using the Lexus Display Audio system Press on the steering wheel or select Calling using voice recognition ■ Calls can be made by giving a voice command. Press the talk switch. To cancel voice recognition press and hold the talk switch.
Page 438 5-3. Using the Lexus Display Audio system Dial by name ● The procedure below shows “Call <name>” or “Call <name> at <type>”. Follow similar procedures for the other operations. Press the talk switch. Say the name, or the name and type of phone, of a registered con- tact.
Page 439 5-3. Using the Lexus Display Audio system Voice guidance function ■ Voice guidance for the voice recognition system can be skipped by pressing the ● talk switch. When “Voice Prompts (on/off)” is selected, voice recognition will be temporarily ● suspended. Press the talk switch again.
Page 440 5-3. Using the Lexus Display Audio system Using voice command “Dial <number>” ● • In the same manner as it is displayed on the screen, “Dial <number>”, after saying “Dial” say the phone number. • Say the phone number one digit at a time.
Page 441: Receiving A Call
5-3. Using the Lexus Display Audio system Receiving a call When a call is received, the following screen is displayed together with a sound. To answer the phone: • Press on the steering wheel. • Select To refuse a call ■...
Page 442 5-3. Using the Lexus Display Audio system Speaking on the phone The following screen is displayed when speaking on the phone. To adjust the receiver volume ■ Select “-” or “+”. You can also adjust the volume using the steering switches or the volume knob.
Page 443 5-3. Using the Lexus Display Audio system If repeated tone symbols stored in the phone book, “Send” and “Exit” are displayed on the right side of the screen. : Repeated tone symbols are symbols or numbers displayed as p or w, that come after the phone number.
Page 444 5-3. Using the Lexus Display Audio system Call waiting ■ When a call is interrupted by a third party while talking, the incoming call message will be displayed. To talk with the other party: • Press on the steering wheel.
Page 445: Setting The Hands-Free System
You can set the hands-free system to your desired settings. Setting the sound Phonebook settings To display the screen shown above, follow the steps below. Press the “MENU” button on the Lexus Display Audio controller. Select “Setup” on the “Menu” screen. Select “Phone” on the “Setup” screen. ES350 300h_OM_OM33A01U_(U)
Page 446: Setting The Sound
5-3. Using the Lexus Display Audio system Setting the sound Display the “Phone Settings” screen. ( P. 471) Select “Phone Sound Settings” on the “Phone Settings” screen. Changes the speaker volume ( P. 472) Changes the ring tone volume ( P. 472) Changes the ring tone ( P.
Page 447 5-3. Using the Lexus Display Audio system Setting the ring tone ■ Select “Ring Tone” on the “Phone Sound Settings” screen. Select “Tone1”, “Tone2” or “Tone3” to change the ring tone, and then “OK”. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 448: Phonebook Settings
5-3. Using the Lexus Display Audio system Phonebook settings The phonebook manages a maximum of 5 phones in total. The data for 1000 contacts (up to 3 numbers per contact) can be registered in each phonebook. Managing the contacts Managing the speed dials Deleting the call history To display the screen above, follow the steps below.
Page 449 5-3. Using the Lexus Display Audio system Managing the contacts ■ Transferring a phone number ● ® You can transfer the phone numbers in your Bluetooth phone to the system. Operation methods differ between PBAP compatible and ® PBAP incompatible Bluetooth phones.
Page 450: Add Contacts
5-3. Using the Lexus Display Audio system ® For PBAP incompatible Bluetooth phones Replace contacts The phonebook data can be replaced. Add contacts The phonebook can be added. Deleting the phonebook data ● Display the “Phonebook Settings” screen. ( P. 474) Select “Manage Contacts”...
Page 451 5-3. Using the Lexus Display Audio system Phonebook data ■ Phonebook data is managed for every registered phone. When another phone is connecting, you cannot read the registered data. Setting the phonebook in a different way (To display the “Contacts” screen) ■...
Page 452 5-3. Using the Lexus Display Audio system Deleting the phonebook data in a different way ■ Display the “Phone” screen. ( P. 452) Select “Contacts” on the “Phone” screen. Choose the desired data from the list. Select “Options” on the “Contact” screen.
Page 453 5-3. Using the Lexus Display Audio system Managing the speed dials Registering the speed dial from contacts ■ You can register the desired phone number from phonebook. Up to 18 numbers per phone can be registered. Display the “Phonebook Settings” screen. ( P. 474) Select “Manage Speed Dials”...
Page 454 5-3. Using the Lexus Display Audio system Select the switch you want to register the number in. If you select a switch you registered before, a confirmation message will be displayed. If you want to replace it, select “Yes”. Registering the speed dial from call history ■...
Page 455 5-3. Using the Lexus Display Audio system Deleting the speed dial ■ Display the “Phonebook Settings” screen. ( P. 474) Select “Manage Speed Dials” on the “Phonebook Settings” screen. Select “Delete Speed Dials” on the “Speed Dials” screen. Choose the data to delete.
Page 456 5-3. Using the Lexus Display Audio system Registering the speed dial in a different way (From “Speed Dial” screen) ■ Display the “Phone” screen. ( P. 452) Select “Speed Dials” on the “Phone” screen. Select “(add new)” on the “Speed Dial” screen.
Page 457 5-3. Using the Lexus Display Audio system Deleting the call history Display the “Phonebook Settings” screen. ( P. 474) Select “Delete Call History” on the “Phonebook Settings” screen. If your phone supports PBAP service, the “Automatically Download Contacts” setting needs to be set to “Off”. ( P. 475) Choose the desired history to delete.
Page 458: Bluetooth Settings
® Detailed Bluetooth settings To display the screen shown above, follow the steps below. Press the “MENU” button on the Lexus Display Audio controller. Select “Setup” on the “Menu” screen. Select “Bluetooth ” on the “Setup” screen. : Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Page 459 5-3. Using the Lexus Display Audio system Registered devices settings ® Registering a Bluetooth device ■ ® Bluetooth devices compatible with phones (HFP) and portable audio players (AVP) can be registered simultaneously. You can register up to ® 5 Bluetooth devices.
Page 460 5-3. Using the Lexus Display Audio system When this screen is displayed, input the passcode displayed on the screen into your ® Bluetooth device. ® For the operation of the Bluetooth device, see the manual that comes ® with your Bluetooth device.
Page 461: Displaying A Bluetooth
5-3. Using the Lexus Display Audio system Select “Remove”. Select the device to remove. A confirmation message will be displayed, select “Yes” to remove the device. ® Displaying a Bluetooth device details ■ You can confirm and change the device details.
Page 462 5-3. Using the Lexus Display Audio system Select the device. Following screen is displayed: Display device name Display device address Display your telephone number The number may not be dis- played depending phones. Display compatibility profile of the device Change connection method ( P.
Page 463 5-3. Using the Lexus Display Audio system Changing connection method ● Select “Connection Method” on the “Device Details” screen. Select “From Vehicle” or “From Audio Player”. “From Vehicle”: Connect the audio system to the portable audio player. “From Audio Player”: Connect the portable audio player to the audio system.
Page 464 5-3. Using the Lexus Display Audio system Selecting the audio player ® If multiple Bluetooth devices are registered, follow the procedure below ® to select the Bluetooth device to be used. You may only use one device at a time.
Page 465 5-3. Using the Lexus Display Audio system ® Detailed Bluetooth settings ® You can confirm and change the detailed Bluetooth settings. Display the “Bluetooth Settings” screen. ( P. 484) Select “Detailed Bluetooth Settings” on the “Bluetooth Settings” screen. Following screen is displayed: ®...
Page 466 5-3. Using the Lexus Display Audio system Editing the passcode ■ ® You can change the passcode that you use to register your Bluetooth device in the system. Select “Passcode” on the “Detailed Bluetooth Settings” screen. Input a passcode, and select “OK”.
Page 467 5-3. Using the Lexus Display Audio system ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 468 Vehicles with a navigation system Owners of models equipped with a navigation system should refer to the “Navigation System Owner’ s Manual”. Vehicles with the Lexus Display Audio system P. 376 CD player with a changer and AM/FM radio (type A)
Page 469 5-4. Using the audio system CD player with a changer and AM/FM radio (type B) Title Page Using the radio P. 496 Using the CD player P. 505 Playing MP3 and WMA discs P. 514 Operating an iPod P. 522 Operating a USB memory P.
Page 470 5-4. Using the audio system CAUTION Certification ■ Part 15 of the FCC Rules ● FCC Warning: Any unauthorized changes or modifications to this equipment will void the user’ s authority to operate this device. Laser products ● • USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PRO- CEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
Page 471 5-4. Using the audio system Using the radio Type A AM FM/SAT mode buttons Traffic information button Scan button Preset station buttons Seek button Radio text message button Channel category button Power Frequency adjustment (AM/FM Volume mode) and channel (SAT mode) knob ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 472 5-4. Using the audio system Type B AM FM buttons Traffic information button Seek button Preset station buttons Channel category button Radio text message button Frequency adjustment knob Power Volume ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 473 5-4. Using the audio system ® Setting station presets (excluding XM Satellite Radio) Search for the desired stations by turning or pressing “ ” or “ ” Press and hold the button (from ) the station is to be set to until you hear a beep.
Page 474 5-4. Using the audio system RBDS (Radio Broadcast Data System) This feature allows your radio to receive station identification information and program information (classical, jazz, etc.) from radio stations which broadcast this information. Receiving RBDS broadcasts ■ Press “ ” or “ ” on during FM reception.
Page 475 5-4. Using the audio system ® Satellite Radio (type A) ® Receiving XM Satellite Radio ■ Press The display changes as follows each time the button is pressed: “SAT1” “SAT2” “SAT3” Turn to select the desired channel in all the categories or press “...
Page 476 5-4. Using the audio system ® Scanning the XM Satellite Radio channels ■ Scanning the channels in the current category ● Press When the desired channel is reached, press the button again. Scanning the preset channels ● Press and hold until you hear a beep.
Page 477 5-4. Using the audio system When the 12-volt battery is disconnected ■ All preset stations are erased. Reception sensitivity ■ Cargo loaded on the roof luggage carrier, especially metal objects, may adversely ● ® affect the reception of XM Satellite Radio. It is difficult to maintain perfect radio reception at all times due to the continually ●...
Page 478 XM antenna cable is attached securely. “ANTENNA” There is a short-circuit in the antenna or the sur- rounding antenna cable. See a Lexus certified dealer. ® You have not subscribed to the XM Satellite Radio. The radio is being updated with the latest encryption ®...
Page 479 5-4. Using the audio system ® Certifications for XM Satellite Radio ■ This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference. Cet appareil est conforme au CNR-310 d’Industrie Canada. Son exploitation est autorisée sous réserve que l’appareil ne cause pas de brouillage préjudiciable.
Page 480 5-4. Using the audio system Using the CD player Type A Eject button Playback/Pause button Load button Repeat play button Playback button Random playback button Search playback button Text button Track selector button Power CD selector button Volume ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 481 5-4. Using the audio system Type B Eject button Repeat play button Load button Random playback button Playback button Text button Track selector button Power CD selector button Volume Playback/Pause button ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 482 5-4. Using the audio system Loading a CD Loading a CD ■ Press “WAIT” is shown on the display. When the indicator on the slot turns from amber to green, insert a The display changes from “WAIT” to “LOAD”. Loading multiple CDs ■...
Page 483: Ejecting Cds
5-4. Using the audio system Ejecting CDs Ejecting a CD ■ To select the CD to be ejected, press “ ” or “ ” on The selected disc number is shown on the display. Press and remove the CD. Ejecting all the CDs ■...
Page 484: Playing And Pausing Tracks
5-4. Using the audio system Selecting a CD Selecting a CD to play ■ To select the desired CD, press “ ” or “ ” on Scanning loaded CDs (type A) ■ Press and hold until you hear a beep. The first ten seconds of the first track on each CD will be played.
Page 485: Switching The Display
5-4. Using the audio system Repeat play Repeating a track ■ Press To cancel, press again. Repeating all of the tracks on a CD ■ Press and hold until you hear a beep. To cancel, press again. Switching the display Press Each time the button is pressed, the display changes in the following order: Elapsed time...
Page 486 This indicates that operation is stopped due to a high temperature inside the player. Wait for a while and then press . If the CD still cannot be played back, contact your Lexus dealer. Discs that can be used ■...
Page 487 5-4. Using the audio system NOTICE CDs and adapters that cannot be used ■ Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual Discs. Doing so may damage the CD player and/or the CD load/eject function. CDs that have a diameter that is not 4.7 in.
Page 488 5-4. Using the audio system NOTICE CD player precautions ■ Failure to follow the precautions below may result in serious damage to the CDs or the player itself. Do not insert anything other than CDs into the CD slot. ● Do not apply oil to the CD player.
Page 489: Playing Mp3 And Wma Discs
5-4. Using the audio system Playing MP3 and WMA discs Type A Eject button Folder selector buttons Load button Playback/Pause button Playback button Repeat play button Search playback button Random playback button File selector button Text button Disc selector button Power File selector knob Volume...
Page 490 5-4. Using the audio system Type B Eject button Playback/Pause button Load button Repeat play button Playback button Random playback button File selector button Text button Disc selector button Power File selector knob Volume Folder selector buttons ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 491 5-4. Using the audio system Loading and ejecting MP3 and WMA discs P. 507, 508 Selecting MP3 and WMA discs P. 509 Selecting and scanning a folder Selecting a folder one at a time ■ Press to select the desired folder. Returning to the first folder ■...
Page 492 5-4. Using the audio system Selecting and scanning files Selecting a file ■ Turn or press “ ” or “ ” on to select the desired file. Scanning the files in a folder (type A) ■ Press The first ten seconds of each file will be played. To cancel, press again.
Page 493 5-4. Using the audio system Repeat play Repeating a file ■ Press To cancel, press again. Repeating all the files in a folder ■ Press and hold until you hear a beep. To cancel, press again. Switching the display Press Each time the button is pressed, the display changes in the following order: Folder no./File no./Elapsed time Folder name...
Page 494 Wait for a while and then press . If the CD still cannot be played back, contact your Lexus dealer. “NO MUSIC”: This indicates that an MP3/WMA file is not included in the CD. Discs that can be used ■...
Page 495 5-4. Using the audio system WMA file compatibility ● • Compatible standards WMA Ver. 7, 8, 9 • Compatible sampling frequencies 32, 44.1, 48 (kHz) • Compatible bit rates (only compatible with 2-channel playback) Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps) Ver.
Page 496 5-4. Using the audio system MP3 and WMA playback ● When a disc containing MP3 or WMA files is inserted, all files on the disc are first checked. Once the file check is finished, the first MP3 or WMA file is played. To make the file check finish more quickly, we recommend you do not write in any files other than MP3 or WMA files or create any unnecessary folders.
Page 497: Operating An Ipod
5-4. Using the audio system Operating an iPod Connecting an iPod enables you to enjoy music from the vehicle speak- ers. Type A Playback button Repeat play button Song selector button Shuffle playback button iPod menu/Song selector knob Text button Go back button Power Playback/Pause button...
Page 498: Playback Button
5-4. Using the audio system Type B Playback button Repeat play button Song selector button Shuffle playback button iPod menu/Song selector knob Text button Go back button Power Playback/Pause button Volume ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 499 5-4. Using the audio system Connecting an iPod Push the knob to release the lock, and lift the armrest to open fully. Open the cover and connect an iPod using an iPod cable. Turn on the power of the iPod if it is not turned on.
Page 500 5-4. Using the audio system Selecting a play mode Press to select iPod menu mode. Turning changes the play mode in the following order: “PLAYLISTS” “ARTISTS” “ALBUMS” “SONGS” “PODCASTS” “GENRES” “COMPOSERS” “AUDIOBOOKS” Press to select the desired play mode. Play mode list ■...
Page 501: Selecting Songs
5-4. Using the audio system Selecting a list ■ Turn to display the first selection list. Press to select the desired item. Pressing the knob changes to the second selection list. Repeat the same procedure to select the desired item. To return to the previous selection list, select “GO BACK”...
Page 502: Fast-Forwarding And Reversing Songs
5-4. Using the audio system Playing and pausing songs To play or pause a song, press Fast-forwarding and reversing songs To fast-forward or reverse, press and hold “ ” or “ ” on until you hear a beep. Shuffle playback Playing songs from one playlist or album in random order ■...
Page 503 5-4. Using the audio system Adjusting sound quality and volume balance Press to enter iPod menu mode. Pressing changes sound modes. ( P. 562) About iPod ■ “Made for iPod” and “Made for iPhone” mean that an electronic accessory has ●...
Page 504 5-4. Using the audio system iPod problems ■ To resolve most problems encountered when using your iPod, disconnect your iPod from the vehicle iPod connection and reset it. For instructions on how to reset your iPod, refer to your iPod Owner’ s Manual. Display ■...
Page 505 5-4. Using the audio system Compatible models ■ ® ® ® ® ® The following iPod , iPod nano , iPod classic , iPod touch and iPhone devices can be used with this system. Made for ● • iPod touch (4th generation) •...
Page 506 5-4. Using the audio system NOTICE To prevent damage to iPod ■ Do not leave iPod in the vehicle. The temperature inside the vehicle may become ● high, resulting in damage to the player. Do not push down on or apply unnecessary pressure to the iPod while it is con- ●...
Page 507: Operating A Usb Memory
5-4. Using the audio system Operating a USB memory Connecting a USB memory enables you to enjoy music from the vehi- cle speakers. Type A Playback button Playback/Pause button Search playback button Repeat play button File selector button Random playback button File selector knob Text button Folder selector buttons...
Page 508 5-4. Using the audio system Type B Playback button Repeat play button File selector button Random playback button File selector knob Text button Folder selector buttons Power Playback/Pause button Volume ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 509 5-4. Using the audio system Connecting a USB memory Push the knob to release the lock, and lift the armrest to open fully. Open the cover and connect a USB memory. Turn on the power of the USB memory if it is not turned on. Press ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 510 5-4. Using the audio system Selecting and scanning a folder Selecting folders one at a time ■ Press to select the desired folder. Returning to the first folder ■ Press and hold until you hear a beep. Scanning the first file of all the folders (type A) ■...
Page 511 5-4. Using the audio system Random playback Playing files from a folder in random order ■ Press To cancel, press again. Playing all the files from a USB memory in random order ■ Press and hold until you hear a beep. To cancel, press again.
Page 512 5-4. Using the audio system USB memory functions ■ Depending on the USB memory that is connected to the system, the device itself ● may not be operable and certain functions may not be available. If the device is inoperable or a function is unavailable due to a malfunction (as opposed to a sys- tem specification), disconnecting the device and reconnecting it once again may resolve the problem.
Page 513 5-4. Using the audio system USB memory ■ Compatible devices ● USB memories that can be used for MP3 and WMA playback Compatible device formats ● The following device formats can be used: • USB communication formats: USB2.0 FS (12 Mbps) •...
Page 514 5-4. Using the audio system WMA file compatibility ● • Compatible standards WMA Ver. 9 • Compatible sampling frequencies HIGH PROFILE 32, 44.1, 48 (kHz) • Compatible bit rates HIGH PROFILE 32-320 (kbps, VBR) File names ● The only files that can be recognized as MP3/WMA and played are those with the extension .mp3 or .wma.
Page 515 5-4. Using the audio system CAUTION Caution while driving ■ Do not connect USB memories or operate the controls. NOTICE To prevent damage to USB memories ■ Do not leave USB memories in the vehicle. The temperature inside the vehicle ●...
Page 516: Bluetooth ® Audio System
5-4. Using the audio system ® Bluetooth audio system ® The Bluetooth audio system enables you to enjoy music played on a portable digital audio player (portable player) from the vehicle speak- ers via wireless communication. ® This audio system supports Bluetooth , a wireless data system capable of playing portable audio music without cables.
Page 517 5-4. Using the audio system ® About Bluetooth ■ ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIO- NEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.
Page 518 5-4. Using the audio system CAUTION FCC WARNING ■ This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.
Page 519 5-4. Using the audio system CAUTION Caution while driving ■ Do not connect portable players or operate the controls. NOTICE To prevent damage to portable players ■ Do not leave portable players in the vehicle. The temperature inside the vehicle may become high, resulting in damage to the player.
Page 520: Using The Bluetooth ® Audio System
5-4. Using the audio system ® Using the Bluetooth audio system Audio unit Display A message, name, number, etc. is displayed. Lower-case characters and special characters cannot be displayed. Displays information that is too long to be displayed at one time on the display (press and hold) Selects items such as menu and number...
Page 521 5-4. Using the audio system Operating the system using voice commands By following voice guidance instructions output from the speaker, voice ® commands enable the operation of the Bluetooth audio system without the need to check the display or operate Operation procedure when using voice commands ■...
Page 522 5-4. Using the audio system ® Using the Bluetooth audio system for the first time ® Before using the Bluetooth audio system, it is necessary to register a ® Bluetooth enabled portable player in the system. Follow the procedure below to register (pair) a portable player: Press and select “BT•A MENU”...
Page 523 5-4. Using the audio system Input the passkey into the portable player. Refer to the manual that comes with the portable player for the operation of the portable player. Guidance for registration completion is heard. ® If the portable player has a Bluetooth phone, the phone can be regis- tered at the same time.
Page 524 5-4. Using the audio system When using a voice command ■ For numbers, say a combination of single digits from zero to nine. Say the command correctly and clearly. Situations in which the system may not recognize your voice ■ When driving on rough roads ●...
Page 525: Operating A Bluetooth ® Enabled Portable Player
5-4. Using the audio system ® Operating a Bluetooth enabled portable player Type A Playback button Playback/Pause button Search playback button Repeat play button Track selector button Random playback button BT•A menu knob Text button Album selector buttons Power Volume ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 526 5-4. Using the audio system Type B Playback button Repeat play button Track selector button Random playback button BT•A menu knob Text button Album selector buttons Power Playback/Pause button Volume ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 527: Selecting Tracks
5-4. Using the audio system Selecting an album To select the desired album, press Selecting tracks Press “ ” or “ ” on to select the desired track. Playing and pausing tracks To play or pause a track, press Fast-forwarding and reversing tracks To fast-forward or reverse, press and hold “...
Page 528 5-4. Using the audio system ® Bluetooth audio system functions ■ Depending on the portable player that is connected to the system, certain functions may not be available. Display ■ P. 511 Error messages ■ “Memory Error”: This indicates a problem in the system. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 529: Setting Up A Bluetooth ® Enabled Portable Player
5-4. Using the audio system ® Setting up a Bluetooth enabled portable player ® Registering a portable player in the Bluetooth audio system allows the system to function. The following functions can be used for regis- tered portable players: Functions and operation procedures Pattern A To enter the menu for each function, follow the steps below using a voice command or...
Page 530: Registering A Portable Player
5-4. Using the audio system Pattern B Press to select “BT•A MENU”. Press the talk switch or select “BT•A Setup” using Select one of the following functions using a voice command or Registering a portable player ● “Pair Audio Player (Pair Audio)” Selecting a portable player to be used ●...
Page 531 5-4. Using the audio system Selecting a portable player to be used Select “Connect Audio Player (Connect)” using a voice command or Pattern A Select the portable player to be used by either of the following meth- ods, and select “Confirm” by using a voice command or a.
Page 532: Changing The Registered Name Of A Portable Player
5-4. Using the audio system Changing the registered name of a portable player Select “Change Name” using a voice command or Pattern A Select the name of the portable player to be changed by either of the following methods, and select “Confirm” using a voice command or a.
Page 533 5-4. Using the audio system Listing the registered portable players Select “List Audio Players (List Audios)” using a voice command or . The list of registered portable players will be read aloud. When listing is complete, the system returns to “BT•A Setup”. Pressing the talk switch while the name of a portable player is being read aloud selects the portable player, and the following functions will become available:...
Page 534: Changing The Passkey
5-4. Using the audio system Changing the passkey Select “Set Passkey” using a voice command or Pattern A Press the talk switch, say a 4 to 8-digit number, and select “Confirm” using a voice command or Pattern B Select a 4 to 8-digit number using The number should be input 1 digit at a time.
Page 535 5-4. Using the audio system Deleting a registered portable player Select “Delete Audio Player (Delete Audio)” using a voice command Pattern A Select the portable player to be deleted by either of the following meth- ods and select “Confirm” using a voice command or a.
Page 536: Bluetooth ® Audio System Setup
5-4. Using the audio system ® Bluetooth audio system setup System setup items and operation procedures Pattern A To enter the menu for each function, follow the steps below using a voice command or : ( P. 590) Pattern B Press to select “BT•A MENU”.
Page 537 5-4. Using the audio system Optimal use of the audio system Displays the current mode Changes the following settings: • Sound quality and volume bal- ance P. 563 The sound quality and balance set- ting can be changed to produce the best sound.
Page 538 5-4. Using the audio system Adjusting sound quality ■ Turning adjusts the level. Mode Sound quality Turn counter- Level Turn clockwise displayed mode clockwise “BAS” Bass -5 to 5 “MID” Mid-range -5 to 5 High “TRE” Treble -5 to 5 Front/rear vol- “FAD”...
Page 539 5-4. Using the audio system Using the AUX port This port can be used to connect a portable audio device and listen to it through the vehicle’s speakers. Push the knob to release the lock, and lift the armrest to open fully. Open the cover and connect the portable audio device.
Page 540 5-4. Using the audio system Using the steering wheel audio switches Some audio features can be controlled using the switches on the steer- ing wheel. Radio mode:Selects a radio sta- tion CD mode: Selects a track, file (MP3 and WMA) and disc ®...
Page 541 5-4. Using the audio system Changing the audio source Press when the audio system is turned on. The audio source changes as follows each time the button is pressed. If no discs are inserted in the player, that mode will be skipped. Type A: FM1 FM2 SAT1 SAT2 SAT3 CD player ®...
Page 542: Selecting An Album
5-4. Using the audio system Selecting a track/file or song ® Press to select CD, Bluetooth audio, iPod or USB memory mode. Press to select the desired track/file or song. Selecting an album ® Press to select Bluetooth audio mode. Press and hold until you hear a beep.
Page 543 5-4. Using the audio system Hands-free system (for cellular phone) The hands-free system is a function that allows you to use your cellular phone without touching it. ® ® This system supports Bluetooth cellular phones. Bluetooth is a wire- less data system that allows the cellular phone to wirelessly connect to the hands-free system and make/receive calls.
Page 544 5-4. Using the audio system When using the hands-free system ■ The audio system and voice guidance are muted when making a call. ● If both parties speak at the same time, it may be difficult to hear. ● If the incoming call volume is overly loud, an echo may be heard. ●...
Page 545 5-4. Using the audio system Certification for the hands-free system ■ FCC ID: AJDK018 IC ID: 775E-K018 This device complies with Part 15 of FCC Rules and Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.
Page 546 5-4. Using the audio system CAUTION FCC WARNING ■ This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.
Page 547 5-4. Using the audio system CAUTION Caution while driving ■ ® Do not use a cellular phone or connect the Bluetooth phone. NOTICE To prevent damage to cellular phones ■ Do not leave cellular phones in the vehicle. The temperature inside the vehicle may become high, resulting in damage to the phone.
Page 548: Using The Hands-Free System (For Cellular Phones)
5-4. Using the audio system Using the hands-free system (for cellular phones) Audio unit Display A message, name, phone num- ber, etc. is displayed. Lower-case characters and special characters cannot be displayed. Displays information that is too long to be displayed at one time on the display (press and hold) Selects speed dials Selects items such as menu and...
Page 549 5-4. Using the audio system Steering wheel switches Volume During an incoming call: Adjusts the ring tone volume During an ongoing call: Adjusts the receiver volume The voice guidance volume cannot be adjusted using this button. Talk switch Turns the voice command system on (press)/turns the voice com- mand system off (press and hold) Off-hook switch...
Page 550 5-4. Using the audio system Operating the system using voice commands By following voice guidance instructions output from the speaker, voice commands enable the operation of the hands-free phone system without the need to check the display or operate Operation procedure when using voice commands ■...
Page 551 5-4. Using the audio system Using the hands-free phone system for the first time Before using the hands-free phone system, it is necessary to register a cel- lular phone in the system. The system will enter phone registration mode automatically when starting the system with no cellular phone registered. Follow the procedure below to register (pair) a cellular phone: Press the off-hook switch or the talk switch.
Page 552 5-4. Using the audio system Select “Yes” or “No” using a voice command or ® (Bluetooth audio player P. 542) Menu list of the hands-free phone system Normal operation ■ First menu Second menu Third menu Operation detail Dialing a number stored in “Callback”...
Page 553 5-4. Using the audio system First menu Second menu Third menu Operation detail “Set PIN” Setting a PIN code “Security” “Phbk Lock” Locking the phone book “Phbk Unlock” Unlocking the phone book Registering the cellular “Pair Phone” phone to be used Selecting a cellular phone “Connect”...
Page 554 5-4. Using the audio system Short cut key operation ■ First menu Second menu Operation detail Second menu Dialing a name registered “Dial XXX (name)” in the phone book Adding a new phone “Phone book add Entry” number “Phone book Change Changing a registered name”...
Page 555 5-4. Using the audio system Automatic volume adjustment ■ When vehicle speed reaches 50 mph (80 km/h) or more, the volume automatically increases. The volume returns to the previous volume setting when vehicle speed drops to 43 mph (70 km/h) or less. When using a voice command ■...
Page 556: Making A Phone Call
5-4. Using the audio system Making a phone call Functions Making a phone call ■ Dialing by inputting a number ● “Dial by number” Dialing by inputting a name ● “Dial by name” Speed dialing ● Dialing a number stored in the outgoing history memory ●...
Page 557: Dialing By Inputting A Number
5-4. Using the audio system Dialing by inputting a number Press the talk switch and say “Dial by number”. Press the talk switch and say the phone number. Dial by one of the following methods: a. Press the off-hook switch. b.
Page 558: Call Waiting
5-4. Using the audio system When receiving a phone call Answering a phone call ■ Press the off-hook switch. Refusing a phone call ■ Press the on-hook switch. Transferring a phone call A call can be transferred between the cellular phone and system while dialing, receiving a call, or during a call.
Page 559 5-4. Using the audio system Press the talk switch and say “Redial” (when using a number stored in the outgoing call history memory) or “Call back” (when using a number stored in the incoming call history memory). Select the number by either of the following methods: a.
Page 560: Setting A Cellular Phone
5-4. Using the audio system Setting a cellular phone Registering a cellular phone in the hands-free phone system allows the system to function. The following functions can be used for registered cellular phones: Functions and operation procedures To enter the menu for each function, follow the steps below using a voice command or Registering a cellular phone ●...
Page 561 5-4. Using the audio system Selecting a cellular phone to be used Select “Connect Phone (Connect)” using a voice command or Pattern A Select the cellular phone to be used by either of the following methods, and select “Confirm” by using a voice command or a.
Page 562: Listing The Registered Cellular Phones
5-4. Using the audio system Pattern B Select the desired cellular phone name to be changed using Press the talk switch or select “Record Name” using , and say the new name. Select “Confirm” using a voice command or Listing the registered cellular phones Select “List Phones”...
Page 563 5-4. Using the audio system Changing the passkey Select “Set Passkey” using a voice command or Pattern A Press the talk switch, say a 4 to 8-digit number, and select “Confirm” using a voice command or Pattern B Select a 4 to 8-digit number using The number should be input 1 digit at a time.
Page 564 5-4. Using the audio system Pattern B Select the desired cellular phone to be deleted using ® If the cellular phone to be deleted is paired as a Bluetooth audio player, the registration of the audio player can be deleted at the same time. A ®...
Page 565: Security And System Setup
5-4. Using the audio system Security and system setup Security setting items and operation procedures To enter the menu for each function, follow the steps below using a voice command or Setting or changing the PIN (Personal Identification Number) ● 1.
Page 566: Setting Or Changing The Pin
5-4. Using the audio system Setting or changing the PIN Setting a PIN ■ Select “Set PIN” using a voice command or Enter a PIN using a voice command or When using , input the code 1 digit at a time. Changing the PIN ■...
Page 567: Setting Voice Guidance Volume
5-4. Using the audio system Locking or unlocking the phone book Select “Phonebook Lock (Phbk Lock)” or “Phonebook Unlock (Phbk Unlock)” using a voice command or Input the PIN by either of the following methods and select “Confirm” using a voice command or a.
Page 568: Initializing The System
5-4. Using the audio system Displaying the Bluetooth® device address and name Select “Device Name” using ® Turn to display the Bluetooth device address and name. Select “Go Back” using to return to “System Setup”. Initializing the system Select “Initialize” and then “Confirm” using Select “Confirm”...
Page 569 5-4. Using the audio system Initialization ■ The following data in the system can be initialized: ● • Phone book • Outgoing and incoming call history • Speed dials • Registered cellular phone data • Security code ® • Registered Bluetooth enabled portable player data •...
Page 570: Using The Phone Book
5-4. Using the audio system Using the phone book Phonebook items and operation procedures To enter the menu for each function, follow the steps below using a voice command or Adding a new phone number ● 1. “Phonebook” 2. “Add Entry” Changing the registered name in the phone book ●...
Page 571 5-4. Using the audio system Adding procedure ■ Select “Add Entry” using a voice command or Use one of the following methods to input a telephone number: Inputting a telephone number using a voice command: STEP2-1 Select “By Voice” using a voice command or STEP2-2 Press the talk switch, say the desired number, and select “Confirm”...
Page 572 5-4. Using the audio system Inputting a phone number using STEP2-1 Select “Manual Input” using STEP2-2 Input a phone number using , and press again. Input the phone number 1 digit at a time. Selecting a phone number from the outgoing or incoming call history: STEP2-1 Select “Call History”...
Page 573 5-4. Using the audio system Select the name to be registered by either of the following methods, and select “Confirm” using a voice command or a. Press the talk switch and say the desired name. b. Select “Record Name” using and say the desired name.
Page 574 5-4. Using the audio system Changing the registered name in the phone book Select “Change Name” using a voice command or Pattern A Select the name to be changed by either of the following methods, and select “Confirm” using a voice command or a.
Page 575: Setting Speed Dials
5-4. Using the audio system Listing the registered data Select “List Names” using a voice command or . The list of the registered data will be read aloud. When listing is complete, the system returns to the “Phonebook”. Pressing the talk switch while the desired data is being read aloud selects the data, and the following function will become available: Dialing: “Dial”...
Page 576 5-4. Using the audio system Select the desired preset button and register the data into speed dial by either of the following methods: a. Press the desired preset button and select “Confirm” by using a voice command or b. Press and hold the desired preset button. Deleting the registered data Select “Delete Entry”...
Page 577: Deleting Speed Dials
5-4. Using the audio system Deleting speed dials Select “Delete Speed Dial (Del Spd Dial)” using a voice command or Press the preset button to which the desired speed dial is registered and select “Confirm” using a voice command or Limitation of number of digits ■...
Page 578: Interior Lights List
5-5. Using the interior lights Interior lights list Outer foot lights Rear personal lights ( P. 604) Shift lever light Door courtesy lights Interior light ( P. 604) Ornament lights (if equipped) Front personal lights Footwell lights ( P. 604) When the instrument panel light control switch is turned to minimum and the tail lights are on, the ornament lights and the footwell lights will turn off.
Page 579: Interior Light
5-5. Using the interior lights Interior light Turns the light on/off The rear personal lights are also turned on/off by the interior light operation. However, if the interior light is turned off after being turned on while the rear personal lights are turned on, the rear personal lights will not turn off simultaneously.
Page 580 5-5. Using the interior lights Illuminated entry system ■ The lights automatically turn on/off according to “START STOP ENGINE” <“POWER”> switch mode, the presence of the electronic key, whether the doors are locked/unlocked, and whether the doors are opened/closed. To prevent 12-volt battery discharge ■...
Page 581: List Of Storage Features
5-6. Using the storage features List of storage features Cup holders ( P. 610) Console box ( P. 609) Glove box ( P. 608) Auxiliary box ( P. 611) ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 582 5-6. Using the storage features CAUTION Items that should not be left in the storage spaces ■ Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high: Glasses may be deformed by heat or cracked if they come into contact with ●...
Page 583: Glove Box
5-6. Using the storage features Glove box Open (press the button) Unlock with the mechanical key Lock with the mechanical key Glove box light ■ The glove box light turns on when the tail lights are on. Trunk opener main switch ■...
Page 584: Console Box
5-6. Using the storage features Console box Push the knob to release the lock, and lift the armrest to open fully. Tray in the console box ■ The tray slides forward/backward and can be removed. Console box light ■ The console box light turns on when the tail lights are on. CAUTION When using the console box with half-open, do not apply too much load on the armrest.
Page 585 5-6. Using the storage features Cup holders Driver’s side ■ To open, move the cup holder lid until it locks. To close, press and release the cup holder lid. Front passenger’s side ■ To open, press down and release the cup holder lid. Rear ■...
Page 586: Auxiliary Box
5-6. Using the storage features CAUTION Items unsuitable for the cup holders ■ Do not place anything other than cups or aluminum cans in the cup holders. Other items may be thrown out of the holders in the event of an accident or sudden braking, causing injury.
Page 587: Trunk Features
5-6. Using the storage features Trunk features Cargo hooks Raise the hooks when needed. The cargo hooks are provided for securing loose items. Grocery bag hooks Luggage mat Pull the lever upwards when lift- ing the luggage mat up. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 588 5-6. Using the storage features The lever can be hooked on the edge of the trunk. CAUTION When the cargo hooks are not in use ■ To avoid injury, always return the cargo hooks to their stowed positions. NOTICE When closing the trunk ■...
Page 589: Sun Visors And Vanity Mirrors
5-7. Other interior features Sun visors and vanity mirrors Sun visors To set the visor in the forward position, flip it down. To set the visor in the side posi- tion, flip down, unhook, and swing it to the side. To use the side extender, place the visor in the side position, then slide it backward.
Page 590 5-7. Other interior features Clock The clock can be adjusted by pressing the buttons. Pressing and holding will move the clock hands backward. Pressing and holding will move the clock hands forward. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 591: Power Outlets
5-7. Other interior features Power outlets The power outlets can be used for 12V accessories that run on less than 10A. Front ■ Open the lid. Rear ■ Open the lid. The power outlets can be used when ■ The “START STOP ENGINE” <“POWER”> switch is in ACCESSORY or IGNI- TION ON <ON>...
Page 592 5-7. Other interior features NOTICE To avoid damaging the power outlets ■ Close the power outlet lids when the power outlets are not in use. Foreign objects or liquids that enter the power outlets may cause a short circuit. To prevent blown fuse ■...
Page 593: Heated Steering Wheel
Press the button to turn the heated steering wheel off and then press the button again. If the indicator light still flashes, a malfunction may be occurring. Turn the heated steering wheel off and have the vehicle inspected by your Lexus dealer. : If equipped...
Page 594 5-7. Other interior features CAUTION Burns ■ Care should be taken to prevent injury if anyone in the following categories comes in contact with the steering wheel when the heated steering wheel is on: Babies, small children, the elderly, the sick and the physically challenged ●...
Page 595: Seat Heaters /Seat Ventilators
5-7. Other interior features Seat heaters /seat ventilators The seat heaters and ventilators heat the seats and maintain good air- flow by blowing air from the seats. Seat heaters Heats the seat The indicator light comes on. The higher the number of dots, the warmer the seat becomes.
Page 596 5-7. Other interior features The seat heaters/seat ventilators can be used when ■ The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON <ON> mode. CAUTION Burns ■ Use caution when seating the following persons in a seat with the seat heater on ●...
Page 597 5-7. Other interior features Armrest Fold down the armrest for use. NOTICE To prevent damage to the armrest ■ Do not apply too much load on the armrest. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 598: Rear Sunshade /Rear Door Sunshades
5-7. Other interior features Rear sunshade /rear door sunshades Rear sunshade The rear sunshade can be raised and lowered by operating the button shown below. Raise/lower Rear door sunshades Pull the tab of the rear door sun- shade and hook the shade on using the anchors.
Page 599 5-7. Other interior features The rear sunshade can be used when ■ The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON <ON> mode. Operating the rear sunshade after the engine <hybrid system> is turned off ■ The rear sunshade can be operated for approximately 1 minute even after the “START STOP ENGINE”...
Page 600 5-7. Other interior features CAUTION When the rear sunshade is being operated ■ Do not place fingers or other objects in the fastener section or in the opening. They may get caught, causing injury. NOTICE To prevent 12-volt battery discharge ■...
Page 601: Trunk Storage Extension
5-7. Other interior features Trunk storage extension Long objects can be loaded into the vehicle by utilizing the trunk space and rear seat area. Fold down the armrest. Fold down the handle and open the armrest door. CAUTION When not in use ■...
Page 602: Coat Hooks
5-7. Other interior features Coat hooks The coat hooks are provided with the rear assist grips. CAUTION Items that cannot be hung on the coat hook ■ Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain shield airbags deploy, these items may become projectiles, causing death or serious injury.
Page 603: Assist Grips
5-7. Other interior features Assist grips An assist grip installed on the ceiling can be used to support your body while sitting on the seat. CAUTION Assist grip ■ Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
Page 604: Garage Door Opener
5-7. Other interior features Garage door opener The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, security systems, and other devices. ® The garage door opener (HomeLink Universal Transceiver) is manufac- ®...
Page 605: Programming Homelink
5-7. Other interior features ® Programming HomeLink ■ Point the remote control trans- mitter for the device 1 to 3 in. (25 to 75 mm) from the ® HomeLink buttons. ® Keep the HomeLink indicator light in view while programming. For U.S.A.
Page 606 5-7. Other interior features ® Test the HomeLink operation by pressing the newly pro- grammed button and observ- ing the indicator light: If the indicator light is solid/ ● continuous, programming has been completed and your device should activate ® when the HomeLink but- ton is pressed and released.
Page 607 5-7. Other interior features Programming a rolling code system Locate the “Learn” or “Smart” button on the garage door opener motor in the garage. This button can usually be found where the hanging antenna wire is attached to the unit. The name and color of the button may vary by manufacturer.
Page 608 5-7. Other interior features ® Reprogramming a single HomeLink button ■ When the following procedure is performed, buttons which already have devices registered to them can be overwritten: ® With one hand, press and hold the desired HomeLink button. ® When the HomeLink indicator starts flashing, continue to hold the ®...
Page 609: Fcc Warning
5-7. Other interior features ® Programs stored in the HomeLink memory ■ The registered codes are not erased even if the 12-volt battery cable is discon- ● nected. ® If learning failed when registering a different code to a HomeLink button that ●...
Page 610 5-7. Other interior features CAUTION When programming a garage door or other remote control device ■ The garage door or other device may operate, so ensure people and objects are out of danger to prevent potential harm. Conforming to federal safety standards ■...
Page 611 5-7. Other interior features Compass The compass on the inside rear view mirror indicates the direction in which the vehicle is heading. Operation To turn the compass on or off, push the switch. Displays and directions Display Direction “N” North “NE”...
Page 612: Calibrating The Compass
5-7. Other interior features Calibrating the compass The direction display deviates from the true direction determined by the earth’ s magnetic field. The amount of deviation varies according to the geographic position of the vehicle. If you cross over one of the map boundaries shown in illustration, the compass will deviate.
Page 613 5-7. Other interior features Deviation calibration ■ Stop the vehicle in a place where it is safe to drive in a circle. Press the switch until a number (1 to 15) appears on the com- pass display. Press the switch and referring to the map above, select the number of the zone where you are.
Page 614 5-7. Other interior features Conditions unfavorable to correct operation ■ The compass may not show the correct direction in the following conditions: The vehicle is stopped immediately after turning. ● The vehicle is on an inclined surface. ● The vehicle is in a place where the earth’ s magnetic field is subject to interference ●...
Page 615 5-7. Other interior features NOTICE To avoid the compass malfunctions ■ Do not place magnets or any metal objects near the inside rear view mirror. Doing this may cause the compass sensor to malfunction. To ensure normal operation of the compass ■...
Page 616: Safety Connect
Telematics Subscription Service Agreement and its Terms and Conditions, as in effect and amended from time to time, a current copy of which is available at Lexus.com. All use of the Safety Connect ser- vice is subject to such then-applicable Terms and Conditions.
Page 617 After you have signed the Telematics Subscription Service Agreement and are enrolled, you can begin receiving services. A variety of subscription terms is available for purchase. Contact your Lexus dealer, call 1-800-25-LEXUS (1-800-255-3987) or push the “SOS” button in your vehicle for further subscription details. ES350 300h_OM_OM33A01U_(U)
Page 618 ● Safety Connect. Safety Connect is available beginning Fall 2009 on select Lexus models. Contact ● with the Safety Connect response center is dependent upon the telematics device being in operative condition, cellular connection availability, and GPS satellite sig- nal reception, which can limit the ability to reach the response center or receive emergency service support.
Page 619 Green indicator light flashing = Safety Connect call in process ● Red indicator light (except at vehicle start-up) = System malfunction ● (contact your Lexus dealer) No indicator light (off) = Safety Connect service not active ● Safety Connect services Automatic Collision Notification ■...
Page 620 If your vehicle is stolen, Safety Connect can work with local authorities to assist them in locating and recovering the vehicle. After filing a police report, call the Safety Connect response center at 1-800-25-LEXUS (1-800-255-3987) and follow the prompts for Safety Connect to ini- tiate this service.
Page 621 5-7. Other interior features Safety information for Safety Connect Important! Read this information before using Safety Connect. Exposure to radio frequency signals ■ The Safety Connect system installed in your vehicle is a low-power radio transmitter and receiver. It receives and also sends out radio fre- quency (RF) signals.
Page 622 5-7. Other interior features Certification for Lexus Enform with Safety Connect ■ FCC ID: O9EGTM1 FCC ID: O6Y-CDMRF101 FCC ID: N7NGTM2 NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 623 5-7. Other interior features ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 624: Cleaning And Protecting The Vehicle Exterior
6-1. Maintenance and care Cleaning and protecting the vehicle exterior Perform the following to protect the vehicle and maintain it in prime condition: Working from top to bottom, liberally apply water to the vehicle body, ● wheel wells and underside of the vehicle to remove any dirt and dust. Wash the vehicle body using a sponge or soft cloth, such as a chamois.
Page 625 6-1. Maintenance and care When using a car wash ■ If the door handle becomes wet while the electronic key is within the effective range, the door may lock and unlock repeatedly. In that case, follow the following correc- tion procedures to wash the vehicle: Place the key in a position 6 ft.
Page 626 ■ If the paint of the rear bumper is chipped or scratched, the system may malfunc- tion. If this occurs, consult your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 627 6-1. Maintenance and care NOTICE To prevent paint deterioration and corrosion on the body and components (alu- ■ minum wheels etc.) Wash the vehicle immediately in the following cases: ● • After driving near the sea coast • After driving on salted roads •...
Page 628: Cleaning And Protecting The Vehicle Interior
6-1. Maintenance and care Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle’s interior and keep it in top condition: Protecting the vehicle interior Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a cloth dampened with lukewarm water.
Page 629 6-1. Maintenance and care Caring for leather areas ■ Lexus recommends cleaning the interior of the vehicle at least twice a year to main- tain the quality of the vehicle’ s interior. Shampooing the carpets ■ There are several commercial foaming-type cleaners available. Use a sponge or brush to apply the foam.
Page 630 6-1. Maintenance and care NOTICE Cleaning detergents ■ Do not use the following types of detergent, as they may discolor the vehicle inte- ● rior or cause streaks or damage to painted surfaces: • Non-seat portions: Organic substances such as benzene or gasoline, alkaline or acidic solutions, dye, and bleach •...
Page 631: Maintenance Requirements
Maintenance requirements To ensure safe and economical driving, day-to-day care and regular maintenance are essential. It is the owner’s responsibility to perform regular checks. Lexus recommends performing the following mainte- nance: General maintenance General maintenance should be performed on a daily basis. This can be done by yourself or by a Lexus dealer.
Page 632 It is recommended that genuine Lexus parts be used for repairs to ensure perfor- mance of each system. If non-Lexus parts are used in replacement or if a repair shop other than a Lexus dealer performs repairs, confirm the warranty coverage.
Page 633 6-2. Maintenance CAUTION If your vehicle is not properly maintained ■ Improper maintenance could result in serious damage to the vehicle and possible death or serious injury. Handling of the 12-volt battery ■ Engine exhaust, some of its constituents, and a wide variety of automobile com- ●...
Page 634: General Maintenance
“Warranty and Service Guide” or “Owner’s Manual Supplement”. It is recommended that any prob- lem you notice should be brought to the attention of your Lexus dealer or qualified service shop for advice.
Page 635: Vehicle Interior
6-2. Maintenance Vehicle interior Items Check points • The accelerator pedal should move Accelerator pedal smoothly (without uneven pedal effort or catching). Automatic transmission “Park” mecha- • When parked on a slope and the shift nism (gasoline vehicles)/Hybrid trans- lever is in P, is the vehicle securely mission “Park”...
Page 636 6-2. Maintenance Items Check points • Do the head restraints move Head restraints smoothly and lock securely? • Do the indicators and buzzers func- Indicators/buzzers tion properly? • Do all the lights come on? Lights • Are the headlights aimed correctly? •...
Page 637: Vehicle Exterior
6-2. Maintenance Vehicle exterior Items Check points • Do doors/trunk operate Doors/trunk smoothly? • Does the engine hood lock system Engine hood work properly? • There should not be any signs of fluid Fluid leaks leakage after the vehicle has been parked.
Page 638 The OBD system determines that a problem exists somewhere in the emission control system. Your vehicle may not pass the I/M test and may need to be repaired. Contact your Lexus dealer to service the vehicle. Your vehicle may not pass the I/M test in the following situations: When the 12-volt battery is disconnected or discharged ●...
Page 639: Do-It-Yourself Service Precautions
6-3. Do-it-yourself maintenance Do-it-yourself service precautions If you perform maintenance by yourself, be sure to follow the correct procedure as given in these sections. Items Parts and tools • Warm water • Baking soda 12-volt battery condition • Grease (gasoline vehicles) ( P.
Page 640 6-3. Do-it-yourself maintenance Items Parts and tools • “Toyota Genuine Motor Oil” or equivalent Engine oil level ( P. 676) • Rag or paper towel • Funnel (used only for adding engine oil) • Fuse with same amperage rating as Fuses ( P.
Page 641 6-3. Do-it-yourself maintenance CAUTION The engine compartment contains many mechanisms and fluids that may move sud- denly, become hot, or become electrically energized. To avoid death or serious injury, observe the following precautions. When working on the engine compartment ■ Hybrid vehicles: Make sure that the “POWER ON”...
Page 642 6-3. Do-it-yourself maintenance CAUTION When working near the electric cooling fans or radiator grille ■ Be sure the “START STOP ENGINE” <“POWER”> switch is off. With the “START STOP ENGINE” <“POWER”> switch in IGNITION ON <ON> mode, the electric cooling fans may automatically start to run if the air conditioning is on and/or the coolant temperature is high.
Page 643 6-3. Do-it-yourself maintenance Hood Release the lock from the inside of the vehicle to open the hood. Pull the hood lock release lever. The hood will pop up slightly. Pull up the auxiliary catch lever and lift the hood. CAUTION Pre-driving check ■...
Page 644: Positioning A Floor Jack
6-3. Do-it-yourself maintenance Positioning a floor jack When raising your vehicle with a floor jack, position the jack correctly. Improper placement may damage your vehicle or cause injury. ◆ Front Gasoline vehicles Hybrid vehicles ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 645 6-3. Do-it-yourself maintenance ◆ Rear Gasoline vehicles Hybrid vehicles ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 646 6-3. Do-it-yourself maintenance CAUTION When raising your vehicle ■ Make sure to observe the following precautions to reduce the possibility of death or serious injury: Lift up the vehicle using a floor jack such as ● the one shown in the illustration. When using a floor jack, follow the instructions of the manual provided with the ●...
Page 647: Engine Compartment
6-3. Do-it-yourself maintenance Engine compartment Gasoline vehicles (2GR-FE engine) Washer fluid tank ( P. 689) Brake fluid reservoir ( P. 684) Engine oil filler cap ( P. 678) Fuse box ( P. 712) Engine oil level dipstick 12-volt battery ( P. 685) ( P.
Page 648 6-3. Do-it-yourself maintenance Hybrid vehicles (2AR-FXE engine) Washer fluid tank ( P. 689) Engine coolant reservoir ( P. 681) Fuse boxes ( P. 712) Brake fluid reservoir Power control unit coolant ( P. 684) reservoir ( P. 681) Power control unit coolant Engine oil level dipstick radiator ( P.
Page 649: Engine Compartment Cover
6-3. Do-it-yourself maintenance Engine compartment cover Removing the engine compartment cover ■ Installing the clips ■ Push up center portion Insert Press NOTICE Checking the engine compartment cover after installation ■ Make sure that the cover is securely installed in its original position. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 650 6-3. Do-it-yourself maintenance Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. Checking the engine oil ■ Park the vehicle on level ground. Gasoline vehicles After warming up the engine and turning it off, wait more than 5 minutes for the oil to drain back into the bottom of the engine.
Page 651 6-3. Do-it-yourself maintenance Holding a rag under the end, pull the dipstick out and check the oil level. Gasoline vehicles Hybrid vehicles Full Measuring side Full Wipe the dipstick and reinsert it fully. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 652 6-3. Do-it-yourself maintenance Adding engine oil ■ If the oil level is below or near the low level mark, add engine oil of the same type as that already in the engine. Gasoline vehicles Hybrid vehicles Make sure to check the oil type and prepare the items needed before adding oil.
Page 653 ● pose of used oil and filters in household trash, in sewers or onto the ground. Call your Lexus dealer, service station or auto parts store for information con- cerning recycling or disposal. Do not leave used engine oil within the reach of children.
Page 654 6-3. Do-it-yourself maintenance NOTICE To prevent serious engine damage ■ Check the oil level on a regular basis. When replacing the engine oil ■ Be careful not to spill engine oil on the vehicle components. ● Avoid overfilling, or the engine could be damaged. ●...
Page 655 6-3. Do-it-yourself maintenance Coolant The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on the reservoir when the engine <hybrid system> is cold. Engine coolant reservoir ■ Reservoir cap “FULL” line “LOW” line If the level is on or below the “LOW”...
Page 656 ■ Visually check the radiator, hoses, engine/power control unit coolant reservoir caps, drain cock and water pump. If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in the cooling system. CAUTION When the engine <hybrid system> is hot ■...
Page 657: Radiator And Condenser
Check the radiator and condenser and clear away any foreign objects. If either of the above parts is extremely dirty or you are not sure of their condition, have your vehicle inspected by your Lexus dealer. CAUTION When the engine <hybrid system> is hot ■...
Page 658: Brake Fluid
6-3. Do-it-yourself maintenance Brake fluid Checking fluid level ■ The brake fluid level should be between the “MAX” and “MIN” lines on the tank. Gasoline vehicles Hybrid vehicles Adding fluid ■ Make sure to check the fluid type and prepare the necessary item. Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid Items...
Page 659 6-3. Do-it-yourself maintenance NOTICE If the fluid level is low or high ■ It is normal for the brake fluid level to go down slightly as the brake pads wear out or when the fluid level in the accumulator is high. If the reservoir needs frequent refilling, there may be a serious problem.
Page 660: Adding Distilled Water
6-3. Do-it-yourself maintenance Adding distilled water ■ Remove the vent plug. Add distilled water. O.K. If the “UPPER LEVEL” line cannot be seen, check the fluid level by looking directly at the cell. Put the vent plug back on and close it securely. Before recharging ■...
Page 661 12-volt battery. Take extra care when connecting the 12-volt battery if the “START STOP ENGINE” switch mode prior to discharge is unknown. If the engine will not start even after multiple attempts, contact your Lexus dealer. CAUTION Chemicals in the 12-volt battery ■...
Page 662 6-3. Do-it-yourself maintenance CAUTION Where to safely charge the 12-volt battery ■ Always charge the 12-volt battery in an open area. Do not charge the 12-volt bat- tery in a garage or closed room where there is insufficient ventilation. How to recharge the 12-volt battery ■...
Page 663: Washer Fluid
6-3. Do-it-yourself maintenance Washer fluid If any washer does not work or the warning message appears on the multi-information display, washer tank may be empty. Add washer fluid. CAUTION When adding washer fluid ■ Do not add washer fluid when the engine <hybrid system> is hot or running <oper- ating>...
Page 664 6-3. Do-it-yourself maintenance 12-volt battery (hybrid vehicles) Location The 12-volt battery is located on the right-hand side of luggage com- partment. Removing the 12-volt battery cover Remove the 12-volt battery cover. Installing the 12-volt battery cover Install the cover Lift the tab to secure to the trunk liner ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 665: Hold-Down Clamp
“POWER” switch mode prior to discharge is unknown. If the system will not start even after multiple attempts at all methods above, contact your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 666 6-3. Do-it-yourself maintenance CAUTION Chemicals in the 12-volt battery ■ The 12-volt battery contains poisonous and corrosive sulfuric acid and may pro- duce hydrogen gas which is flammable and explosive. To reduce the risk of death or serious injury, take the following precautions while working on or near the 12- volt battery: Do not cause sparks by touching the 12-volt battery terminals with tools.
Page 667 Use a 12-volt battery designed for this vehicle. Failure to do so may cause gas (hydrogen) to enter the passenger compartment, causing a fire or explosion. For replacement of the 12-volt battery, contact your Lexus dealer. NOTICE When recharging the 12-volt battery ■...
Page 668: Checking Tires
Vehicles with full-size spare tire Front Front To equalize tire wear and extend tire life, Lexus recommends that tire rotation is carried out at the same interval as tire inspection. Do not fail to initialize the tire pressure warning system after tire rotation.
Page 669: Tire Pressure Warning System
ID codes must be registered in the tire pressure warning computer and the tire pressure warning system must be initialized. Have tire pres- sure warning valve and transmitter ID codes registered by your Lexus dealer. ( P. 697) ◆...
Page 670 6-3. Do-it-yourself maintenance How to initialize the tire pressure warning system ■ Park the vehicle in a safe place and turn the “START STOP ENGINE” <“POWER”> switch off. Initialization cannot be performed while the vehicle is moving. Adjust the tire inflation pressure to the specified cold tire inflation pressure level.
Page 671: Registering Id Codes
A tire goes flat repeatedly or cannot be properly repaired due to the size or loca- ● tion of a cut or other damage If you are not sure, consult with your Lexus dealer. Replacing tires and wheels ■ If the ID code of the tire pressure warning valve and transmitter is not registered, the tire pressure warning system will not work properly.
Page 672 6-3. Do-it-yourself maintenance Low profile tires (P225/45R18 tires) ■ Generally, low profile tires will wear more rapidly and tire grip performance will be reduced on snowy and/or icy roads when compared to standard tires. Be sure to use snow tires or tire chains on snowy and/or icy roads and drive carefully at a speed appropriate for road and weather conditions.
Page 673 In the following cases, the tire pressure warning system may not operate properly. ● • If non-genuine Lexus wheels are used. • A tire has been replaced with a tire that is not an OE (Original Equipment) tire. • A tire has been replaced with a tire that is not of the specified size.
Page 674: Model/Fcc Ids
If repeated attempts to record tire inflation pressure settings are unsuccessful, have the vehicle inspected by your Lexus dealer. When operating the tire pressure warning reset switch, the tire pressure warning ●...
Page 675 Do not mix tires of different makes, models or tread patterns. ● Also, do not mix tires of remarkably different treadwear. Do not use tire sizes other than those recommended by Lexus. ● Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
Page 676 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Lexus dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire.
Page 677: Tire Inflation Pressure
6-3. Do-it-yourself maintenance Tire inflation pressure Tire inflation pressure The recommended cold tire infla- tion pressure and tire size are dis- played on the tire and loading information label. ( P. 835) ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 678 Damage to the drive train ● If a tire needs frequent inflating, have it checked by your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 679 6-3. Do-it-yourself maintenance Instructions for checking tire inflation pressure ■ When checking tire inflation pressure, observe the following: Check only when the tires are cold. ● If your vehicle has been parked for at least 3 hours or has not been driven for more than 1 mile or 1.5 km, you will get an accurate cold tire inflation pressure reading.
Page 680: Wheel Selection
Used wheels ● Bent wheels that have been straightened ● Aluminum wheel precautions Use only Lexus wheel nuts and wrenches designed for use with your ● aluminum wheels. When rotating, repairing or changing your tires, check that the wheel ●...
Page 681 Because tire repair or replacement may affect the tire pressure warning valves ● and transmitters, make sure to have tires serviced by your Lexus dealer or other qualified service shop. In addition, make sure to purchase your tire pressure warning valves and transmitters at your Lexus dealer.
Page 682: Air Conditioning Filter
6-3. Do-it-yourself maintenance Air conditioning filter The air conditioning filter must be changed regularly to maintain air conditioning efficiency. Removal method Turn the “START STOP ENGINE” <“POWER”> switch off. Open the glove box. Lift and remove the partition. Remove the glove box cover. Remove the filter cover.
Page 683 6-3. Do-it-yourself maintenance Slide and pull out the filter. Replace it with a new one. The “ UP” marks shown on the filter should be pointing up. Checking interval ■ Inspect and replace the air conditioning filter according to the maintenance sched- ule.
Page 684: Electronic Key Battery
6-3. Do-it-yourself maintenance Electronic key battery Replace the battery with a new one if it is depleted. You will need the following items: Flathead screwdriver ● Small flathead screwdriver ● Lithium battery CR2032 ● Replacing the battery Take out the mechanical key. Remove the cover.
Page 685 6-3. Do-it-yourself maintenance Use a CR2032 lithium battery ■ Batteries can be purchased at your Lexus dealer, local electrical appliance shops ● or camera stores. Replace only with the same or equivalent type recommended by the manufacturer. ● Dispose of used batteries according to local laws.
Page 686: Checking And Replacing Fuses
6-3. Do-it-yourself maintenance Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary. Turn the “START STOP ENGINE” <“POWER”> switch off. After a system failure, see “Fuse layout and amperage ratings” for details about which fuse to check.
Page 687 6-3. Do-it-yourself maintenance Driver’ s side instrument panel Remove the lid. Remove the fuse with the pullout tool. Only type A fuse can be removed using the pullout tool. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 688 Type A and B: Replace the blown fuse with a new fuse of an appropriate amperage rating. The amperage rating can be found on the fuse box lid. Type C: Contact your Lexus dealer. Type A Type B Type C...
Page 689 6-3. Do-it-yourself maintenance Fuse layout and amperage ratings Engine compartment (type A fuse box) ■ Fuse block ● Fuse block on the back of the cover ● ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 690 6-3. Do-it-yourself maintenance Fuse Ampere Circuit 1 WIP-S Driver support system, windshield wipers 2 FAN Electric cooling fan 3 H-LP CLN No circuit 4 ENG W/PMP Cooling system 5 PTC HTR NO.2 PTC heater 6 PTC HTR NO.1 PTC heater 7 HTR Air conditioning system Charging system...
Page 691 6-3. Do-it-yourself maintenance Fuse Ampere Circuit Multiport fuel injection system, sequential multiport fuel system, air intake system, exhaust system 22 EFI NO.3 Multiport fuel injection system, sequential multiport fuel system, air intake system Multiport fuel injection system, sequential 23 INJ multiport fuel system Multiport fuel injection system, sequential multiport fuel system, electronic controlled...
Page 692 6-3. Do-it-yourself maintenance Fuse Ampere Circuit Air intake system EFI-MAIN Fuel system, air intake system, exhaust sys- NO.2 Power management system, smart access 41 AM2 system with push-button start Switch illumination, audio system, multi-infor- mation display, audio display, shift lever light, 42 PANEL glove box light, console box light, Remote Touch, intuitive parking assist switch illumina-...
Page 693 6-3. Do-it-yourself maintenance Engine compartment (type B fuse box) (hybrid vehicles only) ■ Fuse Ampere Circuit 1 BATT FAN Battery cooling fan 2 INV W/PMP RLY INV W/PMP RLY 3 DC/DC IGCT Hybrid system 4 INV Hybrid system 5 BATT VL SSR Hybrid system 6 PM IGCT Power management system, hybrid system...
Page 694 6-3. Do-it-yourself maintenance Driver’s side instrument panel ■ Fuse Ampere Circuit Main body ECU, audio system, shift lock sys- tem, outside mirror control ECU, tension reducer, windshield wipers, heated steering wheel, multi-information display, audio dis- 1 ECU-IG1 NO.2 play, intuitive parking assist, tire pressure warning system, moon roof, auto anti-glare inside rear view mirror, raindrop sensor, rear sunshade, wireless door lock system, power...
Page 695 6-3. Do-it-yourself maintenance Fuse Ampere Circuit 12 WIPER Windshield wipers Multiport fuel injection system, sequential multiport fuel system, electronic controlled 13 BKUP LP transmission, audio system, navigation sys- tem, back-up lights 14 FUEL OPN Fuel filler door opener 15 EPS-IG1 Electric power steering 16 P/OUTLET RR Power outlet...
Page 696 6-3. Do-it-yourself maintenance Fuse Ampere Circuit 31 TI&TE Electric tilt and telescopic steering column Occupant classification system, SRS airbag 32 A/B system 33 ECU-IG2 NO.1 Gauges and meters VSC, ABS, gateway ECU, smart access sys- 34 ECU-IG2 NO.2 tem with push-button start, SRS airbag sys- 35 CIG&...
Page 697 If the lights do not turn on even after the fuse has been replaced, a bulb may need ● replacement. ( P. 724) If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer. ● If there is an overload in a circuit ■...
Page 698: Light Bulbs
You may replace the following bulbs by yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replace- ment seems difficult to perform, contact your Lexus dealer. For more information about replacing other light bulbs, contact your Lexus dealer.
Page 699: Bulb Locations
6-3. Do-it-yourself maintenance Bulb locations Front ■ Front side marker light Headlight high beam Front turn signal light Fog light Headlight low beam (halogen bulb) Rear ■ Back-up light Rear turn signal light ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 700 6-3. Do-it-yourself maintenance Replacing light bulbs Headlight high beam ■ Turn the bulb base counter- clockwise. Unplug the connector while pressing the lock release. Exchange the light bulb, and install the bulb base. Align the 3 tabs on the light bulb with the mounting, and insert.
Page 701 6-3. Do-it-yourself maintenance Headlight low beam (halogen bulb) ■ Turn the bulb base counter- clockwise. Unplug the connector while pressing the lock release. Exchange the light bulb, and install the bulb base. Align the 3 tabs on the light bulb with the mounting, and insert.
Page 702 6-3. Do-it-yourself maintenance Fog lights ■ Remove the bolt and partly remove the under cover, and unplug the connector while pushing the lock release. Turn the bulb base counter- clockwise. Set the new light bulb. Align the 3 tabs on the light bulb with the mounting, and insert.
Page 703 6-3. Do-it-yourself maintenance Set the connector. After installing the connector, shake the bulb base gently to check that it is not loose, turn the fog lights on once and visually confirm that no light is leaking through the mounting. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 704 6-3. Do-it-yourself maintenance Front turn signal lights ■ To allow enough working space, turn the steering wheel to the opposite side of the bulb to be replaced. Remove the 3 fender liner clips and 1 screw. Turn the steering wheel to the left when replacing the right side light bulb, and turn the steering wheel to the right...
Page 705 6-3. Do-it-yourself maintenance Remove the light bulb. When installing, reverse the steps listed. After installing the bulb base, rein- stall the fender liner and install the clips and screw. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 706 6-3. Do-it-yourself maintenance Front side marker lights ■ Partly remove the fender liner. Perform the procedure for “Front turn signal lights” from step 1 to 2. ( P. 730) Turn the bulb base counter- clockwise. Remove the code from clip. Remove the light bulb.
Page 707 6-3. Do-it-yourself maintenance When installing, reverse the steps listed. After installing the bulb base, rein- stall the fender liner and install the clips and screw. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 708 6-3. Do-it-yourself maintenance Rear turn signal lights ■ Open the trunk lid and remove the cover. Turn the bulb base counter- clockwise. Remove the light bulb. When installing, reverse the steps listed. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 709 6-3. Do-it-yourself maintenance Back-up lights ■ Open the trunk lid. For the left side (vehicles with power trunk opener and closer only): Pry out each side of the trunk closer switch in turn by inserting a screwdriver into the base. To prevent damage, cover the tip of the screwdriver with a rag.
Page 710 The lights other than the headlights, fog lights, front turn signal lights, front side marker lights, rear turn signal lights, back-up lights and outer foot lights each consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to your Lexus dealer to have the light replaced.
Page 711 Discharge headlights (if equipped) ■ Contact your Lexus dealer before replacing the discharge headlights (including ● light bulbs). Do not touch the discharge headlight’ s high voltage socket when the headlights ●...
Page 712 6-3. Do-it-yourself maintenance ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 713: Emergency Flashers
7-1. Essential information Emergency flashers The emergency flashers are used to warn other drivers when the vehi- cle has to be stopped in the road due to a breakdown, etc. Press the switch. All the turn signal lights will flash. To turn them off, press the switch once again.
Page 714: If Your Vehicle Has To Be Stopped In An Emergency
7-1. Essential information If your vehicle has to be stopped in an emergency Only in an emergency, such as if it becomes impossible to stop the vehi- cle in the normal way, stop the vehicle using the following procedure: Steadily step on the brake pedal with both feet and firmly depress it. Do not pump the brake pedal repeatedly as this will increase the effort required to slow the vehicle.
Page 715 7-1. Essential information CAUTION If the engine <hybrid system> has to be turned off while driving ■ Power assist for the brakes and steering wheel will be lost, making the brake pedal harder to depress and the steering wheel heavier to turn. Decelerate as much as possible before turning off the engine <hybrid system>.
Page 716: If Your Vehicle Needs To Be Towed
If your vehicle needs to be towed If towing is necessary, we recommend having your vehicle towed by your Lexus dealer or a commercial towing service, using a lift-type truck or flat bed truck. Use a safety chain system for all towing, and abide by all state/provin- cial and local laws.
Page 717: Emergency Towing
7-2. Steps to take in an emergency Emergency towing Gasoline vehicles: If a tow truck is not available in an emergency, your vehicle may be temporarily towed using a cable or chain secured to the emergency towing eyelet. This should only be attempted on hard surfaced roads for short distances at low speeds.
Page 718 7-2. Steps to take in an emergency Installing towing eyelet Take out the towing eyelet ( P. 785) Remove the eyelet cover using a flathead screwdriver. To protect the bodywork, place a rag between the screwdriver and the vehi- cle body as shown in the illustration. Insert the towing eyelet into the hole and tighten partially by hand.
Page 719 7-2. Steps to take in an emergency Towing with a sling-type truck Do not tow with a sling-type truck to prevent body damage. Towing with a wheel-lift type truck From the front From the rear Release the parking brake. Use a towing dolly under the front wheels.
Page 720 7-2. Steps to take in an emergency Using a flat bed truck If your Lexus is transported by a flat bed truck, it should be tied down at the locations shown in the illustra- tion. If you use chains or cables to tie down your vehicle, the angles shaded in black must be 45 .
Page 721 7-2. Steps to take in an emergency CAUTION Observe the following precautions. Failure to do so may result in death or serious injury. Caution while towing ■ Use extreme caution when towing the vehicle. ● Avoid sudden starts or erratic driving maneuvers which place excessive stress on the emergency towing eyelet and the cable or chain.
Page 722: If You Think Something Is Wrong
7-2. Steps to take in an emergency If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs adjustment or repair. Contact your Lexus dealer as soon as pos- sible. Visible symptoms Fluid leaks under the vehicle.
Page 723: Fuel Pump Shut Off System (Gasoline Vehicles)
7-2. Steps to take in an emergency Fuel pump shut off system (gasoline vehicles) To minimize the risk of fuel leakage when the engine stalls or when an airbag inflates upon collision, the fuel pump shut off system stops the supply of fuel to the engine.
Page 724 Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous. The following warning indicates a possible problem in the brake system. Immediately stop the vehicle in a safe place and contact your Lexus dealer. Warning light Warning light/Details Brake system warning light (warning buzzer) •...
Page 725 Charging system warning light Indicates a malfunction in the vehicle’ s charging system Have the vehicle inspected by your Lexus dealer immediately. Failure to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Lexus dealer immediately.
Page 726 7-2. Steps to take in an emergency Warning light Warning light/Details Electric power steering system warning light (warning buzzer) Indicates a malfunction in the EPS (Electric Power Steering) system Pre-collision system warning light Indicates a malfunction in the pre-collision system The warning light will operate as follows, even when the system is not malfunctioning: •...
Page 727 7-2. Steps to take in an emergency Follow the correction procedures. After taking the specified steps to correct the suspected problem, check that the warning light goes off. Warning light Warning light/Details Correction procedure Open door warning light (warning buzzer) Check that all the doors and Indicates that a door or the the trunk are closed.
Page 728 • Natural causes ( P. 757) tire inflation pressure is • Flat tire ( P. 784) adjusted, have the system checked by your Lexus dealer. When the light comes on after blinking for 1 minute: Have the system checked by Malfunction in the tire pressure your Lexus dealer.
Page 729 If it is, tighten it securely. The light will go off after several driving trips. If the light does not go off even after several trips, contact your Lexus dealer as soon as possible. When the tire pressure warning light comes on ■...
Page 730 If the tire pressure warning light frequently comes on after blinking for 1 minute when the “START STOP ENGINE” <“POWER”> switch is turned to IGNITION ON <ON> mode, have it checked by your Lexus dealer. Electric power steering system warning light (warning buzzer) ■...
Page 731 Check the tires. If a tire is flat, change it with the spare tire and have the flat tire repaired by the nearest Lexus dealer. Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could ●...
Page 732 7-2. Steps to take in an emergency CAUTION Maintenance of the tires ■ Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label (tire and load information label). (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label [tire and load information label], you should determine the proper tire inflation pressure for those tires.)
Page 733 7-2. Steps to take in an emergency CAUTION TPMS (tire pressure warning system) malfunctions may occur for a variety of rea- sons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS (tire pressure warning system) from functioning properly.
Page 734: If A Warning Message Is Displayed
Multi-information display If any of the warning light comes on again after the following actions have been performed, contact your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 735 A buzzer sounds and a warning message is shown on the multi-informa- tion display. The following warning indicates the possibility of damage to the vehicle that may lead to an accident. Immediately stop the vehicle in a safe place and contact your Lexus dealer. Warning message Details...
Page 736: Have The Vehicle Inspected Immediately
A buzzer sounds and a warning message is shown on the multi-informa- tion display. Failure to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Lexus dealer. Warning message Details...
Page 737 7-2. Steps to take in an emergency Warning message Details Indicates a malfunction in the LDA (Lane Departure Alert) system (If equipped) Indicates a malfunction in the Automatic High Beam system (If equipped) Indicates a malfunction in the EPS (Electric Power Steering) system ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 738 7-2. Steps to take in an emergency Warning message Details Indicates a malfunction in the Blind Spot Monitor with Rear Cross Traffic Alert (If equipped) Indicates a malfunction in the smart access system with push-button start (Flashes) ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 739 7-2. Steps to take in an emergency Follow the correction procedures. A buzzer sounds and a warning message is shown on the multi-informa- tion display. After taking the specified steps to correct the suspected problem, check that the warning message goes off. Warning message Details Correction procedure...
Page 740 7-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the trunk is not fully closed If the vehicle reaches a speed of 3 mph (5 Close the trunk. km/h), flashes and a buzzer sounds to indicate that the trunk is not yet fully closed.
Page 741 7-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the parking brake is still engaged If the vehicle reaches a speed Release parking (5 km/h), brake. flashes and a buzzer sounds to indicate that the parking brake is still engaged.
Page 742 7-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the EV drive mode is not avail- able The reason the EV drive mode is not avail- able (the vehicle is Use the EV drive mode idling, battery charge is when it becomes avail- low, speed is higher...
Page 743 7-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that intuitive parking assist sensor is Clean the sensor. dirty or covered with ice (If equipped) Indicates that the radar sensor is dirty or covered Clean the sensor. with ice (If equipped) •...
Page 744 7-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that there is a high possibility of a frontal Slow the vehicle by collision, or that the pre- applying the brakes. collision braking function (Flashes) is operating (If equipped) Indicates that the LDA (Lane Departure Alert)
Page 745 7-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the Blind Spot Monitor sensors or Clean the sensor and its the surrounding area on surrounding area on the the bumper is dirty or bumper. covered with ice (If equipped) Indicates that the hybrid system has overheated...
Page 746 7-2. Steps to take in an emergency Warning message in radar cruise mode (if equipped) ■ In the following cases, the warning message may not be displayed even if vehicle-to- vehicle distance decreases: When your vehicle and the vehicle ahead are traveling at the same speed or the ●...
Page 747 7-2. Steps to take in an emergency Follow the correction procedures. A warning message is shown on the multi-information display. After taking the specified steps to correct the suspected problem, check that the warning message goes off. Warning message Details Correction procedure Indicates that the Auto- Turn the high beam on...
Page 748 Have the vehi- cle inspected at your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 749 If the tire pressure is still displayed even after repeating this sev- eral times, have the vehicle inspected at your Lexus dealer. Indicates that the pre-col- lision system is not cur- • Check the grille cover rently functional because and the sensor and...
Page 750 7-2. Steps to take in an emergency Have the malfunction repaired immediately. After taking the specified steps to correct the suspected problem, check that the warning message and light go off. Interior Exterior Correction Warning message Details buzzer buzzer procedure The electronic key Start detected...
Page 751 7-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure An attempt was made to exit the Turn vehicle with the “START electronic key and STOP lock the doors with- Con- ENGINE” Once out first turning the tinuous <“POWER”>...
Page 752 7-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure The driver’ s door was opened and • Shift the closed while the shift lever electronic key was to P. not in the vehicle, •...
Page 753 7-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure • When the doors were unlocked Gasoline vehicles with the mechan- ical key and then “START STOP ENGINE” <“POWER”> Touch switch electronic pressed, key to the electronic “START (Flashes)
Page 754 7-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure Next time when start- engine <hybrid sys- tem>, increase the Power was turned engine off due to the auto- speed matic power off slightly and function.
Page 755 7-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure The driver’ s door was opened and closed with “START STOP Press Gasoline vehicles ENGINE” “START <“POWER”> switch STOP turned off and then ENGINE” the “START STOP <“POWER”>...
Page 756 7-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure The “START STOP ENGINE” <“POWER”> switch Shift Once has been turned off shift lever to with the shift lever in a position other (Flashes) than P or N.
Page 757: If You Have A Flat Tire
7-2. Steps to take in an emergency If you have a flat tire Remove the flat tire and replace it with the spare tire provided. For details about tires: P. 694 CAUTION If you have a flat tire ■ Do not continue driving with a flat tire. Driving even a short distance with a flat tire can damage the tire and the wheel beyond repair, which could result in an accident.
Page 758 7-2. Steps to take in an emergency Location of the spare tire, jack and tools Vehicles with a compact spare tire Jack handle Wheel nut wrench Towing eyelet Spare tire Jack Screwdriver ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 759 7-2. Steps to take in an emergency Vehicles with a full-size spare tire Towing eyelet Jack handle Wheel nut wrench Screwdriver Jack Spare tire ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 760 7-2. Steps to take in an emergency CAUTION Using the tire jack ■ Observe the following precautions. Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading to death or serious injury. Do not use the tire jack for any purpose other than replacing tires or installing and ●...
Page 761 7-2. Steps to take in an emergency Taking out the spare tire Open the luggage mat. ( P. 612) Remove the auxiliary boxes. Vehicles with a compact spare Vehicles with a full-size spare tire tire Loosen the center fastener that secures the spare tire. Vehicles with a compact spare Vehicles with a full-size spare tire...
Page 762 7-2. Steps to take in an emergency Replacing a flat tire Chock the tires. Flat tire Wheel chock positions Left-hand side Behind the rear right-hand side tire Front Right-hand side Behind the rear left-hand side tire Left-hand side In front of the front right-hand side tire Rear Right-hand side In front of the front left-hand side tire...
Page 763 7-2. Steps to take in an emergency Raise the vehicle until the tire is slightly raised off the ground. Remove all the wheel nuts and the tire. When resting the tire on the ground, place the tire so that the wheel design faces up to avoid scratching the wheel surface.
Page 764 • If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 765 7-2. Steps to take in an emergency Installing the spare tire Remove any dirt or foreign mat- ter from the wheel contact sur- face. If foreign matter is on the wheel con- tact surface, the wheel nuts may loosen while the vehicle is in motion, causing the tire to come off.
Page 766 7-2. Steps to take in an emergency Lower the vehicle. Firmly tighten each wheel nut two or three times in the order shown in the illustration. Tightening torque: 76 ft•lbf (103 N•m, 10.5 kgf•m) Vehicles with a full-size spare tire: Reinstall the wheel ornament.
Page 767 7-2. Steps to take in an emergency The compact spare tire ■ The compact spare tire is identified by the label “TEMPORARY USE ONLY” on ● the tire sidewall. Use the compact spare tire temporarily, and only in an emergency. Make sure to check the tire inflation pressure of the compact spare tire.
Page 768 7-2. Steps to take in an emergency CAUTION When using the compact spare tire ■ Remember that the compact spare tire provided is specifically designed for use ● with your vehicle. Do not use your compact spare tire on another vehicle. Do not use more than one compact spare tires simultaneously.
Page 769 When replacing the tires ■ When removing or fitting the wheels, tires or the tire pressure warning valve and transmitter, contact your Lexus dealer as the tire pressure warning valve and trans- mitter may be damaged if not handled correctly. ES350 300h_OM_OM33A01U_(U)
Page 770: If The Engine Will Not Start (Gasoline Vehicles)
7-2. Steps to take in an emergency If the engine will not start (gasoline vehicles) If the engine will not start even though correct starting procedures are being followed ( P. 197), consider each of the following points: The engine will not start even though the starter motor operates normally.
Page 771 ● There may be a malfunction in the steering lock system. ● Contact your Lexus dealer if the problem cannot be repaired, or if repair proce- dures are unknown. Emergency start function When the engine does not start, the following steps can be used as an interim measure to start the engine if the “START STOP ENGINE”...
Page 772: If The Hybrid System Will Not Start (Hybrid Vehicles)
7-2. Steps to take in an emergency If the hybrid system will not start (hybrid vehicles) Reasons for the hybrid system not starting vary depending on the situa- tion. Check the following and perform the appropriate procedure: The hybrid system will not start even though the correct starting procedure is being followed.
Page 773 ● The 12-volt battery may be discharged. ( P. 809) ● Contact your Lexus dealer if the problem cannot be repaired, or if repair proce- dures are unknown. Emergency start function When the hybrid system does not start, the following steps can be used as an interim measure to start the hybrid system if the “POWER”...
Page 774: If The Shift Lever Cannot Be Shifted From P
(a system to prevent accidental operation of the shift lever). Have the vehicle inspected by your Lexus dealer immediately. The following steps may be used as an emergency measure to ensure that the shift lever can be shifted: Set the parking brake.
Page 775: If The Electronic Key Does Not Operate Properly
Opens the windows and moon roof (turn and hold) : This setting must be customized at your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 776 Turn the mechanical key clock- wise to open. Starting the engine <hybrid system> Ensure that the shift lever is in P and depress the brake pedal. Touch the Lexus emblem side of the electronic key to the “START STOP ENGINE” <“POWER”> switch.
Page 777 7-2. Steps to take in an emergency Stopping the engine <hybrid system> ■ Shift the shift lever to P and press the “START STOP ENGINE” <“POWER”> switch as you normally do when stopping the engine <hybrid system>. Replacing the key battery ■...
Page 778 The following procedures may be used to start the engine if the 12-volt battery is discharged. You can also call your Lexus dealer or a qualified repair shop. If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt battery, you can jump start your vehicle by following the steps below.
Page 779 Once the vehicle’ s engine has started, remove the jumper cables in the exact reverse order from which they were connected. Once the engine starts, have the vehicle inspected at your Lexus dealer as soon as possible. Starting the engine when the 12-volt battery is discharged ■...
Page 780 7-2. Steps to take in an emergency When recharging or replacing the 12-volt battery ■ Make sure the key is not inside the vehicle when recharging or replacing the 12-volt ● battery to prevent the doors from being locked with the key left inside the vehicle when the alarm operates.
Page 781 7-2. Steps to take in an emergency CAUTION 12-volt battery precautions ■ The 12-volt battery contains poisonous and corrosive acidic electrolyte, while related parts contain lead and lead compounds. Observe the following precau- tions when handling the 12-volt battery: When working with the 12-volt battery, always wear safety glasses and take care ●...
Page 782: If The 12-Volt Battery Is Discharged (Hybrid Vehicles)
The following procedures may be used to start the hybrid system if the 12-volt battery is discharged. You can also call your Lexus dealer or a qualified repair shop. If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt battery, you can jump start your vehicle by following the steps below.
Page 783 Lexus dealer. Once the hybrid system has started, remove the jumper cables in the exact reverse order from which they were connected. Once the hybrid system starts, have the vehicle inspected at your Lexus dealer as soon as possible. ES350 300h_OM_OM33A01U_(U)
Page 784 7-2. Steps to take in an emergency Starting the hybrid system when the 12-volt battery is discharged ■ The hybrid system cannot be started by push-starting. To prevent 12-volt battery discharge ■ Turn off the headlights and the audio system while the hybrid system is off. ●...
Page 785 After recharging the 12-volt battery ■ Have the 12-volt battery inspected at your Lexus dealer as soon as possible. If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery to emit a malodorous gas, which may be detrimental to the health of passengers.
Page 786: If Your Vehicle Overheats (Gasoline Vehicles)
(radia- tor) for any leaks. If a large amount of coolant leaks, immediately contact your Lexus dealer. The coolant level is satisfactory if it is between the “FULL” and “LOW” line on the reservoir.
Page 787 If it is difficult to check these, turn the air conditioning system on and off repeatedly. (The fan may not operate in freezing temperatures.) If the fan is not operating: Stop the engine immediately and contact your Lexus dealer. If the fan is operating: Have the vehicle inspected at the nearest Lexus dealer. CAUTION When inspecting under the hood of your vehicle ■...
Page 788 7-2. Steps to take in an emergency NOTICE When adding engine coolant ■ Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant to a hot engine too quickly can cause damage to the engine. To prevent damage to the cooling system ■...
Page 789: If Your Vehicle Overheats (Hybrid Vehicles)
If a large amount of coolant leaks, immediately contact your Lexus dealer. ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 790 (The fan may not operate in freezing temperatures.) If the fan is not operating: Stop the hybrid system immediately and contact your Lexus dealer. If the fan is operating: Have the vehicle inspected at the nearest Lexus dealer.
Page 791 Start the hybrid system and check for the multi-information display. If the message does not disappear: Stop the hybrid system and contact your Lexus dealer. If the message is not displayed: Have the vehicle inspected at the nearest Lexus dealer.
Page 792 7-2. Steps to take in an emergency CAUTION When inspecting under the hood of your vehicle ■ Observe the following precautions. Failure to do so may result in serious injury such as burns. If steam is seen coming from under the hood, do not open the hood until the ●...
Page 793: If The Vehicle Becomes Stuck
7-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt or snow: Stop the engine <hybrid system>. Set the parking brake and shift the shift lever to P.
Page 794 7-2. Steps to take in an emergency CAUTION When attempting to free a stuck vehicle ■ If you choose to push the vehicle back and forth to free it, make sure the surround- ing area is clear to avoid striking other vehicles, objects or people. The vehicle may also lunge forward or lunge back suddenly as it becomes free.
Page 795 7-2. Steps to take in an emergency ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 796: Maintenance Data (Fuel, Oil Level, Etc.)
8-1. Specifications Maintenance data (fuel, oil level, etc.) Dimensions and weight Overall length 192.7 in. (4895mm) Overall width 71.7 in. (1820mm) Overall height 57.1 in. (1450mm) Wheelbase 111.0 in. (2820mm) Front 62.6 in. (1590mm) Tread Rear 62.0 in. (1575mm) Vehicle capacity weight 905 lb.
Page 797: Vehicle Identification
Vehicle identification number ■ The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle. This number is stamped on the top left of the instrument panel.
Page 798 8-1. Specifications Engine number ■ The engine number is stamped on the engine block as shown. 2GR-FE engine 2AR-FXE engine ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 799 8-1. Specifications Engine Gasoline vehicles Model 3.5L 6-cylinder (2GR-FE) Type 6-cylinder V type, 4-cycle, gasoline Bore and stroke 3.70 3.27 in. (94.0 83.0 mm) Displacement 210. 9 cu.in. (3456 cm Valve clearance Automatic adjustment (engine cold) Drive belt tension Automatic adjustment Hybrid vehicles Model 2.5L 4-cylinder (2AR-FXE)
Page 800 8-1. Specifications Fuel Fuel type Unleaded gasoline only Octane Rating 87 (Research Octane Number 91) or higher Fuel tank capacity 17.0 gal. (64.35 L, 14.2 Imp.gal.) (Reference) Electric motor (Traction motor) (hybrid vehicles) Type Permanent magnet synchronous motor Maximum output 105 kW Maximum torque 199 ft•lbf (270 N•m, 27.5 kgf•m)
Page 801: Lubrication System
8-1. Specifications Lubrication system Gasoline vehicles Oil capacity With filter 6.4 qt. (6.1 L, 5.4 Imp.qt.) (Drain and refill Without filter 6.0 qt. (5.7 L, 5.0 Imp.qt.) reference : The engine oil capacity is a reference quantity to be used when changing the engine oil.
Page 802 8-1. Specifications Engine oil selection ■ “Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol- lowing grade and viscosity. Oil grade: ILSAC GF-5 multigrade engine oil...
Page 803 8-1. Specifications Cooling system Gasoline vehicles Capacity 9.7 qt. (9.2 L, 8.1 Imp.qt.) Use either of the following: • “Toyota Super Long Life Coolant” • Similar high-quality ethylene glycol-based non- Coolant type silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid tech- nology Do not use plain water alone.
Page 804: Ignition System
8-1. Specifications Ignition system Spark plug Gasoline vehicles DENSO FK20HR11 Make Hybrid vehicles DENSO FK16HR-A8 Gasoline vehicles 0.043 in. (1.1 mm) Hybrid vehicles 0.031 in. (0.8 mm) NOTICE Iridium-tipped spark plugs ■ Use only iridium-tipped spark plugs. Do not adjust the spark plug gap. Electrical system Gasoline vehicles 12-volt battery...
Page 805 6. 9 qt. (6.5 L, 5.7 Imp.qt.) Fluid type Toyota Genuine ATF WS : The fluid capacity is the quantity of reference. If replacement is necessary, contact your Lexus dealer. NOTICE Transmission fluid type ■ Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio- ration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damage the transmission of your vehicle.
Page 806 8-1. Specifications Brakes Gasoline vehicles 3.58 in. (91 mm) Min. Pedal clearance Hybrid vehicles 3.62 in. (92 mm) Min. Pedal free play 0.04 — 0.24 in. (1.0 — 6.0 mm) Front 0.06 in. (1.5 mm) Brake pad wear limit Rear 0.04 in.
Page 807: Tires And Wheels
8-1. Specifications Tires and wheels Type A Tire size P215/55R17 93V Front tire Tire inflation pressure 33 psi (230 kPa, 2.3 kgf/cm or bar) (Recommended cold tire Rear tire inflation pressure) 33 psi (230 kPa, 2.3 kgf/cm or bar) Wheel size 17 7J Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Page 808 8-1. Specifications Light bulbs Light Bulbs Bulb No. Type Headlights High beam 9005 Low beam (halogen bulbs) Low beam (discharge bulbs) Fog lights Front turn signal lights 7444NA 28/8 Exterior Front side marker lights Rear turn signal lights WY21W Back-up lights W16W Outer foot lights Door courtesy lights...
Page 809: Fuel Information
In very few cases, driveability problems may be caused by the brand of gasoline you are using. If driveability problems persist, try changing the brand of gasoline. If this does not correct the problem, consult your Lexus dealer. Gasoline quality standards ■...
Page 810 8-1. Specifications Recommendation of the use of gasoline containing detergent additives ■ Lexus recommends the use of gasoline that contains detergent additives to avoid ● the build-up of engine deposits. All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/ ●...
Page 811 Some gasoline contains an octane enhancing additive called MMT (Methylcyclo- pentadienyl Manganese Tricarbonyl). Lexus does not recommend the use of gasoline that contains MMT. If fuel containing MMT is used, your emission control system may be adversely affected. The malfunction indicator lamp on the instrument cluster may come on. If this hap- pens, contact your Lexus dealer for service.
Page 812: Tire Information
8-1. Specifications Tire information Typical tire symbols Full-size tire Compact spare tire ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 813 8-1. Specifications Tire size ( P. 843) DOT and Tire Identification Number (TIN) ( P. 842) Location of treadwear indicators ( P. 694) Tire ply composition and materials Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies in a tire.
Page 814 8-1. Specifications Typical DOT and Tire Identification Number (TIN) DOT symbol Tire Identification Number (TIN) Tire manufacturer’ s identification mark Tire size code Manufacturer’ s optional tire type code (3 or 4 letters) Manufacturing week Manufacturing year : The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.
Page 815 8-1. Specifications Tire size Typical tire size information ■ The illustration indicates typical tire size. Tire use (P = Passenger car, T = Temporary use) Section width (millimeters) Aspect ratio (tire height to section width) Tire construction code (R = Radial, D = Diagonal) Wheel diameter (inches) Load index (2 digits or 3 digits)
Page 816 8-1. Specifications Tire section names Bead Sidewall Shoulder Tread Belt Inner liner Reinforcing rubber Carcass Rim lines Bead wires Chafer ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 817: Uniform Tire Quality Grading
Transportation. It provides the purchasers and/or prospective purchasers of Lexus vehi- cles with information on uniform tire quality grading. Your Lexus dealer will help answer any questions you may have as you read this information. DOT quality grades ■...
Page 818 8-1. Specifications Temperature A, B, C ■ The temperature grades are A (the highest), B, and C, representing the tire’ s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor labora- tory test wheel.
Page 819: Glossary Of Tire Terminology
8-1. Specifications Glossary of tire terminology Tire related term Meaning Tire pressure when the vehicle has been parked for Cold tire inflation pres- three hours or more, or has not been driven more sure than 1 mile or 1.5 km under that condition Maximum inflation pres- The maximum cold inflated pressure to which a tire sure...
Page 820 8-1. Specifications Tire related term Meaning Rim diameter Nominal diameter of the bead seat (Wheel diameter) Rim size designation Rim diameter and width The industry manufacturer’ s designation for a rim by Rim type designation style or code Rim width Nominal distance between rim flanges Vehicle capacity weight The rated cargo and luggage load plus 150 lb.
Page 821 8-1. Specifications Tire related term Meaning A pneumatic tire with an inverted flange tire and rim system in which the rim is designed with rim flanges pointed radially inward and the tire is designed to fit on the underside of the rim in a manner that encloses the rim flanges inside the air cavity of the tire A tire designed to operate at higher loads and at Extra load tire...
Page 822 8-1. Specifications Tire related term Meaning The linear distance between the exteriors of the side- Overall width walls of an inflated tire, including elevations due to labeling, decorations, or protective bands or ribs A tire intended for use on passenger cars, multipur- pose passenger vehicles, and trucks, that have a Passenger car tire gross vehicle weight rating (GVWR) of 10,000 lb.
Page 823 8-1. Specifications Tire related term Meaning That portion of a tire that comes into contact with the Tread road A tread section running circumferentially around a Tread rib tire Tread separation Pulling away of the tread from the tire carcass The projections within the principal grooves Treadwear indicators...
Page 824: Customizable Features
Your vehicle includes a variety of electronic features that can be per- sonalized to your preferences. These preferences can be changed by using the “DISP” button, by using the Remote Touch, Lexus Display Audio system screen, or at your Lexus dealer.
Page 825 Some function settings are changed simultaneously with other functions being customized. Contact your Lexus dealer for further details. Vehicles with a Lexus Display Audio system: Settings that can be changed using the Lexus Display Audio system Vehicles with a Lexus Display Audio system: Settings that can be changed using the “DISP”...
Page 826 8-2. Customization Multi-information display( P. 98) ■ Default Custom- Function setting ized setting (French) “English” “Language” — O — O O — (English) (Spanish) “km (km/L)” “miles “Units” — O — O O — “km (L/ (MPG)” 100km)” “Off”/”Off” “On (Always)”/ “ECO lamp”...
Page 827 8-2. Customization Default Custom- Function setting ized setting “Lamp brightness” “Standard” “Bright” — O — O O — “SPORT lamp” “On” “Off” — O — O O — “EV driving Indicator” “On” “Off” — O — O O — (hybrid vehicles) : The default setting varies according to countries.
Page 828 8-2. Customization Smart access system with push-button start ( P. 123) and wireless ■ remote control ( P. 136) Default Custom- Function setting ized setting “Lock/Unlock Feedback- Tone” O — O — O O (Adjust the volume of 1 to 7 buzzer sounds) “Lock/Unlock Feedback- Lights”...
Page 829 8-2. Customization Smart access system with push-button start ( P. 123) ■ Default Custom- Function setting ized setting “Access System with Elec. Key” (Smart access system with — — O — O O push-button start can be disabled) “Select Doors to Unlock” (The doors that...
Page 830 8-2. Customization Driving position memory ( P. 153) ■ Default Custom- Function setting ized setting “Driver’ s Seat Easy Exit” (Driver’ s seat movement Standard O — O — O O Partial when exiting the vehicle) Selecting the door linking Driver’...
Page 831 8-2. Customization Power windows ( P. 170) ■ Default Custom- Function setting ized setting One-touch closing — — — — — O Moon roof ( P. 173) ■ Default Custom- Function setting ized setting Linked operation of com- ponents when door key is Slide only Tilt only —...
Page 832 8-2. Customization Automatic light control system ( P. 224) ■ Default Custom- Function setting ized setting “Headlamps-On Sensitiv- ity” Standard -2 to 2 O — O — — O (Adjust the sensitivity of the ambient light sensor) “Headlamps Auto-Off Timer” (Adjust the time 60 seconds 30 seconds...
Page 833 8-2. Customization Intuitive parking assist ( P. 271) ■ Default Custom- Function setting ized setting “Distance (Front)” (Detection distance of the Near O — O — — O front center sensor) “Distance (Rear)” (Detection distance of the Near O — O — — O rear center sensor) “Alert Volume”...
Page 834 8-2. Customization Illumination ( P. 603) ■ Default Custom- Function setting ized setting Interior lights illumination — — — — — O control “Interior Lights Off Timer” (Time elapsed before the 15 seconds 7.5 seconds O — O — O O interior lights turn off) 30 seconds Operation...
Page 835 8-2. Customization Default Custom- Function setting ized setting Enable/disable operation of the outer foot lights when you approach the — — — — — O vehicle with the electronic key on your person Enable/disable operation of the outer foot lights when doors —...
Page 836 8-2. Customization Vehicle customization ■ When the “Auto Lock by Speed” and “Auto Lock by Shift from P” are both on, the ● door lock operates as follows. • When shifting the shift lever to any position other than P, all the doors will be locked.
Page 837: Items To Initialize
8-3. Items to initialize Items to initialize The following items must be initialized for normal system operation after such cases as the battery being reconnected, or maintenance being performed on the vehicle: Item When to initialize Reference Maintenance data (U.S.A. •...
Page 838 8-3. Items to initialize ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 839: Reporting Safety Defects For U.s. Owners
National Highway Traffic Safety Administration (NHTSA) in addition to notifying the Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800- 25-LEXUS). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 840 The following is a French explanation of seat belt instructions extracted from the seat belt section in this manual. See the seat belt section for more detailed seat belt instructions in English. Utilisation adéquate des ceintures de sécurité Tirez sur la ceinture épaulière ●...
Page 841: Entretien Et Soin
Entretien et soin Ceintures de sécurité ■ Avec un chiffon ou une éponge, nettoyez à l’aide d’un savon doux et de l’eau tiède. Vérifiez aussi les ceintures régulièrement pour vous assurer qu’elles ne présentent pas d’usure excessive, d’effilochage ou de cou- pures.
Page 842 The following is a French explanation of SRS airbag instructions extracted from the SRS airbag section in this manual. See the SRS airbag section for more detailed SRS airbag instructions in English. ◆ Coussins gonflables SRS avant Coussin gonflable SRS du conducteur/du passager avant Peuvent aider à...
Page 843 ◆ Coussins gonflables SRS latéraux et en rideau Coussins gonflables SRS latéraux avant Peuvent aider à protéger le torse des occupants des sièges avant Coussins gonflables SRS latéraux arrière Peuvent aider à protéger le torse des occupants des sièges latéraux arrière Coussins gonflables SRS en rideau Peuvent aider à...
Page 844 Composants du système de coussins gonflables SRS Système de classification de Lampe témoin SRS l’occupant du siège du passager Coussin gonflable du conduc- avant (ECU et capteurs) teur Capteurs de choc latéral (por- Coussins gonflables latéraux tières avant) arrière Coussins gonflables de protec- Capteurs choc latéral...
Page 845 Votre véhicule est doté de COUSSINS GONFLABLES ÉVOLUÉS dont la conception s’appuie sur les normes de sécurité des véhicules à moteur américains (FMVSS208). Le module de capteur de coussin gonflable (ECU) contrôle le déploiement des coussins gonflables en fonction des informations obtenues des capteurs et d’autres éléments affichés dans le diagramme des composants du système ci-dessus.
Page 846 ATTENTION Précautions relatives aux coussins gonflables SRS ■ Observez les précautions suivantes en ce qui concerne les coussins gonflables SRS. Les négliger pourrait occasionner des blessures graves, voire mortelles. Le conducteur et tous les passagers du véhicule doivent porter leur ceinture de ●...
Page 847 Un bébé ou un enfant trop petit pour utiliser une ceinture de sécurité doit être correctement retenu à l’aide d’un dispositif de retenue pour enfants. Lexus recommande vive- ment de placer et d’attacher correctement tous les bébés et tous les enfants sur les sièges arrière du véhicule à...
Page 848 ATTENTION Précautions relatives aux coussins gonflables SRS ■ Ne vous asseyez pas sur le bord du siège et ● ne vous appuyez pas sur le tableau de bord. Ne laissez pas un enfant se tenir face au ● coussin gonflable SRS du passager avant ni s’asseoir sur les genoux d’un passager avant.
Page 849 ATTENTION Précautions relatives aux coussins gonflables SRS ■ Ne fixez et n’appuyez rien sur des zones ● telles que le tableau de bord, le tampon de volant, la partie inférieure du bloc d’instru- mentation et la porte de la boîte à gants. Ces objets peuvent se transformer en pro- jectiles lorsque les coussins gonflables SRS du conducteur, du passager avant ou de...
Page 850 ■ Ne mettez pas le véhicule au rebut et n’effectuez aucune des modifications suivan- tes sans d’abord consulter votre concessionnaire Lexus. Les coussins gonflables SRS pourraient fonctionner de manière incorrecte ou se déployer (gonfler) acci- dentellement, ce qui serait susceptible d’occasionner des blessures graves, voire mortelles.
Page 851 ES350 300h_OM_OM33A01U_(U) I n f o r ma t i o n P r o v i d e d b y :...
Page 852 You lose your keys If you lose your mechanical keys, new genuine mechanical keys ● can be made by your Lexus dealer. ( P. 121) If you lose your electronic keys, the risk of vehicle theft ● increases significantly. Contact your Lexus dealer immediately.
Page 853 What to do if... (Troubleshooting) The rear door cannot be opened Is the child-protector lock set? ● The rear door cannot be opened from inside the vehicle when the lock is set. Open the rear door from outside and then unlock the child-protector lock.
Page 854 What to do if... (Troubleshooting) If you think something is wrong The engine <hybrid system> does not start Did you press the “START STOP ENGINE” <“POWER”> ● switch while firmly depressing the brake pedal? ( P. 197, 204) Is the shift lever in P? ( P. 200, 207) ●...
Page 855 What to do if... (Troubleshooting) The steering wheel cannot be turned after the engine <hybrid system> is stopped It is locked automatically to prevent theft of the vehicle. ● ( P. 200, 207) The windows do not open or close by operating the power win- dow switches Is the window lock switch pressed? ●...
Page 856 What to do if... (Troubleshooting) A warning buzzer sounds during driving The seat belt reminder light is flashing ● Are the driver and the front passenger wearing the seat belts? ( P. 754) The parking brake indicator is on ● Is the parking brake released? ( P.
Page 857 What to do if... (Troubleshooting) A warning light turns on or a warning message is displayed When a warning light turns on or a warning message is dis- ● played, refer to P. 751, 761. When a problem has occurred If you have a flat tire Stop the vehicle in a safe place and replace the flat tire with the ●...
Page 858: Gas Station Information
GAS STATION INFORMATION Auxiliary catch lever Trunk opener Fuel filler door P. 669 P. 144 P. 241 Hood lock release lever Fuel filler door opener Tire inflation pressure P. 669 P. 241 P. 835 Fuel tank capacity 17.0 gal. (64.35 L, 14.2 Imp.gal.) (Reference) Fuel type Unleaded gasoline only...
Page 859: Navigation System
Introduction NAVIGATION SYSTEM OWNER’S MANUAL This manual explains the operation of the Navigation System. Please read this manual carefully to ensure proper use. Keep this manual in your vehicle at all times. The screen shots in this document and the actual screens of the navigation system dif- fer depending on whether the functions and/or a contract existed and the map data available at the time of producing this document.
Page 860: Symbols Used In Illustrations
IMPORTANT INFORMATION ABOUT THIS MANUAL For safety reasons, this manual indicates items requiring particular attention with the following marks. CAUTION This is a warning against anything which may cause injury to people if the warning is ● ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.
Page 861: How To Read This Manual
HOW TO READ THIS MANUAL Name Description Operational An outline of the operation is explained. Outlines Main Operations The steps of an operation are explained. Related Operations A main operation’s supplementary operations are described. Information Useful information for the user is described. INFORMATION FOR HYBRID VEHICLES IS WRITTEN IN BRACKETS ■...
Page 862: Safety Instruction
SAFETY INSTRUCTION CAUTION For safety, the driver should not operate ● the navigation system while he/she is driving. Insufficient attention to the road and traffic may cause an accident. While driving, be sure to obey the traffic ● regulations and maintain awareness of the road conditions.
Page 863: Navigation Operation
1. NAVIGATION OPERATION 1. Remote Touch ES350/300h_Navi_OM33A07U_(U) 12.05.11 08:14 I n f o r ma t i o n P r o v i d e d b y :...
Page 864 1. NAVIGATION OPERATION Name Function Page “MENU” button Press to display the “Menu” screen. Press to change the scale of the map and to scroll “ · ” button 33, 36, 48 the list screen. Press to repeat a voice guidance, cancel the “MAP/VOICE”...
Page 865: Map Screen
1. NAVIGATION OPERATION 2. MAP SCREEN Name Function Page This symbol indicates whether the map orienta- North-up or tion is set to north-up or heading-up. Selecting this heading-up symbol changes the map orientation. Both north- symbol up and heading-up symbols display the vehicles direction as a letter (e.g.
Page 866 1. NAVIGATION OPERATION Name Function Page “Route” Select to change the route. 97, 99 Select to browse information about guidance 104, 342, “Show on Map” route, to set the POI (Point of Interest) icons to be displayed on the screen, to record the route, etc. Zoom in button Select to magnify the map scale.
Page 867: Registering Home
1. NAVIGATION OPERATION 3. REGISTERING HOME Press the “MENU” button on the Select “Yes” and press the Remote Remote Touch. Touch knob. There are 4 different methods to search your home. (See “DESTINA- TION SEARCH” on page 68.) Select “Destination” and press the Remote Touch knob.
Page 868 1. NAVIGATION OPERATION Select “OK” and press the Remote Touch knob. Registration of home is complete. Home can also be registered by selecting “Navigation” on the “Setup” screen. (See “REGISTERING HOME” on page 109.) The name, location, phone number and icon can be changed.
Page 869: Registering Preset Destinations
1. NAVIGATION OPERATION 4. REGISTERING PRESET DESTINATIONS Press the “MENU” button on the Select “Yes” and press the Remote Remote Touch. Touch knob. There are 4 different methods to search preset destinations. (See “DESTINATION SEARCH” on Select “Destination” and press the page 68.) Remote Touch knob.
Page 870 1. NAVIGATION OPERATION Select “OK” and press the Remote Touch knob. Registration of preset destinations is com- plete. Preset destinations can also be registered by selecting “Navigation” on the “Setup” screen. (See “REGISTERING PRESET DESTINATIONS” on page 112.) The name, location, phone number and icon can be changed.
Page 871: Operation Flow: Guiding The Route
1. NAVIGATION OPERATION 5. OPERATION FLOW: GUIDING THE ROUTE wPage 2 Press the “MENU” button on the Remote Touch. Select “Go to ” and press the Remote Touch knob. Select “Destination” and press the Remote Touch knob. The navigation system performs a search for the route.
Page 872: Setting Home As The Destination
1. NAVIGATION OPERATION 6. SETTING HOME AS THE DESTINATION Press the “MENU” button on the Select “Go Home” and press the Remote Touch. Remote Touch knob. “Go Home” can be used if your home ad- dress has been registered. (To register home, see “REGISTERING HOME”...
Page 873: Navigation System Function Index
2. FUNCTION INDEX 1. NAVIGATION SYSTEM FUNCTION INDEX wMap Displaying maps Page Viewing the map screen Displaying the current position Viewing the current position vicinity map Changing the scale Changing the map orientation Displaying Points of Interest Displaying the estimated travel/arrival time to the destination Selecting the map mode Deleting map screen buttons Displaying traffic information...
Page 874 2. FUNCTION INDEX During route guidance Page Pausing route guidance Adjusting route guidance volume Deleting the destination Displaying the entire route map wUseful functions Address book Page Registering address book entries Marking icons on the map Information Page Displaying vehicle maintenance Hands-free system (for cellular phone) Page ®...
Page 875: Menu Screen
3. QUICK REFERENCE 1. “Menu” SCREEN Press the “MENU” button on the Remote Touch to display the “Menu” screen. ES350/300h_Navi_OM33A07U_(U) 12.05.11 08:14 I n f o r ma t i o n P r o v i d e d b y :...
Page 876 3. QUICK REFERENCE Name Function Page 14, 16, 18, 19, “Destination” Select to display the “Destination” screen. 24, 68, 363, 365 28, 322, Select to display the “Information” screen. 327, 330, “Info/Apps” For vehicles sold in Canada, “Info” is used instead 333, 337, (“Info”) of “Info/Apps”.
Page 877: "Destination" Screen
“Point of Interest” 73, 365 stored in the system’s database. Select to provide you with live assistance finding “Destination destinations via the Lexus Enform with Safety 80, 363 Assist” Connect response center. Select a destination from any of the last 100 previ- “Previous...
Page 878 3. QUICK REFERENCE Name Function Page Select the desired location from a registered entry in “Address book”. (To register address book en- “Address Book” tries, see “REGISTERING ADDRESS BOOK ENTRIES” on page 115.) Select one of the 4 categories of emergency ser- “Emergency”...
Page 879: Setup Screen
3. QUICK REFERENCE 3. “Setup” SCREEN The items shown on the “Setup” screen can be set. Press the “MENU” button on the Remote Touch, then select “Setup” to display the “Setup” screen. ES350/300h_Navi_OM33A07U_(U) 12.05.11 08:14 I n f o r ma t i o n P r o v i d e d b y :...
Page 880 Select to set vehicle information such as mainte- “Vehicle” nance information. Select to set Lexus Insider, XM Sports, XM “Other” 344, 371 Stocks and XM Fuel Prices. Select to set iPod and HD Radio™ channel set- “Audio”...
Page 881: Information Screen
3. QUICK REFERENCE 4. “Information” SCREEN This screen can be used to display the XM satellite system, fuel consumption, etc. Press the “MENU” button on the Remote Touch, then select “Info/Apps” (“Info”) to display the “Information” screen. ES350/300h_Navi_OM33A07U_(U) 12.05.11 08:14 I n f o r ma t i o n P r o v i d e d b y :...
Page 882 “Traffic Incidents” Select to display traffic incidents. “Map Data” Select to display map data information. “LEXUS Insider” Select to display the “LEXUS Insider” screen. “XM Select to display weather information. NavWeather” Select to display personally selected stocks infor- “XM Stocks”...
Page 883 ES350/300h_Navi_OM33A07U_(U) 12.05.11 08:14 I n f o r ma t i o n P r o v i d e d b y :...
Page 884: Basic Information Before Operation
1. BASIC INFORMATION BEFORE OPERATION 1. INITIAL SCREEN When the “START STOP ENGINE” When the navigation system is turned on <“POWER”> switch is in ACCESSORY in a screen other than the map screen, or IGNITION ON <ON> mode, the ini- the “CAUTION”...
Page 885: How To Use The Remote Touch
1. BASIC INFORMATION BEFORE OPERATION 2. HOW TO USE THE Remote Touch When the pointer moves close to a button, This navigation system can be operated it will be automatically pulled onto that but- by the Remote Touch when the “START ton.
Page 886 1. BASIC INFORMATION BEFORE OPERATION NOTICE Do not allow the Remote Touch to come ● into contact with food, liquid, stickers or lit cigarettes as doing so may cause it to change color, emit a strange odor or stop functioning. Do not subject the Remote Touch to ●...
Page 887: Inputting Letters And Numbers/List Screen Operation
1. BASIC INFORMATION BEFORE OPERATION 3. INPUTTING LETTERS AND NUMBERS/LIST SCREEN OPERATION On certain letter entry screens, letters can When searching for an address or be entered in upper or lower case. name, or entering data, letters and num- bers can be input via the screen. Icon Function Select to enter in lower case.
Page 888: List Screen Operation
1. BASIC INFORMATION BEFORE OPERATION TO DISPLAY THE LIST LIST SCREEN OPERATION Select “OK” to search for an address or When a list is displayed, use the appro- a name. priate screen button to scroll through the list. Matching items from the database are listed even if the entered address or name is incomplete.
Page 889 1. BASIC INFORMATION BEFORE OPERATION SORTING Screen button Function Select to sort in order of The order of a list displayed on the “Distance” distance from the current screen can be rearranged. position. Select “Sort”. Select to sort in order of “Date”...
Page 890: Screen Settings Adjustment
1. BASIC INFORMATION BEFORE OPERATION 4. SCREEN ADJUSTMENT wAdjusting the screen display The contrast and brightness of the screen display and the image the cam- era displays can be adjusted. The display can also be turned off, and/or changed to either day or night mode. (For infor- mation regarding audio/video screen adjustment, see “AUDIO SCREEN ADJUSTMENT”...
Page 891: Changing Between Day And Night Mode
1. BASIC INFORMATION BEFORE OPERATION Select the desired screen button to ad- CHANGING BETWEEN DAY just contrast and brightness. AND NIGHT MODE Screen button Function Depending on the position of the head- light switch, the screen changes to day Select to strengthen the “Contrast”...
Page 892: Map Screen Operation
1. BASIC INFORMATION BEFORE OPERATION 5. MAP SCREEN OPERATION CURRENT POSITION DISPLAY INFORMATION After 12-volt battery disconnection, or on ● a new vehicle, the current position may When starting the navigation system, not be correct. As soon as the system the current position is displayed first.
Page 893: Editing Address Book
1. BASIC INFORMATION BEFORE OPERATION TO REGISTER THE CURSOR After the screen is scrolled, the map remains centered at the selected location POSITION AS AN ADDRESS until another function is activated. The BOOK ENTRY current position mark will continue to move along your actual route and may Address book entry registration enables move off the screen.
Page 894 1. BASIC INFORMATION BEFORE OPERATION TO SEE INFORMATION If “Enter ” is selected, the cursor posi- ABOUT THE ICON WHERE tion will be set as a destination. THE CURSOR IS SET If a destination has already been set, “Go Directly” and “Add to Route” will be dis- played.
Page 895 1. BASIC INFORMATION BEFORE OPERATION ADDRESS BOOK ENTRY INFOR- ■ If “Enter ” is selected, the cursor posi- MATION tion will be set as a destination. If a destination has already been set, “Go When the cursor is set on an address Directly”...
Page 896: Destination Information
1. BASIC INFORMATION BEFORE OPERATION DESTINATION INFORMATION ® ■ XM NavTraffic TEXT INFORMA- ■ TION When the cursor is set on a destination icon, the name and “Info” are displayed ® When the XM NavTraffic icon on the on the top of the screen. map screen is selected, the XM ®...
Page 897: Switching The Screens
1. BASIC INFORMATION BEFORE OPERATION SWITCHING THE SCREENS Screen button Function Select to display the inter- Any of the screen configurations can be section guidance screen selected. “Intersection” or the guidance screen on the freeway. (See page Select “Map Mode”. 91.) Select to display the audio “Audio”...
Page 898: Screen Configurations
1. BASIC INFORMATION BEFORE OPERATION FUEL CONSUMPTION ■ SCREEN CONFIGURATIONS The fuel consumption screen and the MAP ONLY ■ map screen are displayed. This is a regular map screen. Selecting “ ” or “ ” allows selection of the desired mode (“Energy Monitor”*, “Trip The screen shows the single map.
Page 899 1. BASIC INFORMATION BEFORE OPERATION COMPASS ■ While on a different screen, selecting “Dual map” will display the dual map The current position is indicated with a screen. compass. EDITING RIGHT MAP ■ The right side map can be edited by se- lecting any point on the right side map.
Page 900: Map Scale
1. BASIC INFORMATION BEFORE OPERATION MAP SCALE FOOT PRINT MAP Select to change the scale For the area which is covered by the foot of the map screen. print map (Some areas in the following cities: Detroit, Chicago, N.Y., L.A), you can switch to the foot print map on a scale of 75 ft.
Page 901: Orientation Of The Map
1. BASIC INFORMATION BEFORE OPERATION TO DISPLAY BUILDING ORIENTATION OF THE MAP INFORMATION The orientation of the map can be Information is available only for build- changed from north-up to heading-up ings for which information is recorded by selecting the orientation symbol at on the map data.
Page 902: Standard Map Icons
1. BASIC INFORMATION BEFORE OPERATION STANDARD MAP ICONS Icon Name Island Park Industry Business facility Airport Military University Hospital Stadium Shopping mall Golf ES350/300h_Navi_OM33A07U_(U) 12.05.11 08:14 I n f o r ma t i o n P r o v i d e d b y :...
Page 903: Screens For General Settings
2. SETUP 1. GENERAL SETTINGS Used for language selection and the on/ SCREENS FOR GENERAL off settings of operation sounds and au- SETTINGS tomatic screen change, etc. Press the “MENU” button on the Remote Touch. Select “Setup”. Select “General”. Select the items to be set. On this screen, the following functions can be performed: Select “Save”.
Page 904 SCREEN OFF IMAGE” on page Select to delete personal data. (See 58.) “DELETING PERSONAL DATA” on page 61.) Select to update program versions. For details, contact your Lexus deal- Select to update gracenote database versions. For details, contact your Lexus dealer. ES350/300h_Navi_OM33A07U_(U) 12.05.11 08:14...
Page 905: System Time Settings
2. SETUP TIME ZONE ■ SYSTEM TIME SETTINGS A time zone can be selected and GMT Used for changing time zones and the can be set. on/off settings of daylight saving time. Press the “MENU” button on the Press the “MENU” button on the Remote Touch, then select “Setup”.
Page 906: Selecting A Language
2. SETUP SELECTING A LANGUAGE UNIT OF MEASUREMENT The language can be changed. Distance unit can be changed. Press the “MENU” button on the Press the “MENU” button on the Remote Touch, then select “Setup”. Remote Touch, then select “Setup”. Select “General”...
Page 907 2. SETUP SELECTING A BUTTON SELECTING A KEYBOARD COLOR LAYOUT The color of the screen buttons can be Keyboard layout can be changed. changed. Press the “MENU” button on the Press the “MENU” button on the Remote Touch, then select “Setup”. Remote Touch, then select “Setup”.
Page 908: Changing The Startup Image
2. SETUP LAYOUT TYPE ■ CHANGING THE STARTUP w“ABC” type IMAGE When the “START STOP ENGINE” <“POWER”> switch is in ACCESSORY or IGNITION ON <ON> mode, the ini- tial screen will be displayed. An image can be copied from a USB memory and used as the startup image.
Page 909: Transferring Data
2. SETUP TRANSFERRING DATA ■ Select “Customize Startup Image”. Grip the knob to release the lock, and lift the armrest to open. Select “Transfer”. Open the cover and connect a USB memory. Select “Yes”. SETTING THE STARTUP IMAGE ■ Press the “MENU” button on the Remote Touch, then select “Setup”.
Page 910 2. SETUP DELETING TRANSFERRED IMAG- ■ CHANGING THE SCREEN OFF IMAGE Press the “MENU” button on the Select “Screen Off” to turn off the Remote Touch, then select “Setup”. screen. An image can be copied from a Select “General” on the “Setup” screen. USB memory and can be set to display when “Screen Off”...
Page 911 2. SETUP SETTING THE SCREEN OFF IM- ■ Close the console box. Press the “MENU” button on the Remote Touch, then select “Setup”. Press the “MENU” button on the Remote Touch, then select “Setup”. Select “General” on the “Setup” screen. Select “General”...
Page 912 2. SETUP POINTER SOUND VOLUME SETTING A FEEDBACK SETTINGS FORCE The pointer sound volume can be ad- When the pointer moves close to a but- justed. ton, it will be automatically pulled onto that button. The strength of this pull can Press the “MENU”...
Page 913: Deleting Personal Data
2. SETUP The following personal data can be deleted DELETING PERSONAL DATA or returned to their default settings: • Maintenance conditions Press the “MENU” button on the • Maintenance information off setting Remote Touch, then select “Setup”. • Address book Select “General”...
Page 914: Screen For Voice Settings
2. SETUP 2. VOICE SETTINGS Select the items to be set. Voice guidance etc. can be set. Press the “MENU” button on the Remote Touch. Select “Save”. SCREEN FOR VOICE SETTINGS Select “Setup”. Select “Voice”. On this screen, the following functions can be performed: ES350/300h_Navi_OM33A07U_(U) 12.05.11 08:14...
Page 915: Voice Volume
2. SETUP VOICE VOLUME Function The voice guidance volume can be The voice guidance volume can be ad- adjusted or switched off. (See justed or switched off. “VOICE VOLUME” on page 63.) Press the “MENU” button on the Voice guidance during route guid- Remote Touch, then select “Setup”.
Page 916: Traffic Incident Warning
2. SETUP TRAFFIC INCIDENT WARNING Traffic congestion information can be received via voice guidance while being guided to the desired destination. Press the “MENU” button on the Remote Touch, then select “Setup”. Select “Voice” on the “Setup” screen. Select “On” of “Traffic Incident Warn- ing”.
Page 917 2. SETUP ES350/300h_Navi_OM33A07U_(U) 12.05.11 08:14 I n f o r ma t i o n P r o v i d e d b y :...
Page 918: Destination Search
1. DESTINATION SEARCH 1. DESTINATION SEARCH Press the “MENU” button on the SELECTING THE SEARCH Remote Touch. AREA The selected state (province) can be changed to set a destination from a dif- ferent state (province) by using “Ad- dress”, “Point Interest”...
Page 919: Destination Search By Home
1. DESTINATION SEARCH DESTINATION SEARCH BY DESTINATION SEARCH BY HOME PRESET DESTINATIONS Press the “MENU” button on the Press the “MENU” button on the Remote Touch. (See “Remote Touch” Remote Touch. (See “Remote Touch” on page 10.) on page 10.) Select “Destination”...
Page 920 1. DESTINATION SEARCH SELECTING A CITY TO INFORMATION SEARCH If a preset destination point has not been ● registered, a message confirming if it is Press the “MENU” button on the desirable to set a preset destination will Remote Touch, then select be displayed, and the setting screen will...
Page 921 1. DESTINATION SEARCH SEARCHING FROM THE LAST 5 ■ Input the street name and select “OK”. CITIES Select “Last 5 Cities”. When the desired street name is found, select the corresponding screen button. Select the screen button of the desired city name from the displayed list.
Page 922 1. DESTINATION SEARCH When the desired street name is found, SEARCH BY STREET ADDRESS select the corresponding screen button. Press the “MENU” button on the Remote Touch, then select “Destination”. Select “Address” on the “Destination” screen. Select “Street Address”. When the desired street name is selected, the “Confirm Destination”...
Page 923 1. DESTINATION SEARCH SEARCH BY “Name” INFORMATION A street name can be searched using ● Press the “MENU” button on the only the body part of its name. Remote Touch, then select For example: S WESTERN AVE ● “Destination”. • A search can be performed by inputting “S WESTERN AVE”, “WESTERN AVE”...
Page 924 1. DESTINATION SEARCH SELECTING A CITY TO SEARCH ■ Select the screen button of the desired destination. Select “City”. If the same name exists in more than 1 city, a Input the city name. search can be performed more easily using “City”...
Page 925 1. DESTINATION SEARCH SELECTING FROM THE CATEGO- ■ SEARCH BY “Category” RIES The destination can be set by selecting Select “Category”. the search point and the POI category. Press the “MENU” button on the Remote Touch, then select “Destination”. Select “Point of Interest” on the “Desti- nation”...
Page 926 1. DESTINATION SEARCH On this screen, the following operations SETTING THE SEARCH POINT ■ can be performed: FROM NEAR CITY CENTER Select “Near a City Center in XX*”. Function Input the city center name. Select to set the search point from near the current position.
Page 927 1. DESTINATION SEARCH SELECTING FROM THE LAST 5 SETTING THE SEARCH POINT ■ ■ CITIES FROM NEAR A DESTINATION Select “Near a City Center in XX*”. Select “Near a Destination”. Select “Last 5 Cities”. Select the screen button of the desired destination.
Page 928 1. DESTINATION SEARCH TO SEARCH FOR POIs NEAR THE ■ Select the screen button of the desired SEARCH POINT item. When the search point is set, the “POI Category” screen will be displayed. Select the desired POI category. When the desired item is selected, the “Confirm Destination”...
Page 929 “OK”. With the eDestination feature, you can go When a phone number is input, the “Con- online, via the Lexus.com owner’ s Web site, firm Destination” screen may be displayed. to select and organize destinations of your If “Go” is selected on the “Confirm Desti- choice and then wirelessly send them to nation”...
Page 930 Destination Assist provides you with live Select the screen button of the desired assistance for finding destinations via the destination. Lexus Enform with Safety Connect response center. You can request either a specific business, address, or ask for help locating your desired destination by cate-...
Page 931 1. DESTINATION SEARCH When the desired address book entry is The list of previous destinations can also selected, the “Confirm Destination” screen be deleted by selecting “Delete Previ- may be displayed. If “Go” is selected on the ous Dest.” on the “Navigation Settings” “Confirm Destination”...
Page 932 1. DESTINATION SEARCH Select the screen button of the desired DESTINATION SEARCH BY destination. “Intersection & Freeway” There are 2 methods to search a desti- nation by Intersection & Freeway: (a) Search by intersection (b) Search by freeway Press the “MENU” button on the Remote Touch.
Page 933 1. DESTINATION SEARCH Select the screen button of the desired SEARCH BY “Intersection” item. Press the “MENU” button on the Remote Touch, then select “Destination”. Select “Intersection & Freeway” on the second page of the “Destination” screen. Select “Intersection” on the “Intersec- tion &...
Page 934 1. DESTINATION SEARCH Input a freeway entrance or exit name, SEARCH BY “Freeway and select “OK”. Entrance / Exit” Press the “MENU” button on the Remote Touch, then select “Destination”. Select “Intersection & Freeway” on the second page of the “Destination” screen.
Page 935 1. DESTINATION SEARCH DESTINATION SEARCH BY DESTINATION SEARCH BY “Map” “Coordinates” Press the “MENU” button on the Press the “MENU” button on the Remote Touch. (See “Remote Touch” Remote Touch. (See “Remote Touch” on page 10.) on page 10.) Select “Destination” on the “Menu” Select “Destination”...
Page 936 1. DESTINATION SEARCH Select “Yes” to delete the destination(s). DELETING SET DESTINATIONS A set destination can be deleted. Press the “MENU” button on the Remote Touch. (See “Remote Touch” on page 10.) Select “Destination” on the “Menu” A message appears to confirm the request screen.
Page 937: Starting Route Guidance
1. DESTINATION SEARCH 2. STARTING ROUTE GUIDANCE When “Map” is selected on the “Con- If a destination has already been set, “Go firm Destination” screen, the map ” and “Add to Route” will be dis- screen will be displayed. The map loca- played.
Page 938 1. DESTINATION SEARCH 3 ROUTES SELECTION Guidance can be paused or resumed. (See “PAUSING AND RESUMING GUIDANCE” on page 103.) Select “3 Routes”. If “OK” is selected until a beep sounds, demo mode will start. Press the “MAP/ VOICE” button on the Remote Touch to end demo mode.
Page 939: Edit Route
1. DESTINATION SEARCH This screen is displayed. Function Function Page Time necessary for the entire trip Select to add destinations. Distance of the entire trip Select to delete destina- Toll road tions. Select to reorder destina- Freeway tions. Ferry Select to display the choic- es available when setting the conditions the system EDIT ROUTE...
Page 940: Route Guidance Screen
2. ROUTE GUIDANCE 1. ROUTE GUIDANCE SCREEN During route guidance, various types of DURING FREEWAY DRIVING guidance screens can be displayed de- pending on conditions. During freeway driving, the freeway exit information screen will be displayed. This screen displays the distance to the SCREEN LAYOUT next junction/exit, or POIs in the vicinity of the freeway exit.
Page 941: When Approaching An Intersection
2. ROUTE GUIDANCE WHEN APPROACHING A WHEN APPROACHING AN FREEWAY EXIT OR INTERSECTION JUNCTION When the vehicle approaches an inter- When the vehicle approaches an exit or section, the intersection guidance junction, the freeway guidance screen screen will be displayed. will be displayed.
Page 942: Arrow Screen
2. ROUTE GUIDANCE ARROW SCREEN ■ OTHER SCREENS On this screen, information about the TURN LIST SCREEN ■ next turn on the guidance route can be viewed. On this screen, the list of turns on the guidance route can be viewed. Select “Turn-by-Turn Arrow”...
Page 943: Typical Voice Guidance Prompts
2. ROUTE GUIDANCE 2. TYPICAL VOICE GUIDANCE PROMPTS As the vehicle approaches an intersec- 4 miles tion, or point, where maneuvering the 0.5 miles vehicle is necessary, the system’s voice guidance will provide various messages. 5 miles 0.5 miles Voice guidance “Proceed about 4 miles to the traffic circle.”...
Page 944 2. ROUTE GUIDANCE *: The system indicates a U-turn if the dis- The system announces the approach to the tance between 2 one-way roads (of oppo- final destination. site directions) is less than 50 ft. (15 m) in residential areas or 164 ft. (50 m) in non- Voice guidance residential areas.
Page 945 2. ROUTE GUIDANCE ROUTES INCLUDING IPD ROADS ■ CAUTION Even when on IPD roads (roads that are Be sure to obey the traffic regulations and ● not completely digitized in our data- keep the road condition in mind espe- base), you will be guided along the cially when you are driving on IPD roads.
Page 946: Distance And Time To Destination
2. ROUTE GUIDANCE 3. DISTANCE AND TIME TO DESTINATION When the vehicle is on the guidance Icon Function route, the distance and the estimated travel/arrival time to the destination are Estimated travel time is dis- displayed. When the vehicle is not on the played.
Page 947: Setting And Deleting Destinations
2. ROUTE GUIDANCE 4. SETTING AND DELETING DESTINATIONS ADDING DESTINATIONS REORDERING DESTINATIONS Destinations can be added and routes can be searched again. When more than 1 destination is set, the arrival order of the destinations can be Select “Route”. changed. Select “Route”.
Page 948: Deleting Destinations
2. ROUTE GUIDANCE Select “Yes” to delete the destination(s). DELETING DESTINATIONS If “Yes” is selected, the data cannot be recovered. If more than 1 destination has A set destination can be deleted. been set, the system will recalculate the route(s) to the set destination(s) as neces- Select “Route”.
Page 949: Setting Route
2. ROUTE GUIDANCE 5. SETTING ROUTE “1 mile (km)”, “3 miles (km)” or “5 miles DETOUR SETTING (km)”: Select one of these screen buttons to start the detour process. After detouring, While the route guidance is operating, the system returns to the original guidance the route can be changed to detour route.
Page 950: Route Overview
2. ROUTE GUIDANCE TURN LIST ROUTE OVERVIEW Select to skip to the next page Select “Route”. of the list of roads. Select and hold to scroll through the list of roads. Select “Overview”. This mark indicates the direction in which you should turn at the intersection.
Page 951: Route Preference
2. ROUTE GUIDANCE The entire route from the starting point ROUTE PREFERENCE to the destination is displayed. TO SELECT ROUTE TYPE The Preferred, Short or Alternative route can be selected. Select “Route”. “OK”: Select to start guidance. “Edit Route”: Select to change a route. (See page 89.) TO SELECT ROUTE FEATURES Select “Preferences”.
Page 952: Starting Route From Adjacent Road
2. ROUTE GUIDANCE Select “Preferences” to display condi- STARTING ROUTE FROM tions that can be selected when the sys- ADJACENT ROAD tem determines the route to the destination. The route guidance can be started from an adjacent road. (e.g. When route guidance is set on the freeway, but the vehicle is driven parallel along the freeway.) Select “Route”.
Page 953: Pausing And Resuming
2. ROUTE GUIDANCE TO RESUME GUIDANCE PAUSING AND RESUMING GUIDANCE Select “Route”. TO PAUSE GUIDANCE Select “Route”. Select “Resume Guidance”. Select “Pause Guidance”. The map screen, with the current position displayed, will be returned to. The screen will return to the current posi- tion map without route guidance.
Page 954: Show On Map
2. ROUTE GUIDANCE A screen with a limited choice of POI will SHOW ON MAP be displayed. (To change the displayed POI list, see page 129.) DISPLAY POI ICONS SELECTING POI ICONS TO BE DISPLAYED POI icons such as gas stations and res- taurants can be displayed on the map Up to 5 categories of icons can be dis- screen.
Page 955 2. ROUTE GUIDANCE Select the desired POI categories. TO DISPLAY THE LOCAL POI LIST Points of Interest that are within 20 miles (32 km) of the current position will be listed from among the selected categories. Select “Find Local POI”. The selected category’...
Page 956 2. ROUTE GUIDANCE When the desired POI overlaps with the cursor, select “Enter ”. The screen changes and displays the map location of the selected destination and route preference. (See “STARTING ROUTE GUIDANCE” on page 87.) TO HIDE POI ICONS Function Select “Show on Map”.
Page 957: Route Trace
2. ROUTE GUIDANCE TO STOP RECORDING THE ROUTE TRACE ROUTE TRACE Up to 124 miles (200 km) of the trav- Select “Show on Map”. eled route can be stored and retraced on the display. INFORMATION This feature is available when the map ●...
Page 958: Address Book
3. ADDRESS BOOK 1. NAVIGATION SETTINGS Select “Navigation”. Points or areas on the map can be regis- tered. The registered points can be used on the “Destination” screen. (See “DESTINA- TION SEARCH BY HOME” on page 69, and “DESTINATION SEARCH BY “Address Book””...
Page 959 3. ADDRESS BOOK Select the desired screen button. SETTING UP THE “Home” If home has been registered, that infor- mation can be recalled by selecting “Go Home” on the “Destination” screen. (See “DESTINATION SEARCH BY HOME” on page 69.) Press the “MENU” button on the Remote Touch.
Page 960: Editing Home
3. ADDRESS BOOK Select the desired screen button and Select “Edit” next to the item to be edit- enter the location in the same way as for a destination search. (See “DESTINA- TION SEARCH” on page 68.) Function Page When registration of home is completed, Select to edit the home the “Edit Home”...
Page 961: Deleting Home
3. ADDRESS BOOK DELETING HOME SETTING UP THE “Preset Destinations” Press the “MENU” button on the Remote Touch, then select “Setup”. If preset destination has been regis- Select “Navigation” on the “Setup” tered, that information can be recalled screen. by using “Preset Destinations” on the “Navigation Settings”...
Page 962 3. ADDRESS BOOK Select the desired screen button. Select the desired screen button and enter the location in the same way as for a destination search. (See “DESTINA- TION SEARCH” on page 68.) Function Page Registering a preset desti- nation Select a position for this preset destina- tion.
Page 963 3. ADDRESS BOOK EDITING PRESET Function Page DESTINATIONS Select to edit the preset destination name. Press the “MENU” button on the name can be displayed on Remote Touch, then select “Setup”. the map. Select “Navigation” on the “Setup” Select to edit location infor- screen.
Page 964 3. ADDRESS BOOK Select “Delete”. SETTING UP THE “Address Book” Points or areas on the map can be regis- tered. Press the “MENU” button on the Remote Touch. (See “Remote Touch” on page 10.) Select the preset destination to be de- Select “Setup”...
Page 965: Editing Address Book Entries
3. ADDRESS BOOK REGISTERING ADDRESS INFORMATION BOOK ENTRIES Up to 100 address book entries can be ● registered. Press the “MENU” button on the Remote Touch, then select “Setup”. EDITING ADDRESS BOOK Select “Navigation” on the “Setup” ENTRIES screen. Select “Address Book” on the “Naviga- The icon, name, location and/or phone tion Settings”...
Page 966 3. ADDRESS BOOK TO CHANGE “Icon” ■ Select “Edit” next to the item to be edit- Select “Edit”. Function Page Select the desired icon. Select to edit the address book entry name. The name can be displayed on the map. Select to edit location infor- mation.
Page 967 3. ADDRESS BOOK DISPLAYING ADDRESS BOOK ■ Select either to adjust the di- ENTRY NAMES rection. Then select “OK”. Select “On” to display the name on the map and select “Off” to not display it. INFORMATION The bell sounds only when the vehicle ●...
Page 968: Deleting Address Book Entries
3. ADDRESS BOOK TO CHANGE “Phone #” ■ Select “Delete”. (PHONE NUMBER) Select “Edit”. Select the address to be deleted. Enter the number using the number keys. Screen button Function Select all registered ad- “Select All” dresses. Select “OK”. Select to cancel the The previous screen will be displayed.
Page 969 3. ADDRESS BOOK SETTING UP THE “Areas to Function Page Avoid” Registering areas to avoid Areas to be avoided because of traffic Editing areas to avoid jams, construction work or other rea- sons can be registered as areas to avoid. Deleting areas to avoid Press the “MENU”...
Page 970: Editing Area To Avoid
3. ADDRESS BOOK Select the desired screen button and INFORMATION enter the location in the same way as for If a destination is input in the area to avoid ● a destination search, or display the map or the route calculation cannot be made of the area to be avoided.
Page 971 3. ADDRESS BOOK TO CHANGE “Name” ■ Select “Edit” next to the item to be edit- Select “Edit”. Function Page Enter the name using the alphanumeric keys. Select to edit the name of the area to avoid. The name can be displayed on the map.
Page 972 3. ADDRESS BOOK TO CHANGE “Location” TO CHANGE “Size” ■ ■ Select “Edit”. Select “Edit”. Select one of the 8 directional screen Select either to change the size of the area to be avoided. buttons to move the cursor to the de- sired point on the map.
Page 973: Deleting Areas To Avoid
3. ADDRESS BOOK Select “Delete”. DELETING AREAS TO AVOID Select “Yes” to delete the area(s) and Press the “MENU” button on the select “No” to cancel the deletion. Remote Touch, then select “Setup”. Select “Navigation” on the “Setup” screen. Select “Areas to Avoid” on the “Naviga- tion Settings”...
Page 974: Deleting Previous Destinations
3. ADDRESS BOOK DELETING PREVIOUS Screen button Function DESTINATIONS Select all previous desti- “Select All” nations. Previous destinations can be deleted. Select to cancel the “Unselect All” “Select All” function. Press the “MENU” button on the Remote Touch. (See “Remote Touch” Select “Delete”.
Page 975: Detailed Navigation Settings
4. SETUP 1. DETAILED NAVIGATION SETTINGS Select “Detailed Navi. Settings”. Settings are available for driving speeds, favorite POI categories, automatic screen change, “ Off” function, etc. Press the “MENU” button on the Remote Touch. Select the items to be set. Select “Setup”.
Page 976 4. SETUP Function Function Select to set the average cruising Select to set screen buttons to be speed. (See “DRIVING SPEEDS” displayed on the map screen when on page 127.) “vv Off” selected. (See “SCREEN LAYOUT FUNCTION Select to set the automatic input (“vv Off”...
Page 977: Auto Avoid Traffic
4. SETUP After setting of the desired speeds is DRIVING SPEEDS completed, select “Save”. The speed that is used for the calculation INFORMATION of the estimated travel time and estimat- ed arrival time can be set. The displayed time to the destination is ●...
Page 978: Show Free Flowing Traffic
4. SETUP Select “On” or “Off”. SHOW FREE FLOWING TRAFFIC Select “Save”. When congestion information about the Free flowing traffic can be shown by an guidance route has been received, a arrow when “Show Free Flowing Traf- screen will appear to ask if it is desirable to fic”...
Page 979 4. SETUP Select the desired group. POI CATEGORY CHANGE (SELECT POI ICONS) Select up to 6 POI icons to be displayed on the map screen. Press the “MENU” button on the Remote Touch, then select “Setup”. Select “Navigation” on the “Setup” If the desired POI category is not on the screen.
Page 980 4. SETUP SCREEN LAYOUT FUNCTION CURRENT POSITION/TIRE (“vv Off” Function) CHANGE CALIBRATION Each screen button and current street The current position mark can be adjust- name on the map screen can be dis- ed manually. Miscalculation of the dis- played or hidden. tance caused by tire replacement can also be adjusted.
Page 981 4. SETUP POSITION/DIRECTION CALI- ■ Select either to adjust the di- BRATION rection of the current position mark. When driving, the current position mark will be automatically corrected by GPS signals. If GPS reception is poor due to location, the current position mark can be adjusted manually.
Page 982: Pop-Up Information
4. SETUP wThis message appears when the map INFORMATION scale is over 0.5 miles (800 m). If this procedure is not performed when ● the tires are replaced, the current posi- tion mark may be incorrectly displayed. POP-UP INFORMATION When “Pop-up information” is turned on, pop-up information will be displayed.
Page 983: Vehicle Settings
4. SETUP 2. VEHICLE SETTINGS Select “Maintenance”. MAINTENANCE When the navigation system is turned on, the “Maintenance Reminder” screen displays when it is time to replace a part or certain components. (See page 32.) Press the “MENU” button on the Remote Touch.
Page 984 4. SETUP Select the desired screen button. Screen button Function New information items “Personal” can be created separately from provided ones. Select to cancel all condi- “Delete All” tions which have been in- put. Select to reset the item When the vehicle needs to be serviced, the “Reset All”...
Page 985: Dealer Setting
4. SETUP Input the conditions. DEALER SETTING Dealer information can be registered in the system. With dealer information reg- istered, route guidance to the dealer is available. Press the “MENU” button on the Remote Touch, then select “Setup”. Select “Vehicle” on the “Setup” screen. Function Select “Maintenance”...
Page 986 4. SETUP When “Set Dealer” registration is finished, TO EDIT “Dealer” OR “Contact” ■ the “Dealer” screen is displayed. Select “Edit” next to “Dealer” or “Con- Select “Edit” next to the item to be edit- tact”. Enter the name using the alphanumeric keys.
Page 987 4. SETUP TO EDIT “Location” TO EDIT “Phone #” ■ ■ (PHONE NUMBER) Select “Edit” next to “Location”. Select “Edit” next to “Phone #”. Select one of the 8 directional screen Enter the number using number keys. buttons to move the cursor to the de- sired point on the map screen.
Page 988: Vehicle Customization
4. SETUP VEHICLE CUSTOMIZATION CAUTION When performing the customization pro- ● Vehicle settings can be changed. cedure, ensure that there is sufficient ven- tilation in the vehicle and surrounding Press the “MENU” button on the area. If there is insufficient ventilation, Remote Touch.
Page 989: Limitations Of The Navigation System
5. GPS (GLOBAL POSITIONING SYSTEM) 1. LIMITATIONS OF THE NAVIGATION SYSTEM When the vehicle is receiving signals from This navigation system calculates the satellites, the “GPS” mark appears at the current position using satellite signals, top left of the screen. various vehicle signals, map data, etc.
Page 990 5. GPS (GLOBAL POSITIONING SYSTEM) Accurate current position may not be Inappropriate route guidance may occur in shown in the following cases: the following cases: • When driving on a small angled Y-shaped • When turning at an intersection off the road.
Page 991 5. GPS (GLOBAL POSITIONING SYSTEM) After replacing a tire, implement the operation described in “TIRE CHANGE CALIBRATION”. (See page 131.) INFORMATION This navigation system uses tire turning ● data and is designed to work with factory- specified tires for the vehicle. Installing tires that are larger or smaller than the originally equipped diameter may cause inaccurate display of the current position.
Page 992 5. GPS (GLOBAL POSITIONING SYSTEM) ES350/300h_Navi_OM33A07U_(U) 12.05.11 08:14 I n f o r ma t i o n P r o v i d e d b y :...
Page 993: Phone Operation
1. PHONE OPERATION 1. QUICK REFERENCE ® Bluetooth phones can be operated via the navigation system’s screen. To display the hands-free operation screen, press the “MENU” button on the Remote Touch and then select “Phone”, or the switch on the steering wheel. ES350/300h_Navi_OM33A07U_(U) 12.05.11 08:14 I n f o r ma t i o n P r o v i d e d b y :...
Page 994 1. PHONE OPERATION Name Function No connection Good ® An antenna for the Bluetooth connection is built in the instrument ® panel. The condition of the Bluetooth connection may deteriorate ® and the system may not function when a Bluetooth phone is used in The condition the following conditions and/or places:...
Page 995: Phone (Hands-Free System For Cellular Phone)
1. PHONE OPERATION 2. PHONE (HANDS-FREE SYSTEM FOR CELLULAR PHONE) The hands-free system enables calls to NOTICE be made and received without having to take your hands off the steering wheel. Do not leave your cellular phone in the ● vehicle.
Page 996: Using The Phone Switch
If the connected Bluetooth phone ver- ● sion is older than recommended or incompatible, this function may not be used. Refer to http://www.lexus.com/ to find ● approved Bluetooth ® phones for this sys- tem. *: This profile is necessary when using Apps.
Page 997: Using The Steering Switches
1. PHONE OPERATION USING THE STEERING INFORMATION SWITCHES The other party’ s voice will be heard from ● the front speakers. The audio/video sys- tem will be muted during phone calls or when hands-free voice commands are used. Talk alternately with the other party on ●...
Page 998: About The Phonebook In This System
1. PHONE OPERATION ABOUT THE PHONEBOOK IN WHEN SELLING OR THIS SYSTEM DISPOSING OF THE VEHICLE The following data is stored for every regis- A lot of personal data is registered when tered phone. When another phone is con- the hands-free system is used. When nected, the following registered data selling or disposing of the vehicle, initial- cannot be read:...
Page 999 1. PHONE OPERATION wU.S.A. wCanada FCC ID : BABFT0033A IC: 2024B-FT0033A This device complies with part 15 of the This device complies with Industry FCC Rules. Operation is subject to the Canada licence-exempt following two conditions: (1) This device standard(s). Operation is subject to the may not cause harmful interference, and following two conditions: (1) this device (2) this device must accept any...
Page 1000 1. PHONE OPERATION CAUTION CAUTION: Radio Frequency Radiation ● Exposure This equipment complies with IC radiation exposure limits set forth for uncontrolled equipment and meets RSS- 102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE).
