  • Page 1: Installation Guide

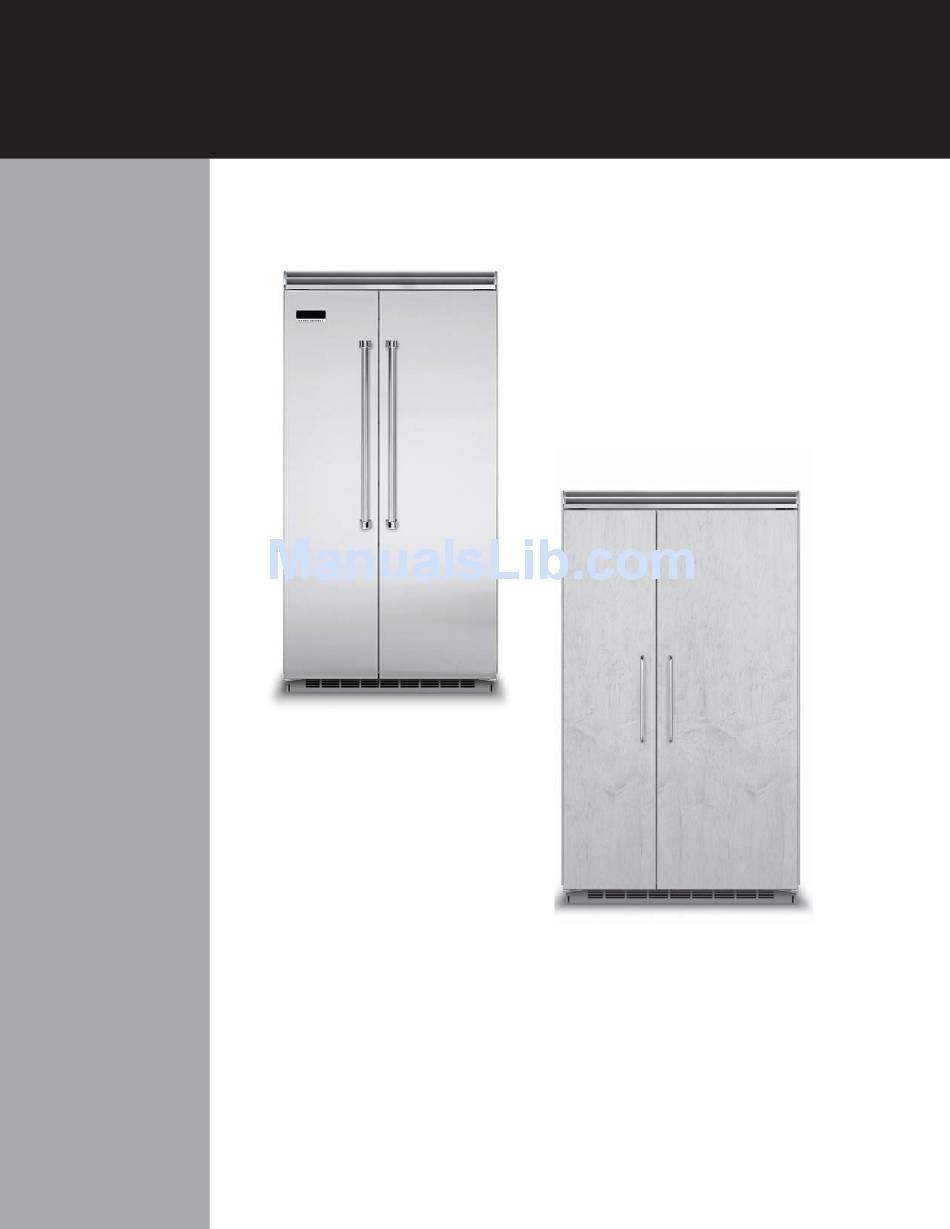

    Installation Guide 5 Series Side-By-Side Refrigerator/Freezer...

  • Page 2: Table Of Contents

    Table of Contents Warnings and Important Information _______________________________ 3 Dimensions & Specifi cations (Professional 42” & 48”)_________________ 6 Dimensions & Specifi cations (Professional 42” & 48” with fl ush mount trim) ____________________________________________ 8 Cutout Dimensions (42”) _________________________________________ 10 Anti-Tip Dimensions (42”) ________________________________________ 11 Cutout Dimensions (48”) _________________________________________ 12 Anti-Tip Dimensions (48”) ________________________________________ 13 Cabinet Information _____________________________________________ 14...
  • Page 3 IMPORTANT – Please Read and Follow! • Make sure that incoming voltage is the Your safety and the safety of others is same as unit rating. An electric rating very important. plate specifying voltage, frequency, wattage, amperage, and phase is attached We have provided many important safety to the product.
  • Page 4 • The required use of a GFI is normally related to the location of a receptacle with respect to any signifi cant sources of water or moisture. • Viking Range, LLC will NOT warranty any problems resulting from GFI outlets which are not installed properly or do not meet the requirements below.
  • Page 5 IMPORTANT – Please Read and Follow! It is your responsibility to: • comply with installation specifi cations and dimensions. • properly install unit. • remove any moldings or decorative panels that prevent the unit from being serviced. • make sure that you have these materials (not provided with your unit), which are necessary for proper installation: •...

  • Page 6: Top View

    Dimensions (Side-By-Side) 42” Side-By Side 3 – 1 9 / 3 2 ” ( 9 . 1 c m 48” Side-By Side 3 – 1 9 / 3 2 ” ( 9 . 1 c m 8 ” – 7 / ( 6 0 8 ”...
  • Page 7 Specifi cations (Side-By-Side) 42” Side-By-Side Description VCSB/CVCSB Overall width 42” (106.7 cm) Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max. Overall depth from rear To front edge of side trim: 23-3/4 (60.3 cm) To front of top grille: 26-1/4” (66.7cm) To front of handle endcap: 29-3/16”...
  • Page 8 Dimensions (Flush Mount Trim and Custom Door Overlay) 42” Side-By Side with Flush Mount Trim 3 – 1 9 / 3 2 ” 48” Side-By Side ( 9 . 1 c m with Flush Mount Trim 3 – 1 9 / 3 2 ”...
  • Page 9 Specifi cations (Flush Mount Trim and Custom Door Overlay) 42” Side-By-Side Flush Mount Trim and Custom Door Overlay Description VCSB/CVCSB Flush Mount FDSB/CFDSB Overall width 42” (106.7 cm) Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max. Overall depth from rear To front edge of side trim: 25-1/2"...

  • Page 10: Cutout Dimensions (42")

    Cutout Dimensions 42” Side-By-Side Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” ( 2 2 . 9 c m ) 9 ” ( 2 2 . 9 c m ) 8 2 – 7 / 8 ”...

  • Page 11: Anti-Tip Dimensions (42")

    Anti-Tip Dimensions 42” Side-By-Side Anti-Tip Location Two 2”x 4” Mounting Boards 3” (7.6 cm) x 3-1/2” (8.9 cm) 3 ” ( 7 . 6 c 7 9 – 3 / 8 ” ( 2 0 1 . 6 c m ) m i n t o b o t t o m...

  • Page 12: Cutout Dimensions (48")

    Cutout Dimensions 48” Side-By-Side Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” ( 2 2 . 9 c m ) 9 ” ( 2 2 . 9 c m ) 8 2 – 7 / 8 ”...

  • Page 13: Anti-Tip Dimensions (48")

    Anti-Tip Dimensions 48” Side-By-Side Anti-Tip Location Two 2”x 4” Mounting Boards 3” (7.6 cm) x 3-1/2” (8.9 cm) 3 ” ( 7 . 6 c 7 9 – 3 / 8 ” ( 2 0 1 . 6 c m ) m i n t o b o t t o m...

  • Page 14: Cabinet Information (With Fl Ush Mount Trim)

    Cabinet Information For installation in 24" (61.0 cm) deep cabinets, the door face protrudes 2-3/4” (7.0 cm) from the cabinet face. The handle protrudes an additional 2-15/16” (7.5 cm) into the room. Standard Mount Installation 1/4” (0.6 cm) 42” (106.7 cm) Finished 48”...
  • Page 15 Headline Cabinet Information ( with Flush Mount Trim) Flush Mount Installation with Standard Cabinets 1/4” Offset in Finished Wall (0.25 cm) Finished 1-3/4” Wall (4.4 cm) 23-7/8” 24” 26-1/2” (60.6 cm) (61.0 cm) (67.3 cm) 24-5/8” 24-3/4” (62.5 cm) (62.9 cm) 26-1/4”...

  • Page 16: Custom Side Panel Dimensions

    Custom Side Panel Dimensions 3/16” 3/4” (0.5 cm) (1.9 cm) Back filler End panel panel 6 ” 8 ” - 5 / ( 1 5 ( 6 2 5/32” (0.4 cm) 8 ” - 5 / ( 6 2 ( 2 1 - 7 / 0 .

  • Page 17: Custom Side Panel Dimensions (With Fl Ush Mount Trim)

    Custom Side Panel Dimensions ( with Flush Mount Trim) Z-Bracket 1” 3/4” (2.5 cm) 1/4” (1.9 cm) (0.6 cm) End panel 8 ” - 7 / ( 6 0 8 ” - 7 / ( 6 0 ( 2 1 - 7 / 0 .

  • Page 18: Custom Door Panel Dimensions

    Custom Door Panel Dimensions 42” Side-By-Side ” 3 / 4 - 3 / ( 1 . 9 ( 4 6 ” 3 / 4 ” . 2 c ( 1 . 9 - 1 3 / 1 6 ( 5 7 .

  • Page 19: Custom Door Panel Installation

    Custom Door Panel Installation Remove handle side cabinet screws and trim Remove all screws from handle side door trim. with a Phillips screwdriver. Remove two screws from top and bottom door trim. Remove handle side door trim. 2-1/16” 2-1/16” 1-11/16” 1-11/16”...
  • Page 20 Custom Door Panel Installation Slide custom wood panel to the hinge side, ensuring Reinstall handle side door trim “Z” bracket engages the door bracket. and door trim screws. Reinstall cabinet trim and screws.

  • Page 21: General Information

    48” Custom Panels Headline General Information Area Requirements A 115 volt, 60-Hz, 15 amp, fused, electrical Verify the following: supply is required. It is required that a • Unit can fi t into residence and can be separate circuit serving only this appliance moved around corners and through be provided.
  • Page 22 • If system has not been used in several months, and water has an unpleasant taste or odor, fl ush system by dispensing • The installation of Viking Range units with 2-3 glasses of water. If unpleasant taste or a reverse osmosis system is acceptable as odor persists, change fi...
  • Page 23 Headline General Information Area Requirements Tip Over Hazard • Most of the unit’s weight is at the top. Appliance is top heavy and tips easily when Extra care is needed when moving the unit not completely installed. Keep doors closed to prevent tipping.

  • Page 24: Flush Mount Side Trim Installation

    Headline Flush Mount Side Trim Installation (Sold Separately) Note: If the unit is to be installed fl ush with Step 3 - Align the top of the fl ush mount the cabinets, the fl ush mount side trim must side trim with the top of the unit's machine be installed fi...

  • Page 25: Hinge Adjustment

    Installation Headline Hinge Adjustment Front of unit Remove four side screws and remove unit top. Loosen the four hinge screws. Adjust door. Retighten four hinge screws. Anti-Tip Installation Wall 2 x 4 Refrigerator Replace unit top. Replace four side screws. Attach one 2 x 4 to wall stud (refer to dimensions page for exact location).
  • Page 26 Installation Headline Place unit within 3” (7.6 cm) of being fl ush with cabinets. Carefully move unit until semi fl ush with cabinet Note: To avoid cabinet damage, place cardboard (depending on unit). between cabinets and unit. When moving unit, DO NOT crimp, kink or crush water supply line.

  • Page 27: Kickplate Installation

    Installation Headline Screw Wall 2 x 4 Refrigerator Lift unit off rollers to desired height and level unit using Insert mounting screws into 2x4 attached to wall stud a 5/16” head wrench. NOTE: DO NOT use an electric device. Overtightening can cause damage. Make sure evaporator pan is in correct location.

  • Page 28: Door Stop Adjustment

    Headline Door Stop Adjustment 90˚ 110˚ 120˚ Open refrigerator door so door stop and shoulder Remove shoulder screw and place in 90º or screw are accessible. Note: Shoulder screw should be 120º position. in 110º door opening position.
  • Page 29 Water Filter System Specifi cation and Performance Data Sheet This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration of less than or equal to the permissible limit for water leaving the system, as specifi...

  • Page 30: Final Installation

    Final Installation Replace top air grille. Using an 8” (20.3 cm) magnetic nut driver, replace the two 1/4” (0.6 cm) screws. Replace the center grille louver. Open door. The display should fl ash. Press “ACTIVATE CONTROLS” pad and close door. Note: There is a 6 minute delay before the unit starts.

  • Page 31: Performance Checklist

    Performance Checklist —Verify cabinet size. —Align/square door(s). — Verify electrical supply and water — Verify drain pan is properly installed supply (if applicable). and there are no leaks on water connection. — Install anti-tip device(s) and verify unit is secure. —Install kickplate.

  • Page 32: Control Panels

    Verify Operations Control Panels Side-by-Side FREEZER REFRIGERATOR MAX FRZ MAX REF DOOR OPEN ACTIVATE FAST ALARM DISPLAY HIGHER LOWER CONTROLS TEMP TEMP COOL FAST COOL POWER SAB SHOW HIGH TEMP 1. Press “ACTIVATE CONTROLS” pad. 2. Verify unit is not in Sabbath Mode. If in Sabbath Mode: A.

  • Page 33: Service & Registration

    • Name of dealer from whom purchased Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range, LLC at 1-888-(845-4641), or write to:...
  • Page 34 Notes ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________...
  • Page 35 Notes ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________...
  • Page 36 Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-(845-4641) or visit our web site at vikingrange.com in the US or brigade.ca in Canada F21445A EN (031515)
