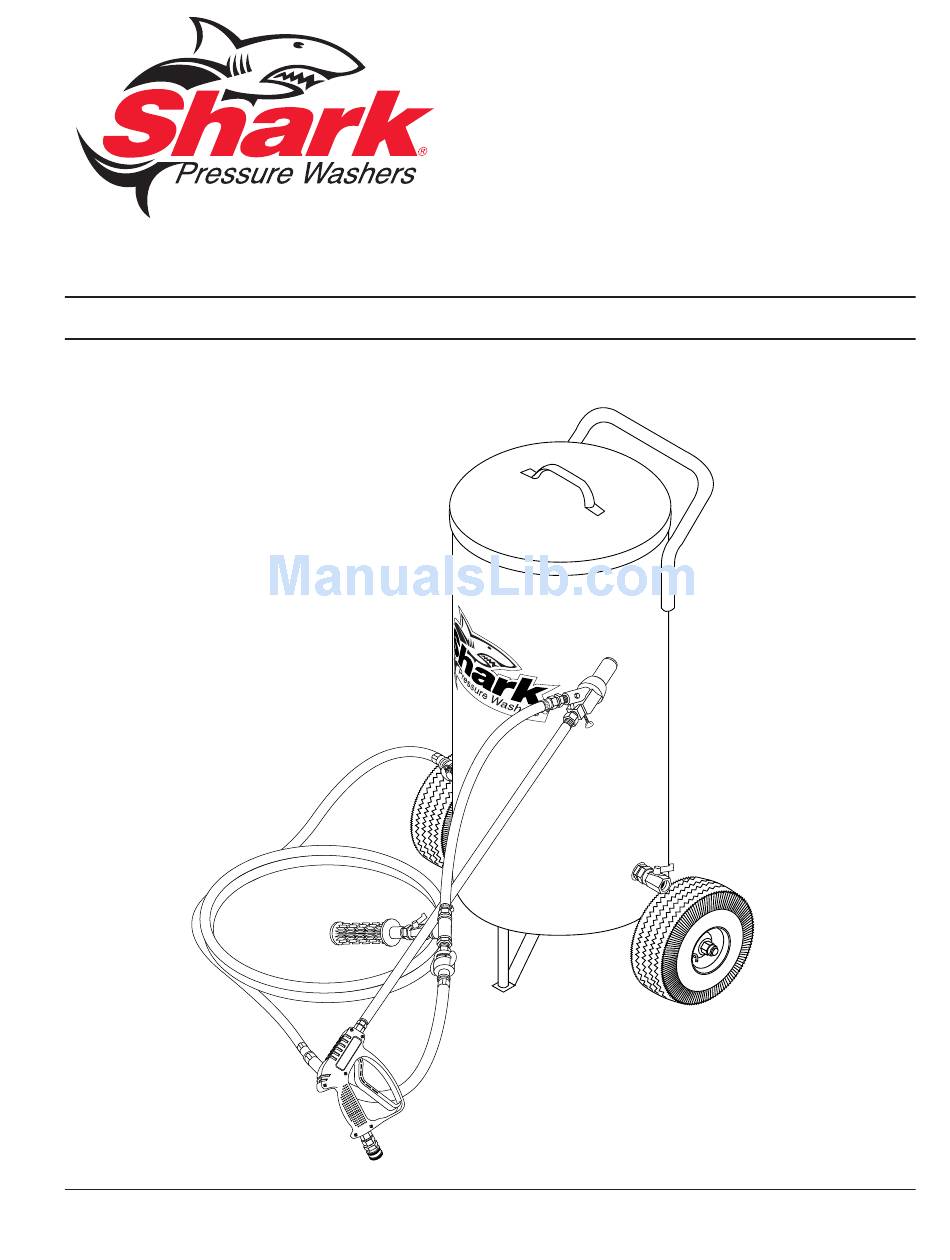

- Page 1 SANDBLAST SYSTEM OPERATOR’S MANUAL ■ ■ ■ ■ ■ 4-011201S WITH POT - 2000/3500 PSI ■ ■ ■ ■ ■ 4-011211S WITH PROBE - 2000/3500 PSI For technical assistance or the SHARK dealer nearest you, call 1-800-771-1881 or visit our website at www.shark-pw.com...
-
Page 2: Table Of Contents
CONTENTS Introduction ........................... 3 Important Safety Information ......................3 Operating Instructions ........................3 General Operating Techniques ...................... 4 Sandblasting Material ........................4 Component Identification ......................5 Sandblaster, Exploded View, #4-011201, #4-011217 ..............6 Sandblaster, Exploded View, #4-011211, #4-011216 ..............7 Sandblaster Exploded View #4-011201, #4-011211, #4-011216, #4-011217, Parts List .... -
Page 3: Introduction
1. Read the owner's manual thor- Shark, Inc. reserves the right to make changes at any oughly. Failure to follow instruc- time without incurring any obligation. tions could cause malfunction The Shark Sandblast System is designed to inject sand READ OPERATOR’S... -
Page 4: General Operating Techniques
#16 sieve and a very small percentage will pass through a #50 sieve. Note: A #16 sieve is a mesh that has sixteen 0.046 sq. in. (1.19mm) openings per inch. Shark Sandblast System • 97-612 • Rev. 3/06... -
Page 5: Component Identification
Mixing Cone Ball Valve Sand Wand Assembly Ball Valve Bag of Sand (not included) Sand Hose Assembly High Pressure Head Gear & Trigger Spray Gun Face Shield High Pressure Hose (not included) Shark Sandblast System • 97-612 • Rev. 3/06... -
Page 6: Sandblaster, Exploded View, #4-011201, #4-011217
SANDBLAST SYSTEM OPERATOR’S MANUAL SANDBLASTER #4-011201 EXPLODED VIEW Shark Sandblast System • 97-612 • Rev. 3/06... -
Page 7: Sandblaster, Exploded View, #4-011211, #4-011216
SANDBLAST SYSTEM OPERATOR’S MANUAL SANDBLASTER #4-011211 EXPLODED VIEW Shark Sandblast System • 97-612 • Rev. 3/06... -
Page 8: Sandblaster Exploded View #4-011201, #4-011211, #4-011216, #4-011217, Parts List
Nozzle Only, 1/4" MEG-0006 2-1081 Bushing, 3/4" x 1/2" 95-07161130 Diffuser, Only, Brass 4-01212 Gun, Spray 4-02199925 Hose, Sand, Spiralite 115, 25 ft.1 2-2003 Coupler, 3/8" Male, Brass 95-07161126 Probe, Sand, Less Fittings Shark Sandblast System • 97-612 • Rev. 3/06... -
Page 9: Troubleshooting
LOW SAND FLOW Low water pressure Check pump and nozzle for improper operation. Collapsed hose Replace hose or remove obstruction. Clogged hose or probe Clear obstruction. Air leaks at hose connections Keep connection tight. Shark Sandblast System • 97-612 • Rev. 3/06... -
Page 10: Warranty
LIMITED MINIMUM 90 DAY WARRANTY We warrant to the original consumer that each new part and accessory sold by SHARK will be free from manufacturing defects in materials or workmanship in normal service for the duration specified by the original component manufacturer with a 90 day mini- mum from date of purchase, provided it is installed properly and the equipment is maintained in accordance with SHARK’S instruc-... - Page 12 Form #97-612 • Revised 3/06 • Printed in U.S.A.
