ShoreTel 480 Quick Install Manual

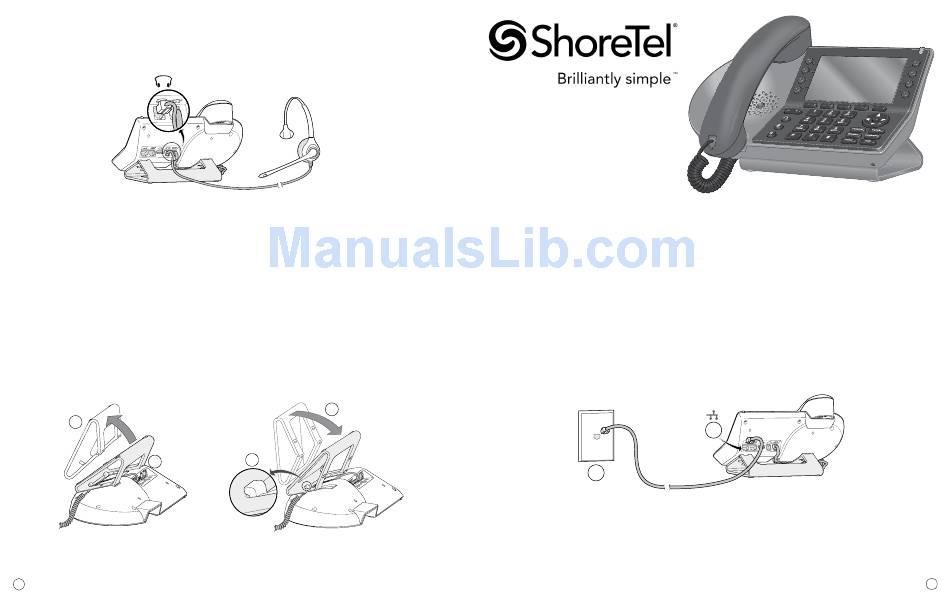

Connecting a Headset (Optional)
The ShoreTel IP Phone supports use of an optional Headset, as shown. After connecting the
headset, select the Headset button on the front panel of the ShoreTel IP Phone.
Adjusting the Viewing Angle of the Phone
(Optional)
The ShoreTel IP Phone stand supports two tilt angles for the phone on desk.
The stand is shipped in the low position. Use these instructions to change the tilt angle.
Remove the Stand:
1. Grasp the phone base in one hand and the stand in the other.
2. Pull the stand off the base until it unsnaps.
Replace the Stand:
1. Rotate the stand 180 degrees. Seat the stand firmly in the hooks.
2. Push the stand into the base until it snaps into place.
Low angle
2
1
Remove
ShoreTel, Inc. l www.shoretel.com
Refer to http://www.shoretel.com/products/ip_phones for more information
4
2
High angle
1
Replace
Part Number: 800-1540-01
IP Phone 480/480g/485g
Quick Install Guide
Connecting to Power over Ethernet
Required Items:
Ethernet cable for ShoreTel IP Phone (included)
l
Network wall port that supports power or Power over Ethernet (PoE)
l
Note: This configuration describes a Power over Ethernet connection. Refer to Connecting to Power
and the Network on page 2 if your network wall port or data switch does not support Power over
Ethernet.
2
Connect Power over Ethernet:
1. Connect one end of the Ethernet cable to the Ethernet port on the ShoreTel IP Phone.
2. Connect the other end of the Ethernet cable to a network wall port that
supports Power over Ethernet. After a few seconds, the ShoreTel IP Phone
powers on and runs through a series of system tests.
Note: IP Phone 480 supports 10/100 Ethernet network speed. IP Phones 480g/485g support 10/100/1000 network speed.
1
1
