Mobotix MX-c25 Quick Install

Quick Install

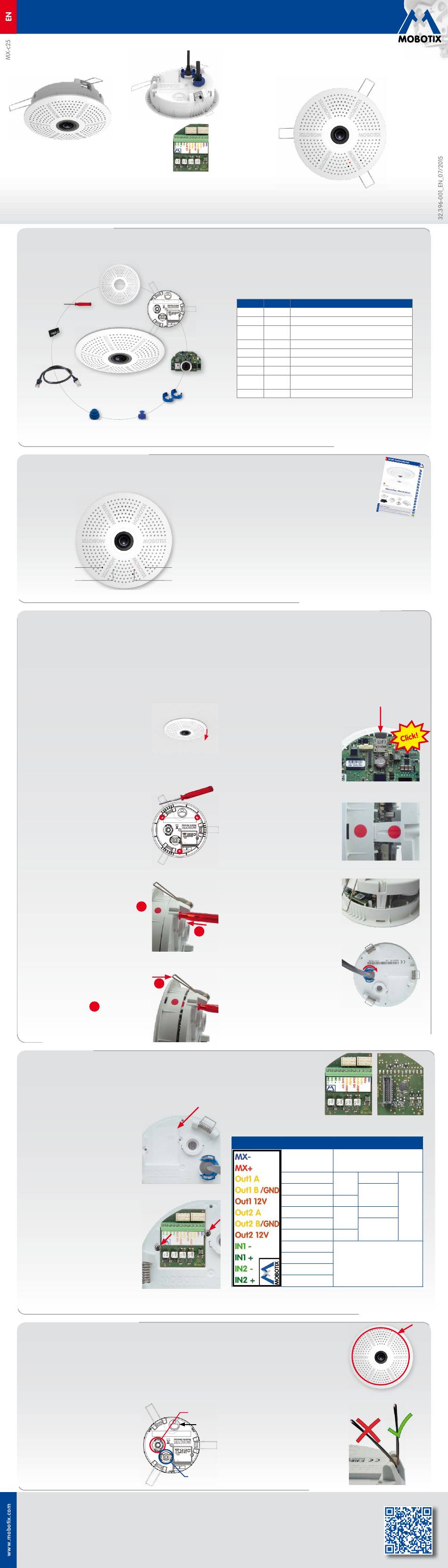

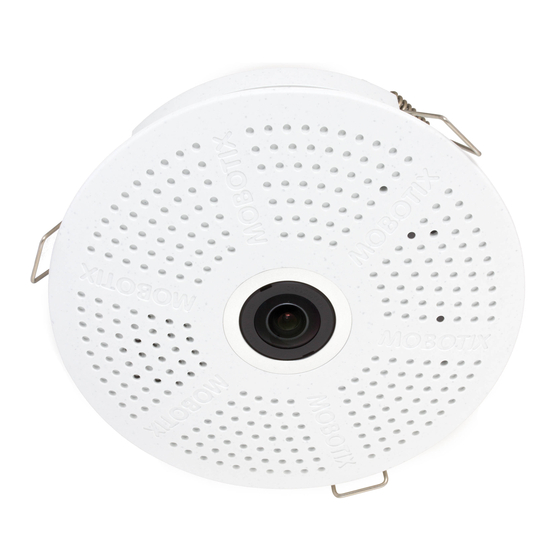

MOBOTIX c25
MX-c25
• Includes MxAnalytics video analysis tools out-of-the-box
• Recording on internal MicroSD card (SDXC)
• Signal inputs/outputs and MxBus via optional MX-Bus-IO-Module
• Audio package variant (with microphone and speaker) available
• Sensors for temperature, illumination, shock detection integrated
• Installation is as simple as installing a ceiling spotlight
1.9
1.8
1.7
1.6
"R" key
Power/Status
All camera models can use the integrated MicroSD card (SDXC) to record video data. In order to exchange the MicroSD card, please proceed as outlined
in the following instruction. For information on reliable SD cards, please see the MOBOTIX website www.mobotix.com > Support > MX Media Library >
Planning in the document MicroSD Card Whitelist for MOBOTIX Cameras . If the camera has not yet been installed, skip step 1.
Caution: In order to avoid damage from electrostatic discharge, you should touch a grounded device before opening the housing of the camera (e.g.,
the blank metal at the back of a computer). This will remove any static electricity that may have built up.
1. Remove camera, remove cables
Pull the camera from its position by gently pulling
the camera downward on one side, then the
Take care to NOT let the spring clips
other side.
snap forward (this may hurt you!).
cables that are attached to the connectors on
the back side.
2. Locate the locks
In order to remove the back plate, you will need
to push the delivered disassembly tool (item 1.9)
into the three holes on the back one after the
other to release the locks (see red circles in figure).
3. Remove back plate
Insert the disassembly tool into a lock and press
firmly until you feel a perceptible resistance
Gently push against the nearest spring clip to
push the lock out of its seat and to lift the back
2
plate from the housing .
Repeat the process for the two other locks and
cautiously lift the back plate from the housing.
For the c25, you can use the optionally available MX-Bus-IO-Module to attach MxBus devices (e.g., an MX-GPS-Box),
to attach external sensors using the signal inputs and to switch other devices via the signal outputs.
1. Insert the MX-Bus-IO-Module
On the back of the camera, remove the
sticker that protects the receptacle and the
camera's interior from collecting dirt (see
red arrow in figure to the right).
Carefully push the module board onto the
receptacle. Secure the module board using
the two supplied Phillips screws (red arrows
in figure).
When attaching the connection wires to the
MX-Bus-IO-Module, make sure the wires
are guided to the module without tension
(you could apply a cable tie and tie the
wires to the network cable, for example).
Use the drilling template on the back for this purpose (red circle) or draw a circle with 105 mm/4.13 in diameter for the
cut-out. Cut out the hole for the camera, then guide the Ethernet cable and any other cables you want to attach to the
camera through the hole.
1. Connect the cables
Insert the cables into the appropriate con-
nectors and fasten them using the blue
bayonet catches.
Make sure that the camera points into the
desired direction: The icon on the back (black
arrow) shows the "up" direction of the image.
Innovations – Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made
high-resolution video systems cost-efficient.
MOBOTIX AG • D-67722 Langmeil • Phone: +49 6302 9816-103 • Fax: +49 6302 9816-190 • sales@mobotix.com
MX-Bus-IO-Module
for MxBus modules and
signal inputs/outputs
(accessory)

c25 Standard Delivery

1.1
1.2
1.4
1.5

Connection and Initial Operation of the c25

"L" key
Recording

Inserting/Exchanging the SD Card

Remove all
1
.
1
2

Installing the MX-Bus-IO-Module

Installing the c25
Ethernet
"Up"
USB
Hemispheric c25
Compact Hemispheric Camera
MOBOTIX 6MP camera for unobtrusive indoor applications,
available as Day or Night version with MX-B016 (Hemispheric) or MX-
B036 (103°) lens
More information available under www.mobotix.com > Products >
Hemispheric c25
Item Count
1.1 1
1.2 1
1.3 1
1.4 2
1.5 1
1.6 1
1.3
1.7 1
1.8 1
1.9 1
For information on connecting the c25, please see
the Q25 Camera Manual , Section 2.9, «Network and
Power Connection, Additional Cables» .
Regarding the initial operation of the c25, please see
the Q25 Camera Manual , Chapter 3, «Initial Opera-
tion» and follow the instructions for wall mounting.
Use a suitable device for operating the camera keys (e.g., an opened
paper clip).
4. Remove/insert SD card
If a MicroSD card has been installed, gently
press with your finger as indicated by the
arrow until you hear a click . Then release
the SD card. The card is protruding slightly
and can be easily removed.
Insert the new MicroSD card and gently
press with your finger as indicated by the
arrow until you hear the click .
5. Attach back plate
Make sure that the SD card is properly
locked in place, since the card can be
damaged otherwise.
the wide lock (next to the SD card) into the
camera housing as shown. From the fac-
tory, the lock and the corresponding slot
color mark
are highlighted by
Make sure that the two other locks are also
properly positioned, then press the back
plate into its seat until you hear all three
locks click into place.
6. Re-connect the cables
Insert the Ethernet cable and – if installed –
the USB cable into the corresponding sockets
and secure the connectors using the blue
bayonet catches.
Press the spring clips back and insert the
camera into its original mounting position
(see «Installing the c25» ).
To finish, make sure that the camera image is properly aligned: If required,
cautiously turn the camera to adjust image alignment.
2. Attach the connection cables
Attach the connection wires as shown in the terminal connector overview.
2. Install the c25
Press the spring clips back and insert the
c25 into the hole for the camera. The spring
clips will snap outwards, thus firmly holding
the camera in place.
Make sure that you only press back the
spring clips as shown in the image. Do not
press them back any further as the springs
may snap out of their fixtures otherwise.
Security-Vision-Systems
for Ceilings
Part Name
Housing (installed)
Back plate with spring clips (installed)
