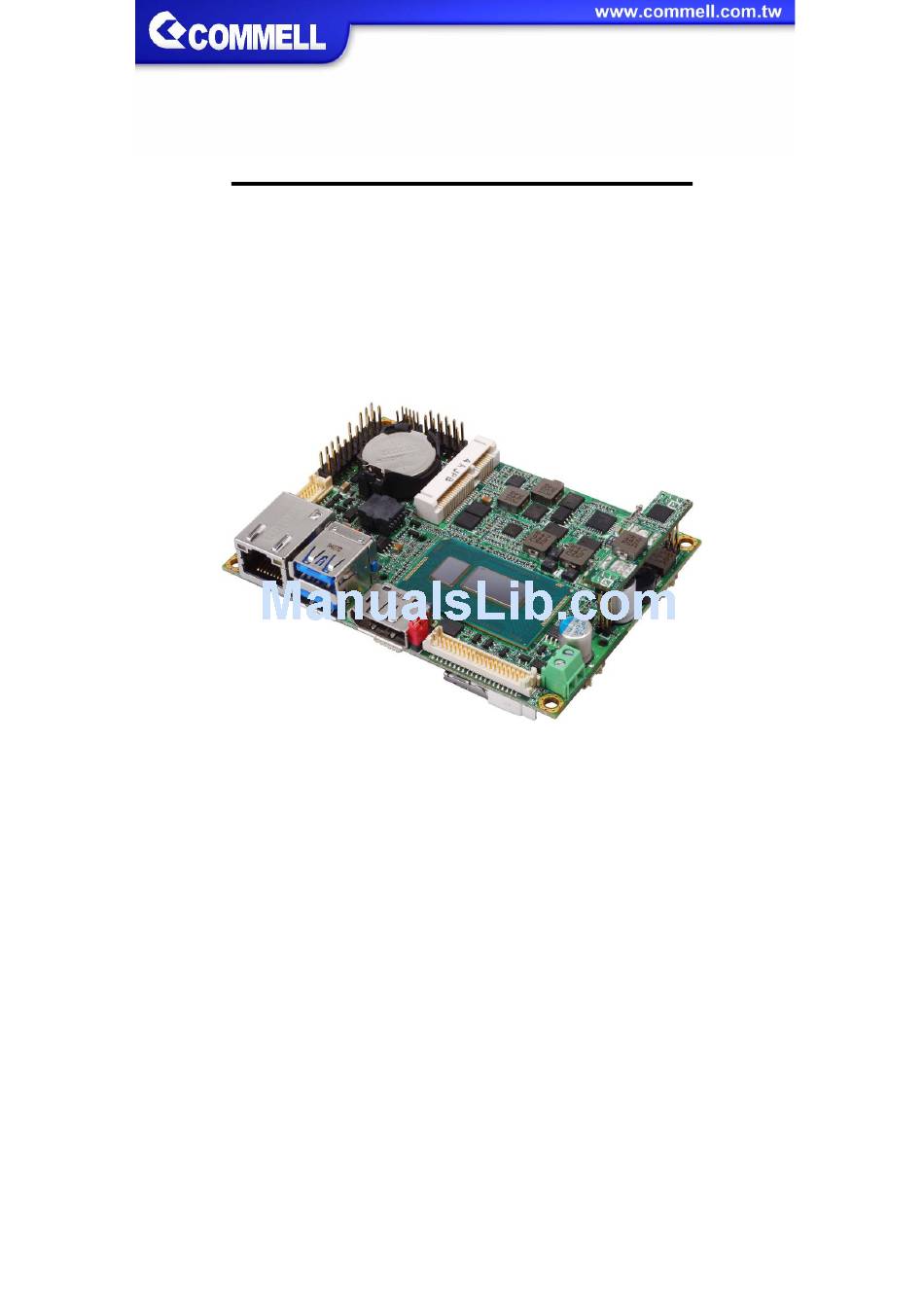

- Page 1 LP-174 Pico-ITX Motherboard User’s Manual Edition 1.0 2015/07/21...
- Page 2 LP-174 User’s Manual Copyright Copyright 2015, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LP-174 User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LP-174 Pico-ITX Motherboard (include Cooler Fan) 1 x SATA & SATA Power Cable 1 x PS/2 Keyboard & Mouse cable (OALSATA22B-PM15SH15 / 1040512) -
Page 4: Table Of Contents
LP-174 User’s Manual Index Chapter 1 <Introduction>............... 4 1.1 <Product Overview>................. 4 1.2 <Product Specification> ................5 1.3 <Mechanical Drawing>................6 1.4 <Block Diagram>..................7 Chapter 2 <Hardware setup>............8 2.1 <Connector Location and Reference> ............. 8 2.1.1 <Internal connectors list> ............. 9 2.1.2 <External connectors list>... -
Page 5: Chapter 1

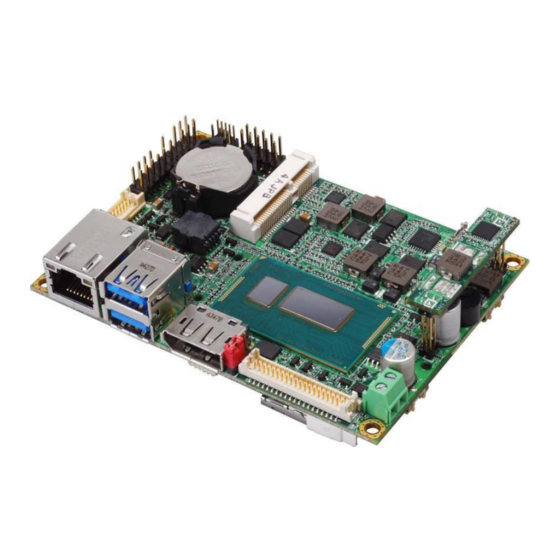

LP-174 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-174 is Pico-ITX Motherboard which supports 5 Generation Intel® Core™ U-series i7, i5, i3, Celeron Mobile Processor with Wildcat Point PCH-LP, integrated HD Graphics, DDR3L memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3 with AHCI function for a system. -
Page 6: Product Specification
LP-174 User’s Manual 1.2 <Product Specification> System Intel® Haswell/Broadwell Core™ i7, i5, i3, Celeron U-series Processor Processor FCBGA1168 with MCP Chipset Wildcat Point-LP 1 x DDR3L SO-DIMM 1333/1600 MHz up to 8GB Memory Support Non-ECC, unbuffered memory only Watchdog Timer... -
Page 7: Mechanical Drawing
LP-174 User’s Manual 1.3 <Mechanical Drawing>... -
Page 8: Block Diagram
LP-174 User’s Manual 1.4 <Block Diagram> DDR3L PTN3460 Channel A SO-DIMM 1 x LVDS PCIe x1 I218-LM 1 x DisplayPort PCIe x1 Gen Processor MiniPCIe SATA3 / mSATA 1 x DVI-D SATA3 1 x SATA3 SPI Flash PCH-LP USB3.0 SMBus 2 x USB3.0... -
Page 9: Chapter 2
LP-174 User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> DisplayPort CN_LVDS DC_IN CN_LPC CN_DVI CN_USB MINI_CARD CN_PS2 JFRNT CN_AUDIO CN_SMBUS CPUFAN SO-DIMM DC_OUT SYSFAN CN_INV CN_COM1/2 CN_SATA... -
Page 10: Internal Connectors List
LP-174 User’s Manual 2.1.1 <Internal connectors list> Connector Function SO-DIMM 204-pin DDR3 SO-DIMM slot CN_SATA 10-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV... -
Page 11: Jumper Location And Reference
LP-174 User’s Manual 2.2 <Jumper Location and Reference> JVLCD JRTC JMSATA 2.2.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard mSATA Setting 2.2.2 <Clear CMOS and Power on type selection> JRTC: Clear CMOS data jumper... -
Page 12: Installing The Memory
LP-174 User’s Manual 2.3 <Installing the Memory> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch. -
Page 13: I/O Interface
LP-174 User’s Manual 2.4 <I/O interface> 2.4.1 <Serial ATA interface> CN_SATA: SATA3 10-pin connector Signal CN_SATA 2.4.2 <Ethernet interface> The board provide I218-LM Gigabit Ethernet which supports WOL on rear I/O. It supports Intel® AMT 10.0 feature. (Note that the CPU must support vPro technology, ex: i7-5650U) -
Page 14: Display Interface
LP-174 User’s Manual 2.4.3 <Display interface> Based on the 5th/4th Gen CPU with built-in HD Graphics, the DisplayPort up to 3840x2160 @ 60Hz on rear I/O. About the internal Display, the DVI-D resolution up to 1920x1200 @ 60Hz and LVDS (PTN3460) up to 1920x1200 @ 60Hz support 24-bit color depth and dual channel. - Page 15 LP-174 User’s Manual CN_DVI: DVI 20-pin connector Signal Signal TMDS_TX0- TMDS_TX0+ TMDS_TX1- TMDS_TX1+ TMDS_TX2- TMDS_TX2+ TMDS_CLK- TMDS_CLK+ CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+...
-
Page 16: Serial Port Interface
LP-174 User’s Manual CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) 2.4.4 <Serial Port interface> CN_COM1/2 CN_COM1/2: RS232 20-pin connector Signal Signal DCD1 RXD1 TXD1 DTR1... -
Page 17: Usb Interface
LP-174 User’s Manual 2.4.5 <USB interface> USB3.0 CN_USB CN_USB: Front panel USB2.0 10-pin header (Pitch 2.54mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ 2.4.6 <Audio interface> CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 1.27mm x 2.54mm) Signal Signal... -
Page 18: Expansion Slot
LP-174 User’s Manual 2.4.7 <Expansion slot> JMSATA MINI_CARD MINI_CARD have some special design to compatible our MiniPCIe card (ex: MPX-574D2, MPX-210D2 etc) and support mSATA set by JMSATA JMSATA: Setting MINI_CARD to support PCIe/mSATA Jumper settings Function Support mSATA Normal operation (Default) 2.4.8 <Front panel switch and indicator>... -
Page 19: Other Interface
LP-174 User’s Manual 2.4.9 <Other interface> CN_LPC CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB CN_LPC support TPM module. CN_SMBUS: SMBus 5-pin connector CN_SMBUS Signal SMBDAT SMBCLK CPUFAN: CPU cooler fan 3-pin connector... -
Page 20: Power Supply
LP-174 User’s Manual 2.5 <Power supply> 2.5.1 <Power input> DC_IN DC Board The DC Board support 9~24V wide voltage input. If the board doesn’t have DC Board, the power only support 12V input. DC_IN: Terminal Block 2-pin power connector Signal... -
Page 21: Appendix A
LP-174 User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.commell.com.tw/Download/BIOS/FPT10.rar The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the BIOS flash chip and update the BIOS. -
Page 22: Appendix B
LP-174 User’s Manual Appendix B <Programmable Watch Dog Timer> Timeout value range 1 to 255 Minute and Second Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device... -
Page 23: Contact Information
19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is a brand name of Taiwan Commate computer Inc. -22-...
