The purpose of this guide is to provide the basic operation for this equipment. For detailed information,
see the operator's manual in the supplied CD-ROM. You can get the latest version of the manual by
accessing the quick response code at the back of this guide.
iPhone, iPod and iPad are trademarks of Apple Inc. Android is a trademark of Google Inc. All brand and
product names are trademarks, registered trademarks or service marks of their respctive holders.

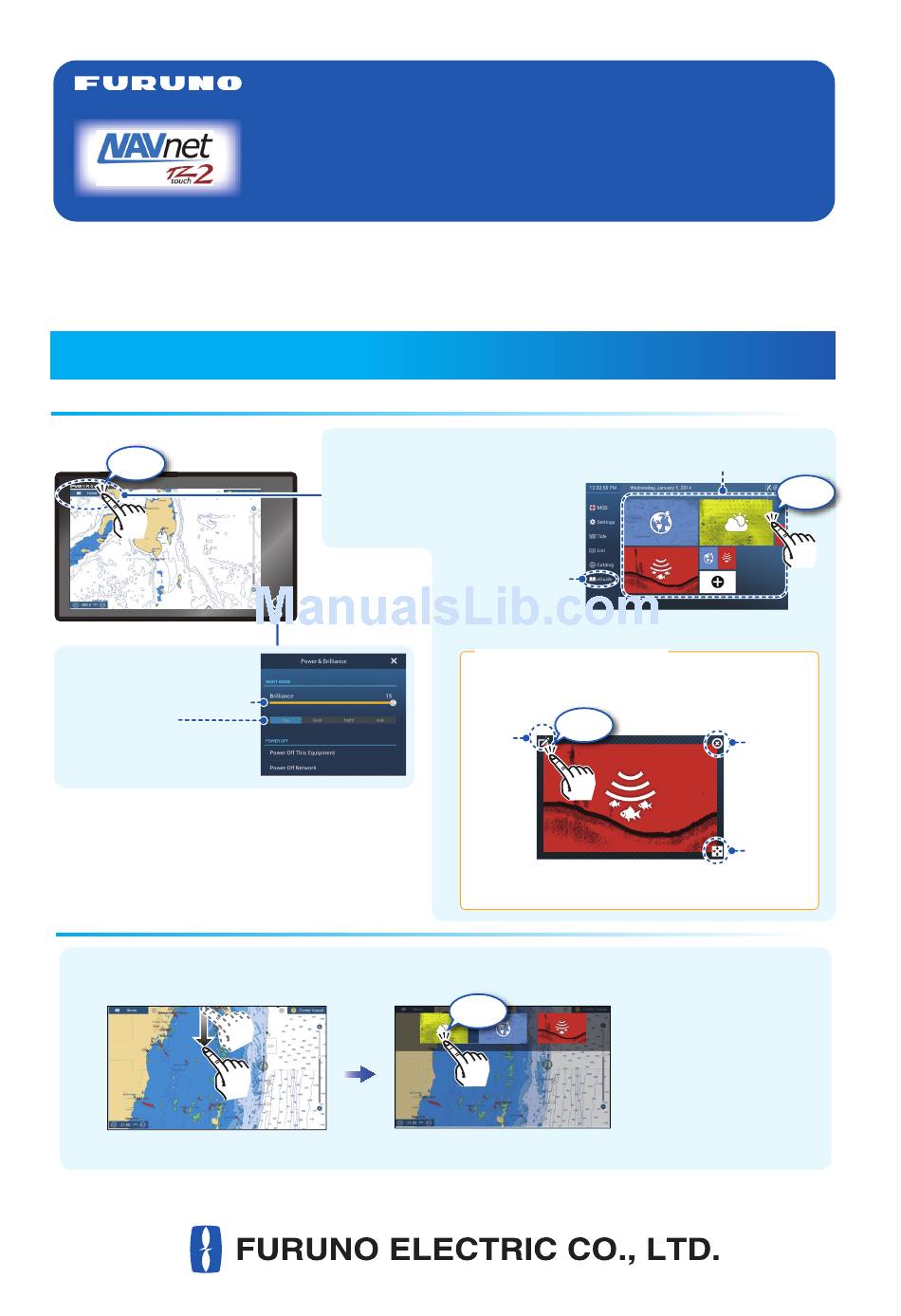

Operational Overview
Home screen operations
Home screen operations
Tap
POWER switch
POWER switch
- Power on/off.
- Adjusts display brilliance.
- Changes hue.
How to select a display
How to select a display
- From the home screen (see above)
- From the quick page

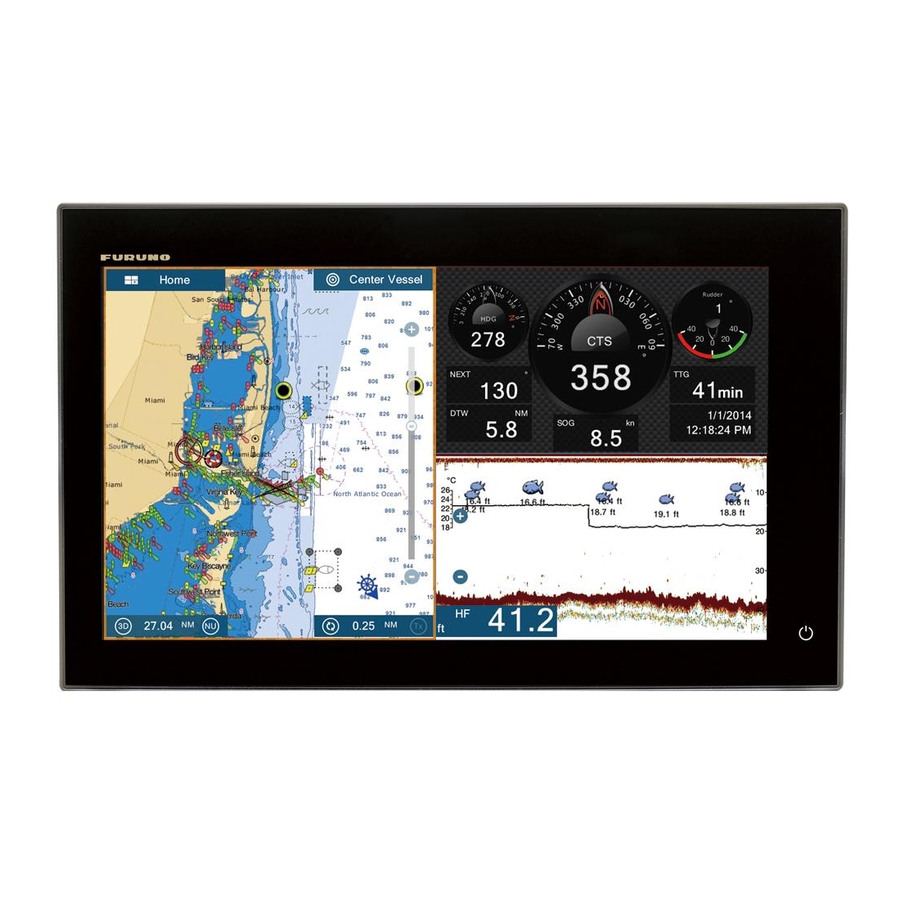

MULTI FUNCTION DISPLAY
TZTL12F/TZTL15F
Model
Home icon
Home icon
Displays the home screen.
www.furuno.com
Operator's Guide
"eGuide" provides
an abbreviated
operator's guide.
How to edit a display icon
Long tap a display icon to edit, delete, resize, or
change its location.
Tap
Edit
Display icon long tapped
Tap
Quick page
Quick page
Quick page
Quick page
Quick page
Display icons
(max. 10)
Home screen
Home screen
Home screen
Home screen
Home screen
Delete
Size
(large or
small)
The quick page has the display
icons selected to large size on
the home screen.
Tap

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TZTL12F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Furuno TZTL12F

Summary of Contents for Furuno TZTL12F

  • Page 1 MULTI FUNCTION DISPLAY TZTL12F/TZTL15F Model Operator’s Guide The purpose of this guide is to provide the basic operation for this equipment. For detailed information, see the operator’s manual in the supplied CD-ROM. You can get the latest version of the manual by accessing the quick response code at the back of this guide.

  • Page 2: Menu Operation

    Touchscreen operations Touchscreen operations Touchscreen operations Drag - Select an item on a menu. - Move the chart. - Select an object to show the - Scroll the menu. corresponding pop-up menu. Two finger tap Two finger pinch Slider bar Slider bar Slider bar Slider bar...

  • Page 3: Data Area (Data Box)

    Plotter Data area Heading line Return own ship to screen center Inactive route (expanded) Point Boat icon Boat icon Track Inactive route (sleeping) Switch between 2D (Departure or DATA ROUTE RADAR DATA ROUTE RADAR Orientation Mode and 3D. (Drag upward arrival point, Switch between with two fingers also.)
  • Page 4 Points Points can be entered on the plotter and radar displays to mark important locations such as a good fishing spot. Point attributes (position, symbol type, color, etc.) are recorded to the points list. How to enter a point The point is entered on the screen.
  • Page 5 Routes Routes A route is comprised of a series of waypoints leading to a destination. Routes are saved to the routes list. How to create a new route Tap the next point for the route. Tap the first point for Repeat to enter all points for the route.
  • Page 6 Radar Guard zone Guard zone Heading line Heading line North mark North mark Return own ship icon to screen center. Data area Slider Gain Rain DATA ROUTE RADAR Own ship position Own ship position Range Fixed range rings How to switch between standby and TX How to switch between standby and TX TX X : TX...

  • Page 7: How To Set A Guard Zone

    How to measure the range, bearing from own ship to a target How to measure the range, bearing from own ship to a target Target Target Tap a target to show its range and bearing from own ship. How to set a guard zone How to set a guard zone A guard zone alerts you (with aural and visual alarms) when a radar target enters the area you specify.

  • Page 8: Arpa Operation

    ARPA ARPA Operation Operation ARPA is an anti-collision aid that tracks the movement of other ships to help prevent collision. ARPA not only tracks other ships but also provides their navigation data. Targets can be acquired manually, automatically, or both automatically and manually. How to activate, deactive ARPA 2:01 PM ARPA activated...
  • Page 9 CPA/TCPA alarm The CPA/TCPA alarm releases aural and visual alarms when both the CPA and TCPA of a tracked target are equal to or lower than the CPA/TCPA alarm setting. CPA: Closest point of approach TCPA: Time to closest point of approach How to set the CPA/TCPA alarm How to set the CPA/TCPA alarm Home screen...

  • Page 10: Ais Target Symbols

    The proximity AIS target alarm releases aural and visual alarms when the distance between own ship and an AIS target is less than the alarm value. Home screen Set the alarm value, then tap [ ]. How to show AIS target data How to show AIS target data FURUNO FURUNO 987654321 987654321 target target...

  • Page 11: Fish Finder

    Fish Finder Depth Temperature graph* scale Temperature scale* Fish Slider mark Bottom echo 11.0 Requires appropriate transducer. A-scope Frequency, depth Requires temperature sensor. display How to select a frequency How to select a frequency Low frequency: For “normal” use. High frequency: For detailed observation of schools of fish. Dual frequency: Show both the low and high frequency pictures.

  • Page 12: How To Select The Operating Mode

    How to select the operating mode operating m operating m The fish finder is available in automatic and manual operation. For automatic operation, gain, clutter and automatic and manu TVG are automatically adjusted. Auto mode Manual mode 750- Manual mode How to change the range How to change the range Pinch screen.

  • Page 13: Zoom Display

    Zoom display Zoom display Search for bottom fish. 750- Find bottom contour and hardness. Short tail: Soft bottom Long tail: Hard bottom ACCU-FISH ACCU-FISH ACCU-FISH measures the size and depth of individual fish and shows that information on the screen. How to set ACCU-FISH Home screen Set fish info to [Fish Size] or [Depth],...

  • Page 14: Instrument Display

    Instrument Display With connection of appropriate sensors, the instrument display shows various navigation data. How to enable the instrument display How to enable the instrument display Add an instrument display icon to the home to screen to show the instrument display. Drag After setting, tap [ ].

  • Page 15: Wireless Lan Setting

    Wireless LAN Setting You can connect to the internet with the wireless LAN signal to download weather information and to connect to an iPhone, iPod, iPad, or Android device. How to connect to an existing LAN Connect to the existing LAN to download weather data or update the software. Home screen Select [When Necessary], then tap “<”.
  • Page 16 Enter the name of the network, then tap [ ]. X X X X X X X XXXXXXXX Enter the password, then tap [ ]. Connect to the NavNet TZ touch 2 from the smart- phone or tablet. PUB. NO. OSE-44870-A (1501, DAMI) TZTL12F/15F...
