Summary of Contents for PowerBass 4XL-80T

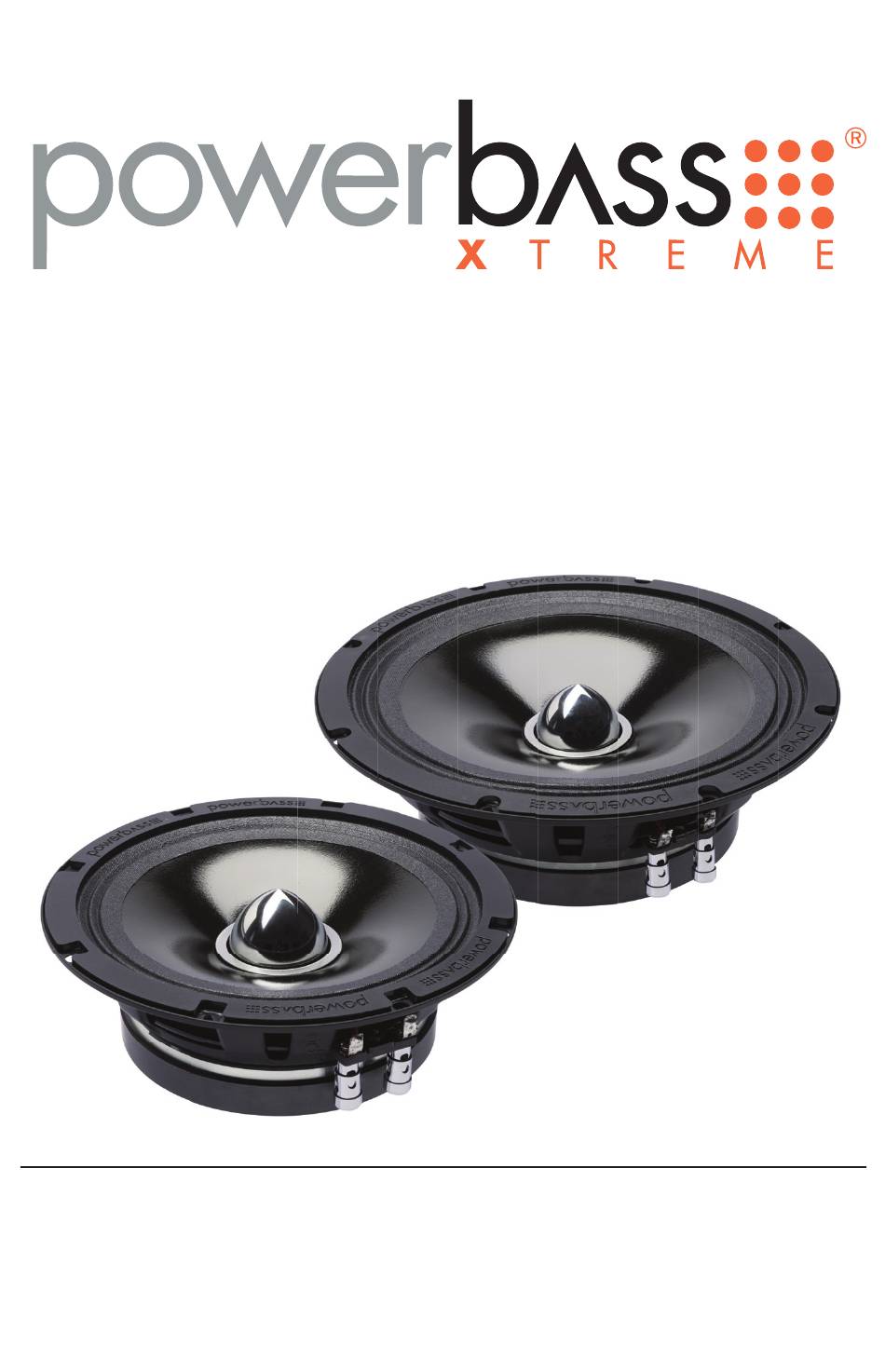

- Page 1 4XL-80T 4XL-65T Mid-Range Driver Application Guide...
- Page 3 170 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result...

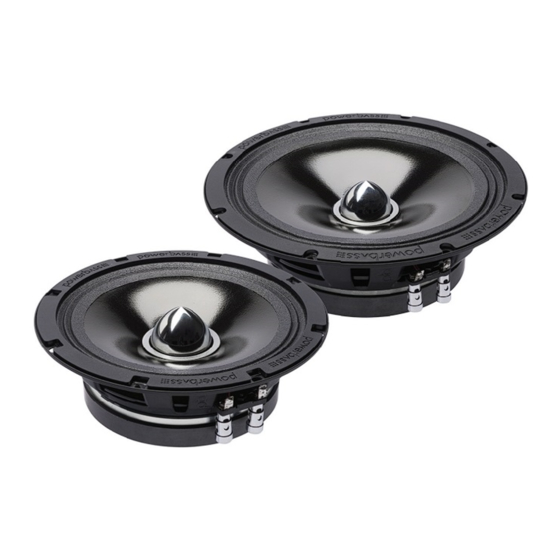

- Page 4 Infinite Baffle Mid-Range Performance: Installs on any flat panel without the need for an enclosure. Shallow Mounting Depth: 4XL-80T: 2.625”, 4XL-65T: 2.25” Perfect for newer vehicles with large but narrow door panels. Bullet Style Phase Plug: Bullet design reduces inherent phase cancellations that occur between the dust cap and the speaker cone improving frequency response while at the same time adding depth and clarity to the sound stage.
-
Page 5: Wiring Guidelines
WIRING GUIDELINES Your PowerBass Xtreme 4XL Mid Range driver uses a single 4-ohm voice coil. It is important to know the limits of your amplifier to optimize its performance. You can very the impedance by altering the wiring configurations: Series, Parallel, or Series-Parallel. Choose the wiring diagram below that corresponds to the number of speakers in your system and the impedance stability of your amplifier. - Page 6 INSTALLATION EXPERIENCE Installation of PowerBass Xtreme speakers requires experience with a variety of mechanical procedures including enclosure construction. This manual only provides general installation and operation instruc- tions. If you have any reservations about your installation skills, please contact your local Authorized PowerBass Xtreme dealer for assistance.
-
Page 7: Door Mounting
• Check to see if there is enough clearance behind the mounting surface before drilling holes or install- ing screws for proper speaker ventilation. • Also make sure there’s enough front clearance for speaker cone excursion. Failure to do this could cause the cone to vibrate against any obstructing object. - Page 8 4XL-80T: For optimum performance of your 4XL-80T mid-range driver, we recommend using an active cross- over and setting the controls at 150Hz and HPF. If the electronic crossover has settings for bandpass/midrange usage, set the controls to 150Hz in HPF (High Pass) and 5KHz in LPF (Low Pass).
- Page 9 PARAMETERS FOR 4XL MID RANGE (due to Constant Improvement, Specification and Parameter are subject to change without notice) 4XL-80T 4XL-65T VC Impedance (ohms) Test Impedance (ohms) 6.04 5.58 Fs (Hz) 74.7 86.2 SD (sqCM) 211.24 134.78 Vas (Ltr) 8.8594 9.1446 Cms (M/N) 0.140...
- Page 10 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
- Page 11 This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2017 PowerBass USA, Inc.
- Page 12 PowerBass Xtreme – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
