TREADMILL
INSTALLATION INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LifeFitness 4000

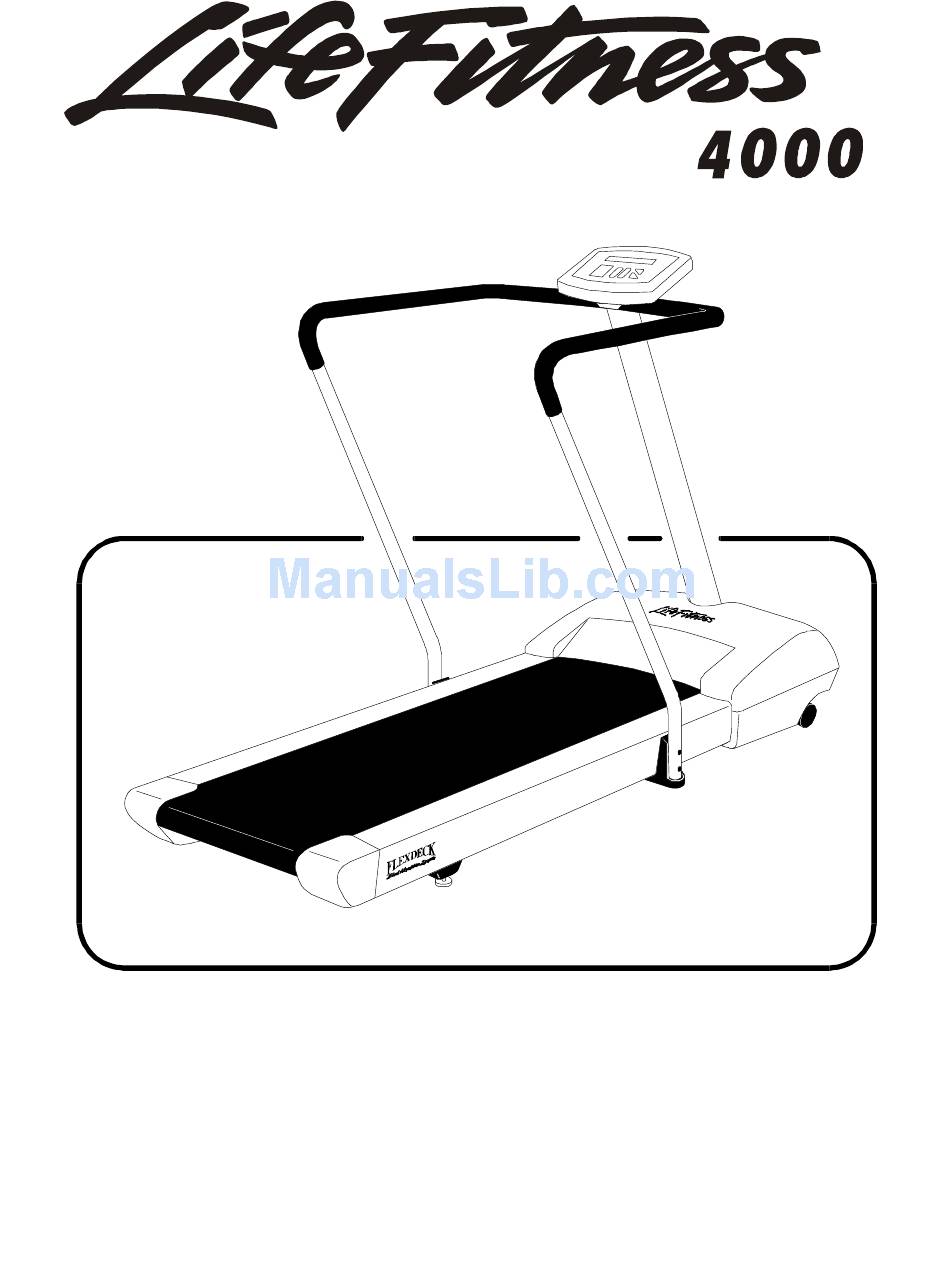

  • Page 1 TREADMILL INSTALLATION INSTRUCTIONS...
  • Page 2 Congratulations... and welcome to the world of and the Life Fitness 4000 treadmill. The following Parts Identification Listing and the step by step installation procedures have been assembled to make the set-up of this aerobic trainer as quick and easy as possible.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS ! DO NOT position the rear of the treadmill within 6 feet ( 2 meter ) of the nearest obstruction. The sides of the treadmill should maintain a minimum clearance of 8 inches ( 21 cm ) from the nearest treadmill or other obstruction.
  • Page 4: Parts Description

    OOLS EQUIRED FOR SSEMBLY... Phillips screwdriver, hex key wrench set ARTS ESCRIPTION MONOCOLUMN Qty: 1 SCREW: Qty: 1 MONOCOLUMN TO TREADMILL FRAME 0K40-01093-0001 0017-00101-0815 HANDLEBAR WITH GRIPS Qty: 1 SCREWS: Qty: 2 HANDLEBAR TO VERTICAL HANDRAILS AK40-00069-0000 0017-00101-1159 HEX KEY SCREWS: Qty: 2 VERTICAL HANDRAILS Qty: 2...
  • Page 5 ARTS ESCRIPTION (Continued)
  • Page 6 Step 1 Snap the VENT COVER off the MOTOR COVER (A) by pulling outward. Carefully untie and uncoil the WIRE HARNESS (B) tucked into the front center cutout of the MOTOR COVER. Pull gently on the WIRE HARNESS to remove any slack. Step 2 Lay the MONOCOLUMN (#1) on the STRIDING BELT and feed the WIRE HARNESS CONNECTOR (C) into the access hole...
  • Page 7: Striding Belt

    Step 8 Press the VENT COVER (14) into position on the MOTOR COVER (A). Install the two SCREWS (#19) into the corresponding holes on the sides of the VENT COVER and the notch of the MOTOR COVER and secure in place. Step 9 Plug the 12-PIN CONNECTOR (12P) of the WIRE HARNESS (B) protruding from the top of the MONOCOLUMN (#1) into the corresponding PC BOARD CONNECTOR located on the back of the DISPLAY CONSOLE (#16).
  • Page 8 After placing the unit in its intended location for use, begin a Life Fitness workout program (see Operating Instructions & Program Descriptions) but DO NOT run. It is important to ensure that the STRIDING BELT remains centered during operation. If the BELT drifts to the RIGHT, see Figure A.. If the BELT drifts to the LEFT, see Figure B.
  • Page 9 2/99...
