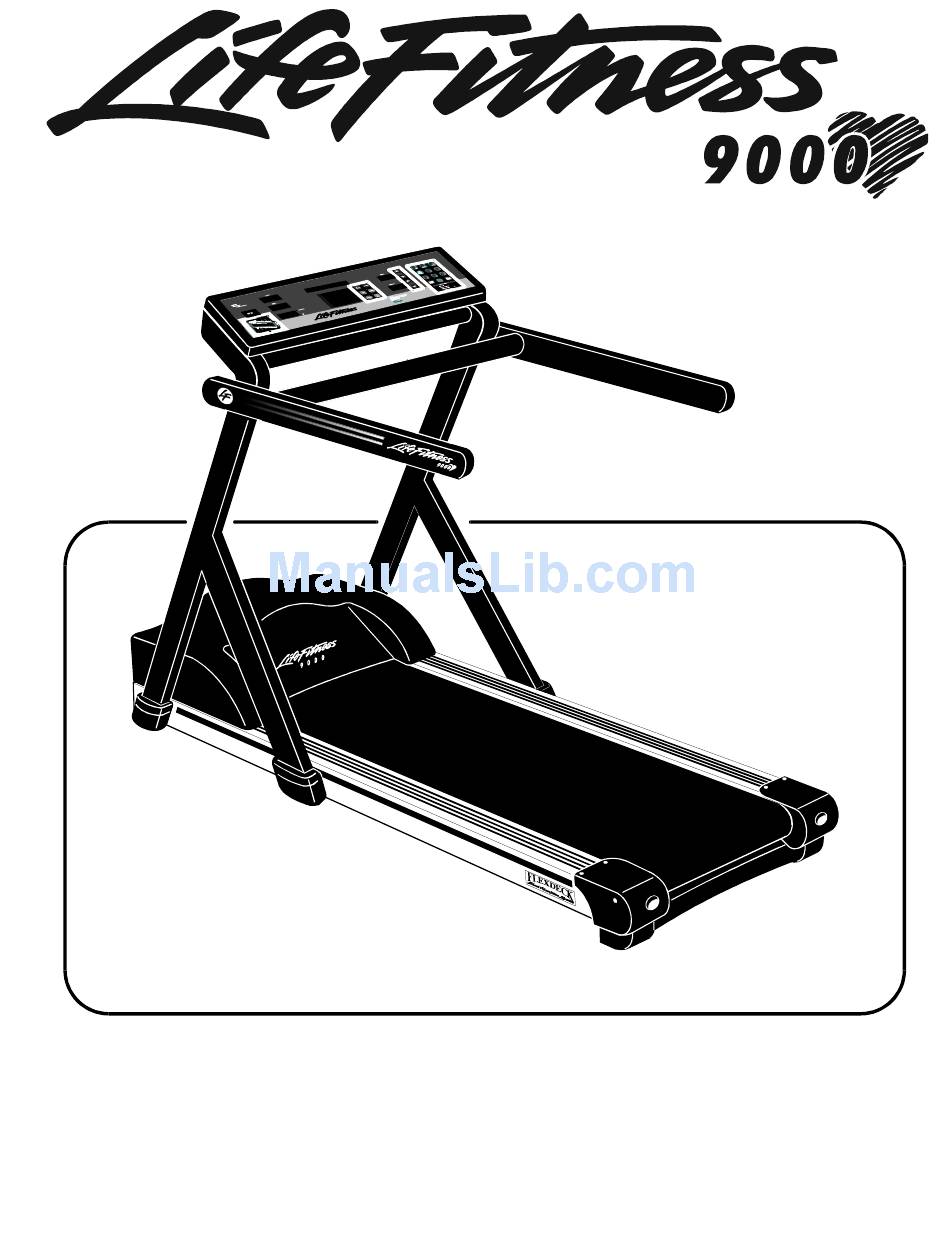

TREADMILL
INSTALLATION INSTRUCTIONS

Advertisement

loading

Related Manuals for LifeFitness 9000

Summary of Contents for LifeFitness 9000

  • Page 1 TREADMILL INSTALLATION INSTRUCTIONS...
  • Page 2 Congratulations... and welcome to the world of and the Life Fitness 9000 treadmill. The following Parts Identification Listing and the step by step installation procedures have been assembled to make the set-up of your aerobic trainer as quick and easy as possible.

  • Page 3: Safety Instructions

    49.89.310.6078. Sauvegarder les boîtes d'emballage en cas de renvoi. ⇒ Avant de faire fonctionner l'appareil Life Fitness 9000, il est nécessaire de lire tout le guide de fonctionnement. Celui-ci explique comment utiliser correctement le l'exerciseur et facilite l'élaboration d'un programme d'entraînement aérobique adapté à vos besoins de...
  • Page 4 DISPLAY CONSOLE ASSEMBLY Qty: 1 CENTER SUPPORT Qty: 1 AK26-00611-0001 AK45-00048-0000 DISPLAY CONSOLE SCREWS Qty: 4 CENTER SUPPORT SCREWS Qty: 4 0017-00101-1271 0017-00101-1007 HANDLEBAR ASSEMBLY Qty: 1 HANDLEBAR SCREW ASS’Y Qty: 2 OK26-01594-0000 AK26-00550-0000 DISPLAY CONSOLE WASHERS Qty: 4 HANDLEBAR LOCKWASHER Qty: 2 0017-00104-0268 0017-00104-0300...
  • Page 5 A 3/16” Hex key wrench Part # 0017-00009-0834 is included in the parts bag for handlebar installation. Step 1 Untie and uncoil the WIRE HARNESS attached to the front, left side of the treadmill. Pull gently on the HARNESS to remove any slack.
  • Page 6 Step 4 Position the HANDLEBAR SPACER (#24) on the RIGHT side of the HANDLEBAR (#5) and HANDLEBAR SPACER (#31) on the LEFT side of the HANDLEBAR. Locate the HANDLEBAR into position between the two HANDRAILS. The ‘HEAD’ of the CAP SCREW already installed on the HANDLEBAR should rest in the keyhole slot of the RIGHT HANDRAIL.
  • Page 7 Step 15 The treadmill STRIDING BELT is properly centered at the factory however, the Life Fitness 9000 treadmill must be leveled in the location it is to be used. After placing the treadmill in its intended location for use, check the stability of the unit.

  • Page 8: Pre-Operation Checklist

    Check to insure the WAX KIT was installed prior to operation. Before attempting to operate your Life Fitness 9000 treadmill, it is imperative that you familiarize yourself with the contents of the OPERATION MANUAL. If your treadmill does not respond as described in the OPERATION MANUAL contact the nearest Life Fitness Service Center as listed in the OPERATION MANUAL.
