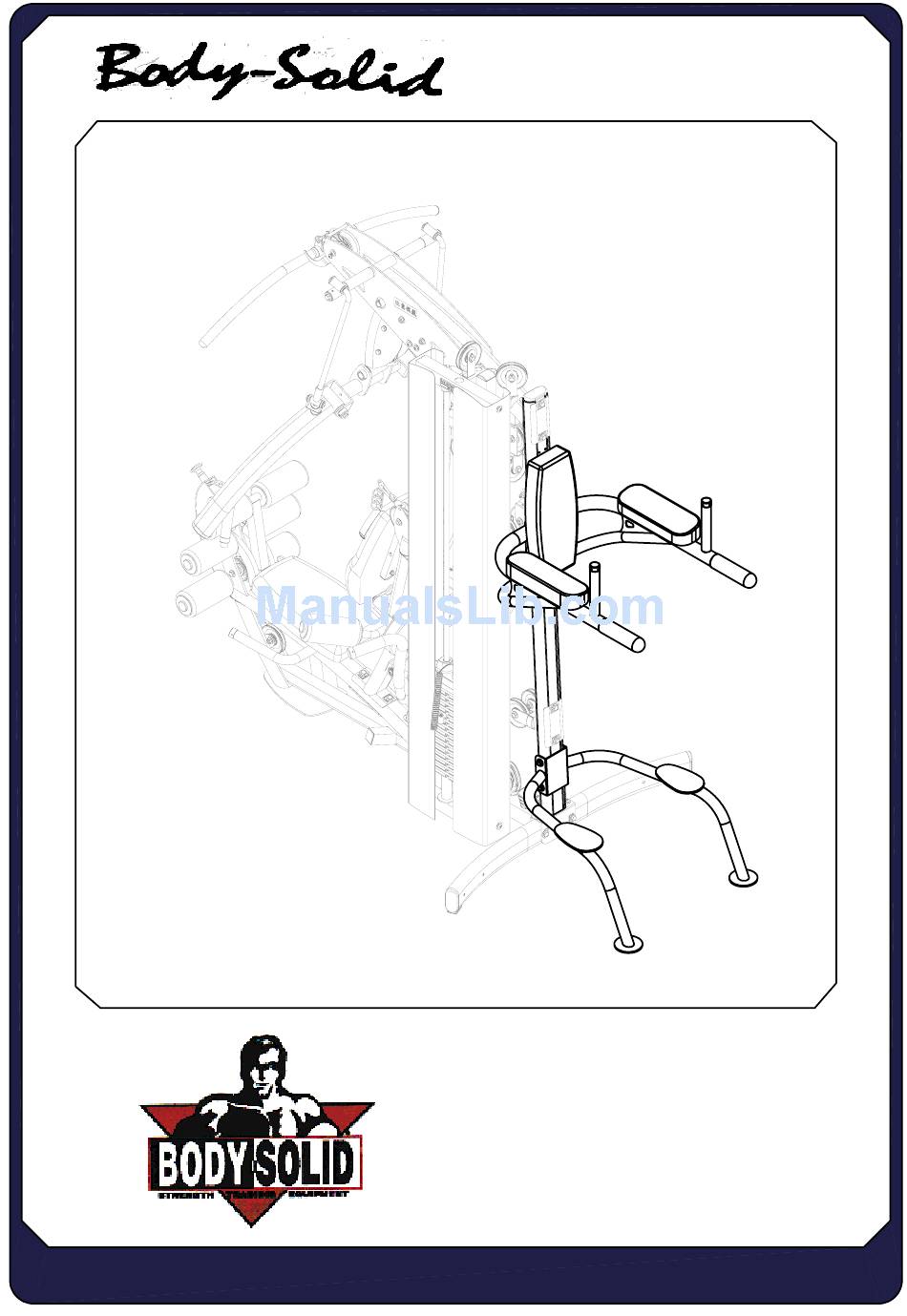

- Page 1 BODY-SOLID,Inc 1900 S.Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com FKR OWNER'S MANUAL...
- Page 2 FKR HARDWARE ILLUSTRATION SHEET A1.M8X25L HEX BOLT-------------------------------------------------------------[4PCS] A2.M8X75L HEX BOLT------------------------------------------------------------[2PCS] A3.M10X120L HEX BOLT--------------------------------------------------------[4PCS] B1.M10 NYLON LOCK NUT-------------------------------------------------------[4PCS] C1.M8 SPRING WASHER -------------------------------------------------------[6PCS] C2.M8 WASHER ------------------------------------------------------------------[6PCS] C3.M10 WASHER ----------------------------------------------------------------[8PCS] D1.NO-SLIP TAPE (9310-063)--------------------------------------------------[2PCS] Page1 FKR-072007...
- Page 3 FKR PARTS ILLUSTRATION SHEET B[1PCS] A[1PCS] C[2PCS] D[1PCS] Page 2 FKR-072007...
- Page 4 FKR ASSEMBLY INSTRUCTIONS Above shows FKR assembled and completed A2 X 2 C1 X 2 C2 X 2 C3 X 4 A3X 2 C2 X 4 B1X 2 C1X 4 A1 X 4 B1X 2 C3 X 4 A3 X 2...
