After removing drive power, the RCU returns automatically to the MAIN menu with USER or
DEFAULT indicated
c) If you are using your ACOM2000A connected by CAT to a transceiver, the USER tuning
preparation procedure is extremely simple.
- If the transceiver is FT-450, FT-950, FT-2000, FT-3000, FT-5000, FT-9000, IC-756PROIII, IC-
7410, IC-7600, IC-7700, IC-7800, K3, TS-480, TS-590, TS-990, TS-2000, or another modern
CAT protocol enabled radio, you need only to push the RCU TUNE button. ACOM 2000A will
do the rest by itself.
- If your transceiver is not one of those listed above and its output power can't be controlled
by CAT, you must set the output power to between 10 and 20W and push the TUNE button, or
reduce the power and adjust it as explained above in para 4-2b after pushing the TUNE button.

4-3. Erasing USER segments (return to DEFAULT- tunings)

If you wish to clear a USR setting for a frequency segment and/or antenna, there are two ways
this can be accomplished:
a) to clear all memorized USR-tuning settings – while in OFF MENU, select "CLEAR the USER
TUNINGS" (see S.6-5)
b) for separate segments and/or antennas:
select the segment and antenna for which you want to erase the USR-tuning (see S.4-1c,d).
enter "MANUAL MODE", select "SETTINGS" and choose "CLEAR THE SEGMENT TUNING"
(see S.5-5c)
22

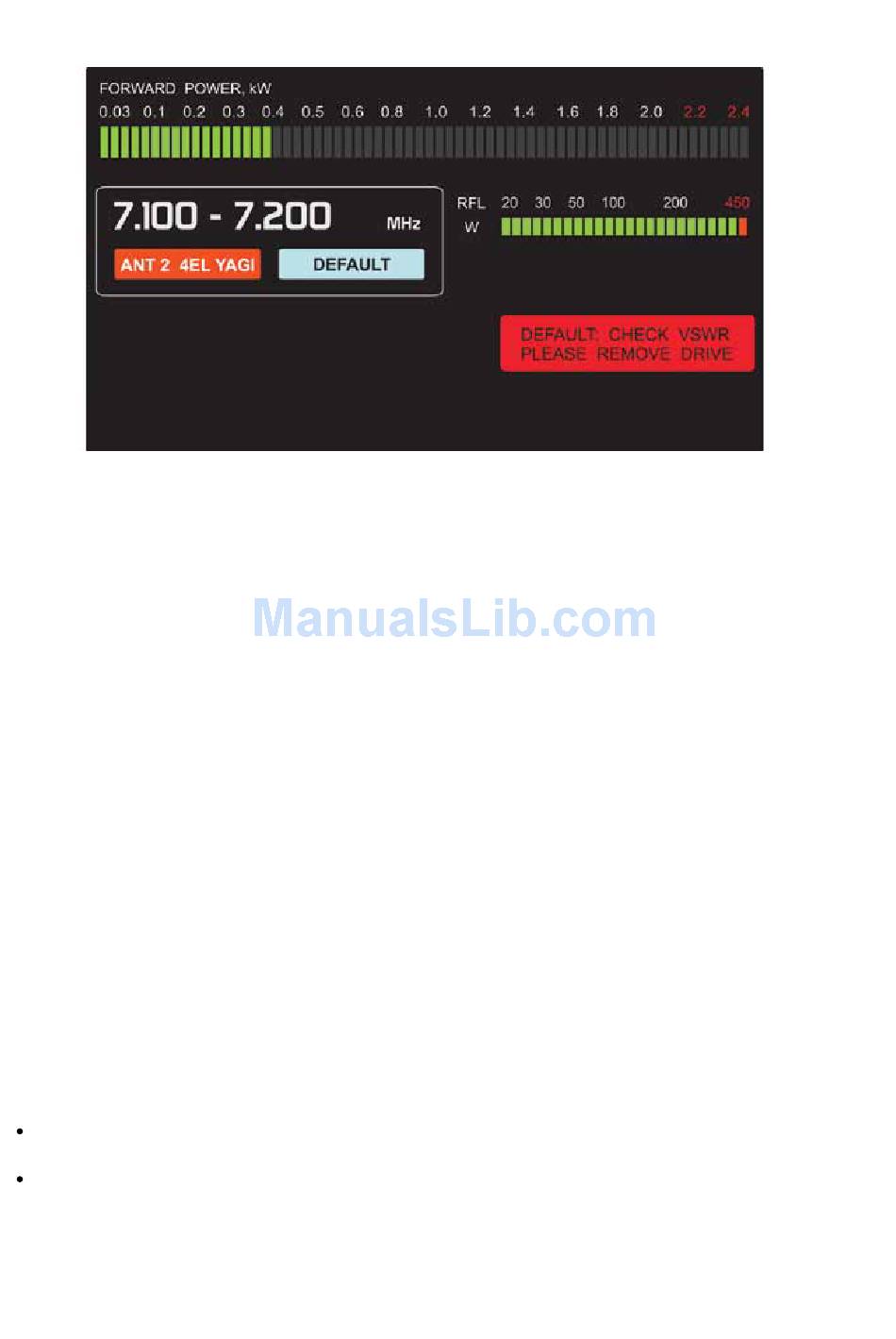

Fig.4-6 RCU display – AUTO TUNE fail
