Acom 2000A Operating Manual page 27

With the up and down buttons you can select the item to be measured (listed in an alphabetic
order).
During measuring, the amplifier can be used and controlled in OPR or STB modes, to transmit
and change the frequency segment and antenna if a new frequency is applied to it. Return to
the MAIN - menu is done by the SET/EXIT button.
The following is a list of parameters that can be measured:

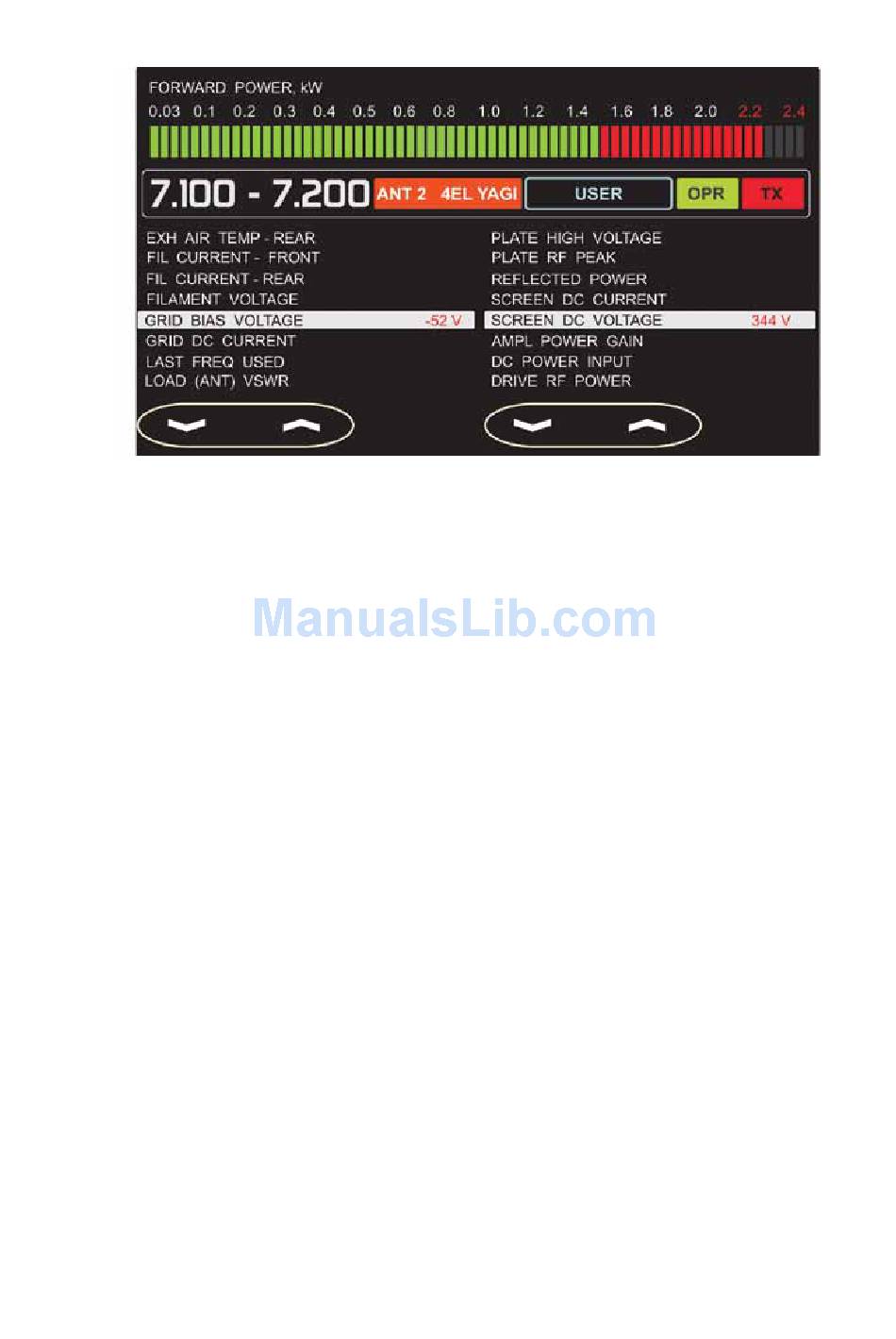

Fig.5-3 RCU display - MEASURE
AMPLIFIER POWER GAIN
DC POWER INPUT
DRIVE RF POWER
EXHAUST AIRFLOW TEMPERATURE - FRONT TUBE
EXHAUST AIRFLOW TEMPERATURE - REAR TUBE
FILAMENT CURRENT - FRONT TUBE
FILAMENT CURRENT - REAR TUBE
FILAMENT VOLTAGE
GRID BIAS VOLTAGE
GRID DC CURRENT
LAST FREQUENCY USED
LOAD (ANTENNA) VOLTAGE STANDING WAVE RATIO
LOAD (ANTENNA) FORWARD POWER
MAINS INPUT VOLTAGE
PLATE DC CURRENT
PLATE HIGH VOLTAGE VALUE
POWER REFLECTED FROM LOAD (ANTENNA)
PLATE RF AMPLITUDE (PEAK VALUE)
SCREEN DC CURRENT
SCREEN DC VOLTAGE
25
