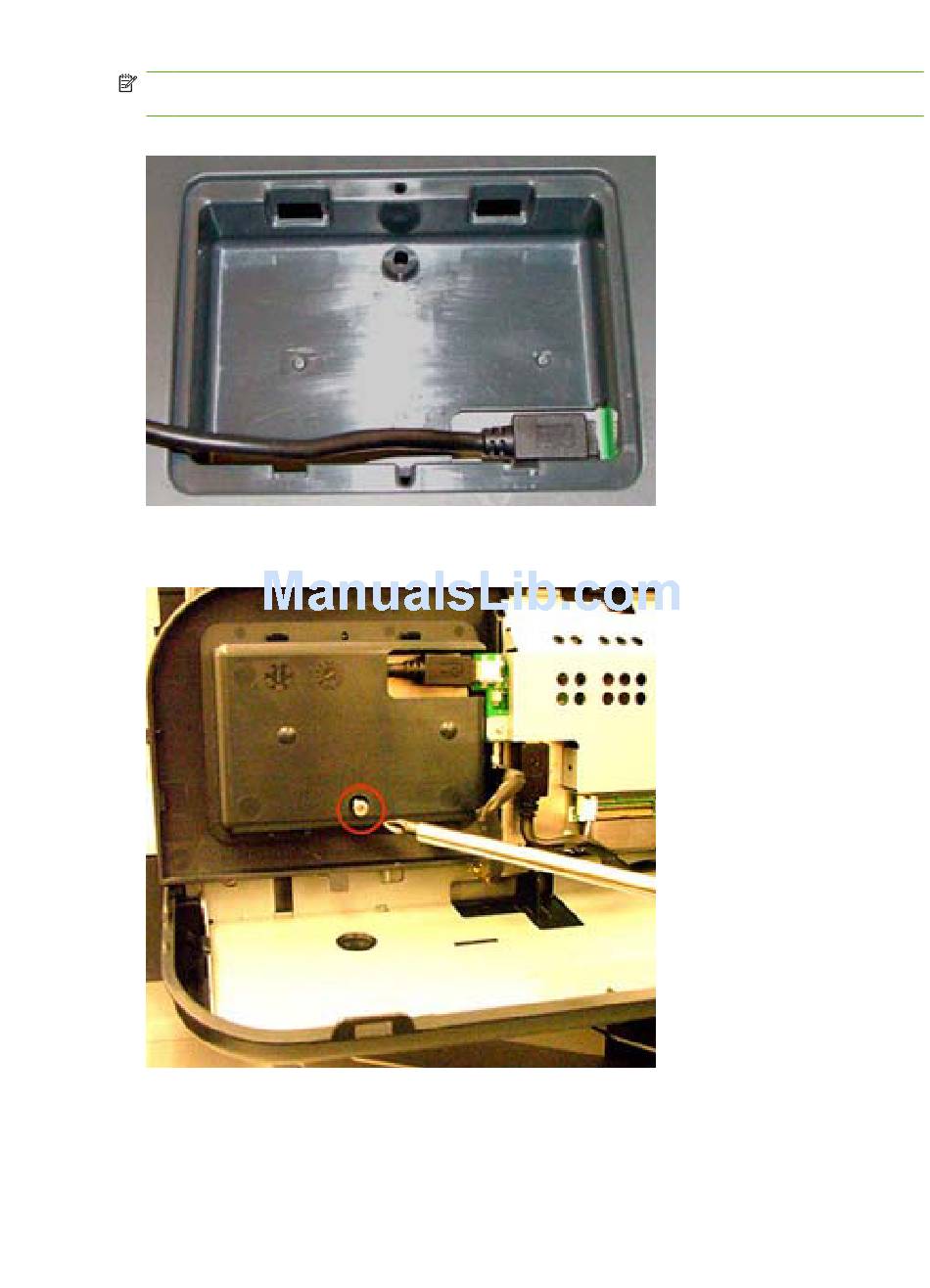

7.
Connect the HIP card reader to the internal USB port.
NOTE:
USB cable to connect the card reader to the HIP USB port.
Figure 3-5
8.
Insert a screw on the underside of the control panel assembly to secure the card reader.
Figure 3-6
ENWW
The HP device has either a mini or standard USB port. Use either the mini or standard
Connect HIP reader — HP Color LaserJet CM3530 MFP
Insert screw — HP Color LaserJet CM3530 MFP
Install HIP card reader
35
