5.

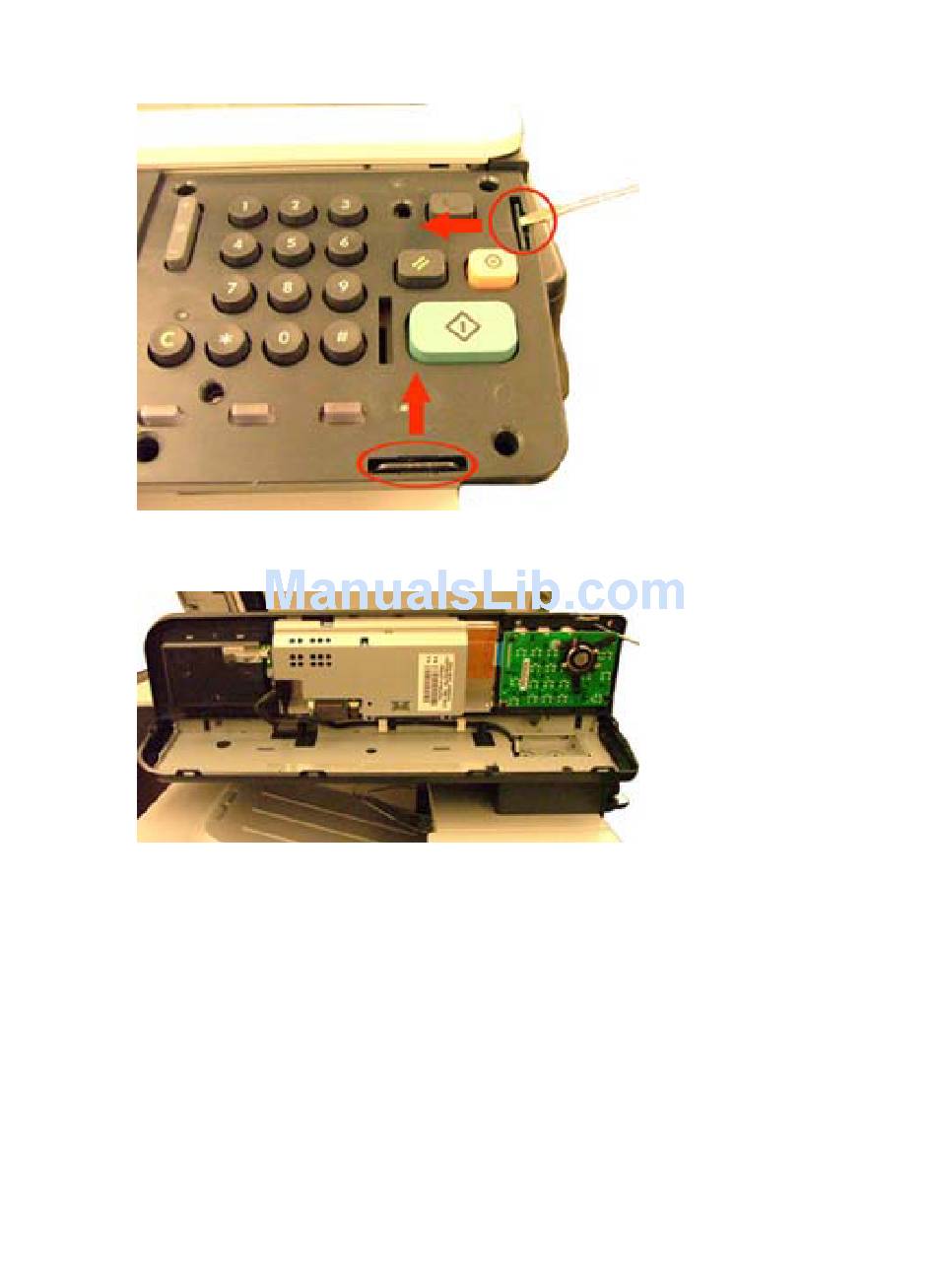

Release the tabs on the control panel assembly.
Figure 3-3
6.
Pull the control panel assembly toward the front of the device and rotate it up.
Figure 3-4
34
Chapter 3 Internal Hardware Integration Pocket (HIP) card readers
Release tabs on assembly — HP Color LaserJet CM3530 MFP
Rotate assembly — HP Color LaserJet CM3530 MFP
ENWW
