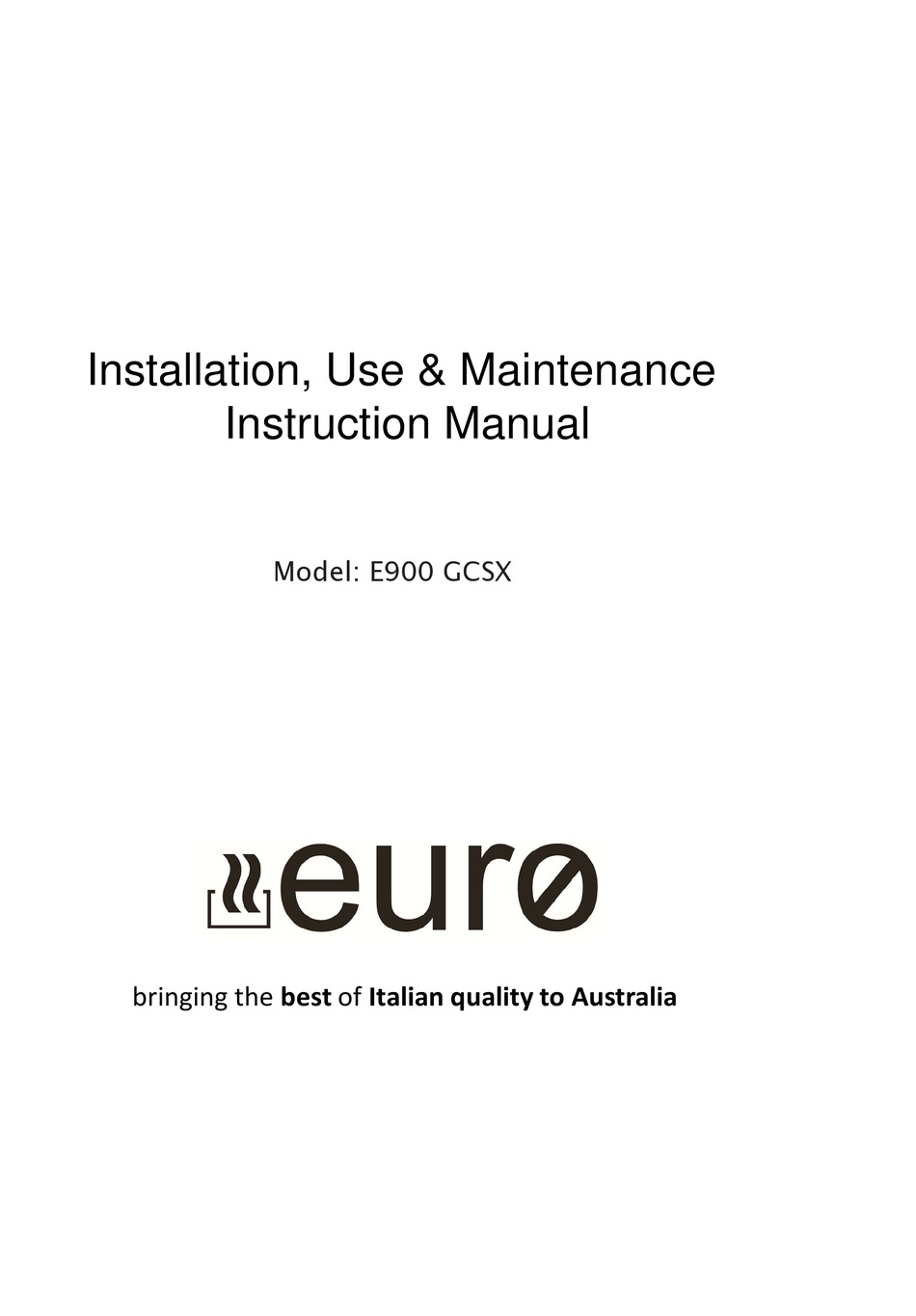

- Page 1 Installation, Use & Maintenance Instruction Manual Model: E900 GCSX Model: E90BCSS & E120BCSS bringing the best of Italian quality to Australia...
- Page 3 For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop whe- re you purchased the product. This appliance is marked according to the Euro- pean directive 2002/96/EC on waste electrical and electronic equipment (WEEE).
-
Page 4: Table Of Contents
- CONTENTS Warnings Versions Installation Working Maintenance... -
Page 5: Warnings
- WARNINGS * Children, inexperienced or disabled people can use the appliance only under the supervision of adults. * The cooker surface and the lower part of the hood must be at a minimum distance of 65 cm from each other. * The air sucked must not be conveyed through a duct used to let out fumes from appliances fed by energy other than electric power (e.g. -
Page 6: Versions
- VERSIONS The appliance is already arranged both for filtering and for suction performances. * In its filtering version (Fig.1), the air and fumes conveyed by the appliance are depured both by a grease filter and by an active coal filter, and put again into circulation through the side- grids of the chimney. -
Page 7: Installation
- INSTALLATION Wall fixing by bracket Use the special drilling template (dwg. 2A) to drill all the holes indicated into the wall. Take care not to damage water pipes and electric wires. Drill the holes with an 8-mm bit. Then insert the proper plastic plugs into the holes (dwg. 2B). The hood-supporting bracket (dwg. -
Page 8: Working
To replace the bulbs in the square press light frame where WORKING WORKING “PUSH”(Fig. 6 and Fig. 7), then repla bulb and press the frame back into plac Mod. SL A: Light switch on/off A: Light switch on/off B: Motor switch on/off (1st rate level) B: Motor switch on/off (1st rate level) C: 2nd rate level switch D: 3rd rate level switch... -
Page 9: Maintenance
- MAINTENANCE An accurate maintenance guarantees good functioning and long-lasting performance. * Particular care is due to the grease filter panel. It can be removed by pushing its special han- dle toward the back-side of the cooker hood and turning the filter downwards so to unfasten it from its slot (Fig.1). - Page 11 Fig.1 Fig.2 Fig.1 Fig.2 Fig.1 Fig.2 Fig.3 Fig.4 Fig.3 Fig.4 Fig.3 Fig.4 Fig.5...
- Page 12 Fig.8 Fig.9 Fig.10 Fig.11 Fig.12...
- Page 16 90000104050 - GM 10/14...
