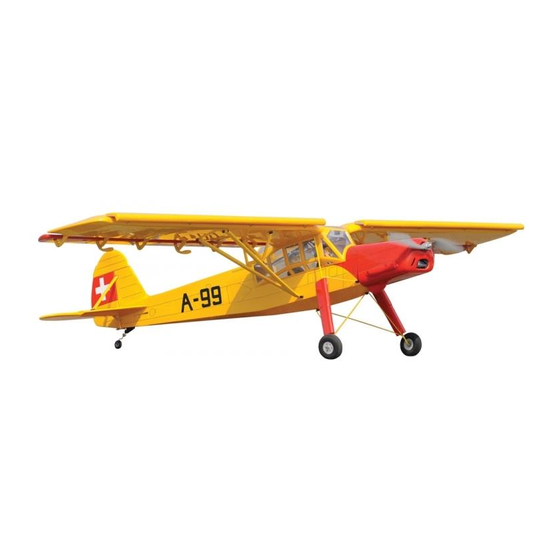

Black Horce Model FIESELER FI156C STORCH - EP Instruction Manual Book

Item code: bh128
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

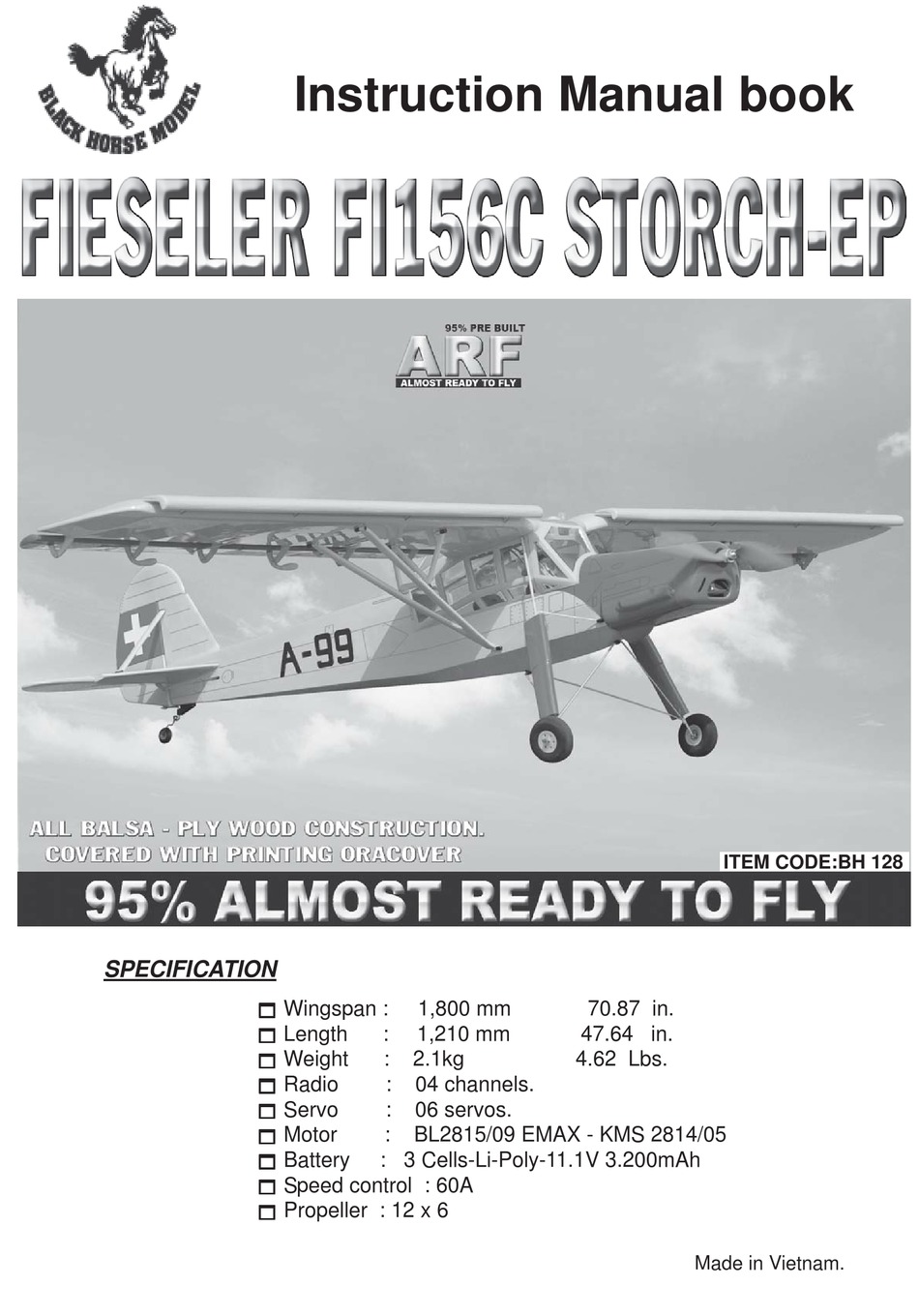

SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Motor
     Battery
     Speed control : 60A
     Propeller : 12 x 6
Instruction Manual book
1,800 mm
:
1,210 mm
:
2.1kg
:
04 channels.
:
06 servos.
:
BL2815/09 EMAX - KMS 2814/05
: 3 Cells-Li-Poly-11.1V 3.200mAh
ITEM CODE:BH 128
70.87 in.
47.64 in.
4.62 Lbs.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIESELER FI156C STORCH - EP and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horce Model FIESELER FI156C STORCH - EP

Summary of Contents for Black Horce Model FIESELER FI156C STORCH - EP

  • Page 1 Instruction Manual book ITEM CODE:BH 128 SPECIFICATION      Wingspan : 1,800 mm 70.87 in.      Length 1,210 mm 47.64 in.      Weight 2.1kg 4.62 Lbs.      Radio 04 channels.
  • Page 2 FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual This instruction manual is designed to help you build a great flying aeroplane. Please read this FIESELER FI156C STORCH - EP manual thoroughly before starting assembly of your . Use the parts listing below to identify all parts.

  • Page 3: Safety Precaution

    FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.
  • Page 4 FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual REPLACEMENT LARGE PARTS A. Fuselage. D. Rudder. E. Aluminium wing dihedral brace. B. Wing panel (B1&B2). F. Decal sheet. C. Horizontal stabilizer(C1&C2). REPLACEMENT SMALL PARTS 2a1. 2a2. 3x10mm. 1. Landing gear struts.

  • Page 5: Installing The Aileron Servos

    FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual I. AILERON. 1.INSTALLING THE AILERON SERVOS.   1) Install the rubber grommets and brass eyelets onto the aileron servos. Top side Bottom side Secure. Flap. Aileron.  2) Using a modeling knife, remove the cov- ering at possition show below.
  • Page 6 FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual A+B Epoxy PLUS glue 2x10mm. Secure. Aileron Repeat the procedure for the other wing control horn. half. INSTALLING THE AILERON CONTROL HORN. Aileron control horn Ruler Top side. A+B Epoxy...

  • Page 7: Installing The Aileron Linkages

    FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual Bottom side. INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures 2x10mm. below. M2 M2 lock nut 75 mm. Secure. 2.INSTALLING THE FLAP CONTROL HORN. Control horn of Flap.
  • Page 8 FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual C o n t r o l horn Flap. Bottom side. Ruler A i - Top side. leron. Repeat the procedure for the other wing half. INSTALLING ELECTRIC MOTOR. See pictures below: Front view.

  • Page 9: Installing The Battery

    FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual Front view. Secure INSTALLING THE BATTERY. Secure. Tie wrap. INSTALLING LANDING GEAR. PARTS REQUIRED Battery.
  • Page 10 FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual Bend. A+B Epoxy Plus glue. A+B Epoxy Plus glue. Bottom side.
  • Page 11 FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual Left side. Bend. Right side. Bend.
  • Page 12 FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual Secure. EPOXY PLUS glue. Repeat the procedure for the right side landing gear Bottom side. SERVO ELEVATOR AND RUDDER Secure.  1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.

  • Page 13: Horizontal Stabilizer Installation

    FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual HORIZONTAL STABILIZER INSTALLATION. Horizontal stabilize installation .  See picture below. aluminium tube 143mm Epoxy glue. 75mm...
  • Page 14 FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual C/A glue. E p o x y glue. C/A glue. A+B Epoxy PLUS glue. Top side. C/A glue. C/A glue.

  • Page 15: Elevator Pushrod Installation

    FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual C/A glue. Top side. Control horn of Elevator. Bottom side. ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod. M2 lock nut. ELEVATOR CONTROL HORN INSTALLA- TION.
  • Page 16 FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual Elevator pushrod M2 lock nut. Push. C/A glue. RUDDER THE INSTALLATION. Rudder servo install as same as method of elevator servo. See picture below: Top side. C/A glue.

  • Page 17: Rudder Control Horn Installa- Tion

    FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual RUDDER CONTROL HORN INSTALLA- RUDDER PUSHROD INSTALLATION. TION.  Rudder pushrod install as same as the way of aileron pushrod. Rudder control horn install as same as the way of aileron control horn. Please see pic- tures below.

  • Page 18: Mounting The Tail Wheel Bracket

    FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual MOUNTING THE TAIL WHEEL Plastic parts of pushrod. BRACKET.      1. Set the tail wheel assembly in place on the plywood plate. The pivot point of the tail...
  • Page 19 FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual      3. Secure the tail wheel bracket in place using three 3mm x 12mm wood screws. Be careful not to overtighten the screws. 3x 12mm 3x 10mm Secure.

  • Page 20: Wing Attachment

    FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual INSTALLING THE RECEIVER AND BATTERY.       1. Plug the servo leads and the switch lead into the receiver. You may want to plug an aileron extension into the receiver...

  • Page 21: Wing Struts Installation

    FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual 3x 10 mm Secure. 3 x 15 mm WING STRUTS INSTALLATION See picture below. Secure. 3 x 15 mm Secure. Bottom side.
  • Page 22 FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual Secure. 3 x 15 mm Secure. Secure.
  • Page 23 FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual Insert and Bottom side. secure. Top side. Plastic parts for bottom fuselage. BALANCING.       1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash.

  • Page 24: Pre-Flight Check

    FIESELER FI156C STORCH - EP Instruction Item code: BH128 Manual Accurately mark the balance point on the top Ailerons : 15 mm up 15 mm down of the wing on both sides of the fuselage. The balance point is located 68mm back from...
