Page 1: Installation Instructions

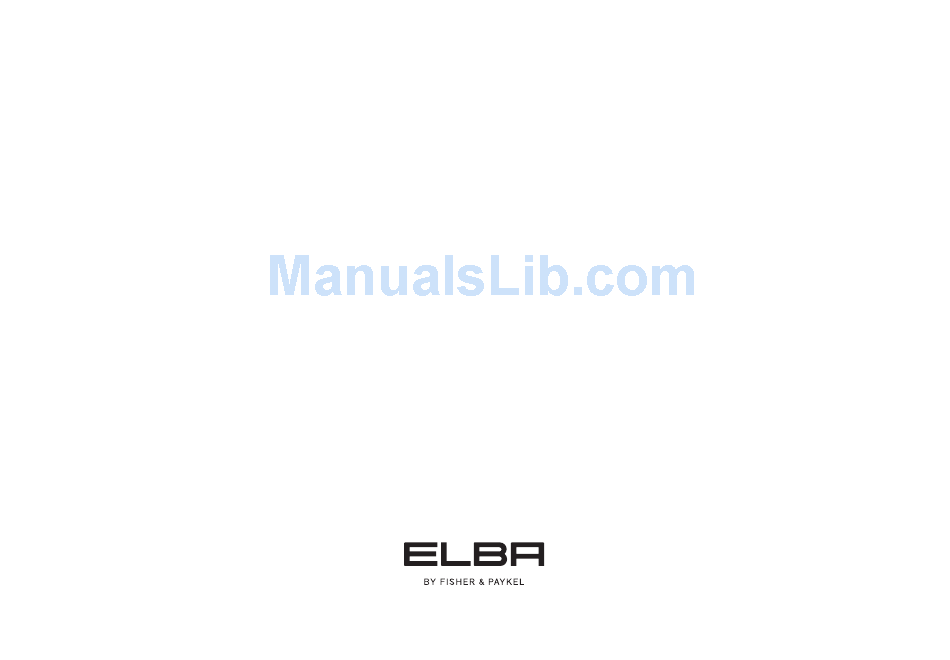

INSTALLATION INSTRUCTIONS Built-in Oven OB60S4 & OB60S7 models NZ AU 590498A 09.12 1104144-ß1 09.12... -
Page 2: Important Safety Instructions
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS! WARNING! To avoid hazard, follow these instructions carefully before installing or using this appliance. Electrical shock hazard Please make this information available to the person installing the appliance - doing so could reduce your installation costs. Always disconnect the appliance from the mains power supply before carrying out any maintenance or repairs. - Page 3 PRODUCT & CABINETRY DIMENSIONS 16-20 mm 2.5 mm Product and cabinetry dimensions (mm) overall height* of product overall width of product overall depth of product (excluding handle and knobs) height of chassis width of chassis depth of chassis depth of oven frame and control panel (=distance between front of chassis and front of oven door, excl.
-
Page 4: Prior To Installation
PRIOR TO INSTALLATION Before you install the oven, make sure that the benchtop and oven cavity are square and level, and are the required dimensions the installation will comply with all clearance requirements and applicable standards and regulations a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements) the isolating switch will be easily accessible to the customer with the oven installed there is at least 1.5 m (and not more than 2 m) free length of power supply cable within the cavity for ease of installation and servicing... -
Page 5: Electrical Connection
Important! This oven must be connected to the mains power Model code Power Voltage supply only by a suitably qualified person. OB60S4 3070 W 220 - 240 V~ This oven must be earthed. OB60S7 3070 W 220 - 240 V~... -
Page 6: Final Checklist
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER Installer’ s name: Make sure the oven is level and securely fitted to the cabinetry and the oven Installer’ s signature: door opens and closes freely. Installation company: Make sure all the internal packaging has been removed from the oven Date of installation: cavity.
