HIGH EFFICIENCY DEHUMIDIFICATION
Table of Contents
1. Specifications ........................................................1
2. Installation ............................................................1
2.1 Location .........................................................1
2.1A In humid area, no ducting ..........................1
2.1C In remote area, duct inlet & outlet .............2
2.1D In remote area, duct outlet only .................2
2.1E In remote area, duct inlet only ...................2
2.2 Electrical Requirements ...................................2
2.3 Condensate Removal ...................................... 2
2.4 Ducting .......................................................... 2
2.4A Optional Ducting ..................................... 2
2.4B Ducting for Dehumidification .................... 2
2.4C Ducting for Fresh Air .................................2
3. Operation ............................................................3
3.1 Humidity Control Adjustment ............................3
3.2 Fan Switch ..................................................... 3
3.3 Defrost Control Adjustment ..............................3
4. Maintenance ........................................................4
4.1 Air Filter .........................................................4
5. Service .................................................................4
5.1 Warranty. ........................................................4
5.2 Technical description .......................................4
5.3 Troubleshooting ...............................................4
5.4 Refrigerant Charging ........................................5
5.5 Blower Replacement ....................................... 5
5.6 Compressor/Capacitor Replacement ................5
5.6A Checking Compressor Motor Circuits .........5
5.6B Replacing a Burned Out Compressor .........6
5.7 Relay ..............................................................6
5.8 Humidity Control..............................................7
5.9 Defrost Thermostat .........................................7
5.10 Condensate Pump .........................................7
6. Wiring Diagrams....................................................7
7. Service Parts List ..................................................8
8. Filter Installation Instructions..................................9
9. Warranty .............................................................11
Serial No. __________________________________
Purchase Date ______________________________
Dealer's Name ______________________________
Specifications subject to change without notice.
Toll-Free 1-800-533-7533

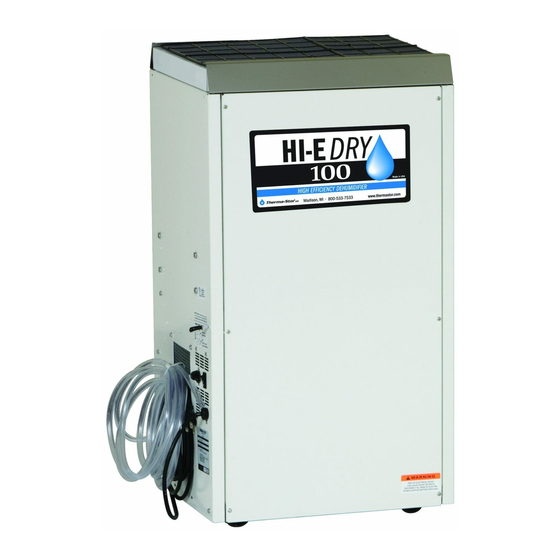

HI-E DRY 100 High Efficiency Dehumidifier
Installation, Operation & Service Instructions
P .O. Box 8680, Madison, WI 53708
Phone 608-222-5301 • Toll-Free 1-800-533-7533
www.thermastor.com • sales@thermastor.com
Read the installation, operation and maintenance
instructions carefully before installing and using this unit.
Proper adherence to these instructions is essential to
obtain maximum benefit from your HI-E Dry dehumidifier.

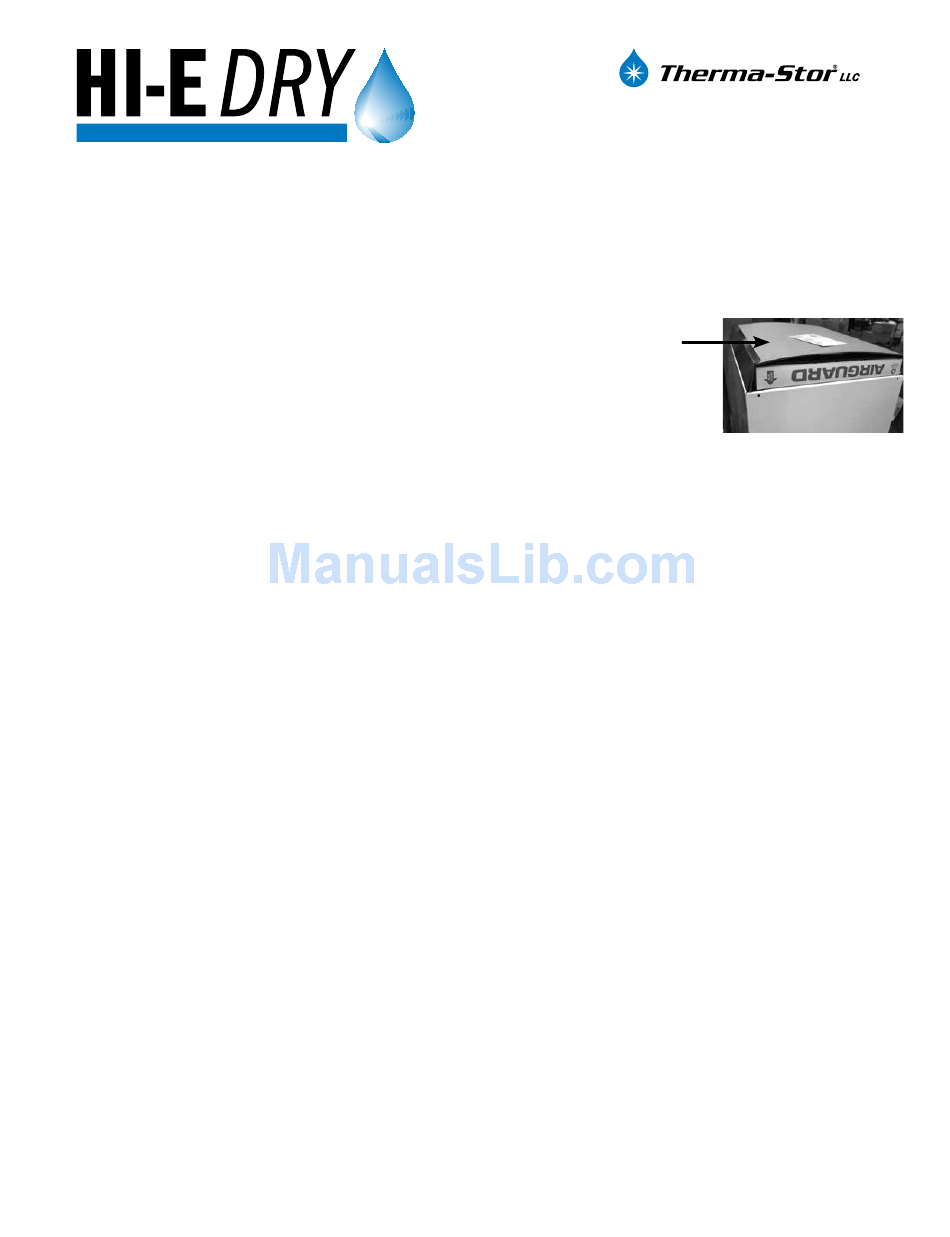

When unpacking, make
sure to remove corrugated,
protective cardboard from
top of unit.
1 Specifications
Model: HI-E DRY 100 Dehumidifier
Electrical: 110-120 Vac, 6.6 Amps, grounded
Capacity: 100 pints/day @ 80°F, 60% RH
Operating Temp. Range: 33°F min., 110°F max.
Air Flow: 275 CFM
Refrigerant Charge: 1 lbs., 7 oz. R410a
Optional Duct Connections: 8" round inlet & outlet
Size (w/o duct collars): 20" long x 17" wide x 36" high
Weight: 110 lbs.
2 Installation
2.1 Location
The HI-E Dry can be installed in a variety of locations
to meet the owner's needs as listed below. In all cases
keep the following cautions in mind:
• It is designed to be installed INDOORS ONLY.
• If used near a pool or spa, be certain there is NO
chance the unit could roll into the water or be
splashed and that it is plugged into a GROUND FAULT
INTERRUPTER.
• DO NOT use the HI-E Dry as a bench or table.
• Avoid discharging the air directly at people, especially
in pool areas.
2.1A In Humid Area, No Ducting
The simplest installation is to place the HI-E Dry in the
humid area with no ducting. The air inlet on top & outlet
on the side must be at least 1' from walls and other
obstructions to air flow.
1
TS-598 11/09
www.sylvane.com 1-800-934-9194
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Therma-Stor HI-E DRY 100
Summary of Contents for Therma-Stor HI-E DRY 100
-
Page 1: Table Of Contents
P .O. Box 8680, Madison, WI 53708 Phone 608-222-5301 • Toll-Free 1-800-533-7533 www.thermastor.com • sales@thermastor.com HIGH EFFICIENCY DEHUMIDIFICATION HI-E DRY 100 High Efficiency Dehumidifier Installation, Operation & Service Instructions Table of Contents Read the installation, operation and maintenance instructions carefully before installing and using this unit. -
Page 2: B In Humid Area, Duct Inlet And/Or Outlet
2.2 Electrical Requirements 2.1B In Humid Area, Duct inlet and/or Outlet If the humid area is very large or has high ceilings, The HI-E Dry plugs into a common grounded outlet on a dehumidification can be improved by adding an inlet and/ 15 Amp circuit. -
Page 3: Operation
3.3 Defrost Control Adjustment When the HI-E Dry 100 is used in a cool area, frost will form on the cooling coil as it dehumidifies. When enough frost forms, the defrost thermostat will initiate the timed defrost cycle. -
Page 4: Maintenance
4 Maintenance 4.1 Air Filter The HI-E Dry 100 is equipped with two 2” thick, MERV-11 pleated fabric air filters that must be checked regularly. Operating the unit with dirty filters will reduce the dehumidifier’s capacity and efficiency and may cause the compressor to cycle off and on unnecessarily on the defrost control. -
Page 5: Refrigerant Charging
Blower does not run. Compressor runs briefly but cycles 4. Remove the 4 screws holding the electrical box on & off. located next to the blower. 1. Loose connection in blower circuit (Fig. 4). 5. Disconnect the blower leads. Black from the blower switch, and white the run capacitor. -
Page 6: B Replacing A Burned Out Compressor
8. Compressor terminal C and compressor case: If sludge is evident in the discharge line, it will Continuity indicates a grounded motor; the likely be found in the suction line; this indicates the compressor must be replaced. compressor burned out will running. Sludge and acid have been pumped throughout the system. -
Page 7: Defrost Thermostat
CONTROL SWITCH AUTO DKBLU BLOWER MOTOR RELAY CAPACITOR COMPRESSOR PART NO. REV. Made in U.S.A. 4023609 Therma-Stor LLC, Madison, WI 800-533-7533 or Local 608-222-5301 www.thermastor.com Figure 4: Electrical Schematic of HI-E Dry 100 Toll-Free 1-800-533-7533 www.thermastor.com • sales@thermastor.com www.sylvane.com 1-800-934-9194... -
Page 8: Wiring Diagrams
6 Service Parts: HI-E Dry 100 Dehumidifier ITEM PART NO. QTY. DESCRIPTION 4022254 Accumulator 4021475 Air Filter, Pleated, 2” x 16” x 20” 4021468 Air Filter, Foam Element 4026930 Blower 4028233 Capillary Tubes 4029168 Compressor 4029169 Compressor Overload 4029845 Compressor Run Capacitor, 45 MFD... -
Page 9: Filter Installation Instructions
7 Filter Installation Instructions To prevent damaging the foam filter, place it “grid side up” on top of the pleated filter and slide them both into the filter slot. Toll-Free 1-800-533-7533 www.thermastor.com • sales@thermastor.com www.sylvane.com 1-800-934-9194... - Page 10 Toll-Free 1-800-533-7533 www.thermastor.com • sales@thermastor.com www.sylvane.com 1-800-934-9194...
-
Page 11: Warranty
Who Is Covered: This warranty extends only to the original end-user of the HI-E DRY dehumidifier, and may not be assigned or transferred. Year One: Therma-Stor warrants that, for one (1) year the HI-E DRY dehumidifier will operate free from any defects in materials and workmanship, or Therma-Stor will, at its option, repair or replace the defective part(s), free of any charge.
