Chapter 3 — Replacing Parts

Installing the Rewinder

58
The installation kit contains:
• One rewinder module with liner retention clip
• One liner retention guide
• Four M3x4.5 screws
To install the rewinder
1 Open the side door.
2 Remove the rewinder option cover plate, held by two phillips screws (see
previous page).

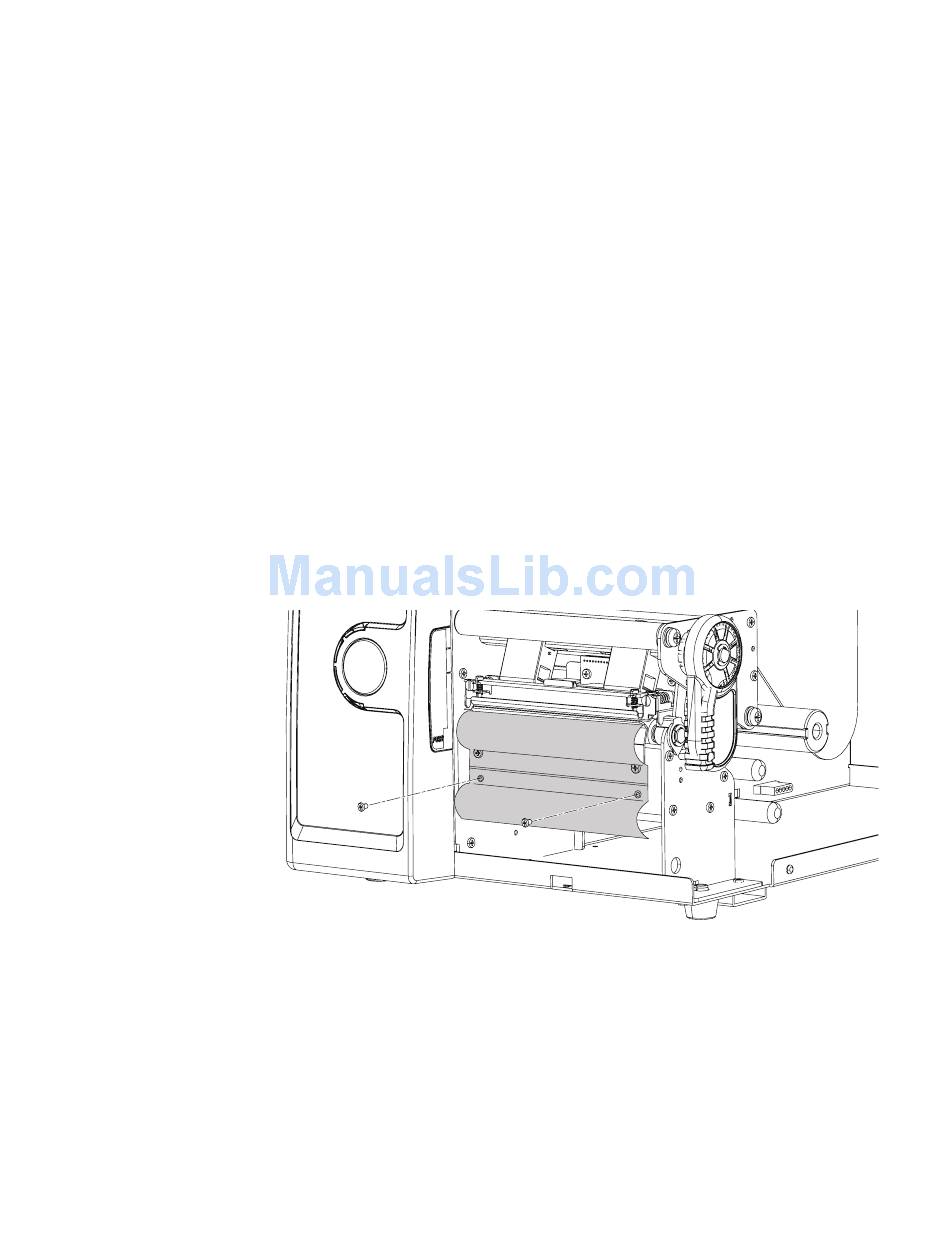

3 Remove the liner retention clip from the rewinder unit. Attach the
rewinder unit to the center section of the printer using two of the screws
included in the kit together with the two that were previously used to
hold the cover plate in place.
4 For batch takeup operation only: Remove the screw that holds the front
cover. Remove the front cover (In batch takeup operation, labels are
wound up on the internal rewinder instead of being peeled off at the
tear bar).
5 For batch takeup operation only: Attach the liner retention guide.
6 Install media as described in the printer user's guide.
