Chapter 3 — Replacing Parts

Bottom Right Panel

22
To replace the front panel
1 Remove the left-hand panel (For help, see
panel" on page
27).
2 Disconnect the cables (Console PCB and LTS) from the main board
and release them from the clips and the spiral binding.
3 Disconnect the display flat cable (for the PD42 only).
4 From inside the electronics compartment, remove the two screws that
hold the front panel assembly at the top front of the center section.
5 Lift the front panel assembly up and out so the panel molding
disengages the two keyholes in the center section.
6 Replace the entire assembly or individual parts (the display PCB on the
PD42, the LTS sensor).
7 To install the front panel, reverse steps 1 to 6.
All models have a panel fitted to the bottom plate in front of the print
mechanism. This panel is temporarily removed when loading media for
peel-off (self-strip) operation when a rewinder (For help, see
Module" on page
57) is installed. It must be permanently removed before
installing an optional cutter (For help, see
is held in place by a knurled screw inserted beneath the bottom plate.

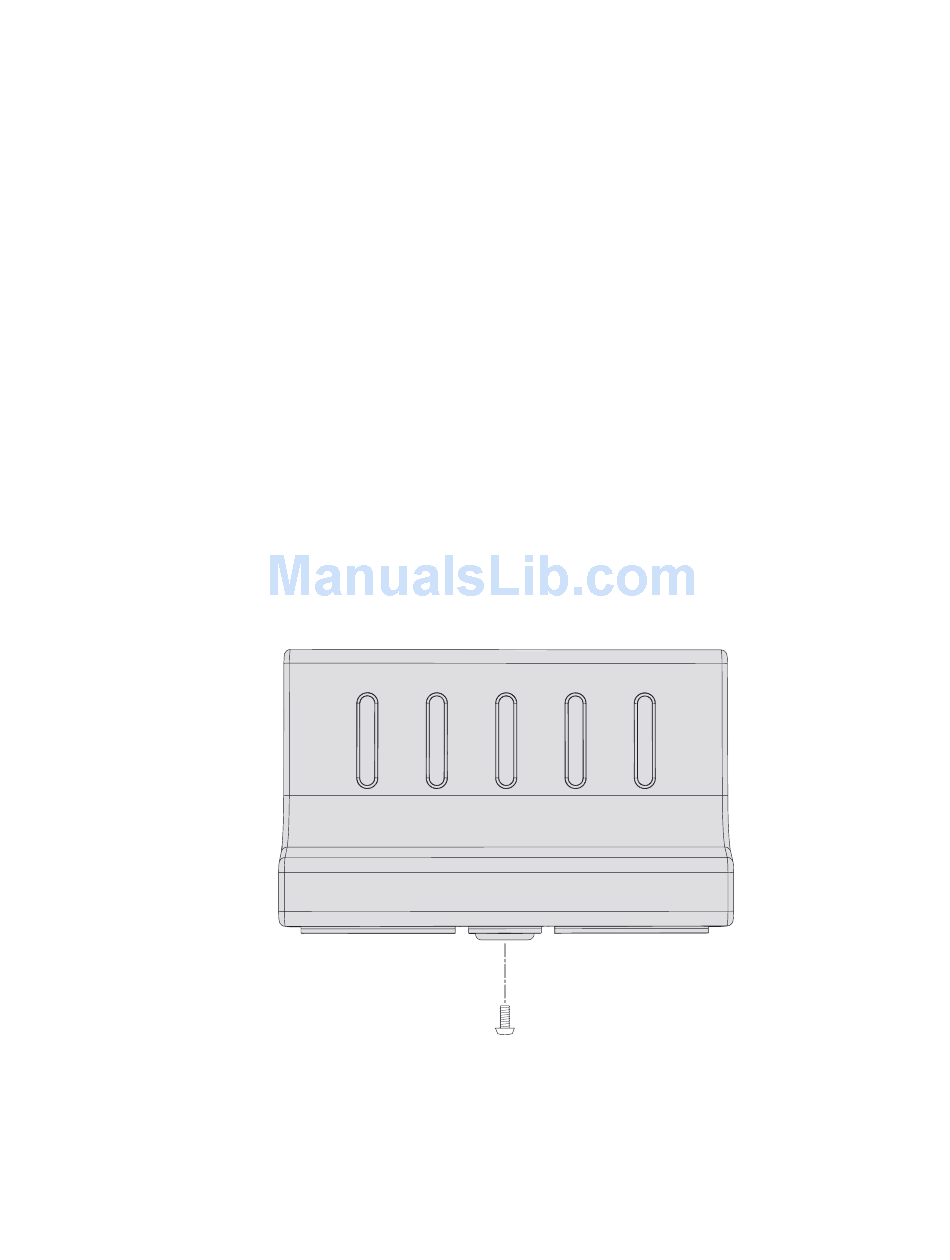

Bottom Right Panel With Thumbscrew
"To remove the left-hand
"Cutter" on page
EasyCoder PD41/PD42 Printer Service Manual
"Rewinder
61). The panel
