- Page 1 C330...
-

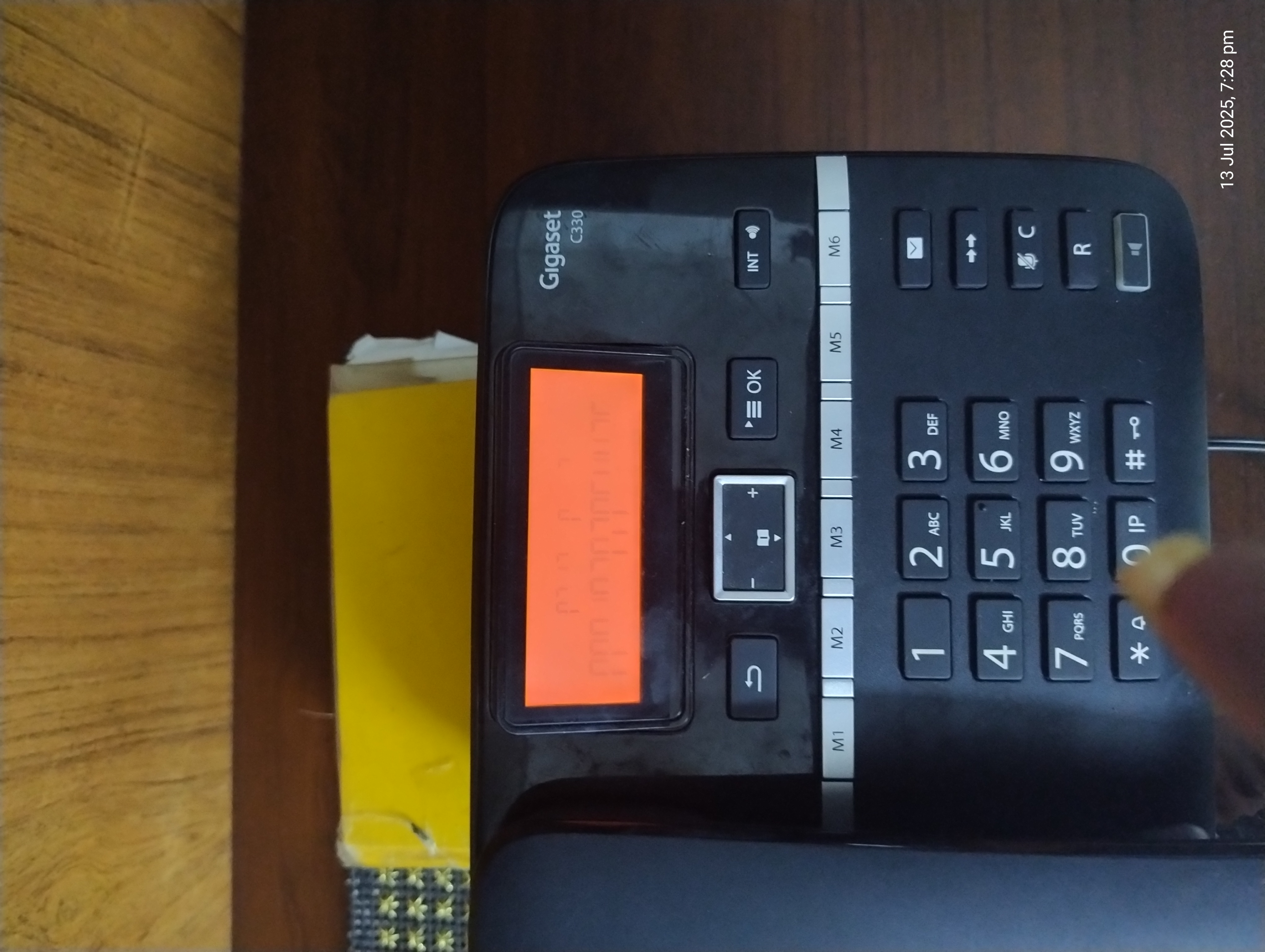

Page 2: The Base At A Glance
– Registering handsets pulse and tone dialling (press briefly); 5 Menu / OK key 13 Priority key 6 One-touch memory keys (C330 only) Memory key for IP code (press and hold) 7 Call list 14 Hash key 8 Redial key... -
Page 3: Base Display Symbols
The base at a glance Base display symbols The following symbols are displayed dependent on the settings and the operating status of your telephone: Index number Ringer melody menu Date /Time menu Keypad locked Call log Mute on Directory opened Date/Time Ringer Melody Index Current date and time 08.17 09:30... -
Page 4: The Handset At A Glance
(press briefly); Menu 10 Priority key §§3§§ Memory key for IP code (press and hold) 11 Key 1 Dial answering machine (C330 A only) (press §13§ and hold) 12 Talk key §12§ §§4§§ Flashes: incoming call;... -
Page 5: Handset Display Symbols
The handset at a glance Handset display symbols The following symbols are displayed dependent on the settings and the operating status of your telephone: Answering machine activated (C330 A only) Keypad locked Handset in talk mode Ringtone switched off Battery charging state... - Page 6 INT 1 Internal name of the handset (default). If the answering machine is activated, the symbol will be displayed in the header (Gigaset C330 A only). For more information about your telephone, visit : www.gigaset.com...
-
Page 7: Safety Precautions
Do not use your phone in environments with a potential explosion hazard (e.g. paint shops). If you give your Gigaset to someone else, make sure you also give them the ƒ user guide. Please remove faulty bases from use or have them repaired by our Service depart-... -
Page 8: First Steps
First steps First steps Checking the pack contents 02.01 10:27 1. one Gigaset C330 or C330 A base 6. one receiver 2. one Gigaset C330H handset 7. one receiver cable 3. one charger for Gigaset C330H 8. one phone cable 4. -
Page 9: Setting Up The Base And Handset Charging Cradle
Please note: Never expose the telephone to the in uence of heat sources, direct sunlight or other electri- cal devices. Protect your Gigaset from moisture, dust, corrosive liquids and vapours. Connecting the base ¤ Connect the receiver to the telephone using the coiled cable supplied 1. -
Page 10: Connecting The Handset Charging Cradle
First steps Connecting the handset charging cradle ¤ Plug the mains adapter into the plug socket 1. -
Page 11: Setting Up The Handset For Use
Inserting the batteries and closing the battery cover Warning Only use the rechargeable batteries recommended by Gigaset Communications GmbH, i.e. never use conventional (non-rechargeable) batteries, as this could result in signi cant health risks and personal injury. For example, the outer casing of the batteries could be damaged or the batteries could explode. -
Page 12: Placing The Handset In The Charging Cradle
First steps Placing the handset in the charging cradle ¤ Place the handset in the charging cradle with its display facing forward. The supplied handset is registered with the base at the factory. You do not need to register it. If you wish to use your handset with a di erent base or use further handsets with your base, you will have to register them manually, To charge the batteries, leave the handset in the charging cradle. -
Page 13: Using The Base
Using the base The Gigaset C330/330 A base Using the base Keys on the keypad # / Q / G etc. Press the matching key on the Control key keypad. Enter digits or letters. Below, the side of the control key you need to... -
Page 14: Quick Dialling
Making calls Making calls Ending a call Put down the receiver, or press You make a call using the phone's receiver or the speaker key ø if the call the speaker. was made handsfree. Making an external call Accepting a call External calls are calls using the public tele- The base indicates an incoming call in three phone network. -
Page 15: Making Internal Calls
Press the speaker key. Initiate the internal call. During a call and when listening to the Lift the receiver or press the answering machine (Gigaset C330 A only), speaker key ø. activate or deactivate speaker mode. All handsets are called. The connection will... -
Page 16: Internal Consultation/ Conference Calls
Press and hold the key. The caller is forwarded to the answering machine if activated (Gigaset C330 A only). Ending a conference call Replace the receiver. If an internal participant ends the call, the other remains connected to the external participant. -
Page 17: Using The Directory And Lists
Using the directory and lists Using the directory and To get round the alphabetical order of the entries, insert a space or a digit in front of the lists rst letter of the name. These entries will then move to the beginning of the directory. The following options are available to store Selecting/viewing a directory information on calls, contacts and numbers:... -
Page 18: Call Lists
Using the directory and lists Managing entries in the redial list List entry Press the redial key brie y. The calls are displayed in chronological order. Select an entry. Deleting an entry î Press the delete key. 10.15 10:26 Press the OK key to con rm. A 07912345678 con rmation tone is emitted. -
Page 19: Storing A Number
Using the directory and lists One-touch memories (C330 only) Your Gigaset C330 provides six one-touch memories to store frequently dialled num- bers. You can then call a number directly by pressing the corresponding memory key. Storing a number In idle mode... -
Page 20: Base Settings
Base settings Base settings Setting the earpiece and speaker volume Your telephone is precon gured, but you can change the settings to suit your individ- You can set the loudspeaker volume for ual requirements. handsfree talking and the earpiece volume to ve di erent levels during a call. -
Page 21: Setting The Ring Tone
Base settings System settings Setting the ringtone You can select a ringtone from a list of 5 pre- System settings apply to the entire phone loaded ringtones. system. They can only be set on a registered Press the key to open the dis- handset. -
Page 22: Using The Handset
Using the handset The Gigaset C330H handset During a call The Gigaset C330/330 A comes with one Gigaset C330H handset. The handset is Open the directory. already registered to the base. Adjust the loudspeaker volume You can register up to four handsets to your for earpiece and speaker mode. -
Page 23: Correcting Incorrect Entries
Using the handset Keys on the keypad Activating/deactivating the handset c / Q / * etc. Press the matching key on the With the phone in idle status, keypad. press and hold the end call key Enter digits or letters. (con rmation tone) to switch o the handset. -
Page 24: Handset Menu Overview
Using the handset Submenus Settings that have not been saved by select- §OK§ §Save§ ing the display key will be lost. The functions in the submenus are displayed An example of the display in idle status is as lists (example on the right). shown on page 5. - Page 25 Using the handset HS Setting Language Auto Answer Register HS De-register HS Screen Saver Contrast System Setting Time Control System PIN Add. Features Dialing Mode Flash Time Conference Auto Pre x Activation Pre x No. Call List Type System Reset Voice Mail Play Messages Answerphone...
-
Page 26: De-Registering Handsets
§OK§ and press Manual registration of the Gigaset A message indicates that the system is C330H on Gigaset C330/330 A searching for a base that is ready for registra- tion. If you want to register additional handsets. you must activate manual registration of the... -
Page 27: Locating Handsets (Paging)
Using the handset Locating handsets (paging) From the base You can locate your handsets using the base. Press the key on the base. All called handsets will ring simultaneously (paging), even if the ringtones are deacti- vated. Ending paging Press the key again on the base. From the handset You can locate another handset using your handset. -
Page 28: Ending A Call
Making calls Making calls Quick dialling You can assign a number from the directory If the back light is deactivated to each of the digit keys it is switched on by pressing any key. In this case the pressed key has no other function. When the handset is in idle status: ¤... -
Page 29: Calling Line Identification (Cli)
The caller’s During a call or when listening to the number and the Ø « Ú answering machine (Gigaset C330 A only), name according activate or deactivate speaker mode. to the directory If you wish to place the handset in the base/... - Page 30 Making internal calls Making internal calls When the internal participant answers: ¤ If necessary, announce the external call. §End§ Press the end call key or the Internal calls between the base and the display key. handset or to other handsets registered on the same base are free.
-
Page 31: Barging In To An External Call
Making internal calls Accepting/rejecting call Enabling/disabling barge in ¢ ¢ waiting §§Menu§§ System Setting Add. Features ¢ Conference If you receive an external call during an §§OK§§ Select On or Off and press internal call, you will hear the call waiting tone (short tone). -
Page 32: Opening The Directory
Using the directory and lists ¤ Using the directory and To insert a pause, e.g. if an pre x is added automatically, press and hold the lists key. The following options are available for stor- Enter the number (max. 24 dig- §Save§... -
Page 33: Editing Entries
Using the directory and lists Editing entries Copying the displayed number to the directory Select the entry. You can copy numbers displayed in a list, e.g. §Menu§ Press the display key. the call list or the redial list, to the directory. Select Edit Entry and press §OK§... - Page 34 Using the directory and lists Call lists Number or name of caller (if number and name are both transmitted, they are dis- played alternately). Requirement: Calling Line Identi cation, Date and time of call The telephone stores a maximum of 50 num- Dialling from the call list bers in the call list.
-
Page 35: Handset Settings
Handset settings Handset settings Setting the alarm clock Requirement: The date and time have Your handset is precon gured, but you can already been set In idle status, the change the settings to suit your individual symbol and wake-up time are displayed. requirements. -
Page 36: Audio Settings
Handset settings Audio settings Setting the ringtone You can select a ringtone from a list of 10 The Audio Setting menu can be opened in pre-loaded ringtones. two di erent ways: In idle status: ¢ ¢ Using the control key. §§Menu§§... -
Page 37: Setting The Display
Handset settings Activating/deactivating advisory Setting the contrast tones You can set the level of the display bright- ness. Your handset uses advisory tones to tell you ¢ ¢ about different activities and statuses. The §§Menu§§ HS Setting Contrast following advisory tones can be activated/ Select the desired level (3 levels) deactivated independently of each other: §OK§... -
Page 38: System Reset
Handset settings System reset ¢ ¢ §§Menu§§ System Setting System Reset §OK§ Press the display key to confirm system reset. Please note The system settings are reset to default values for the base and all registered handsets. The directory entries are not changed. -
Page 39: Connecting The Telephone To The Pabx
Connecting the telephone to the PABX Connecting the telephone to the PABX Activating/deactivating the The following settings are only necessary if automatic pre x your PABX requires them; see the PABX user guide. The settings can only be made via a ¢... -
Page 40: Questions And Answers
You have pressed the mute key h. The handset is If you have any question, reach us by "muted". ¥ Activate the microphone again Web site: www.gigaset.com The number of the caller is not displayed. Calling Line Ident on is not enabled. ¥... -
Page 41: Contact With Liquid
Due to the constant progression in battery development, the list of recommended bat- When it has fully dried out, you will normally teries in the FAQ section of the Gigaset be able to use it again. Customer Care pages is regularly updated: In rare cases, contact with chemical sub- www.gigaset.com/service... -
Page 42: Writing And Editing Text
Appendix General specifications Pin connections on the telephone jack WDCT standard is supported 1 unused Radio frequency range 2402.784~2480.544 2 unused No. of channels 5 unused Bit rate 1.152 Mbit/s 6 unused Modulation GFSK Peak output power 25 mW, EIRP Range up to 300 m outdoors, up to 50 m indoors... -
Page 43: Standard Characters
Appendix Standard characters 9x 10x 11x 12x 13x 14x 15x 16x 17x 18x 19x 20x 21x _ # = < > ) & € £ $ ¥ } ¤ a b c 2 m n o 6 p q r t u v 8 w x y z 9 “... -
Page 44: Manufacturer Warranty
Manufacturer warranty On the purchase of your new Gigaset product, we guarantee that this equipment is a genuie manufacturer’s product and extend the following warranty: We guarantee this product against manufacturing defects for 1year from the date of purchase, unless otherwise. -
Page 45: Service Centres (Midde East)
Service Centres (Midde East) Service Centres (Midde East) Oman National Telephone Services Co. LLC Customer Service Hotline UAE P.O. Box 2786 PC:112, Sultanate of Oman TEL: 00971-4-4458255 / 00971-4-4458254 Tel: +968-709281 Ext. 45/21/75 Service Collection Point Fax: +968-791013 www.technocare-prodigy.com E-mail: isonts@omentel.net.om KARAMA Qatar Sea Shell Electronics... - Page 46 Switzerland) depending on national type approval. Country-specific requirements have been taken into consideration. We, Gigaset Communications GmbH, declare that this device meets the essential requirements and other relevant regulations laid down in Directive 1999/5/EC. A copy of the Declaration of Conformity is available at this Internet address: www.gigaset.com/docs...
-
Page 47: Service Centres (India)
Service Centres (India) Service Centres (India) Ahmedabad Mumbai (Vikroli) inTarvo Technologies Ltd inTarvo Technologies Ltd Tel No. : +9179-65495391 / 9016669016 Tel No. : +91 22 40334214 201,Second Floor,Darshak Building No.2, AVS Compound, Ejipura, Opp:-Shrey Hospital ,Punjabi Hall Road, 80 ft, Road Koramangala, Navrangpura, Ahmedabad, Bangalore –... - Page 48 Switzerland) depending on national type approval. Country-speci c requirements have been taken into consideration. We, Gigaset Communications GmbH, declare that this device meets the essential requirements and other relevant regulations laid down in Directive 1999/5/EC. A copy of the Declaration of Conformity is available at this Internet address:...
- Page 49 Issued by Gigaset Communications GmbH Frankenstr. 2a, D-46395 Bocholt © Gigaset Communications GmbH 2013 Subject to availability. All rights reserved. Rights of modification reserved. www.gigaset.com...
