Daikin 2MXS40H2V1B Service Manual page 123

SiBE121123_A
Open the Front Cover
QUIET button
• OUTDOOR UNIT QUIET
operation.
• QUIET operation is not
available in FAN and DRY
operation.
• QUIET operation and
POWERFUL operation
cannot be used at the same
time. Priority is given to the
function you pressed last.
COMFORT/SENSOR
button
(COMFORT AIRFLOW Operation
INTELLIGENT EYE Operation
• Every time you press the
COMFORT/SENSOR button,
the setting changes in the
following order.
COMFORT INTELLIGENT
AIRFLOW EYE
blank
No Setting
Combination
OFF TIMER button
• Press this button and adjust
the day and time with the
SELECT button.
Press this button again to
complete TIMER setting.
Reference Refer to the following pages for detail.
Note: Refer to the operation manual of applicable model for detail. You can download operation
manual from 'DISTRIBUTOR'S PAGE':
DISTRIBUTOR'S PAGE → Product Information → Operation/Installation Manual
(URL: http://global.daikin.com/Daikin/global/Distributors_admin/user_mng/login.php)

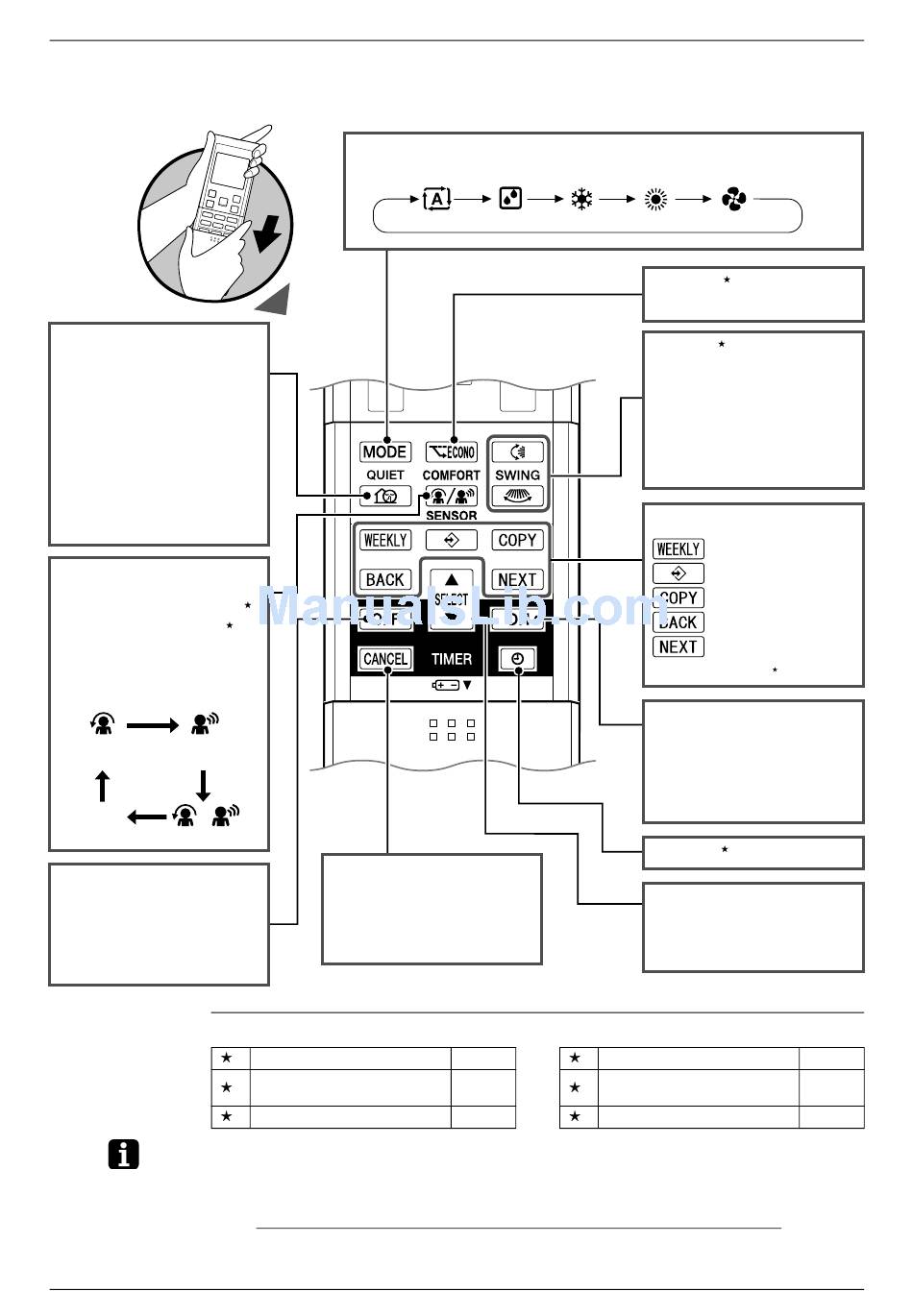

Remote Controller
MODE button
• Selects the operation mode.
(heat pump only)
2
/
3
)
TIMER CANCEL
button
• Cancels the timer setting.
• Cannot be used for the
WEEKLY TIMER operation.
2 COMFORT AIRFLOW operation P.57, 59
3 2-area INTELLIGENT EYE
operation
4 ECONO operation
(heat pump only)
5 Auto swing setting
P.69 6 WEEKLY TIMER operation
P.66 7 Clock setting
RA Indoor Unit
4
ECONO button
• ECONO operation.
5
SWING button
• Adjusts the airflow direction.
• When you press the SWING
button, the flap moves up and
down, or (and) the louver
moves right and left. The flap
(louver) stops when you press
the SWING button again.
WEEKLY button
: WEEKLY button
: PROGRAM button
: COPY button
: BACK button
: NEXT button
• WEEKLY TIMER 6 operation.
ON TIMER button
• Press this button and adjust
the day and time with the
SELECT button.
Press this button again to
complete TIMER setting.
7
CLOCK button
SELECT button
• It changes the ON/OFF
TIMER and WEEKLY TIMER
settings.
(R18209)
P.55
P.76
P.75
