Display Data Overlays
Digital readout data can be displayed as an overlay, and it can be displayed in the data bar. To turn on the data bar, see Display a
Data Bar.
1. With a View displayed on-screen, tap the view name in the
status bar, or press the MENU key once.
2. Select Options. For example, in a Sonar View, select Sonar
Options. In a Chart View, select Chart Options.
3. Select Overlays.
4. Select Data Overlay.
5. Select Show Data. Tap the on/off button, or press the ENTER
key, to turn it on.
6. Use the touch screen or Joystick to make items visible on the
view. (check mark = visible, blank = hidden).
Display a Data Bar
Your control head allows you to choose a standard data bar or a navigation data bar with preset data boxes. If you attach
additional accessories to the control head or network, additional data bar options may also be displayed. The data boxes in the
data bar can also be changed.
Select the Data Bar Type
1. View Options Menu: With a view displayed on-screen, press the
PANE key once. In a multi-pane view, press the PANE key
repeatedly until the status bar turns yellow.
2. Tap View Options in the status bar, or press the MENU key once.
3. Select Data Bar from the View Options menu.
4. Select the type of data bar to display. To hide the data bar,
select Off.
NOTE: To display digital readouts as an overlay, see Display Data
Overlays.

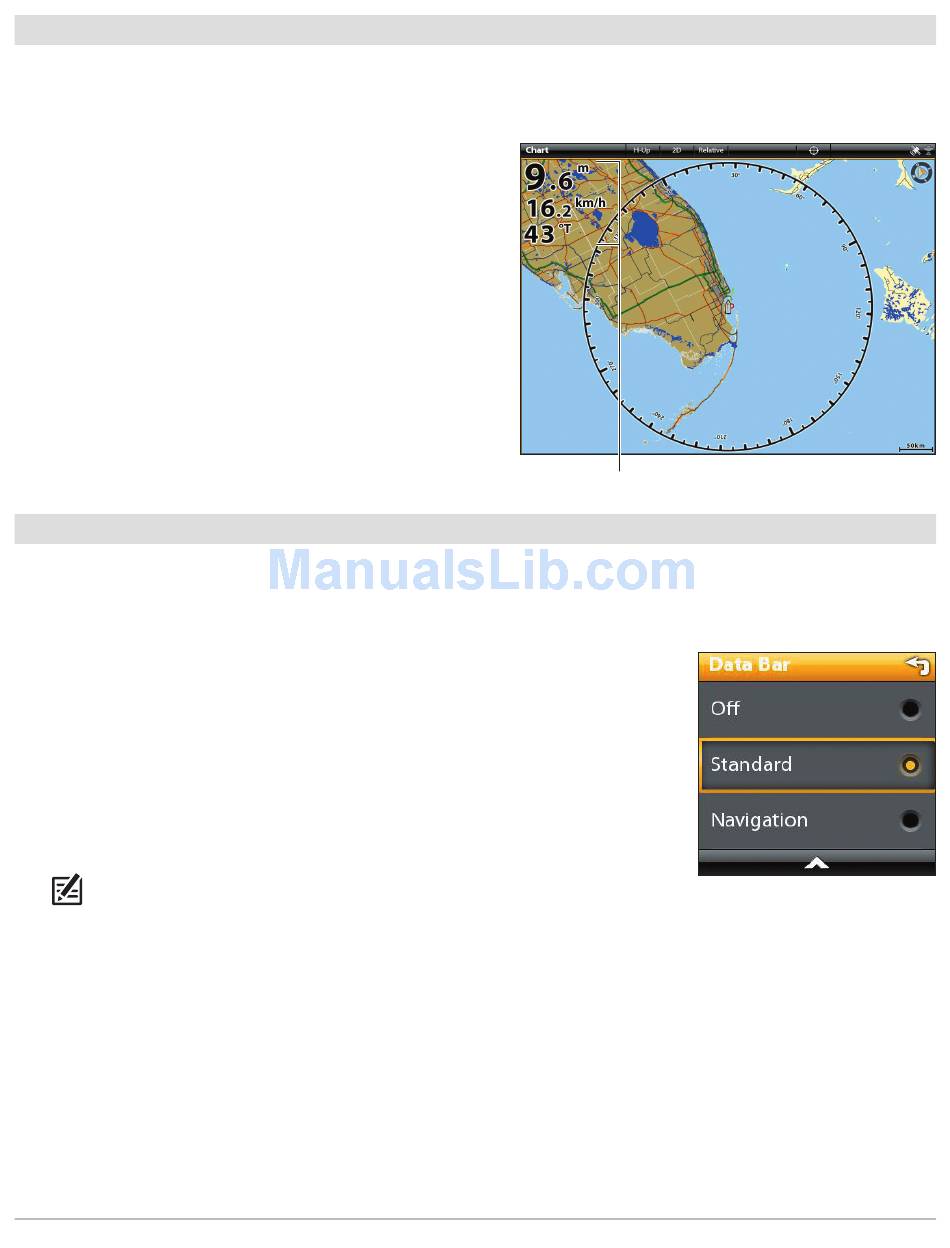

Chart View with Data Overlays Displayed
data overlays
