satellites
signal strength
GPS (1)
GPS (1) and GPS (2) Sources
You can also manually change which GPS receiver is the selected source for GPS (1) or GPS (2). To change the GPS sources, see
Set up your Humminbird Network.
GPS (1) provides position data, Speed over Ground (SOG), Course over Ground (COG), waypoints, routes, tracks, and navigation
calculations to the control head.
GPS (2) provides position data that is displayed in the GPS (2) data box.
Getting Started

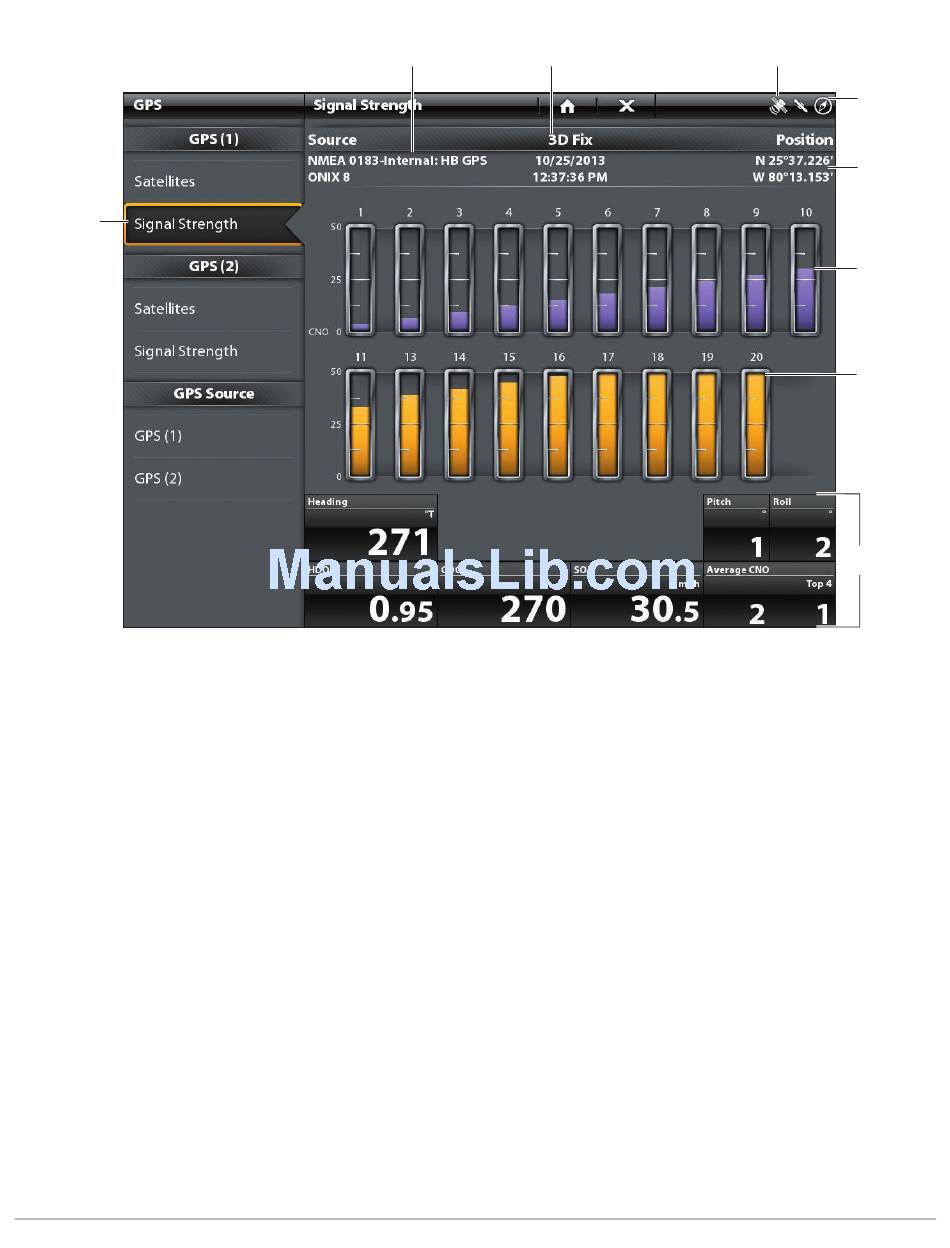

Signal Strength (bar graph)
selected GPS source
Signal Strength (GPS 1/GPS 2): displays vertical bar graphs indicating the satellite
signal strengths with the respecting CNO (Carrier-to-Noise) value (0 to 60).
fix type
10
GPS status icon
status bar
boat position
(latitude/
longitude)
monitored
satellite
(purple) and
strength
level
used satellite
(yellow) and
strength
level
digital
readouts
