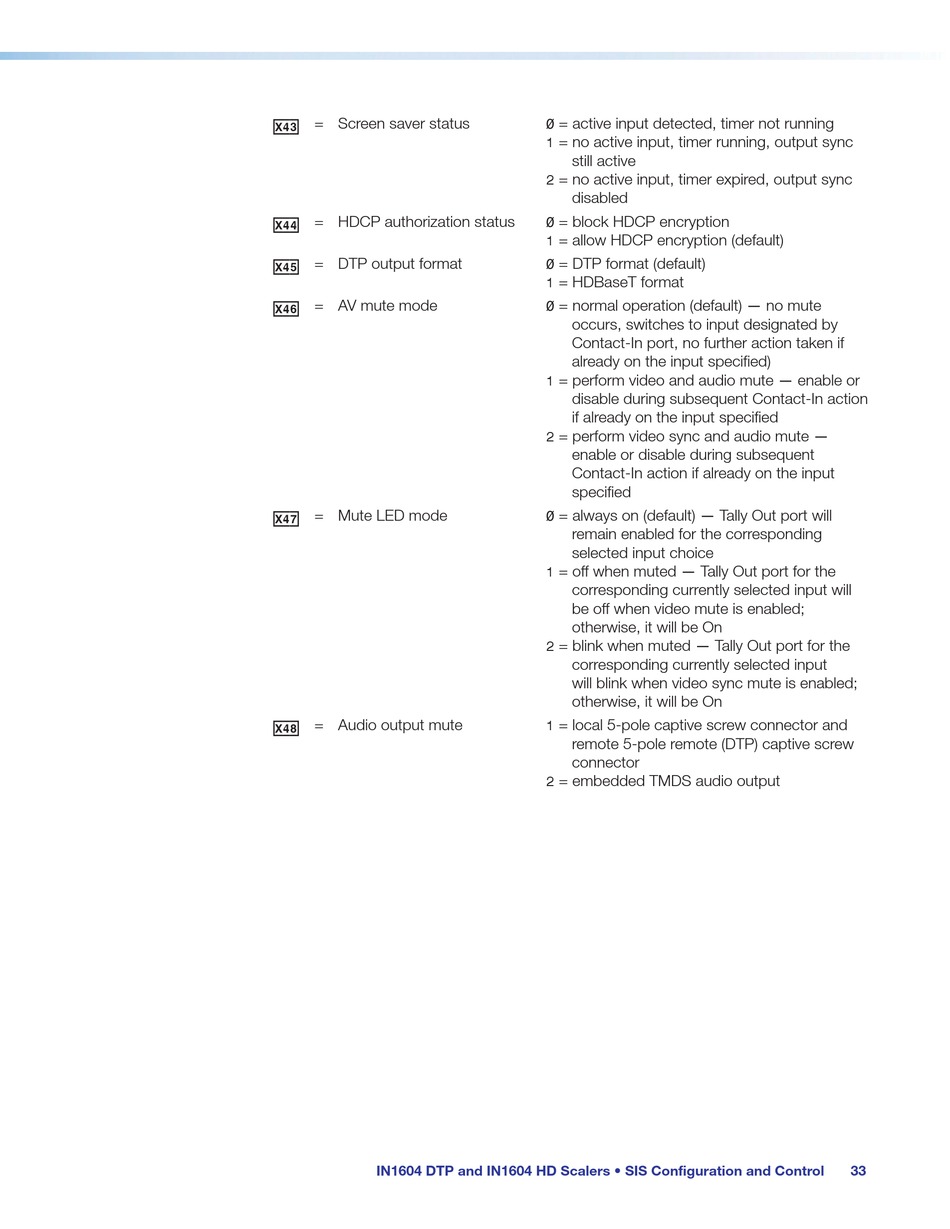

X4# = Screen saver status
X4$ = HDCP authorization status
X4% = DTP output format
X4^ = AV mute mode
X4& = Mute LED mode
= Audio output mute
X4*
IN1604 DTP and IN1604 HD Scalers • SIS Configuration and Control
= active input detected, timer not running
0
= no active input, timer running, output sync
1
still active
= no active input, timer expired, output sync
2
disabled
= block HDCP encryption
0
= allow HDCP encryption (default)
1
= DTP format (default)
0
= HDBaseT format
1
= normal operation (default) — no mute
0
occurs, switches to input designated by
Contact-In port, no further action taken if
already on the input specified)
= perform video and audio mute — enable or
1
disable during subsequent Contact-In action
if already on the input specified
= perform video sync and audio mute —
2
enable or disable during subsequent
Contact-In action if already on the input
specified
= always on (default) — Tally Out port will
0
remain enabled for the corresponding
selected input choice
= off when muted — Tally Out port for the
1
corresponding currently selected input will
be off when video mute is enabled;
otherwise, it will be On
= blink when muted — Tally Out port for the
2
corresponding currently selected input
will blink when video sync mute is enabled;
otherwise, it will be On
= local 5-pole captive screw connector and
1
remote 5-pole remote (DTP) captive screw
connector
= embedded TMDS audio output
2
