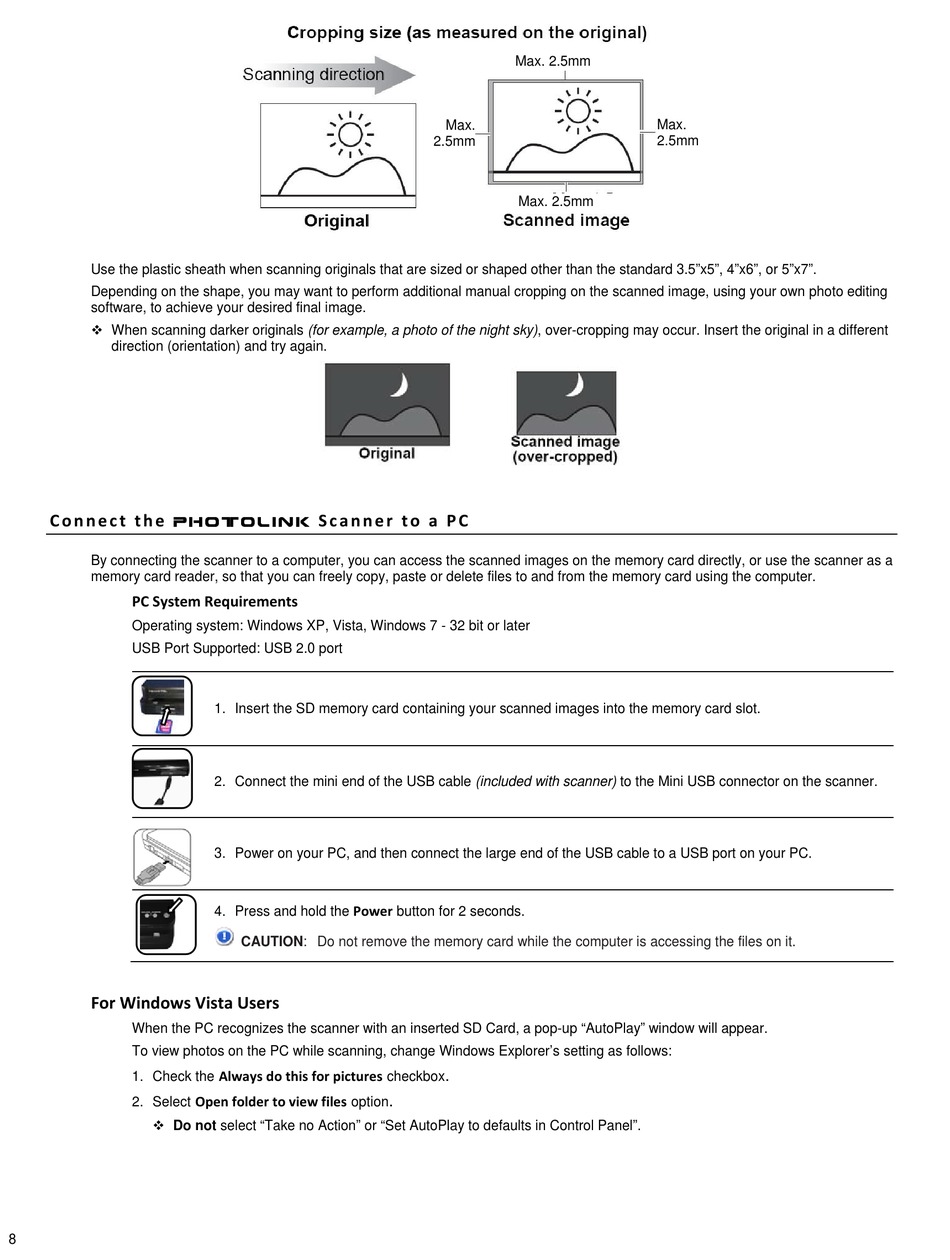

For Windows Vista Users - Pandigital PhotoLink PANSCN04 User Manual

Use the plastic sheath when scanning originals that are sized or shaped other than the standard 3.5"x5", 4"x6", or 5"x7".
Depending on the shape, you may want to perform additional manual cropping on the scanned image, using your own photo editing
software, to achieve your desired final image.
When scanning darker originals (for example, a photo of the night sky), over-cropping may occur. Insert the original in a different
direction (orientation) and try again.
C o n n e c t t h e
P h o t o L i n k
By connecting the scanner to a computer, you can access the scanned images on the memory card directly, or use the scanner as a
memory card reader, so that you can freely copy, paste or delete files to and from the memory card using the computer.
PC System Requirements
Operating system: Windows XP, Vista, Windows 7 - 32 bit or later
USB Port Supported: USB 2.0 port

For Windows Vista Users

When the PC recognizes the scanner with an inserted SD Card, a pop-up "AutoPlay" window will appear.
To view photos on the PC while scanning, change Windows Explorer's setting as follows:
1. Check the
2. Select
Do not select "Take no Action" or "Set AutoPlay to defaults in Control Panel".
8
S c a n n e r t o a P C
1. Insert the SD memory card containing your scanned images into the memory card slot.
2. Connect the mini end of the USB cable (included with scanner) to the Mini USB connector on the scanner.
3. Power on your PC, and then connect the large end of the USB cable to a USB port on your PC.
Power
4. Press and hold the
CAUTION: Do not remove the memory card while the computer is accessing the files on it.
Always do this for pictures
Open folder to view files
option
Max. 2.5mm
Max.
2.5mm
Max. 2.5mm
button for 2 seconds.
.
checkbox
.
Max.
2.5mm
