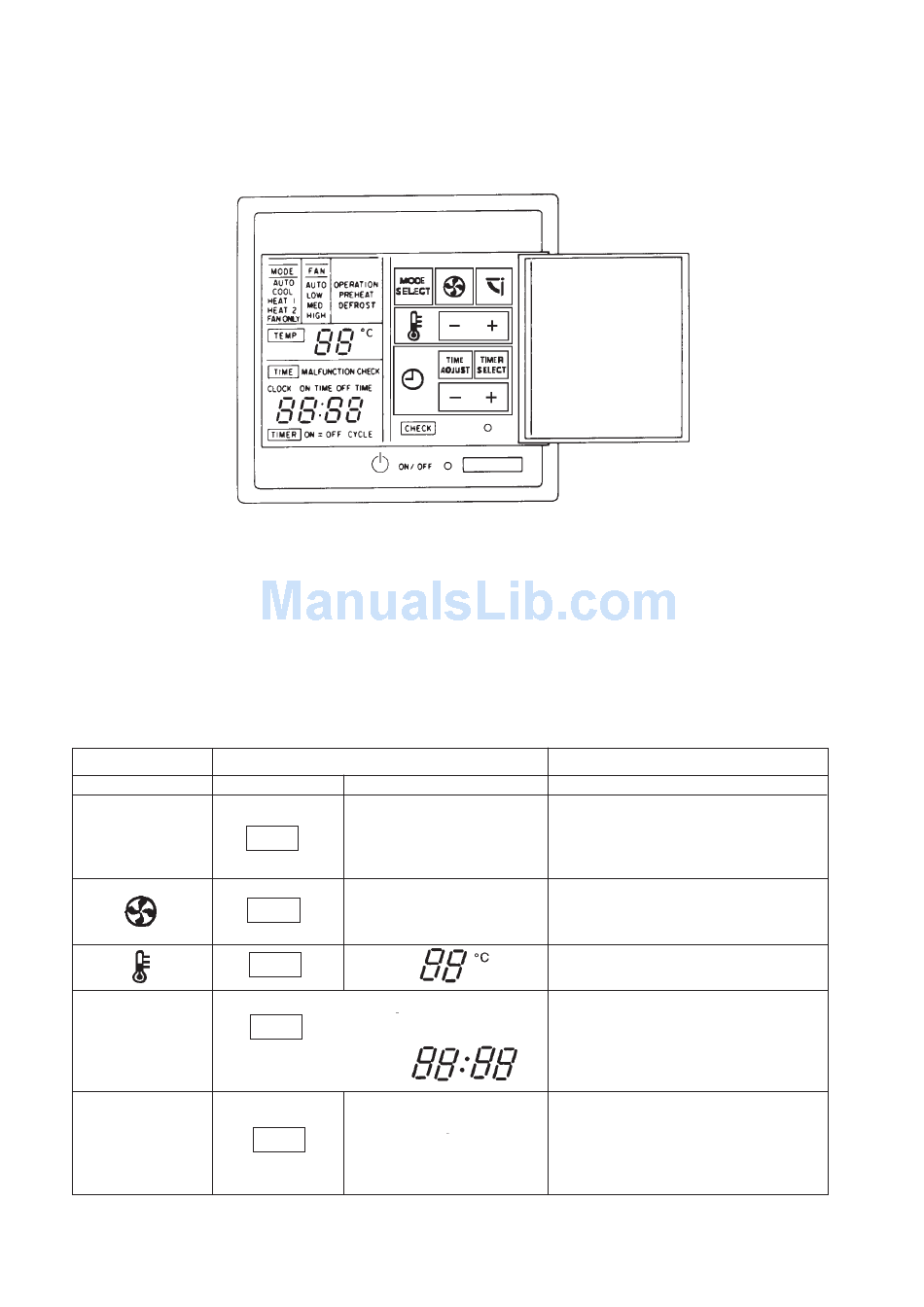

6.1 Remote controller

BUTTON
ON/OFF
MODE
SELECT
TIME
ADJUST
TIMER
SELECT
Tel: 01823 665660
Heronhill - for all your Toshiba requirements
6. REMOTE CONTROLLER
INDICATOR
LED (RED)
AUTO
COOL
MODE HEAT 1
HEAT 2
FAN ONLY
AUTO
LOW
FAN
MED
HIGH
TEMP.
(1) CLOCK
(2) ON TIME
TIME
(3) OFF TIME
ON
OFF
TIMER
ON → OFF
ON ← OFF
CYCLE
www.heronhill.co.uk
Run/Stop
Auto Changeover
Cooling
Heating
Heating
(with indoor fan operation at defrost)
Fan only
Auto Fan Speed Control
Low Fan Speed
Med. Fan Speed
High Fan Speed
Temperature setting
° F
(1) Present Time Adjust
(2) ON Time Setting
(3) OFF Time Setting
ON Timer
OFF Timer
ON → OFF Timer
OFF → ON Timer
24H Cycle Timer
- 36 -
OPERATION
