Wiring For Group Operation - Toshiba RAV-182B-PE Service Manual

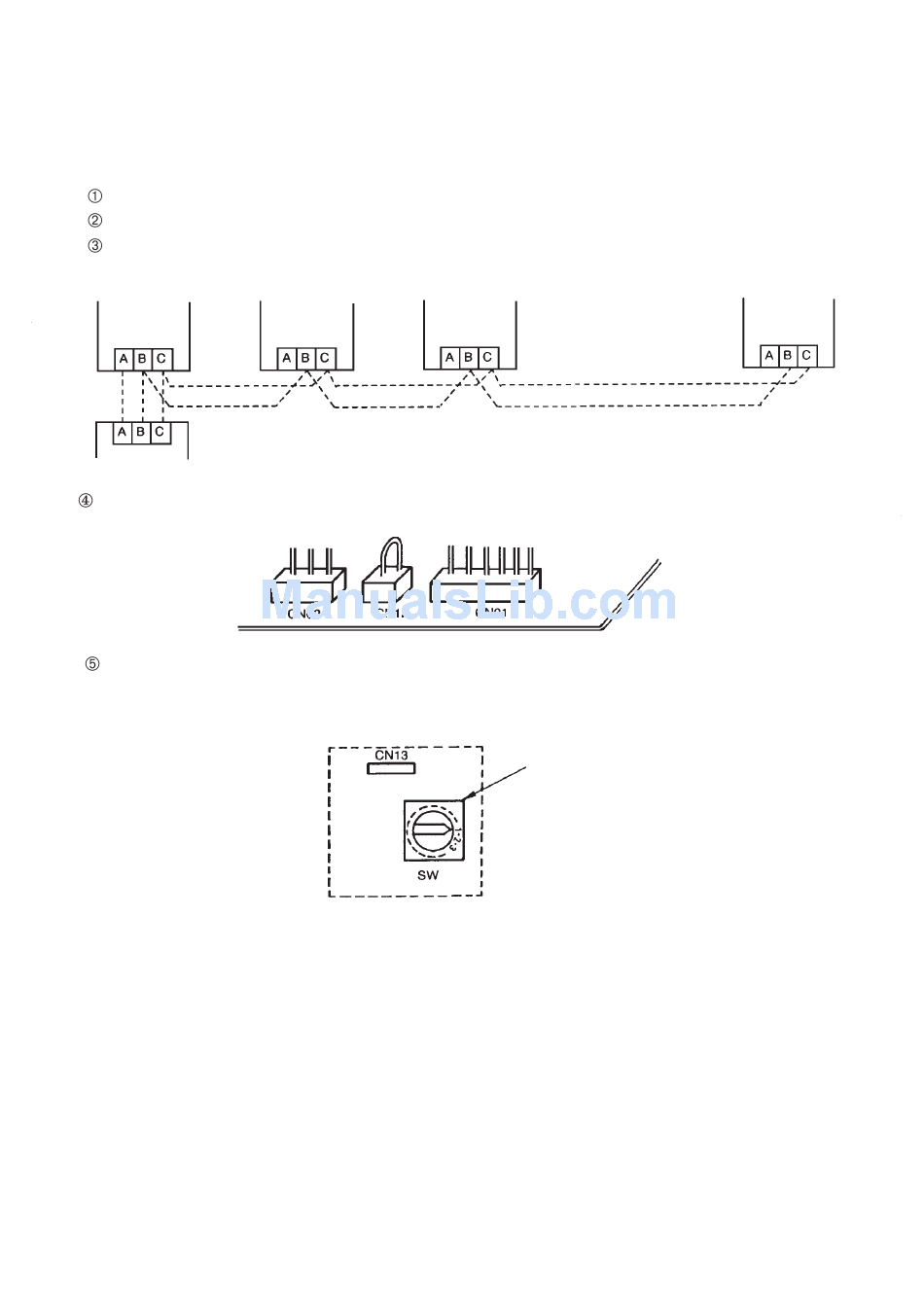

Up to 16 units can be controlled as a group by one remote controller.
Align the phase sequence of the power supply to all outdoor units.
Connect the terminals A, B, C on both the remote controller and the indoor unit of No. 1 unit.
Connect terminals B, C on both indoor units of No. 1 and No. 2 unit. Then connect in the same way No. 2 and No. 3,
No. 3 and No. 4 .... up to No. 16 unit.
Indoor unit
No. 1
Remote controller
Remove the CN12-connector on the indoor PC board of No. 2 unit and up to No. 16 unit to prevent malfunction.
Set each unit No. rotary switch on the indoor PC board. The unit connected to the remote controller should be set as No.
1 unit. Then set No. 2 and up to No. 16 so that start time of each unit is respectively delayed to prevent simultaneous
starting current.
Tel: 01823 665660
Heronhill - for all your Toshiba requirements

9. WIRING FOR GROUP OPERATION

Indoor unit
Indoor unit
No. 2
Make sure of correspondence of terminal marks.
- 50 -
www.heronhill.co.uk
No. 3
Rotary switch
Indoor unit
No. 16
